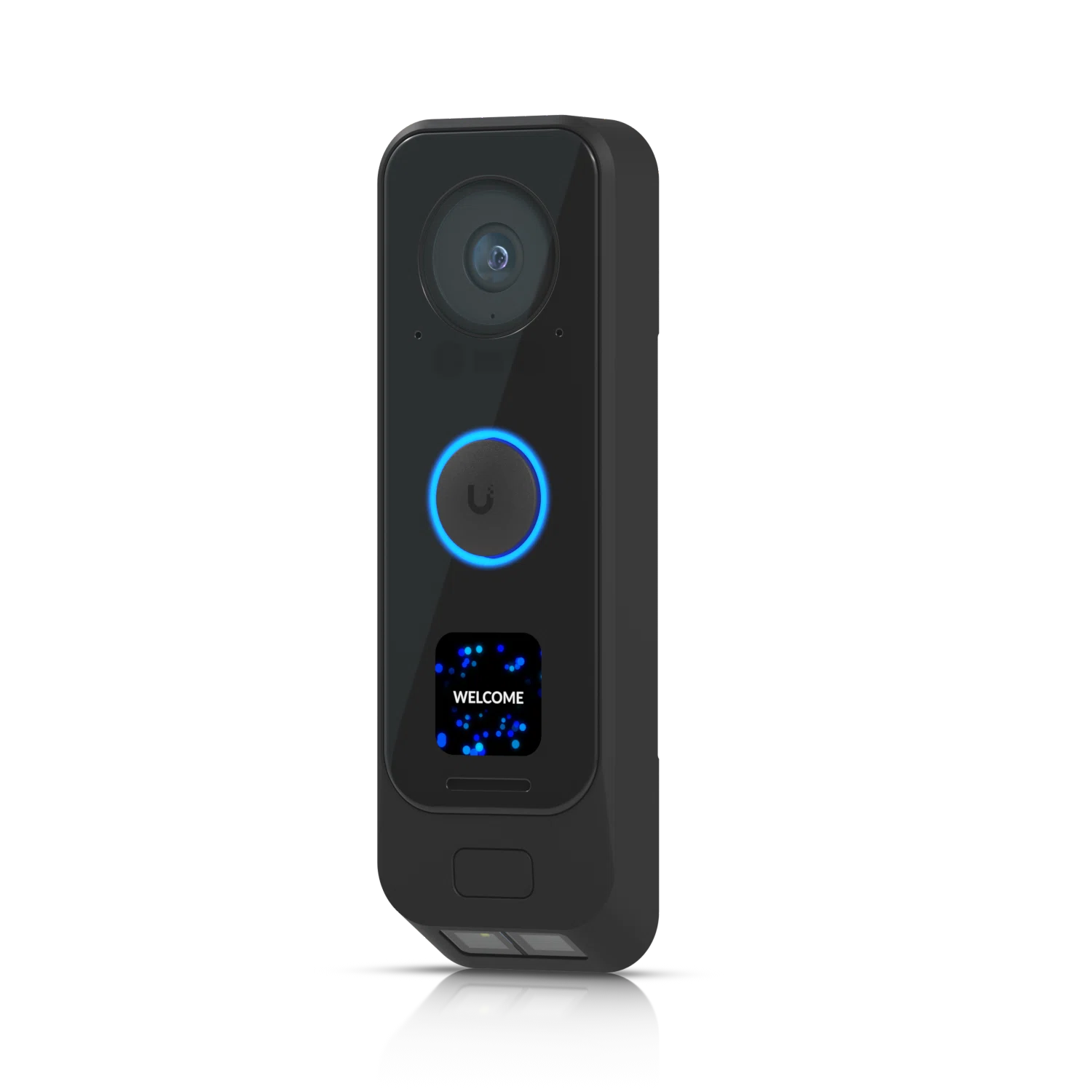

G4 Doorbell Pro

Key details

BrandUbiquiti

Manufacturer modelUVC-G4 Doorbell Pro

InstallationQuoted separately

AIAI Detections

IR6 m (20 ft)

ConnectionWiFi Auto-Link

Lens ResolutionFHD

SoundTwo-Way Audio

View AngleMain camera: H: 138°, V: 114°, D: 155° Package camera: H: 97.5°, V: 79.4°, D: 118.2°

WeatherproofOutdoor Covered

Dimensions160.6 x 51.7 x 28.7 mm (6.3 x 2 x 1.1")

IR Night Vision6 m (20 ft)

ResolutionFHD

Field of ViewMain camera: H: 138°, V: 114°, D: 155° Package camera: H: 97.5°, V: 79.4°, D: 118.2°

AudioTwo-way audio

WeatherproofingIPX4

MountingFlat wall, 20° wedge (Included)

UniFi Application SuiteProtect

Networking Interface802.11a/b/g/n/ac WiFi Bluetooth 5.0 GbE support (With UACC-Adapter-DBPOE)

Max. Frame Rate30 FPS

ResolutionMain camera: 2MP 1600 x 1200 (4:3) Package camera: 2MP 1600 x 1200 (4:3)

SensorMain camera: 5MP CMOS Package camera: 8MP CMOS

LensFixed focal length

Night ModeBuilt-in IR LED illumination and IR cut filter

Max. Power Consumption10W

Power Method16–24V AC, 1.25A Max., 50/60 Hz USB-C power cable, 5V DC, 2A

ProcessorQuad-core Arm® Cortex®-A53 based chip

WeightDevice: 253 g (8.9 oz) With flat wall mount: 286 g (10.1 oz) With 20° wedge mount: 325 g (11.5 oz)

Enclosure MaterialPolycarbonate, aluminum alloy

Mount MaterialFlat wall mount: aluminum alloy 20° wedge mount: polycarbonate

Button(1) Ring button (1) Factory reset

Compatible ChimesMechanical Broan-NuTone: LA126WH, LA11WH, LA39WH Heath Zenith: SL-2735 Craftmade: CTPW-RG Newhouse Hardware: CHM3D Digital Broan-NuTone: LA600WH IQ AMERICA: DW-2850, DW-2840

Ambient Operating Temperature-10 to 40° C (14 to 104° F)

Ambient Operating Humidity10 to 90% noncondensing

CertificationsCE, FCC, IC

Input Rating (5, 6)230V, 50/60Hz

Input Rating (1, 4)16V AC, 15VA

Ambient Operating Temperature-5 to 35° C (23 to 95° F)

Equipment price$427.70

Highlights

• Improved HDR and low-light performance
• Programmable welcome display and secondary package-detection camera
• 6 m (20 ft) IR night vision
• AI event detections
• Wirelessly connected with UniFi WiFi Auto-Link*
• Integrated 2-way audio
• Weather-resistant (outdoor covered)
• *Third-party WiFi configuration available during setup with the UniFi Protect mobile app.
