Security cameras product — CMIP7553W5-SZ8
Professional-grade equipment · Installation available
LTS · Specialty IP camera

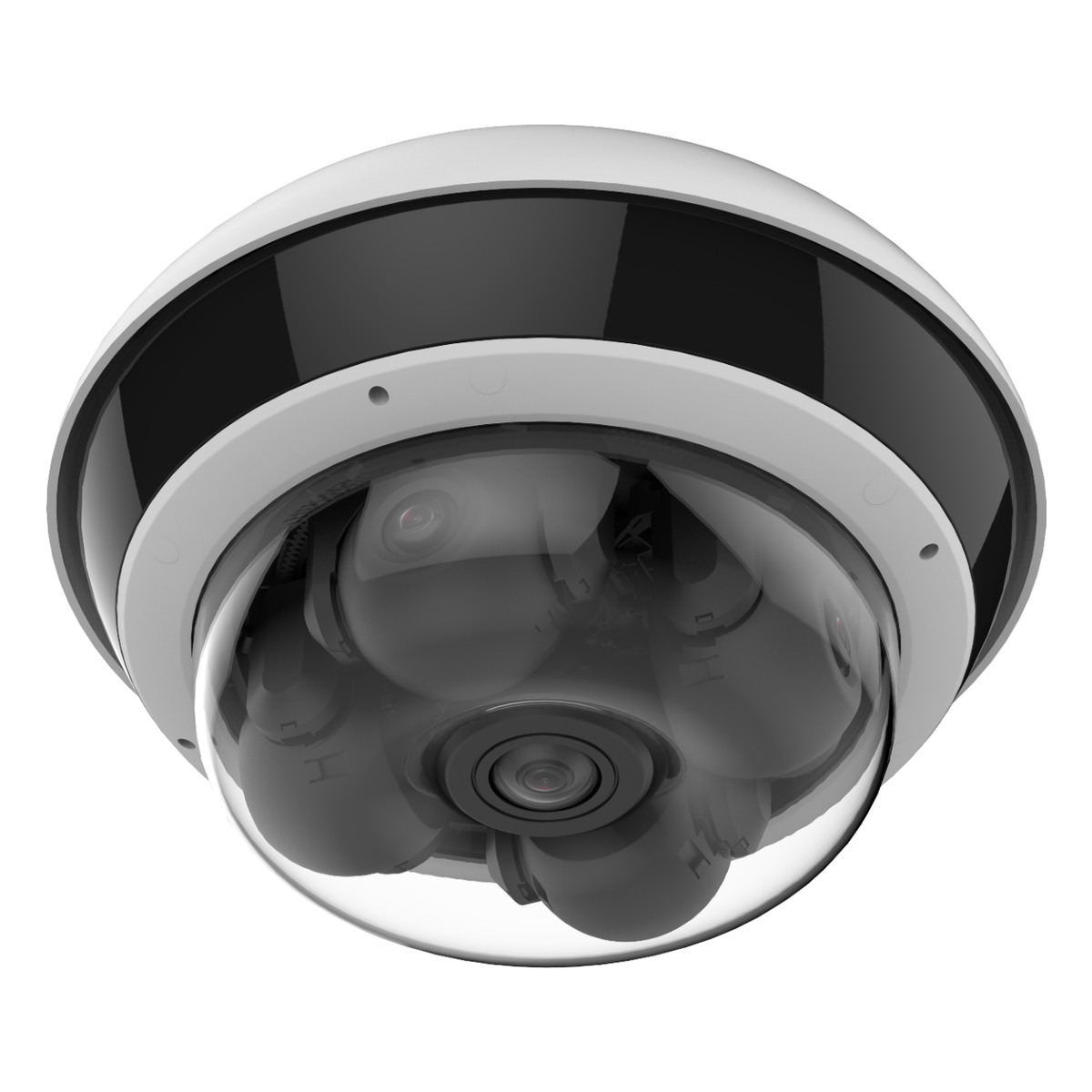

Platinum Plus 5-Directional Multi-sensor IP Camera

Four adjustable lenses and single fixed lens together capture up to 360 degrees, eliminating blind spots. The top/center lens records at up to 5 MP, capturing clear images and details that can be displayed on a video wall. Clear imaging against strong back light is due to the 120 dB true WDR technology. LTS's unique InstaDome feature enables efficient installation.

ModelCMIP7553W5-SZ8Sold as1 unit
Product detailsOverview, features and technical specifications
Product overview

What this equipment does.

Four adjustable lenses and single fixed lens together capture up to 360 degrees, eliminating blind spots. The top/center lens records at up to 5 MP, capturing clear images and details that can be displayed on a video wall. Clear imaging against strong back light is due to the 120 dB true WDR technology. LTS's unique InstaDome feature enables efficient installation.

Image Sensors: Varifocal: 1/2.4" Progressive Scan CMOS; Fixed: 1/2.5" Progressive Scan CMOSMax. Resolutions: 4 @ 2560 x 1920 and 1 @ 1440 x 1440Min. Illumination: Color: 0.005 Lux @ f 1.2, AGC onB&W: 0.002 Lux @ f 1.2, AGC on | 0 Lux with IRAngle Adjustment: Pan: 0° to 350°, tilt: 0° to 90°, rotate: -90° to 90°Human and vehicle target classification based on deep learning for up to 4 channelsWater and dust resistant (IP67) and vandal proof (IK10)Professional design and installation availableTracked continental U.S. delivery
Plan design and installation
Technical specifications
ManufacturerLTS
ModelCMIP7553W5-SZ8
Product categorySpecialty IP camera
Sold as1 unit
How to purchaseBuy online
DownloadsSpecifications, manuals and product documents
Product information

Specifications and documents

Review printable model details and manufacturer documentation before ordering.
