Equipment shop
Ubiquiti · Ubiquiti wireless and Wi-Fi

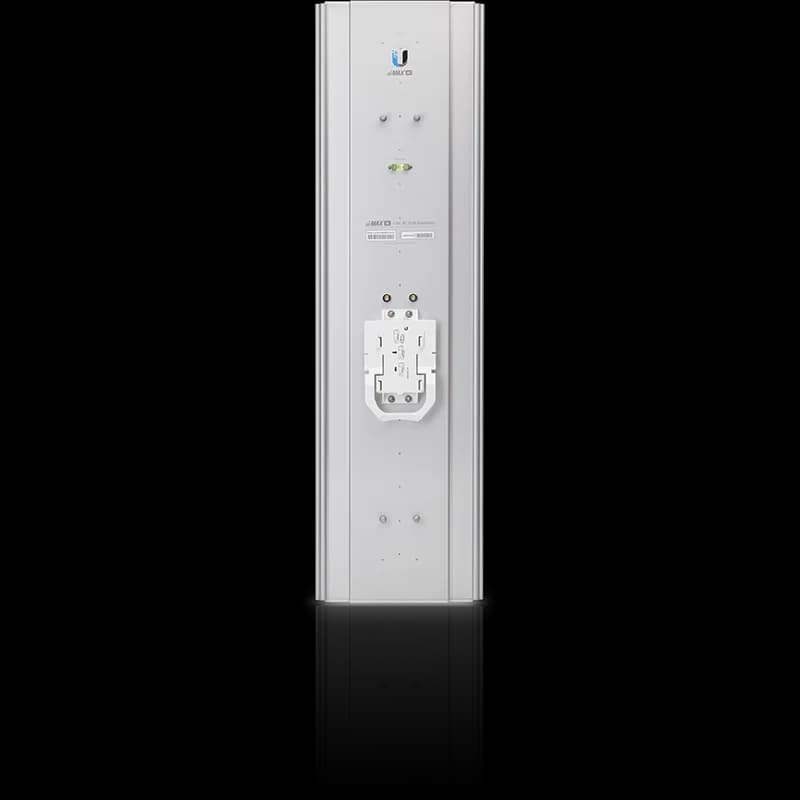

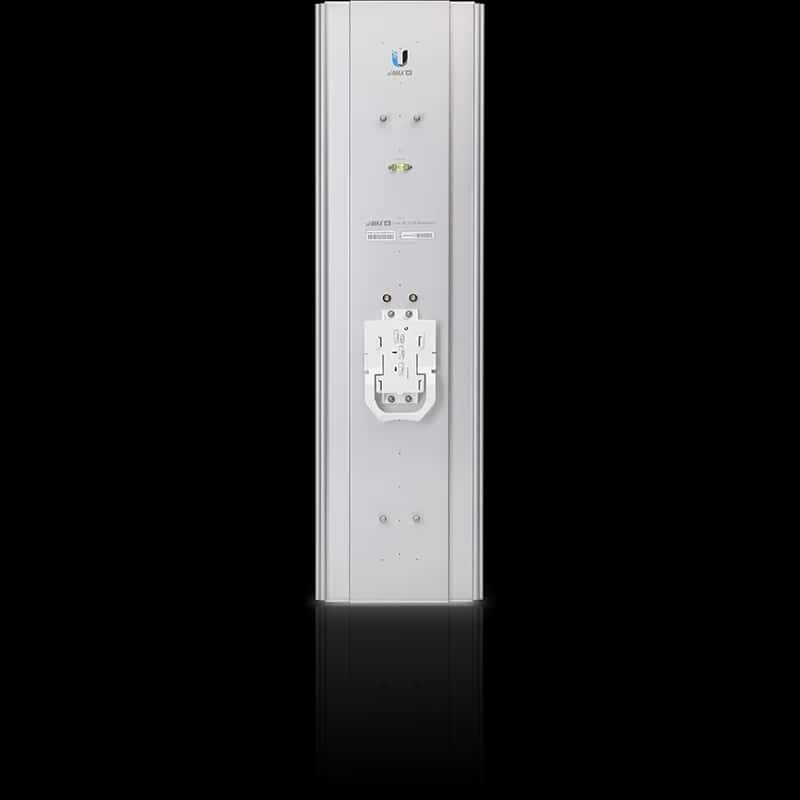

airMAX AC 5 GHz, 22 dBi, 45º Sector Antenna

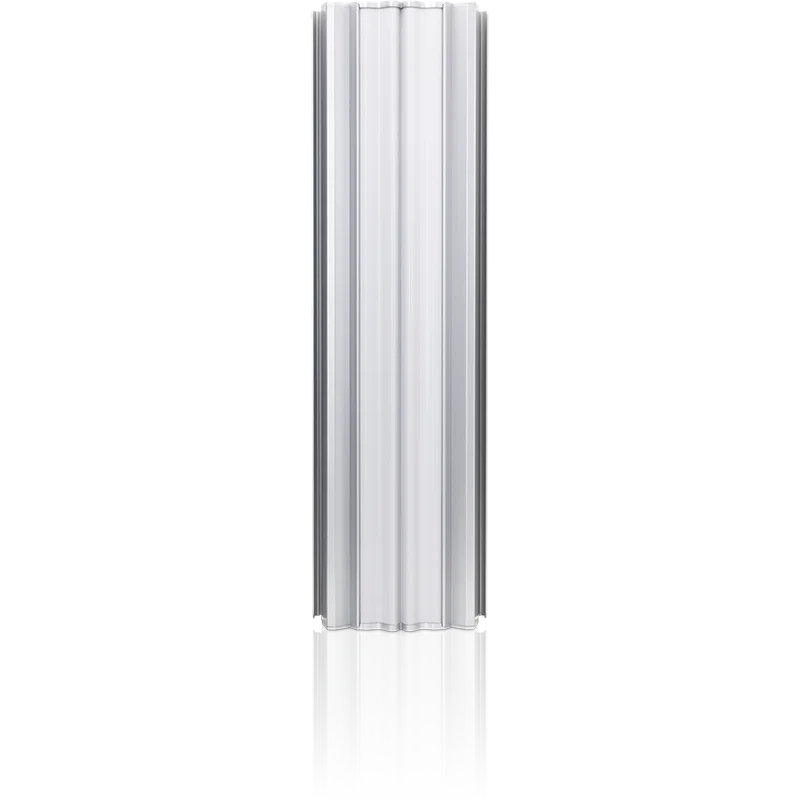

Image 1 of 2Manufacturer product view 1

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti wireless and Wi-Fi

airMAX AC 5 GHz, 22 dBi, 45º Sector Antenna

Read customer reviews
ModelAM-5AC22-45Sold as1 unit

5 GHz, 45º, 22 dBi BaseStation sector antenna for Point‑to‑MultiPoint (PtMP) networks.

Top highlights

Product detailsOverview, features and technical specifications

5 GHz, 45º, 22 dBi BaseStation sector antenna for Point‑to‑MultiPoint (PtMP) networks.

At a glance

Highlight 12x2 dual-polarity performance
Highlight 2Robust mechanical design for outdoor application use
Highlight 3Compatible with Rocket Prism 5AC
airMAX AC 5 GHz, 22 dBi, 45º Sector Antenna
airMAX AC 5 GHz, 22 dBi, 45º Sector Antenna

Specifications

BrandUbiquiti
Manufacturer modelAM-5AC22-45
InstallationQuoted separately
Dimensions750 x 215 x 94 mm (29.5 x 8.5 x 3.7")
Weight6 kg (13.2 lb)
Wind Survivability200 km/h (125 mph)
Wind Loading347 N at 200 km/h (78 lbf at 125 mph)
MountingUniversal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
All specifications (17)
Frequency Range5.10—5.85 GHz
Antenna Gain22 dBi
Electrical Downtilt2°
Electrical Beamwidth4°
VPOL Beamwidth45° (6 dBi)
Max. VSWR1.5:1
PolarizationDual-Linear
Cross-Pol Isolation30 dB Min.
ETSI SpecificationEN 302 326 DN2
DownloadsSpecifications, manuals and product documents
