Ubiquiti · Ubiquiti wireless and Wi-Fi

Access Point E7 Audience

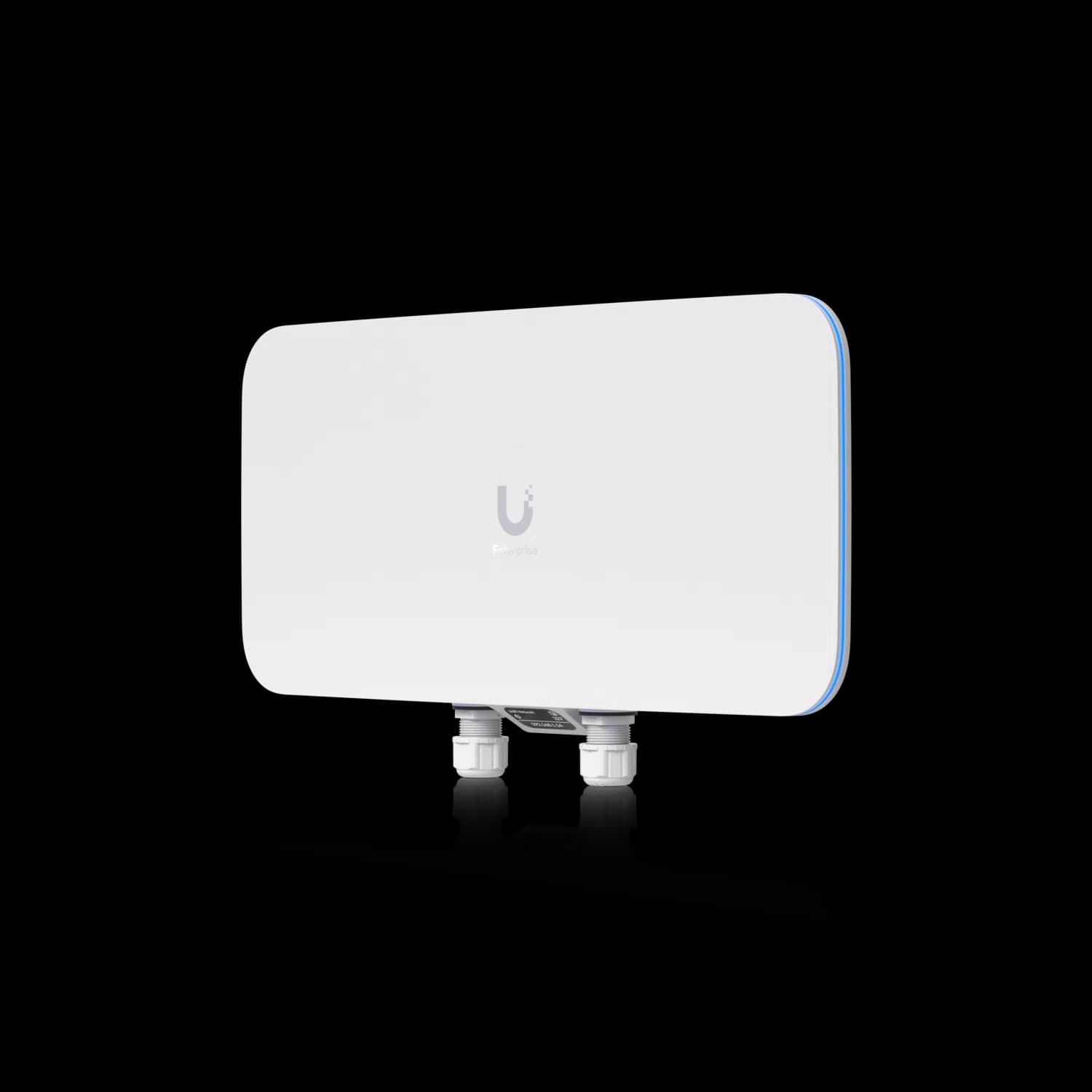

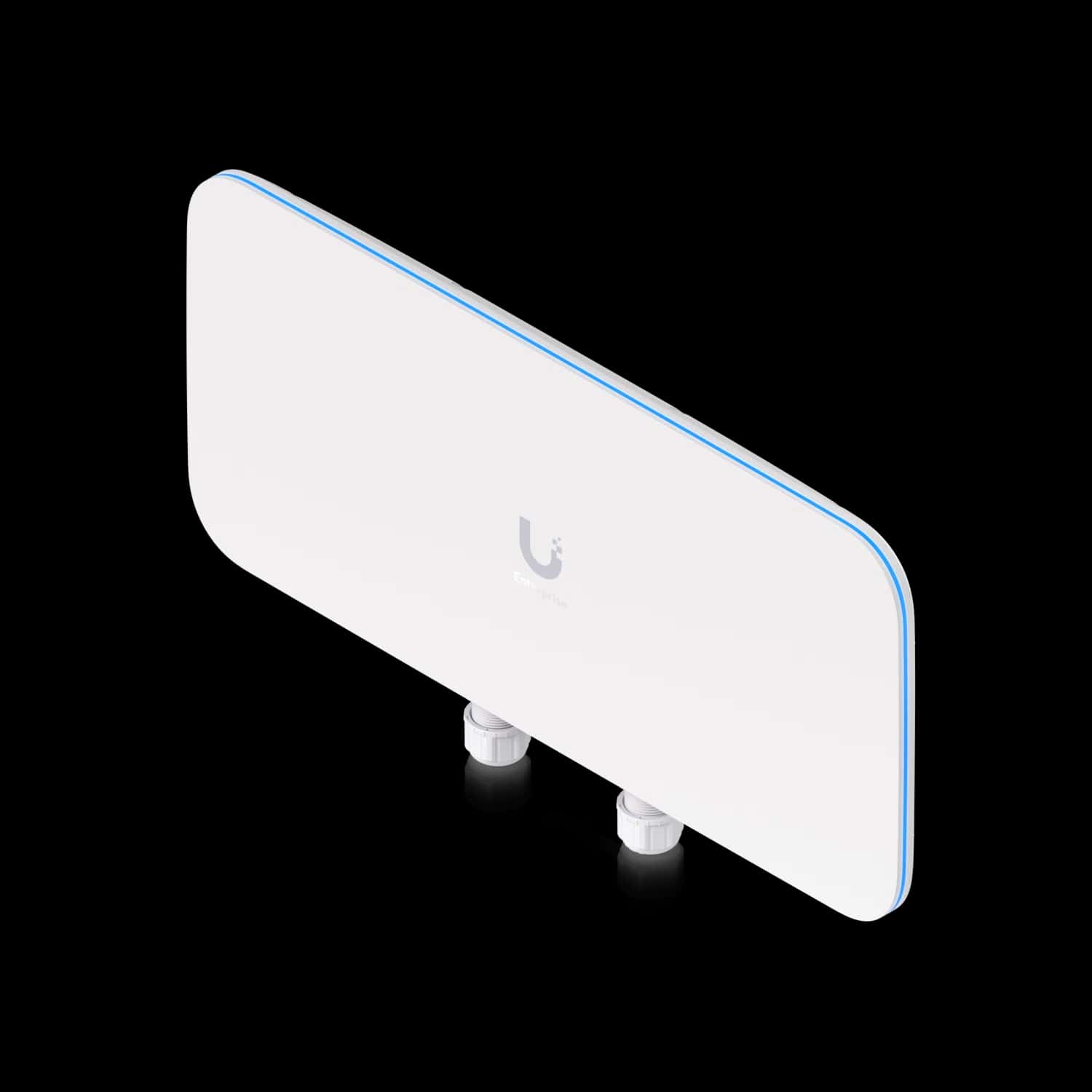

Name: Ubiquiti Access Point E7 Audience
Brand: Ubiquiti
SKU: UBNT-CATALOG-E7-AUDIENCE-US
Price: 2862.60 USD
Availability: InStock

Image 1 of 8Product view

Professional-grade equipment · Installation available

Ubiquiti · Ubiquiti wireless and Wi-Fi

Access Point E7 Audience

Read customer reviews

ModelE7-AudienceSold as1 unit

Enterprise-grade, indoor/outdoor access point designed for high-density environments with 12-stream 5 GHz and 6 GHz WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability. Note. 6 GHz operation is supported in these countries . Long-range 6 GHz performance with AFC available in FCC/IC region only.

Top highlights

WiFi 7 with 6 GHz support
12 spatial streams
Real-time spectral analysis for enhanced channel selection

See more highlights

High selectivity PRISM™ RF filtering technology
Dedicated spectral analyzer radio
Selectable directional beamforming antenna (15 dBi, 50° or 11 dBi, 90°) allows for cell size optimization
Long-range 6 GHz performance with AFC*
465+ m² (5,000+ ft²) open space coverage
1,500+ connected devices
(1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy
Versatile wall and pole mounting
Powered using PoE++
IP68 Waterproof
Note. 6 GHz operation is supported in these countries .
*Available in FCC/IC region only.

Product detailsOverview, features and technical specifications

At a glance

Highlight 1	WiFi 7 with 6 GHz support
Highlight 2	12 spatial streams
Highlight 3	Real-time spectral analysis for enhanced channel selection
Highlight 4	High selectivity PRISM™ RF filtering technology

More highlights

Highlight 5	Dedicated spectral analyzer radio
Highlight 6	Selectable directional beamforming antenna (15 dBi, 50° or 11 dBi, 90°) allows for cell size optimization
Highlight 7	Long-range 6 GHz performance with AFC*
Highlight 8	465+ m² (5,000+ ft²) open space coverage
Highlight 9	1,500+ connected devices
Highlight 10	(1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy
Highlight 11	Versatile wall and pole mounting
Highlight 12	Powered using PoE++
Highlight 13	IP68 Waterproof
Highlight 14	Note. 6 GHz operation is supported in these countries .
Highlight 15	*Available in FCC/IC region only.

Specifications

Brand	Ubiquiti
Manufacturer model	E7-Audience
Installation	Quoted separately
Max. Client Count	1,500
WiFi7	WiFi 7
Radio/Antenna	6 GHz Radio
Uplink	10 GbE
Dimensions	Device: 474.1 x 265.5 x 42.2 mm (18.7 x 10.5 x 1.7") Bracket: 150.4 x 113.6 x 125 mm (5.9 x 4.5 x 4.9")

All specifications (47)

WiFi Standard	WiFi 7
Spatial Streams	12
Coverage Area	465 m² (5,000 ft²)
Max. Client Count	1500+
Uplink	10 GbE 1 GbE
Mounting	Wall, Pole (Mounts Included) VESA (Optional)
Weatherproofing	IP68
Power Method	PoE++
6 GHz	Low Band: 4 x 4 (DL/UL MU-MIMO) High Band: 4 x 4 (DL/UL MU-MIMO)
5 GHz	4 x 4 (DL/UL MU-MIMO)
6 GHz	Low Band: 11.5 Gbps (BW320) High Band: 11.5 Gbps (BW320)
5 GHz	8.6 Gbps (BW240)
6 GHz	Directional internal: 15 dBi, 50° x 50° Directional internal: 11 dBi, 90° x 90°
5 GHz	Directional internal: 15 dBi, 50° x 50° Directional internal: 11 dBi, 90° x 90°
6 GHz	Low Band: 30 dBm (36 dBm EIRP) High Band: 30 dBm (36 dBm EIRP)
5 GHz	30 dBm
Max. BSSIDs	8 per Radio
802.11be (WiFi 7)	7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6)	7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)	6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n	6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
Max. Power Consumption	51W
Supported Voltage Range	42.5–57V DC
Networking Interface	(1) 10 GbE RJ45 port (1) GbE RJ45 port
Weight	Device: 3.3 kg (7.3 lb) With mount: 4.3 kg (9.5 lb)
Wind Loading	164.75 N at 200 km/h (37 lbf at 125 mph)
Pole Mount Diameter	1–3" (25–76 mm)
Antennas	(1) Internal with directional patterns
Management	Ethernet
Enclosure Material	UV-stabilized polycarbonate, aluminum alloy
Mount Material	Aluminum alloy
System	R/G/B
Channel Bandwidth	VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Operating Frequency	US/CA: U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 and U-NII-7: 5925 - 6425 MHz, 6525 - 6875 MHz Worldwide: 5150 - 5850 MHz 5925 - 7125 MHz
Ambient Operating Temperature	-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	FCC, IC
UniFi Network	Version 9.2.87 and later
Mobile App	iOS™ version 10.24.1 and later Android™ version 10.25.2 and later

DownloadsSpecifications, manuals and product documents

Product information

Specifications and documents

Review printable model details and manufacturer documentation before ordering.

Valence product specificationPrintable product summary · Save as PDF Official product detailsManufacturer website · Hosted by Valence Installation guideManufacturer website · Hosted by Valence
