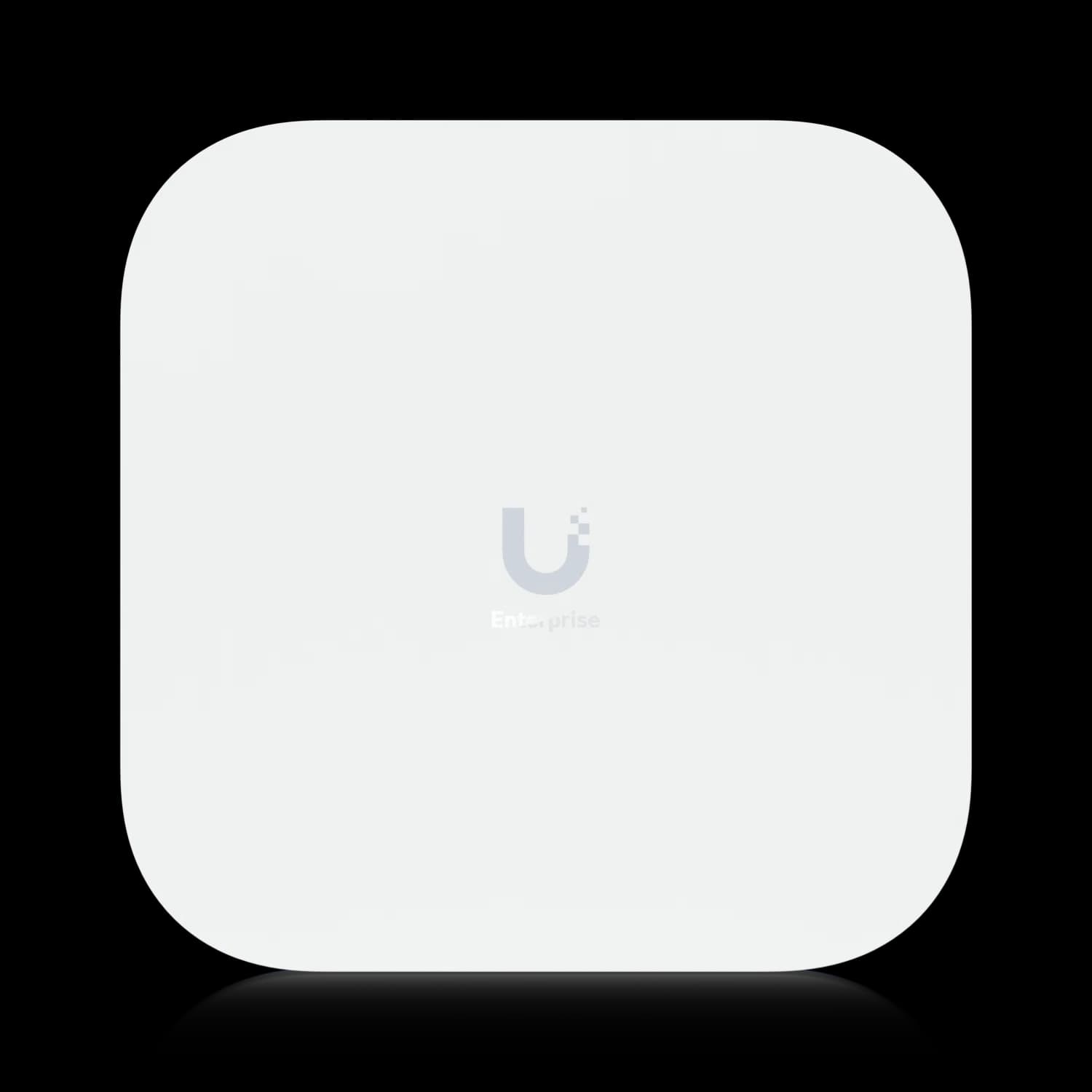

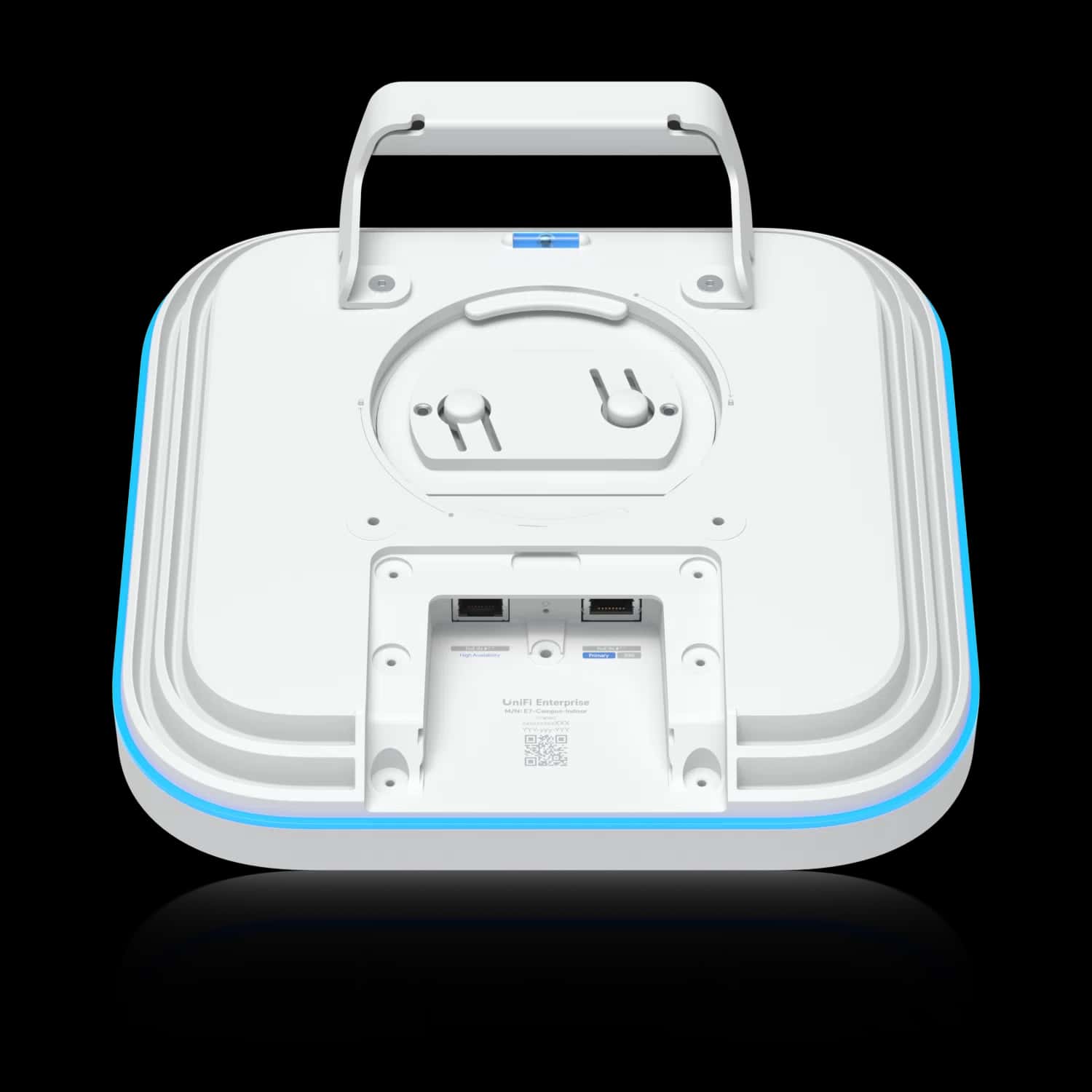

Access Point E7 Campus Indoor

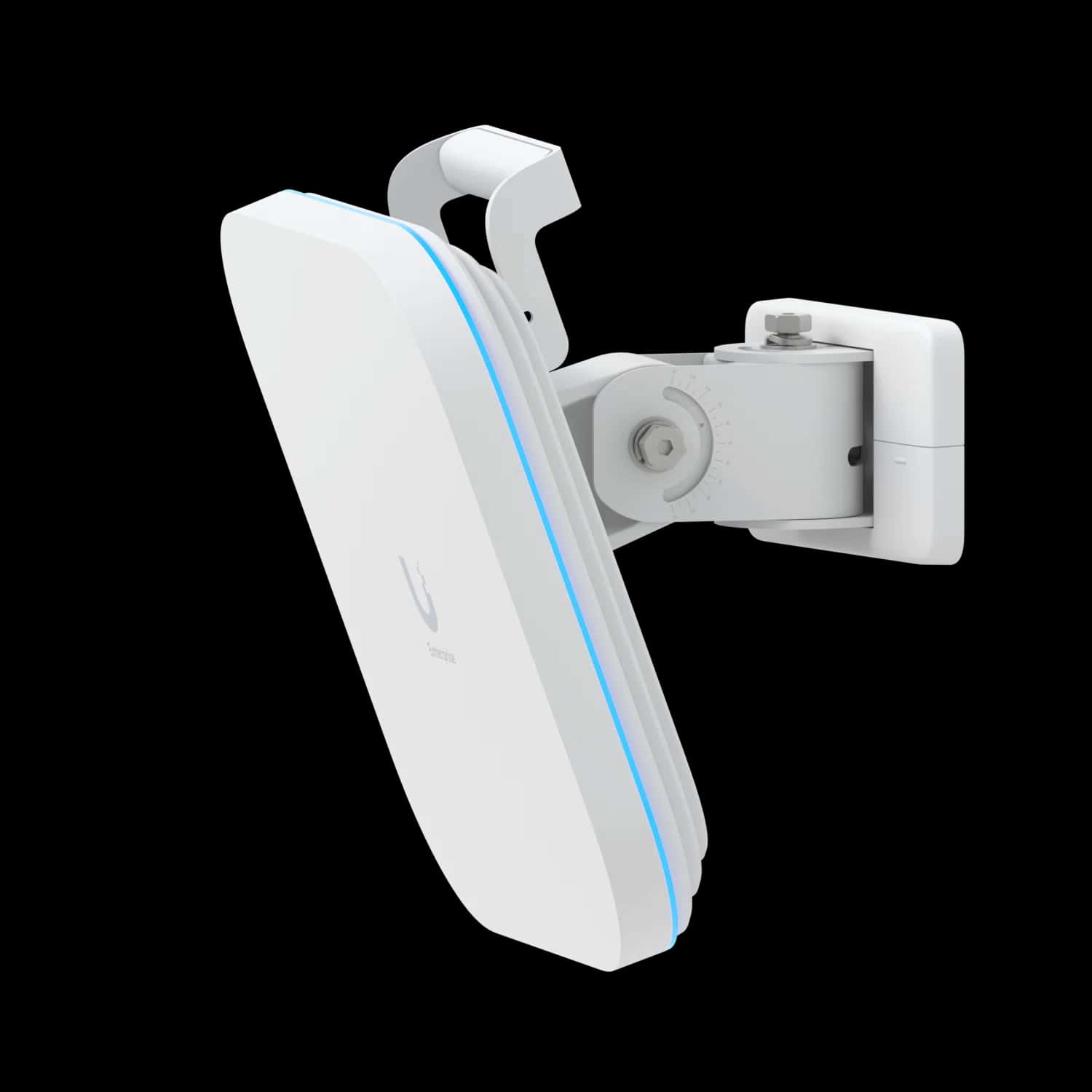

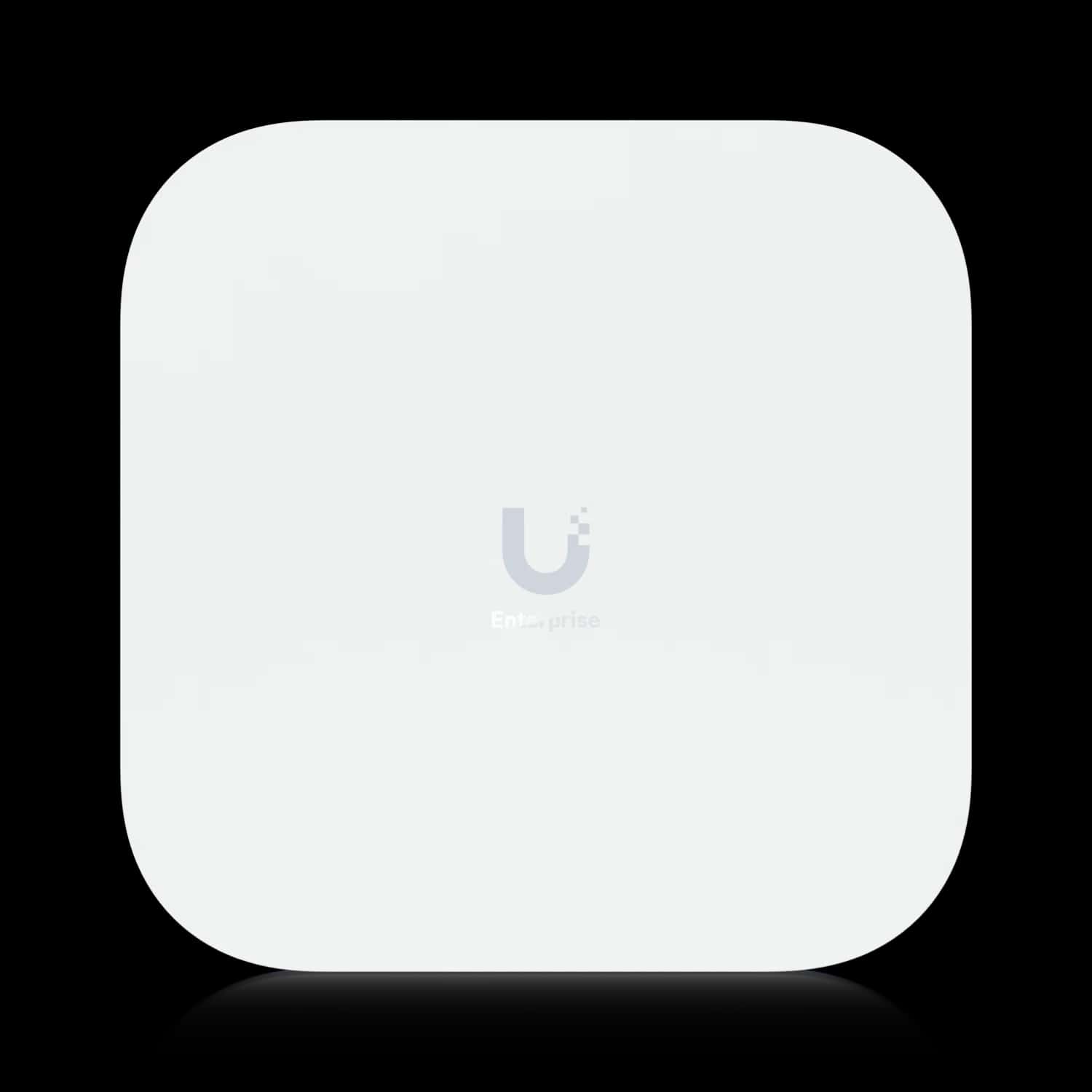

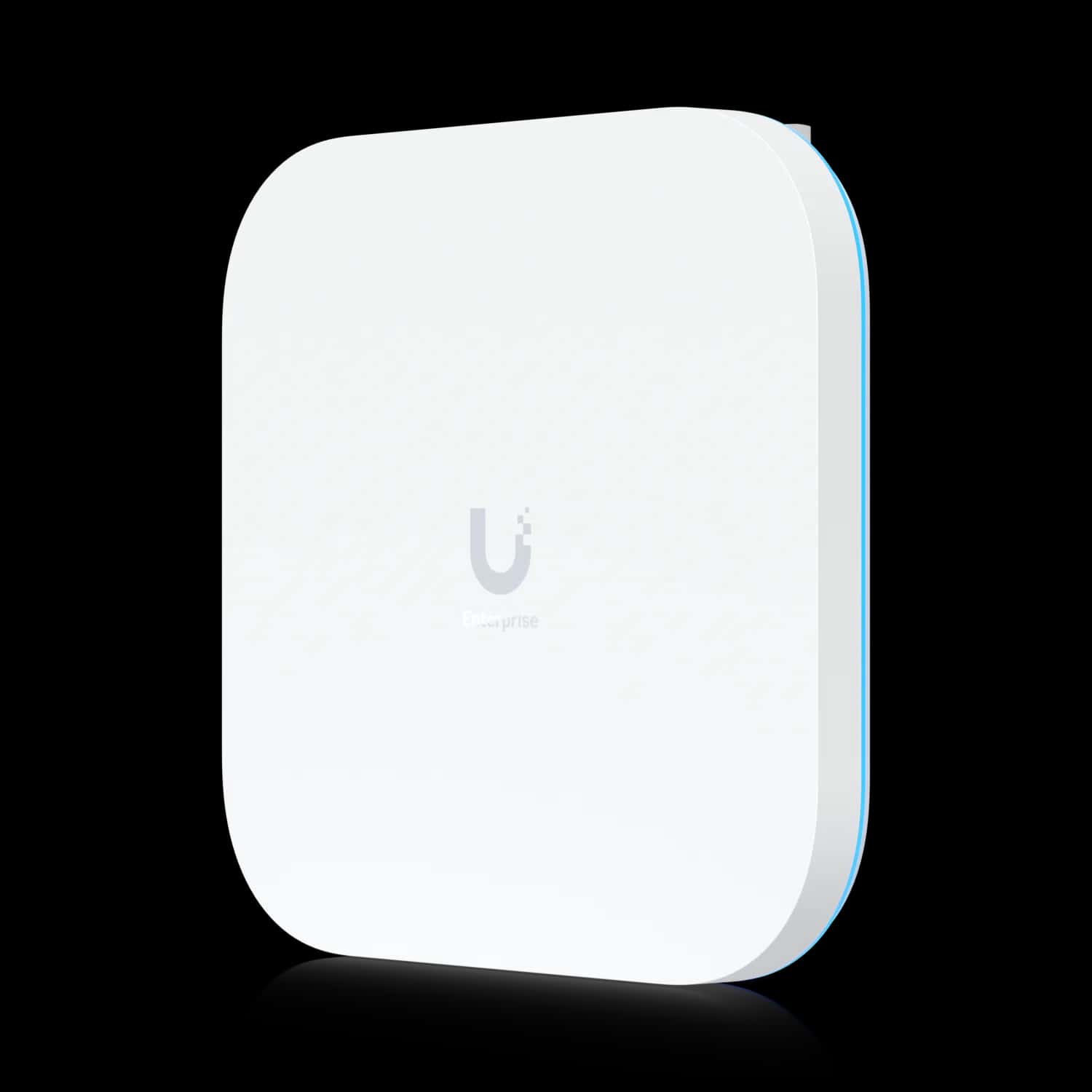

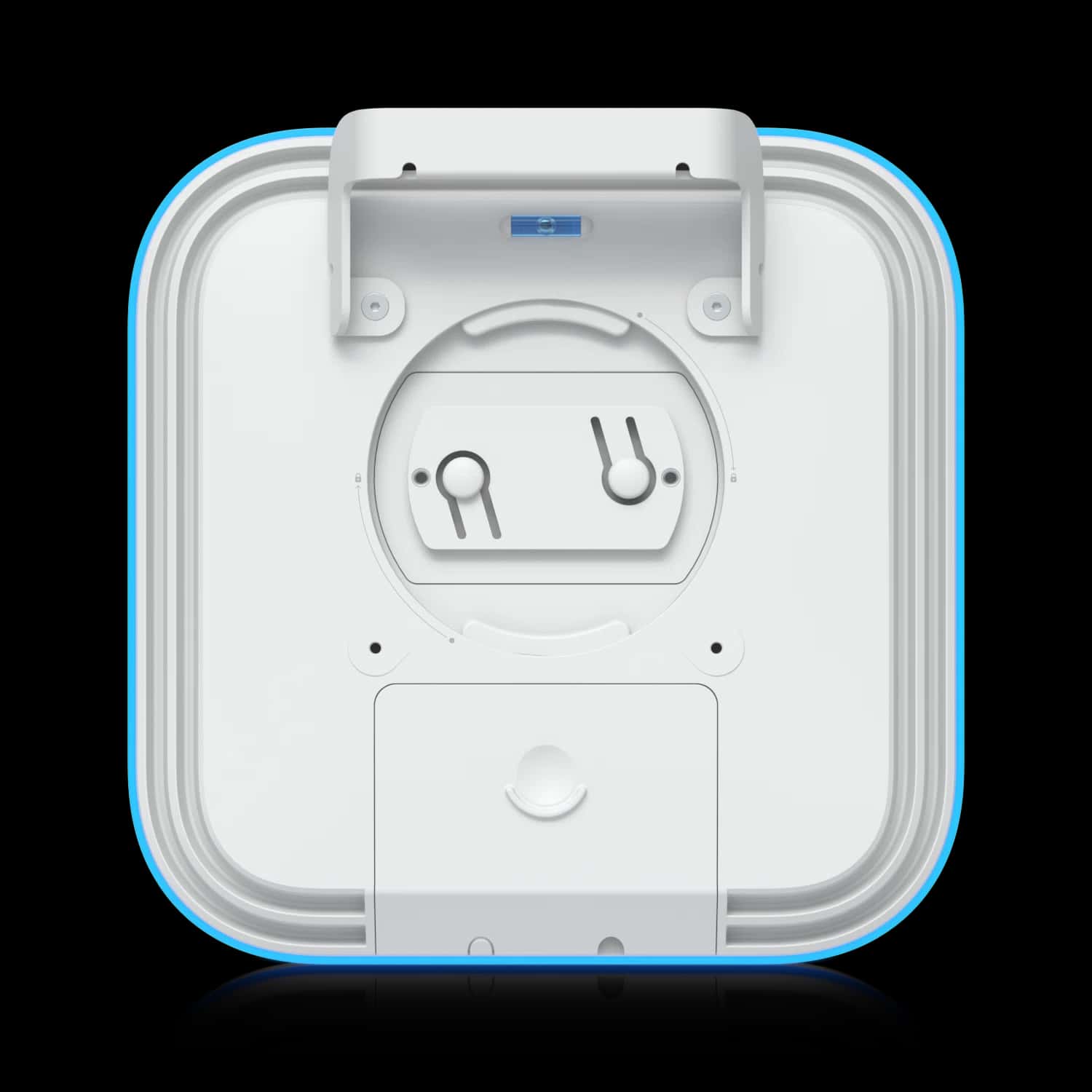

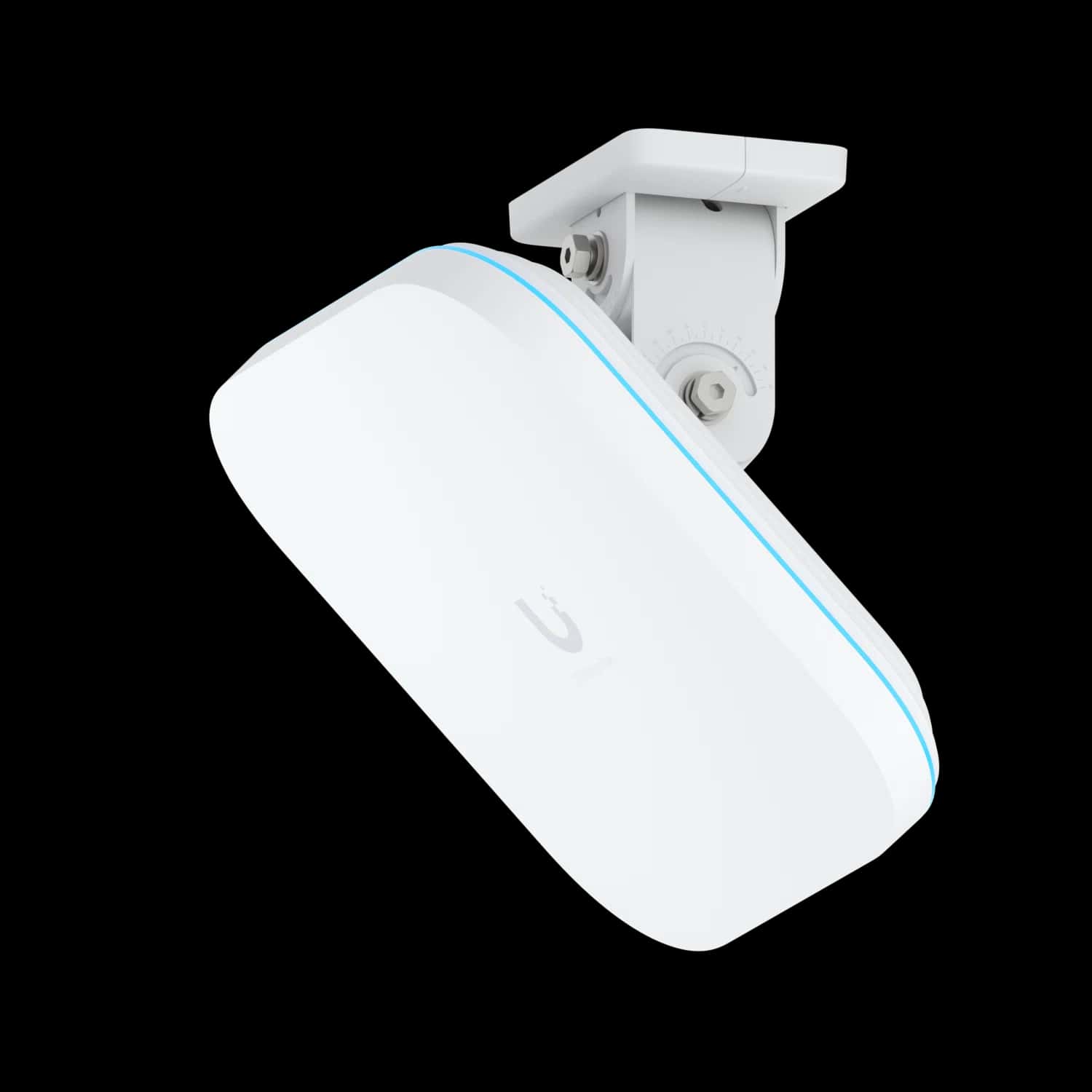

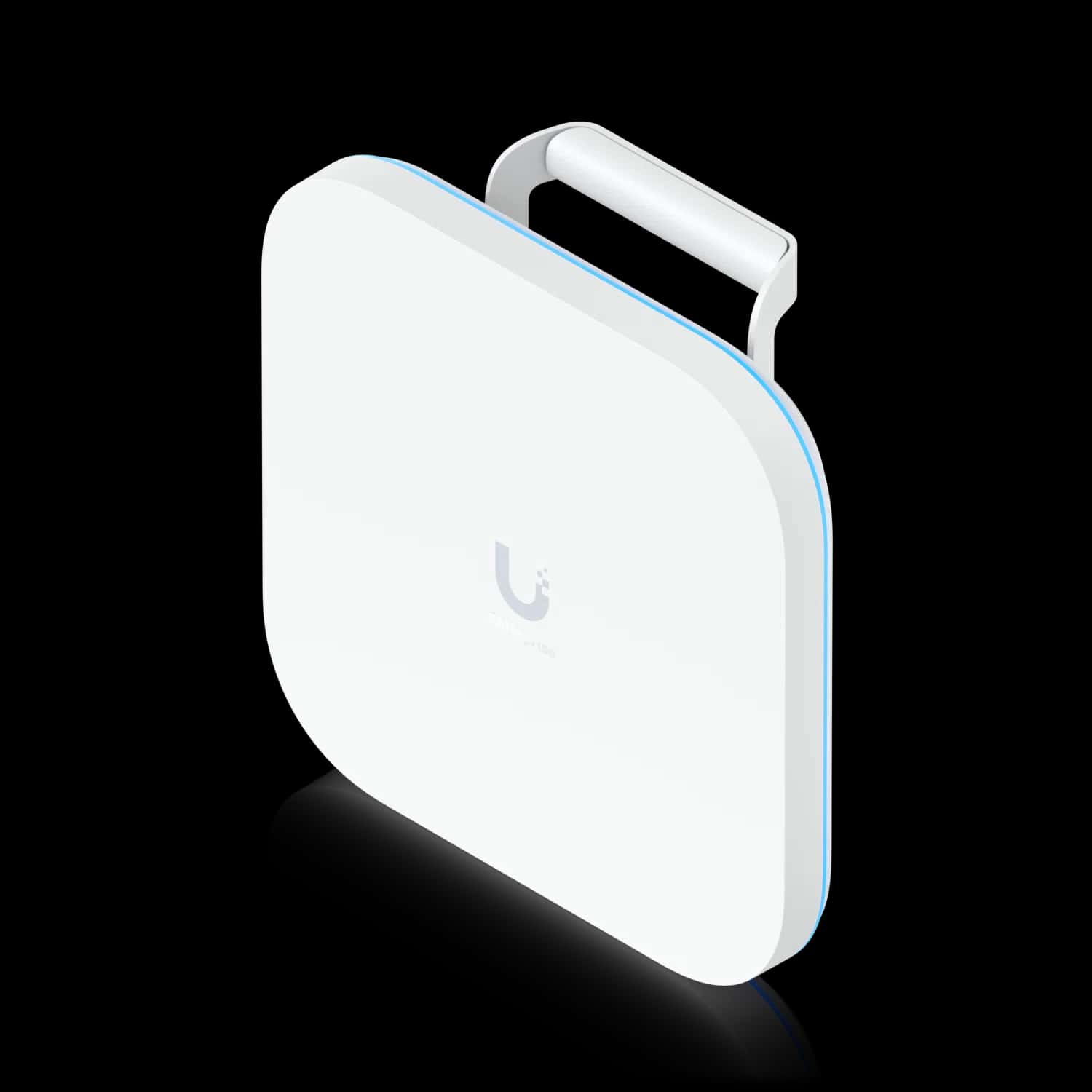

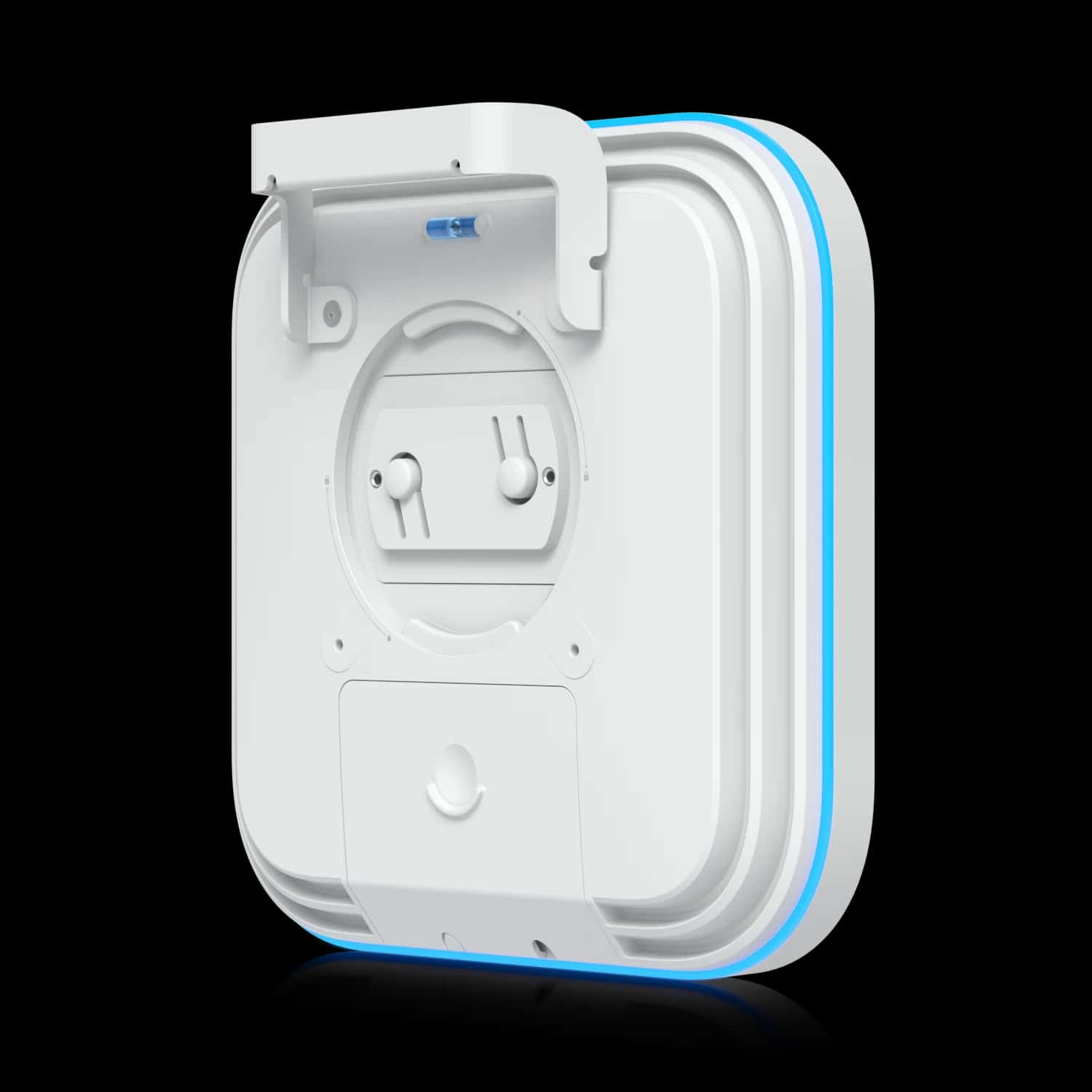

Image 1 of 17Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti wireless and Wi-Fi

Access Point E7 Campus Indoor

Read customer reviews
ModelE7-Campus-IndoorSold as1 unit

Enterprise-grade access point with 10-stream WiFi 7 performance, expanded 6 GHz indoor spectrum capability, a 10 GbE uplink, and a redundant GbE port for high availability. Note. 6 GHz operation is supported in these countries . Long-range 6 GHz performance with AFC available in FCC/IC region only.

Top highlights

Product detailsOverview, features and technical specifications

Enterprise-grade access point with 10-stream WiFi 7 performance, expanded 6 GHz indoor spectrum capability, a 10 GbE uplink, and a redundant GbE port for high availability. Note. 6 GHz operation is supported in these countries . Long-range 6 GHz performance with AFC available in FCC/IC region only.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
Access Point E7 Campus Indoor
Access Point E7 Campus Indoor

Specifications

BrandUbiquiti
Manufacturer modelE7-Campus-Indoor
InstallationQuoted separately
WiFi7WiFi 7
Radio/Antenna6 GHz Radio

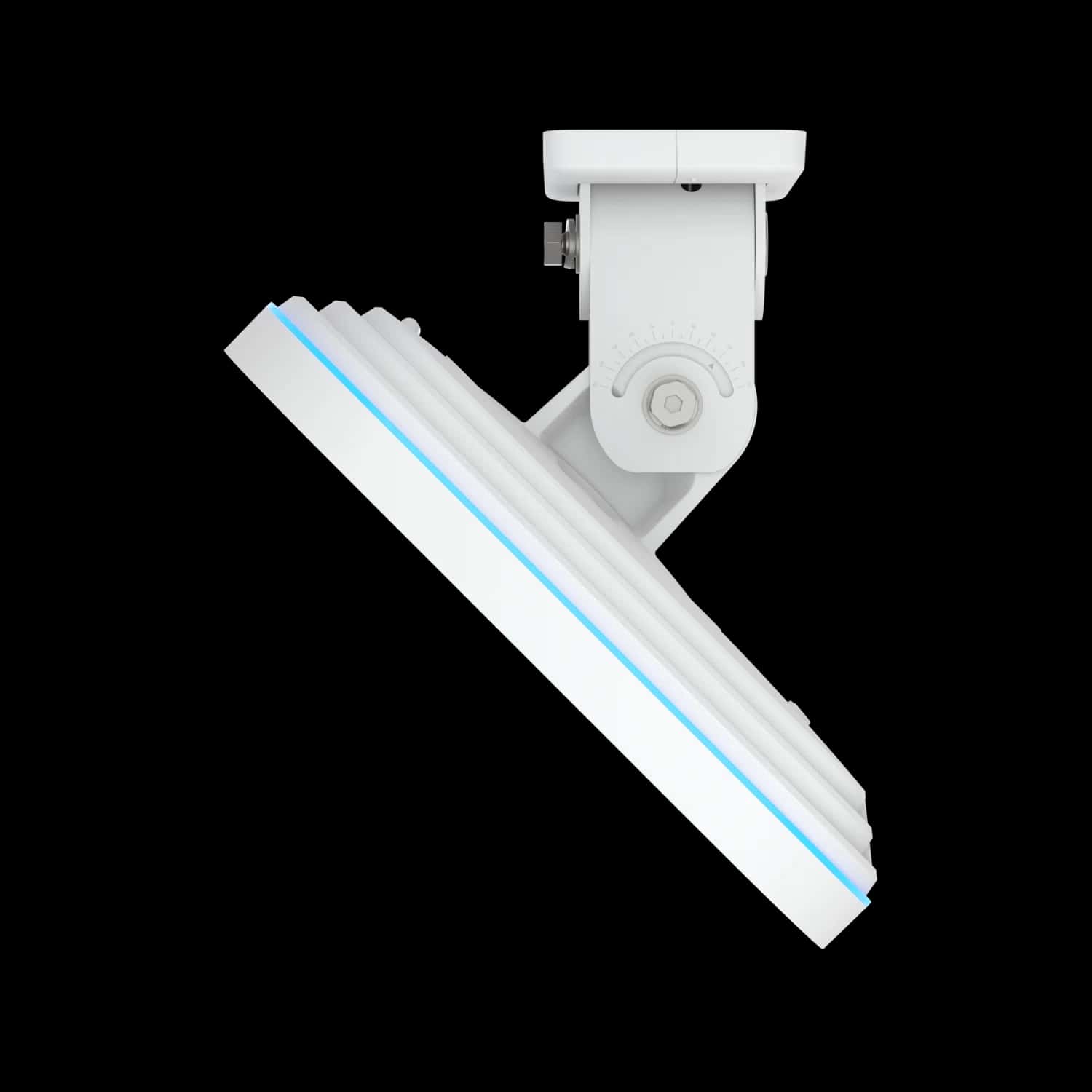

DimensionsDevice: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8") Articulating mount: ⌀104 x 149.4 (⌀4.1 x 5.9")
WiFi StandardWiFi 7
Spatial Streams10
All specifications (49)
Coverage Area465 m² (5,000 ft²)
Max. Client Count1000+
Uplink10 GbE 1 GbE

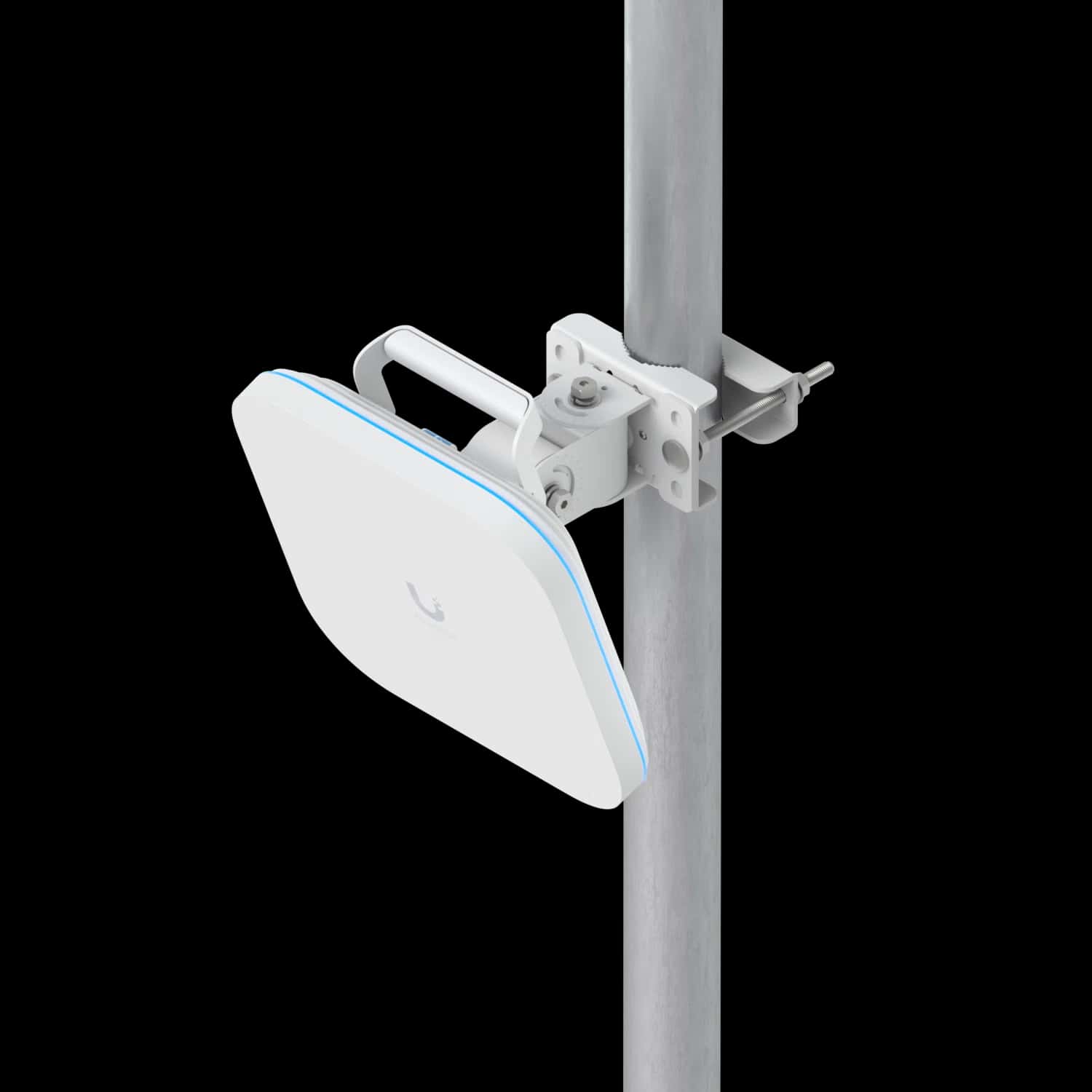

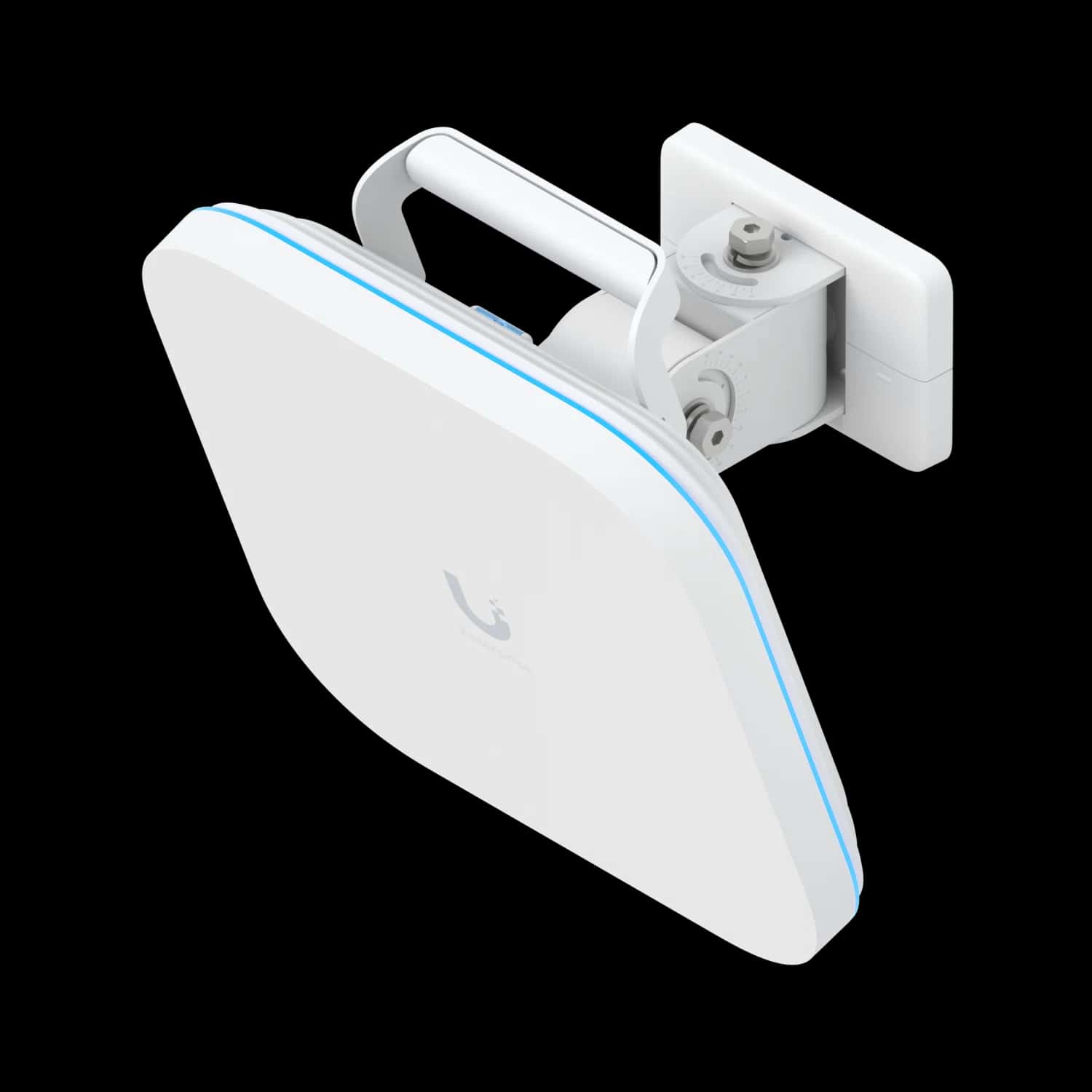

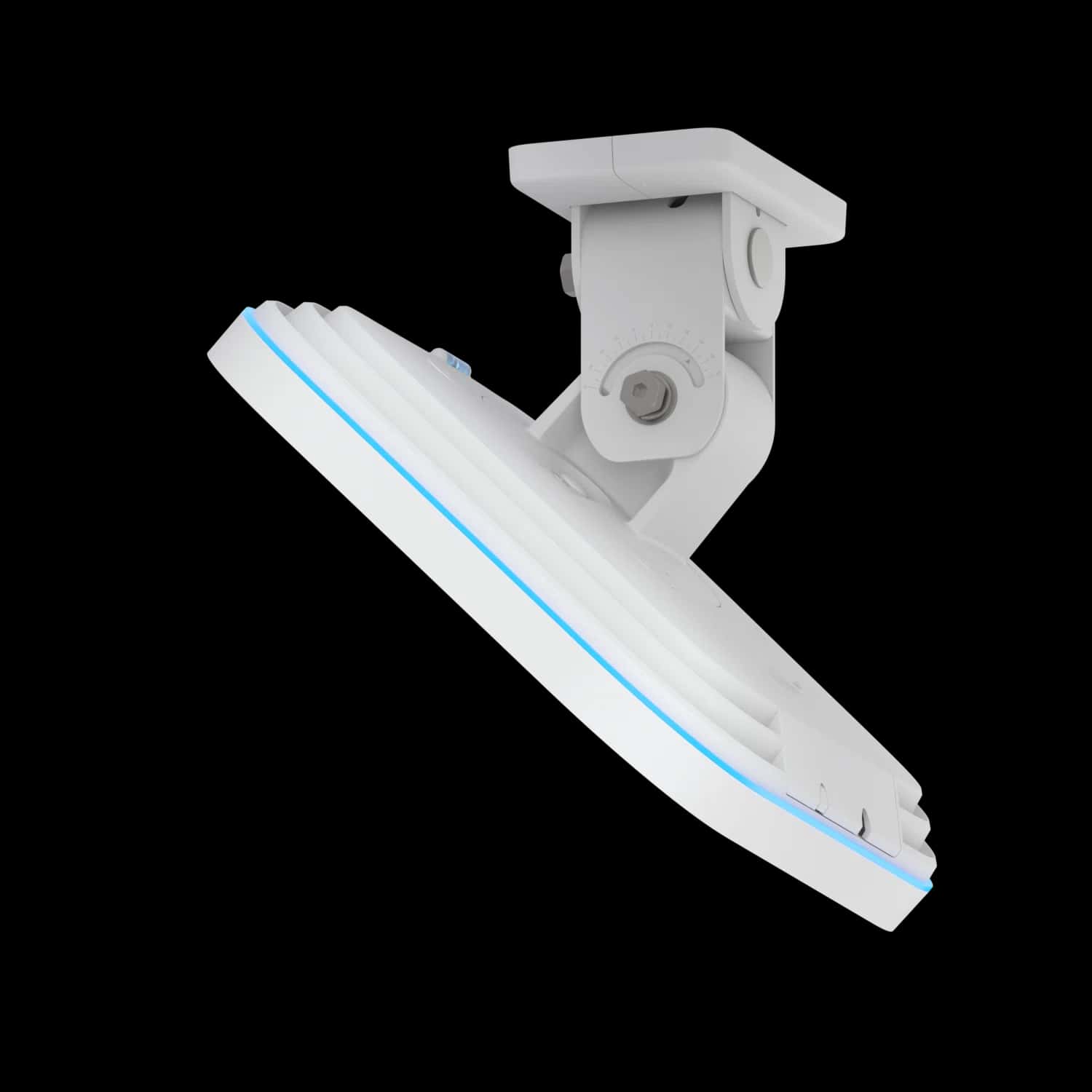

MountingWall, Pole (Mounts Included) VESA (Optional)
Power MethodPoE++
6 GHz4 x 4 (DL/UL MU-MIMO)
5 GHz4 x 4 (DL/UL MU-MIMO)
2.4 GHz2 x 2 (DL/UL MU-MIMO)
6 GHz11.5 Gbps (BW320)
5 GHz8.6 Gbps (BW240)
2.4 GHz688 Mbps (BW40)
6 GHzDirectional internal: 12 dBi, 90° x 50°
5 GHzDirectional internal: 12 dBi, 100° x 55°
2.4 GHzDirectional internal: 9 dBi, 90° x 80°
6 GHz30 dBm (36 dBm EIRP)
5 GHz30 dBm
2.4 GHz23 dBm
Max. BSSIDs8 per Radio
802.11be (WiFi 7)7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
Max. Power Consumption44W
Supported Voltage Range42.5–57V DC
Networking Interface(1) 10 GbE RJ45 port (1) GbE RJ45 port
WeightDevice: 2.2 kg (4.9 lb) With articulating mount: 3.1 kg (6.8 lb)

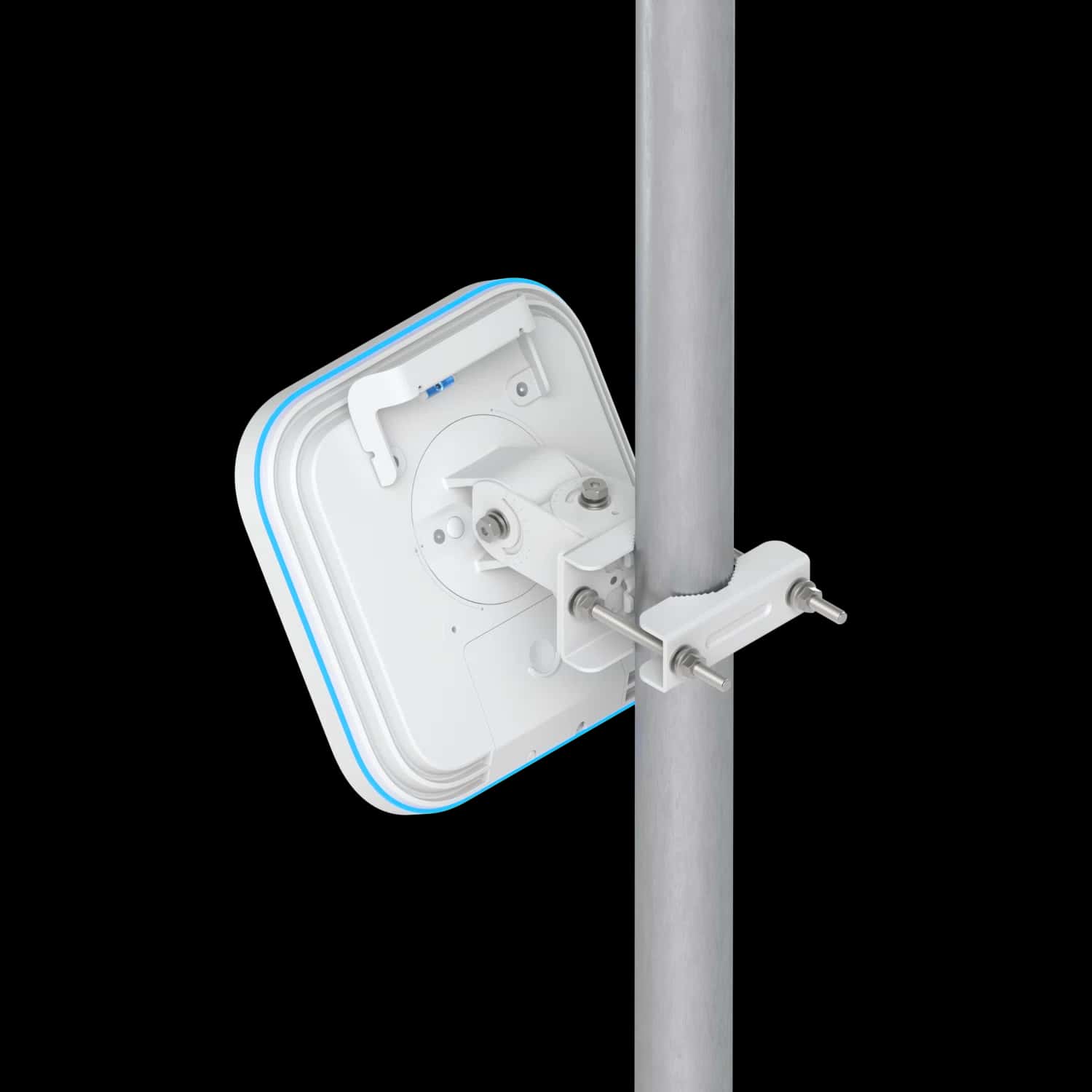

Pole Mount Diameter1–2.5" (25–63.5 mm)
Antennas(1) Internal with directional patterns
6 GHz90° x 50°
5 GHz100° x 55°
2.4 GHz90° x 80°
ManagementEthernet
Enclosure MaterialUV-stabilized polycarbonate, aluminum alloy
Mount MaterialStainless steel, aluminum alloy
SystemR/G/B
Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Ambient Operating Temperature-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsFCC, IC
UniFi NetworkVersion 10.0.162 and later
Mobile AppiOS™ version 10.30.2 and later Android™ version 10.31.4 and later
DownloadsSpecifications, manuals and product documents
