Equipment shop
Ubiquiti · Ubiquiti wireless and Wi-Fi

Access Point E7 Campus

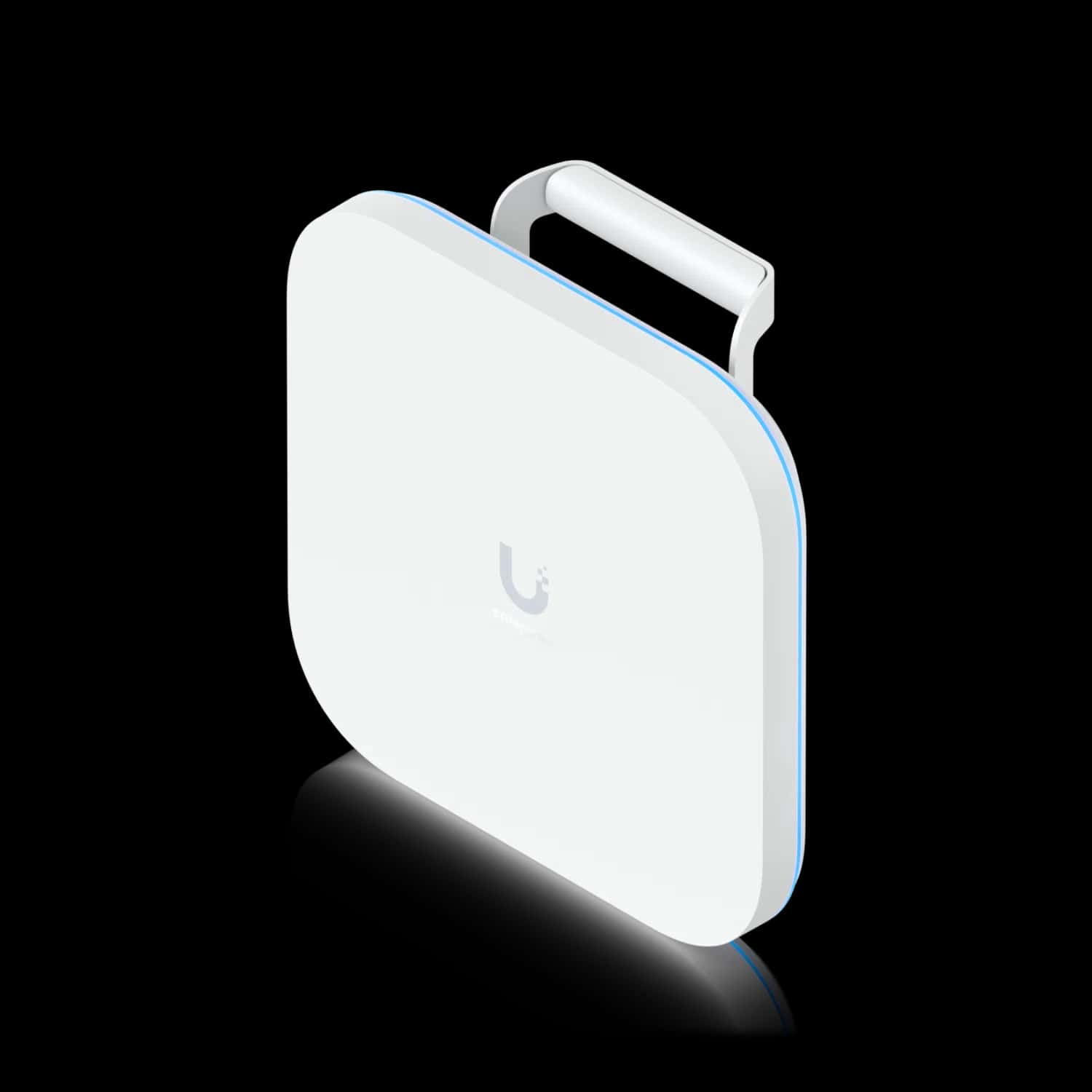

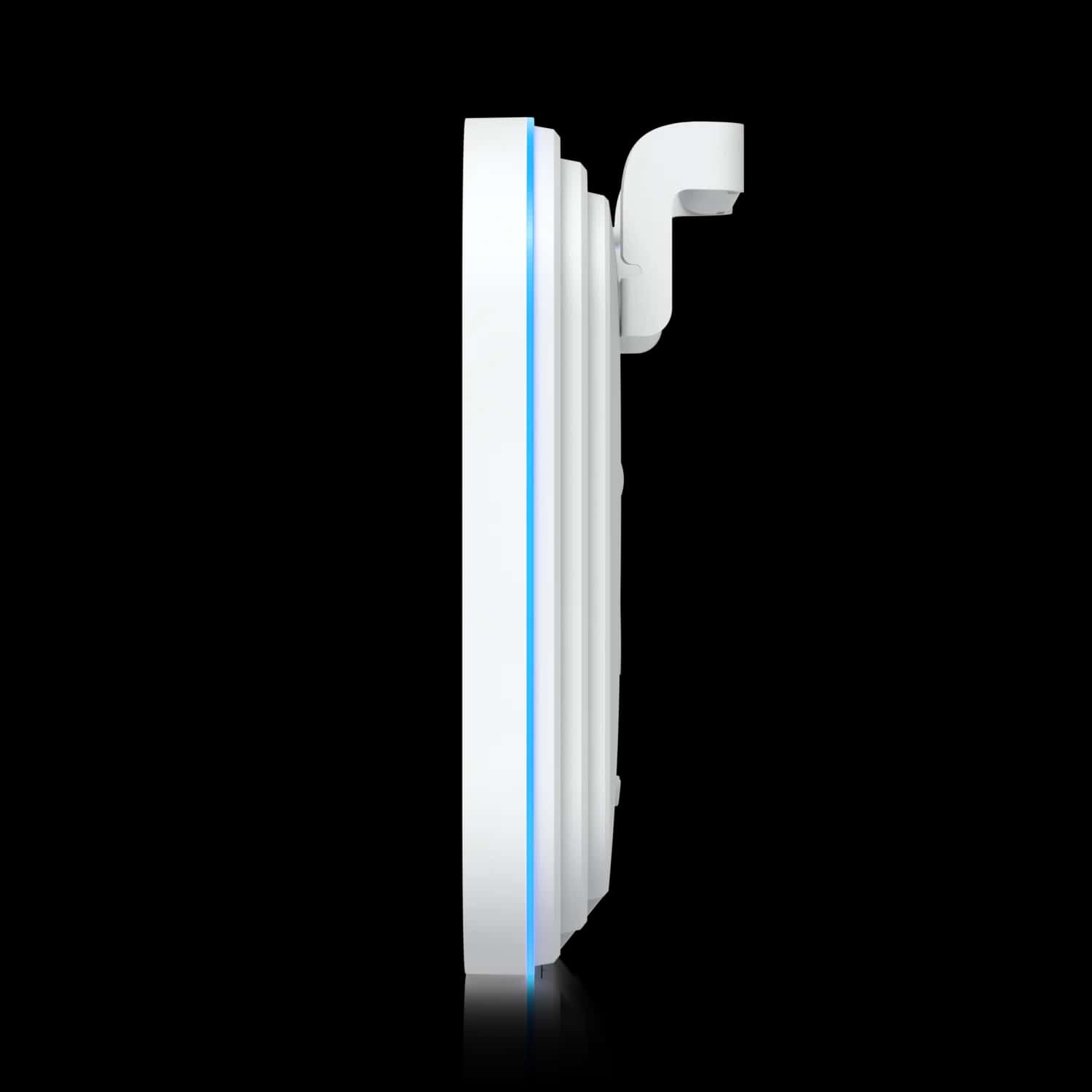

Image 1 of 17Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti wireless and Wi-Fi

Access Point E7 Campus

Read customer reviews
ModelE7-CampusSold as1 unit

Enterprise-grade indoor/outdoor access point with 10-stream tri-band WiFi 7 performance, PRISM™ active RF filtering technology, integrated directional antennas, a 10 GbE uplink, and a redundant GbE port for high availability. Note. 6 GHz operation is supported in these countries . Long-range 6 GHz performance with AFC available in FCC/IC region only.

Top highlights

See more highlights
  • High selectivity PRISM™ RF filtering technology
  • Dedicated spectral analyzer radio
  • Directional high gain antenna array
  • Long-range 6 GHz performance with AFC*
  • 465 m² (5,000 ft²) coverage
  • 1,000+ connected devices
  • (1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy
  • Versatile articulating wall/pole mount for precise position (included), VESA 100x100 compatibility
  • Powered using PoE++
  • Note. 6 GHz operation is supported in these countries .
  • *Available in FCC/IC region only.
Product detailsOverview, features and technical specifications

Enterprise-grade indoor/outdoor access point with 10-stream tri-band WiFi 7 performance, PRISM™ active RF filtering technology, integrated directional antennas, a 10 GbE uplink, and a redundant GbE port for high availability. Note. 6 GHz operation is supported in these countries . Long-range 6 GHz performance with AFC available in FCC/IC region only.

At a glance

Highlight 1WiFi 7 with 6 GHz support
Highlight 210 spatial streams
Highlight 3Real-time spectral analysis for enhanced channel selection
Highlight 4High selectivity PRISM™ RF filtering technology
More highlights
Highlight 5Dedicated spectral analyzer radio
Highlight 6Directional high gain antenna array
Highlight 7Long-range 6 GHz performance with AFC*
Highlight 8465 m² (5,000 ft²) coverage
Highlight 91,000+ connected devices
Highlight 10(1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy
Highlight 11Versatile articulating wall/pole mount for precise position (included), VESA 100x100 compatibility
Highlight 12Powered using PoE++
Highlight 13Note. 6 GHz operation is supported in these countries .
Highlight 14*Available in FCC/IC region only.
Access Point E7 Campus
Access Point E7 Campus

Specifications

BrandUbiquiti
Manufacturer modelE7-Campus
InstallationQuoted separately
Max. Client Count1,000
WiFi7WiFi 7
Radio/Antenna6 GHz Radio
Uplink10 GbE
DimensionsDevice: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8") Articulating mount: ⌀104 x 149.4 (⌀4.1 x 5.9")
All specifications (53)
WiFi StandardWiFi 7
Spatial Streams10
Coverage Area465 m² (5,000 ft²)
Max. Client Count1000+
Uplink10 GbE 1 GbE
MountingWall, Pole (Mounts Included) VESA (Optional)
WeatherproofingIPX6 IP67 with Waterproof Door Kit (Included)
Power MethodPoE++
6 GHz4 x 4 (DL/UL MU-MIMO)
5 GHz4 x 4 (DL/UL MU-MIMO)
2.4 GHz2 x 2 (DL/UL MU-MIMO)
6 GHz11.5 Gbps (BW320)
5 GHz8.6 Gbps (BW240)
2.4 GHz688 Mbps (BW40)
6 GHzDirectional internal: 12 dBi, 90° x 50°
5 GHzDirectional internal: 12 dBi, 100° x 55°
2.4 GHzDirectional internal: 9 dBi, 90° x 80°
6 GHz30 dBm (36 dBm EIRP)
5 GHz30 dBm
2.4 GHz23 dBm
Max. BSSIDs8 per Radio
802.11be (WiFi 7)7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
Max. Power Consumption44W
Supported Voltage Range42.5–57V DC
Networking Interface(1) 10 GbE RJ45 port (1) GbE RJ45 port
WeightDevice: 2.2 kg (4.9 lb) With articulating mount: 3.1 kg (6.8 lb)
Wind Loading164.75 N at 200 km/h (37 lbf at 125 mph)
Pole Mount Diameter1–2.5" (25–63.5 mm)
Antennas(1) Internal with directional patterns
6 GHz90° x 50°
5 GHz100° x 55°
2.4 GHz90° x 80°
ManagementEthernet
Enclosure MaterialUV-stabilized polycarbonate, aluminum alloy
Mount MaterialStainless steel, aluminum alloy
SystemR/G/B
Operating FrequencyUS/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 and U-NII-7: 5925 - 6425 MHz, 6525 - 6875 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz 5925 - 7125 MHz
Ambient Operating Temperature-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsFCC, IC
UniFi NetworkVersion 9.0.114 and later
Mobile AppiOS™ version 10.20.0 and later Android™ version 10.21.3 and later
DownloadsSpecifications, manuals and product documents
