What you’re ordering

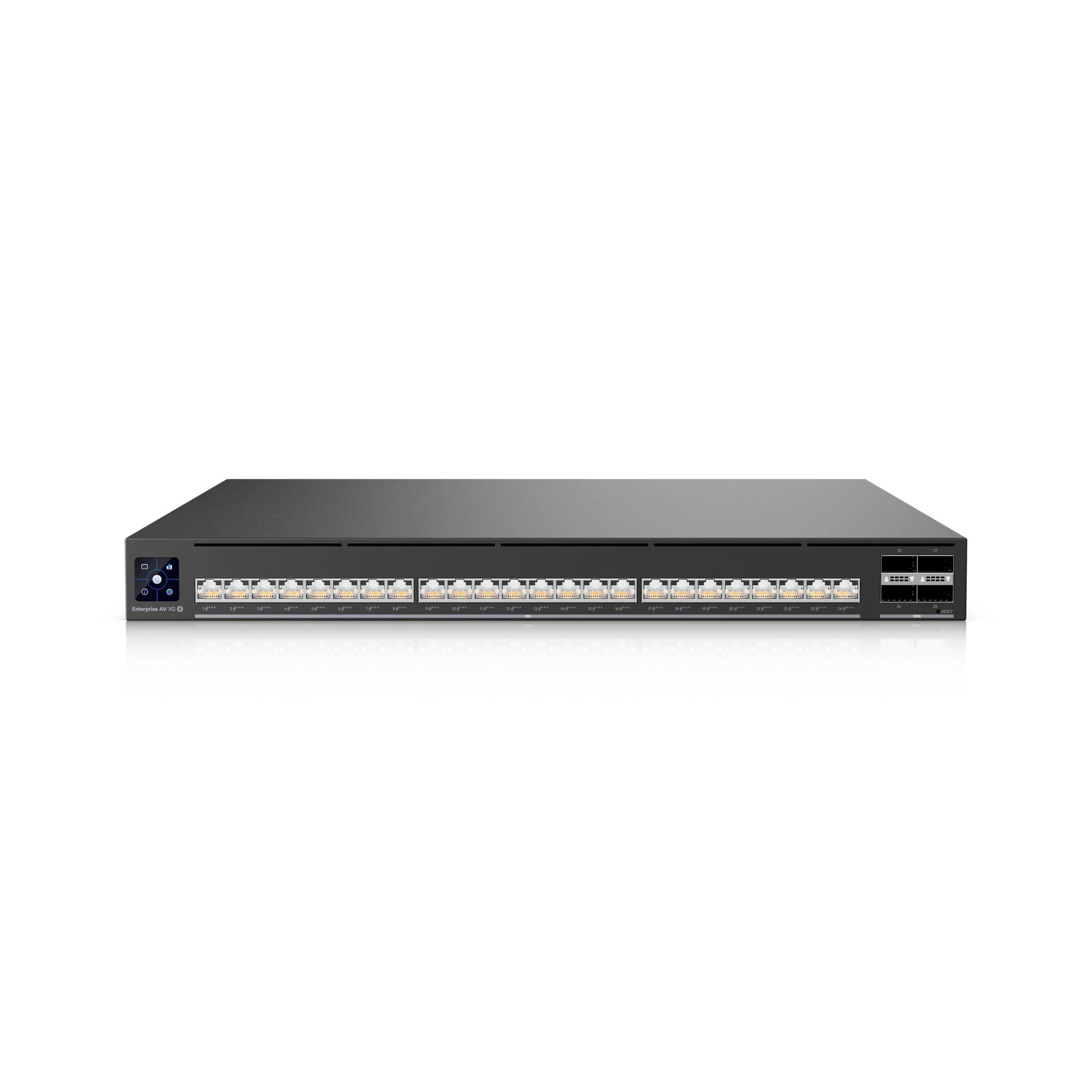

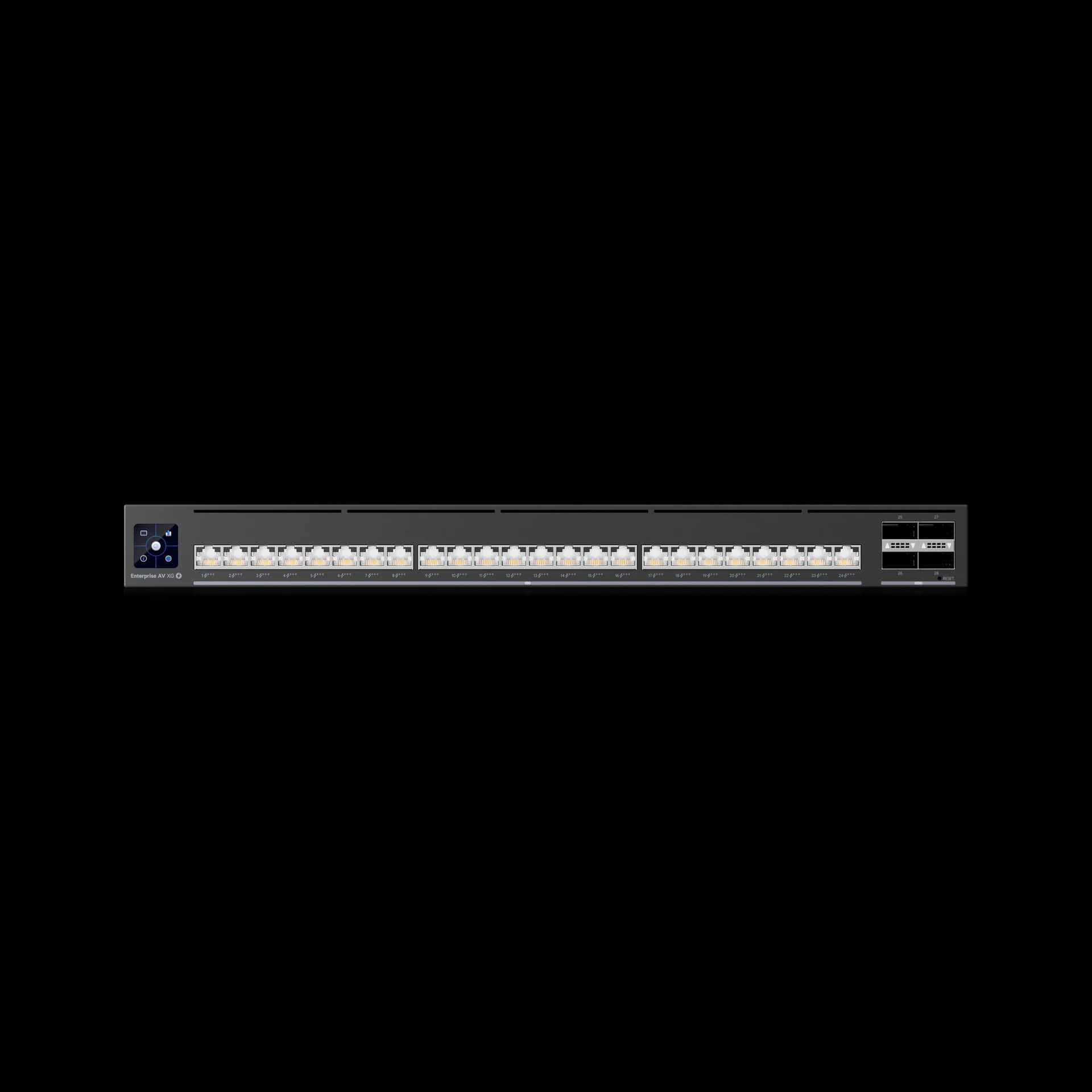

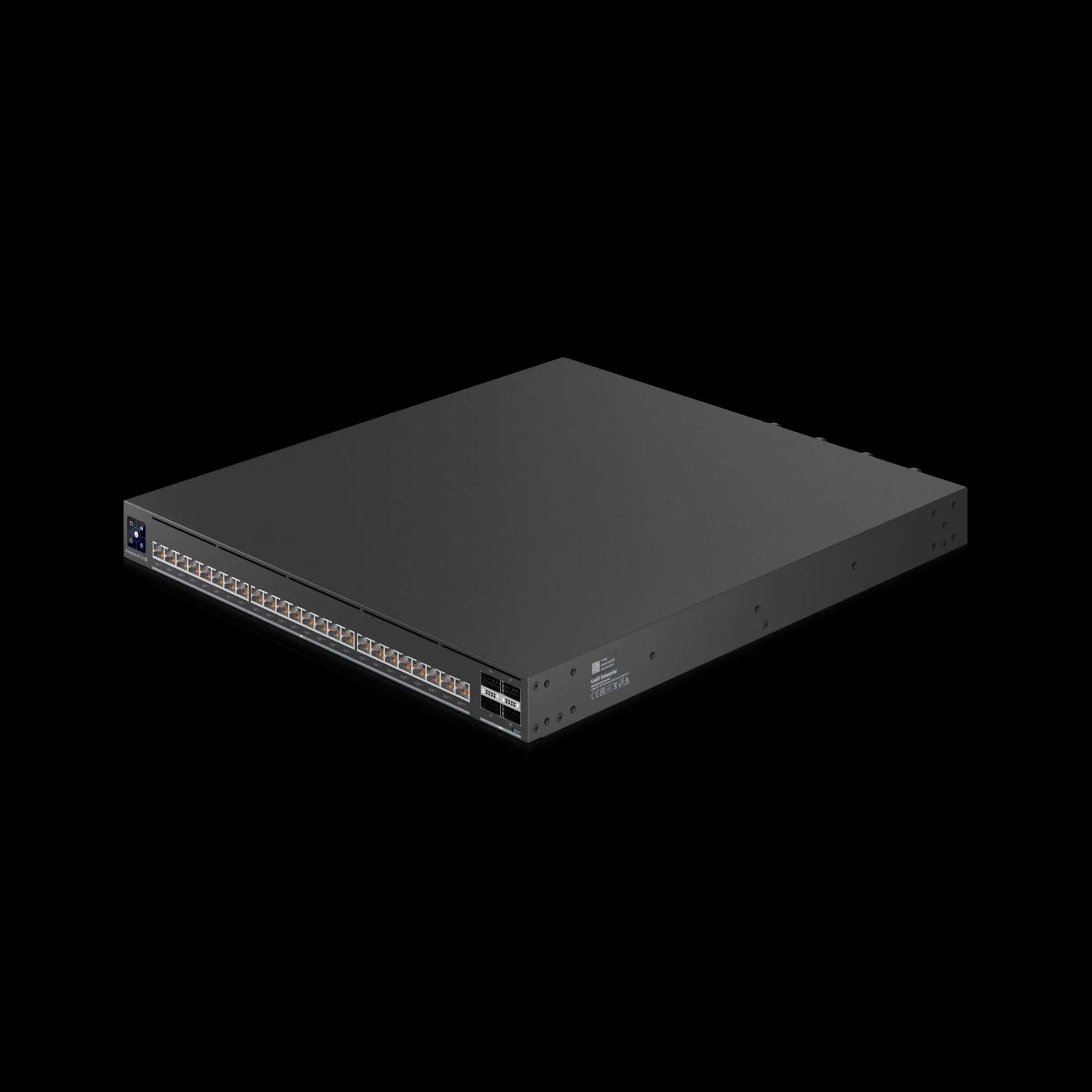

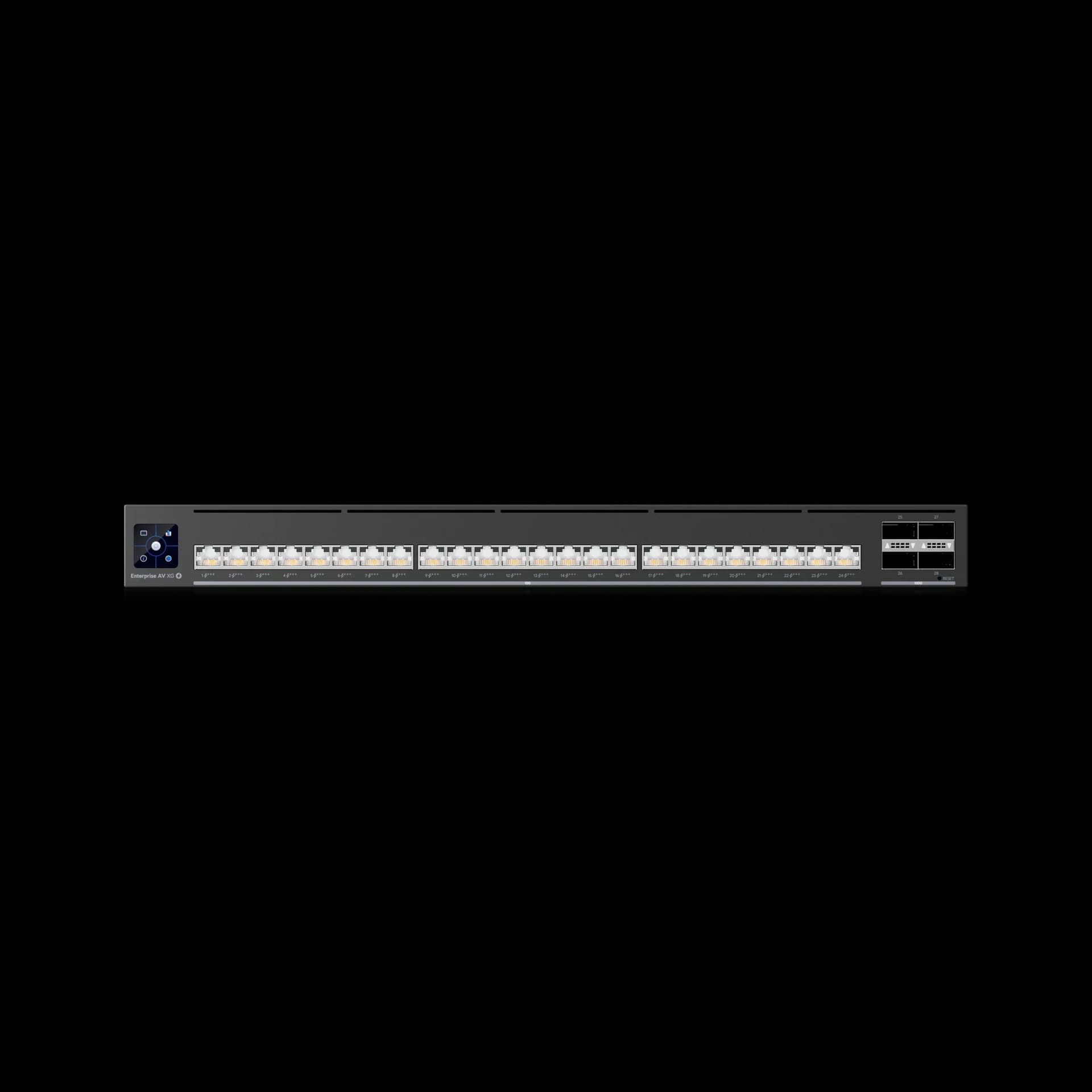

Enterprise Audio/Video switch with (24) 10G PoE+++ ports and (4) 100G QSFP28 uplinks. Supports PTP timing, SMPTE ST 2110, SDVoE, and AES67 audio, with a high-precision OCXO clock and optional GPS grandmaster input (SMA) for deterministic media synchronization. Includes Etherlighting™ support. Precision Time Protocol (PTP) IEEE 1588-2008 PTPv2 Hardware timestamping on all Ethernet and QSFP28 ports Clock roles: Grandmaster, Boundary Clock, and Transparent Clock Boundary Clock operation: two-step only Profiles: IEEE1588, SMPTE 2059-2, AES67, and AES-R16 End-to-End (E2E) delay mechanism Layer 2 Ethernet and UDP/IPv4 transport Custom profile configuration: Sync, Announce, and Delay Request intervals from −3 to +4 Announce Receipt Timeout from 2 to 9 Configurable PTP domain number BMCA with configurable Priority1 and Priority2 Note. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support. EAV-XG-24-PoE was previously named EAV-24-PoE. This is a naming update only; no hardware changes have been made.

Review the selected option and quantity. Installation is quoted separately unless explicitly included in this item.

Build around your network

Check Ethernet port speed, cable category and length, and the number of connected devices. For PoE equipment, match the required PoE standard and power budget. Wireless equipment can require an existing router, controller, or wired uplink; review the listed requirements.
