Switch Enterprise Campus 48S

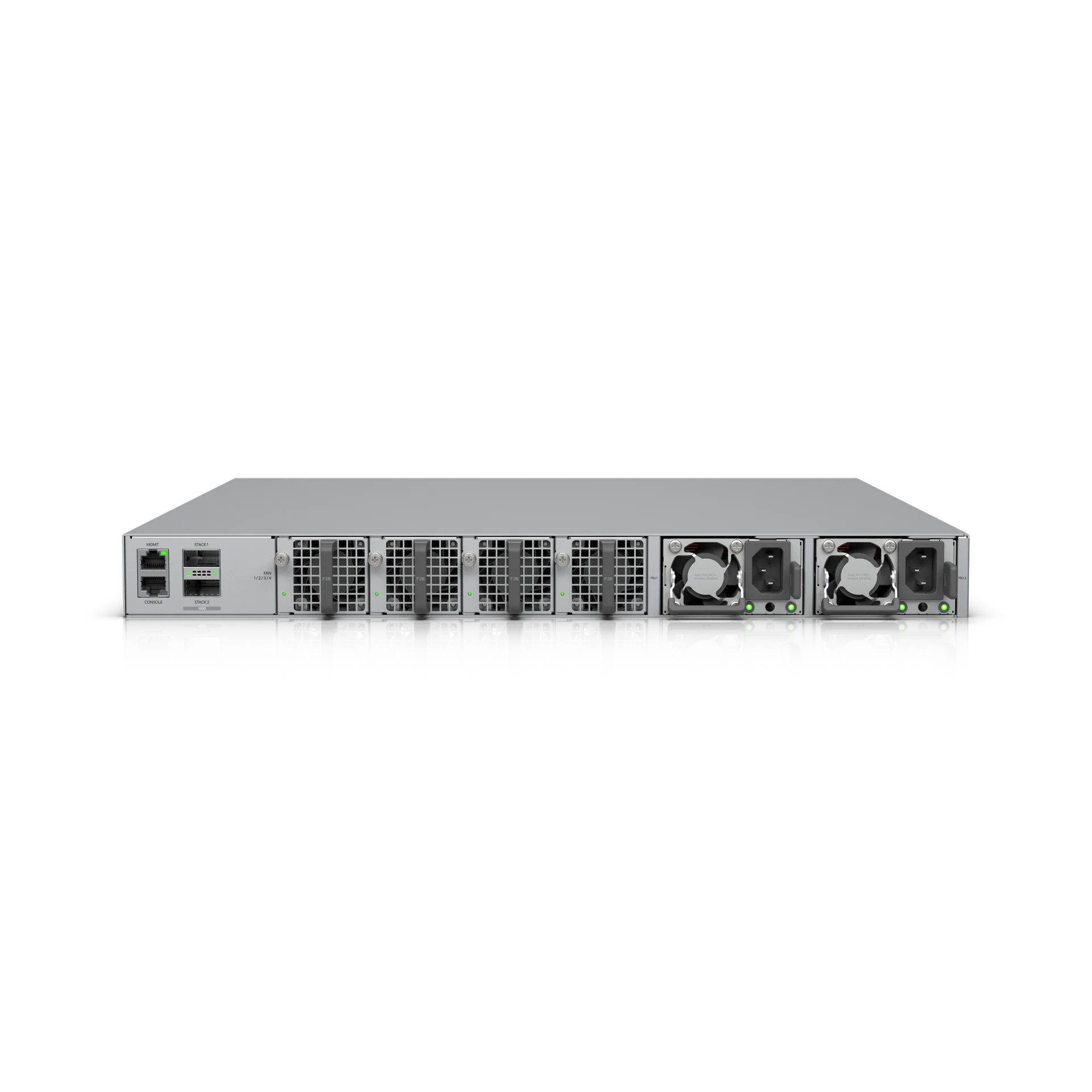

Image 1 of 7Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti gateway and switching

Switch Enterprise Campus 48S

Read customer reviews
ModelECS-48SSold as1 unit

Enterprise-grade 48-port, Layer 3 Etherlighting™ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design. Note. Recommend being paired with Enterprise Campus Aggregation. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.

Top highlights

Product detailsOverview, features and technical specifications

Enterprise-grade 48-port, Layer 3 Etherlighting™ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design. Note. Recommend being paired with Enterprise Campus Aggregation. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
Switch Enterprise Campus 48S
Switch Enterprise Campus 48S

Specifications

BrandUbiquiti
Manufacturer modelECS-48S
InstallationQuoted separately
Dimensions442.4 x 44 x 496 mm (17.4 x 1.7 x 19.5")
1 GbE RJ451 (1G/100M/10M)
2.5 GbE RJ4532 (2.5G/1G/100M/10M)
10 GbE RJ4516 (10G/5G/2.5G/1G/100M/10M)
25G SFP284 (25G/10G/1G)
All specifications (39)
100G QSFP282 (100G)
Console1
RedundancySwitch Stacking (2) Hot-Swappable PSUs (4) Hot-Swappable Fans
Form FactorRack Mount (1U, Full-Depth)
Switching Capacity680 Gbps
Total Non-Blocking Throughput340 Gbps
Forwarding Rate506 Mpps
Supported VLANs1,000
MAC Address Table Size32,000
IPv4 Static Routes512
Packet Buffer Size8 MB
IPv4256
MAC256
Max. Power Consumption250W
Power Method(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method(2) AC input, Hot-swappable power modules
Power Supply(2) Hot-swappable AC/DC 550W power modules
Supported Voltage Range100–240V AC
ManagementEthernet OOB Management port Serial Console AR
Heat Dissipation853 BTU/hr
WeightWithout mounting brackets: 10.2 kg (22.5 lb) With mounting brackets: 10.3 kg (22.7 lb)
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display1.3" touchscreen
Fan Method(4) Hot-swappable fan modules
ESD ProtectionAir: ± 12kV, contact: ± 8kV
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10 to 90% noncondensing
CertificationsCE, FCC, IC
UniFi NetworkVersion 10.6.101 and later
DownloadsSpecifications, manuals and product documents
