Equipment shop
Ubiquiti · Ubiquiti gateway and switching

Switch Enterprise Campus Aggregation

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti gateway and switching

Switch Enterprise Campus Aggregation

Read customer reviews
ModelECS-AggregationSold as1 unit

1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design. Note. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support. Layer 3 automatic failover (VRRP) and OSPF support is scheduled for an upcoming UniFi Network Application release.

Top highlights

Product detailsOverview, features and technical specifications

1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design. Note. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support. Layer 3 automatic failover (VRRP) and OSPF support is scheduled for an upcoming UniFi Network Application release.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
Switch Enterprise Campus Aggregation
Switch Enterprise Campus Aggregation

Specifications

BrandUbiquiti
Manufacturer modelECS-Aggregation
InstallationQuoted separately
Dimensions442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5")
25G SFP2848 (25G/10G)
100G QSFP286 (100G/40G)

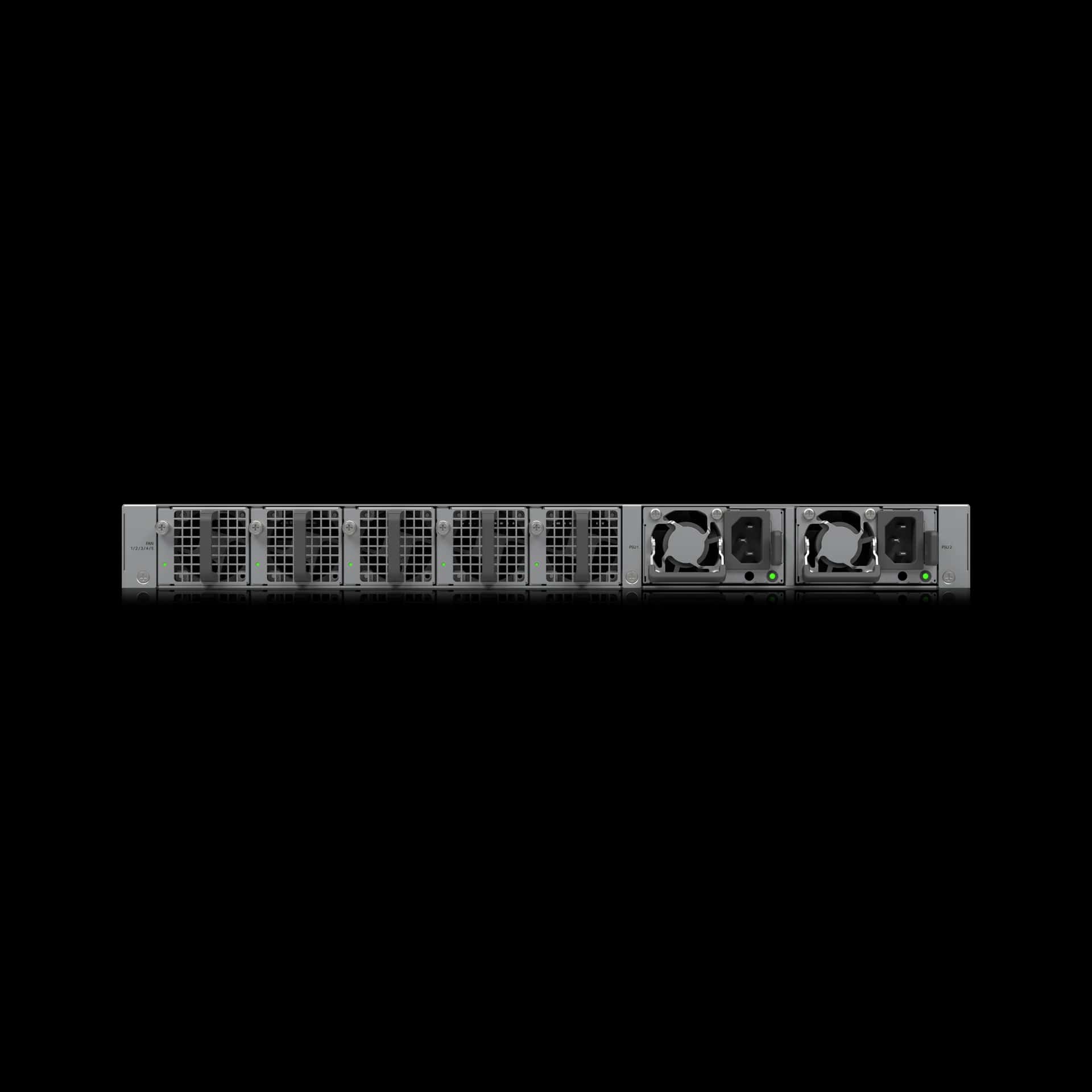

RedundancyMulti-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans
Form FactorRack mount (1U, Full-Depth)
All specifications (34)
Switching Capacity3.6 Tbps
Total Non-Blocking Throughput1.8 Tbps
Forwarding Rate2.4 Bpps
Supported VLANs1,000
MAC Address Table Size128,000
IPv4 Static Routes256
Packet Buffer Size24 MB
IPv4512
MAC512
Max. Power Consumption340W
Power Method(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method(2) AC input, Hot-swappable power modules
Power Supply(2) Hot-swappable AC/DC 550W power modules
Supported Voltage Range100–240V AC
ManagementEthernet AR
Heat Dissipation1160 BTU/hr
WeightWithout mounting brackets: 9.9 kg (21.8 lb) With mounting brackets: 10 kg (22 lb)
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display1.3" touchscreen
ESD ProtectionAir: ± 12kV, contact: ± 8kV
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10 to 95% noncondensing
CertificationsCE, FCC, IC, Anatel: 01327-25-08356
UniFi NetworkVersion 8.5.6 and later
DownloadsSpecifications, manuals and product documents
Compatible additions

These recommendations prioritize useful companion categories for this equipment—not a generic catalog list.

View all equipment
Cloud Gateway FiberEquipment
Ubiquiti gateway and switching · Ubiquiti

Cloud Gateway Fiber

Includes full UniFi application suite for device managementManages 50+ UniFi devices and 500+ clients
Selected equipment price$399.10
Access Point Lite Arm MountEquipment
Network mounts and accessories · Ubiquiti

Access Point Lite Arm Mount

Equipment only; installation is quoted separatelySelect the required configuration before ordering
Selected equipment price$26.00
AI Speaker Flush MountEquipment
Network equipment accessories · Ubiquiti

AI Speaker Flush Mount

Equipment only; installation is quoted separatelySelect the required configuration before ordering
Selected equipment price$76.70
airFiber 24 GHz BridgeEquipment
Wireless network bridge · Ubiquiti

airFiber 24 GHz Bridge

24 GHz, 13+ km link range1.5+ Gbps throughput
Selected equipment price$1,943.50

Before you add to cart

What you’re ordering

1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design. Note. Requires a 4-post rack, or a center-mount bracket or cantilever shelf on 2-post racks for optimal support. Layer 3 automatic failover (VRRP) and OSPF support is scheduled for an upcoming UniFi Network Application release.

Review the selected option and quantity. Installation is quoted separately unless explicitly included in this item.

Shipping, returns & order policies

Build around your network

Check Ethernet port speed, cable category and length, and the number of connected devices. For PoE equipment, match the required PoE standard and power budget. Wireless equipment can require an existing router, controller, or wired uplink; review the listed requirements.
