Equipment shop
Ubiquiti · Ubiquiti gateway and switching

Enterprise Firewall

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti gateway and switching

Enterprise Firewall

Read customer reviews
ModelEFGSold as1 unit

25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability. Note. Shadow Mode High Availability with automatic failover (VRRP) requires UniFi OS 4.0 and later. Must be paired with another EFG. 90 days of Professional Phone Support is included for purchases made through the UI Store in the US, Canada, Europe, and the UK.

Top highlights

Product detailsOverview, features and technical specifications

25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability. Note. Shadow Mode High Availability with automatic failover (VRRP) requires UniFi OS 4.0 and later. Must be paired with another EFG. 90 days of Professional Phone Support is included for purchases made through the UI Store in the US, Canada, Europe, and the UK.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
Enterprise Firewall
Enterprise Firewall

Specifications

BrandUbiquiti
Manufacturer modelEFG
InstallationQuoted separately
IDS/IPS12.5 Gbps
Max. Client Count5,000
IDS/IPS Throughput12.5 Gbps
Dimensions442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
Managed UniFi Devices500+
All specifications (46)
Simultaneous Users Connected5,000+
Max. WAN Port Count5
Default WAN Ports(1) 25G SFP28 (1) 2.5 GbE RJ45
2.5 GbE RJ452 (2.5G/1G/100M/10M)
10G SFP+2 (10G/1G)
25G SFP282 (25G/10G/1G)
SSL/TLS Inspection Concurrent Sessions10,000
Concurrent Sessions10 Million
New Sessions / Second71,000
Form FactorRack mount (1U)
RedundancyShadow Mode (VRRP) Gateway Failover (2) Hot-Swappable PSUs
IDS/IPS Signatures95,000+ with CyberSecure Enterprise
Identity Endpoint One-Click VPN1.2 Gbps
Teleport1.2 Gbps
WireGuard1.2 Gbps
OpenVPN210 Mbps
L2TP280 Mbps
Site Magic1.1 Gbps
OpenVPN120 Mbps
IPsec580 Mbps
WireGuard980 Mbps
OpenVPN180 Mbps
Max. Power Consumption82W
Power MethodUniversal AC input, 100–240V AC, 7A Max., 50/60 Hz
Power Supply(2) Hot-swappable 150W CRPS
Supported Voltage Range100–240V AC
Heat Dissipation280 BTU/hr
Processor18-core ARM® v8.2 at 2 GHz
Weight6.5 kg (14.3 lb)
Enclosure MaterialAluminium CNC, SGCC steel
LCM Display1.3" touchscreen
ManagementEthernet Bluetooth
Button(1) Factory reset
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, Anatel: 06375-24-08356, SRRC
Mobile AppUniFi iOS™:Version 10.16.2 and later UniFi Android™: Version 10.17.2 and later
DownloadsSpecifications, manuals and product documents
Compatible additions

These recommendations prioritize useful companion categories for this equipment—not a generic catalog list.

View all equipment
Cloud Gateway FiberEquipment
Ubiquiti gateway and switching · Ubiquiti

Cloud Gateway Fiber

Includes full UniFi application suite for device managementManages 50+ UniFi devices and 500+ clients
Selected equipment price$399.10
Access Point Lite Arm MountEquipment
Network mounts and accessories · Ubiquiti

Access Point Lite Arm Mount

Equipment only; installation is quoted separatelySelect the required configuration before ordering
Selected equipment price$26.00
AI Speaker Flush MountEquipment
Network equipment accessories · Ubiquiti

AI Speaker Flush Mount

Equipment only; installation is quoted separatelySelect the required configuration before ordering
Selected equipment price$76.70
airFiber 24 GHz BridgeEquipment
Wireless network bridge · Ubiquiti

airFiber 24 GHz Bridge

24 GHz, 13+ km link range1.5+ Gbps throughput
Selected equipment price$1,943.50

Before you add to cart

What you’re ordering

25G Cloud Gateway with 500+ UniFi device / 5,000+ client support, 12.5 Gbps IPS routing, and complete high availability. Note. Shadow Mode High Availability with automatic failover (VRRP) requires UniFi OS 4.0 and later. Must be paired with another EFG. 90 days of Professional Phone Support is included for purchases made through the UI Store in the US, Canada, Europe, and the UK.

Review the selected option and quantity. Installation is quoted separately unless explicitly included in this item.

Shipping, returns & order policies

Build around your network

Check Ethernet port speed, cable category and length, and the number of connected devices. For PoE equipment, match the required PoE standard and power budget. Wireless equipment can require an existing router, controller, or wired uplink; review the listed requirements.

Help me choose
Customer feedback

Ratings and reviews

Loading…

Loading reviews…

Keep shopping

Products and complete systems

Recommended for your next project

Switch Pro XG 24 PoEEquipment
Networking · Ubiquiti

Switch Pro XG 24 PoE

(16) 10 GbE, (8) 2.5 GbE ports, all PoE+++ (90W capable)(2) 25G SFP28 ports
Selected equipment priceSold out
Switch 24Equipment
Networking · Ubiquiti

Switch 24

(24) GbE ports(2) 1G SFP ports
Selected equipment price$321.10
Switch Enterprise Campus 24S PoEEquipment
Networking · Ubiquiti

Switch Enterprise Campus 24S PoE

Equipment only; installation is quoted separatelySelect the required configuration before ordering
Selected equipment price$4,295.20

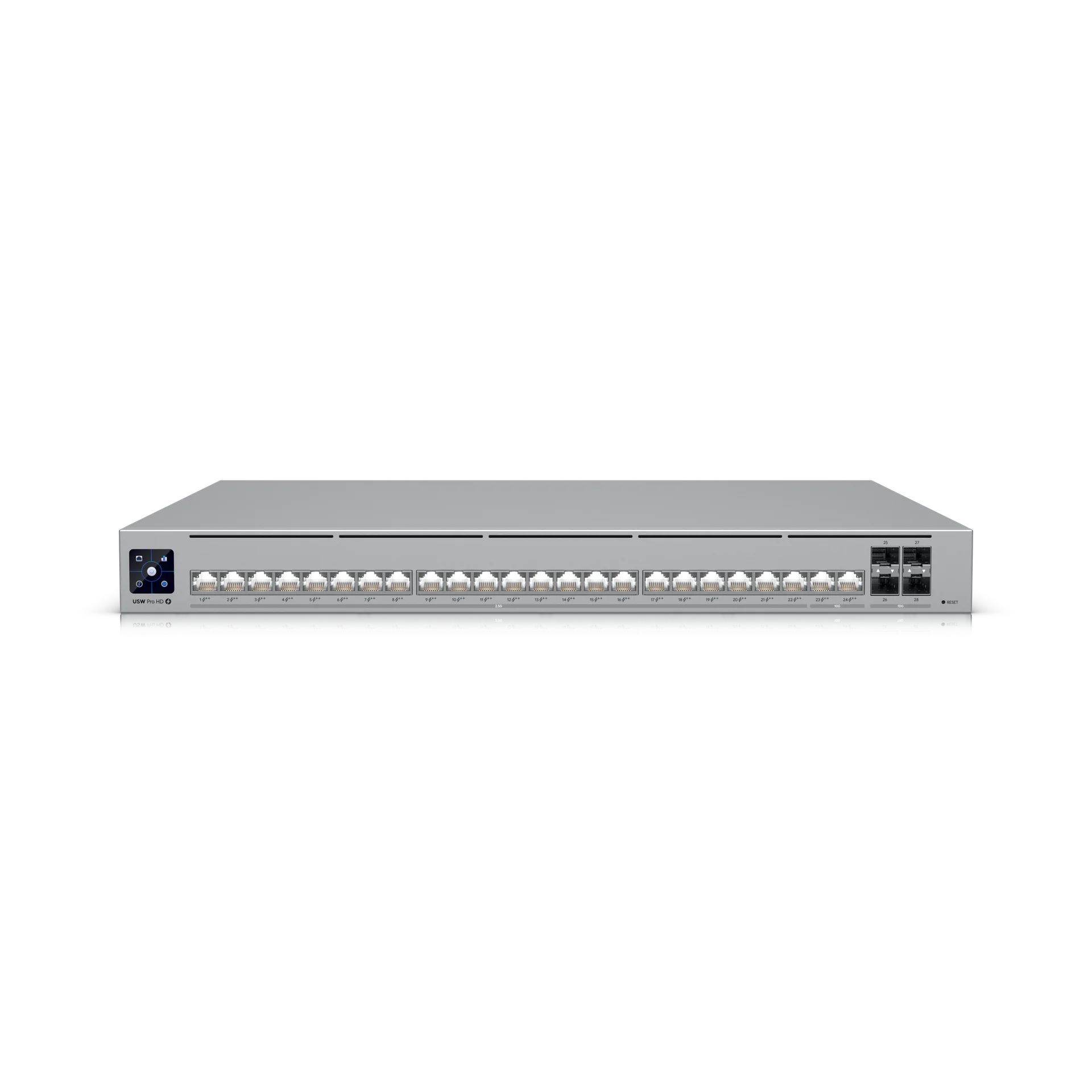

Switch Pro HD 24 PoEEquipment
Networking · Ubiquiti

Switch Pro HD 24 PoE

(22) 2.5 GbE, (2) 10 GbE PoE++ ports(4) 10G SFP+ ports
Selected equipment price$1,430.00
Fiber WiFiEquipment
Networking · Ubiquiti

Fiber WiFi

(1) GPON portIntegrated 4-port GbE switch
Selected equipment price$89.70

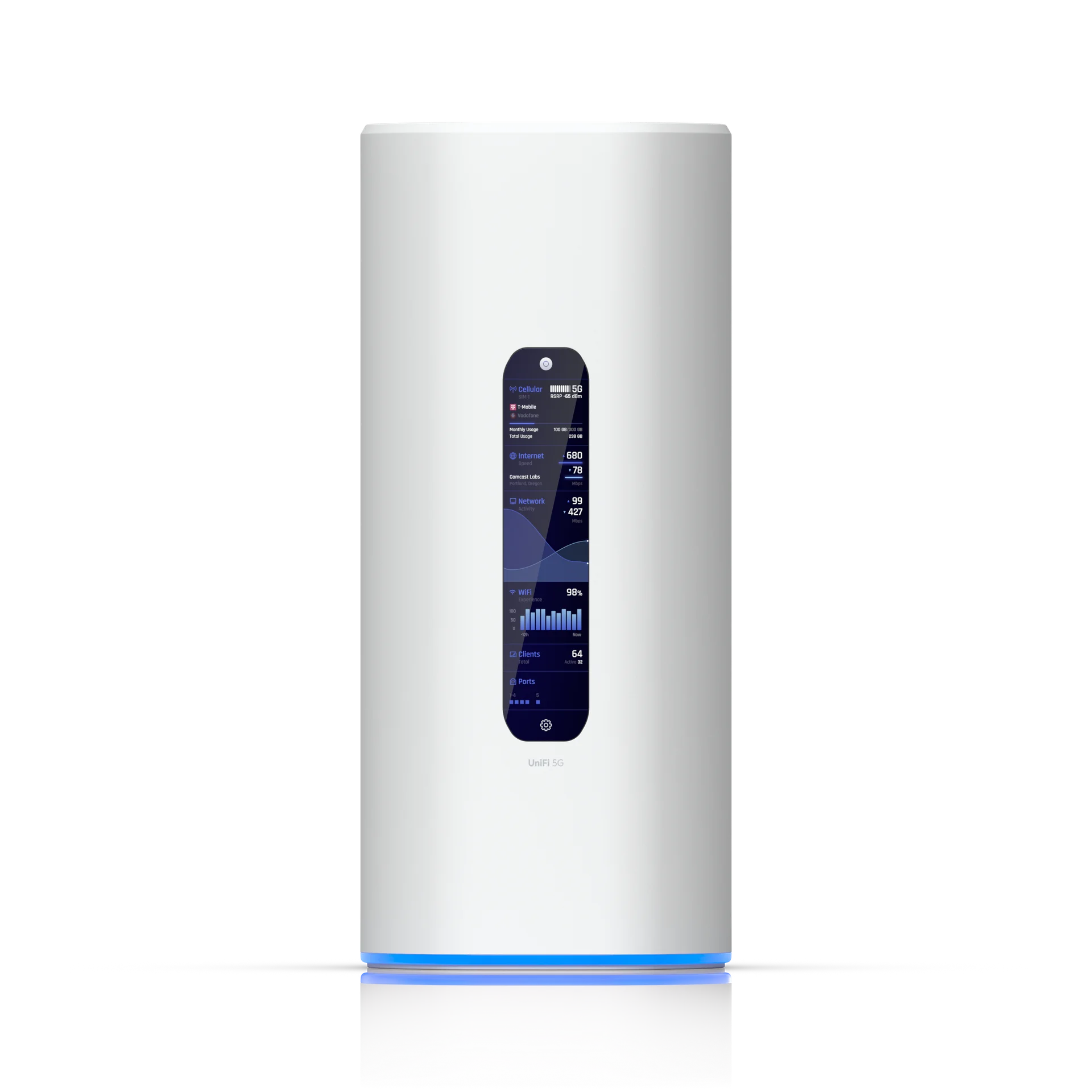

Dream Router 5G MaxEquipment
Networking · Ubiquiti

Dream Router 5G Max

Equipment only; installation is quoted separatelySelect the required configuration before ordering
Selected equipment price$713.70

More to explore

Flex Utility ProEquipment
Networking · Ubiquiti

Flex Utility Pro

Equipment only; installation is quoted separatelySelect the required configuration before ordering
Selected equipment price$76.70
Switch Flex — UBNT-USW-FLEXEquipment
Networking · Ubiquiti

Switch Flex — UBNT-USW-FLEX

New professional-grade equipmentProfessional design and installation available
Selected equipment price$141.70
Switch Pro XG 48Equipment
Networking · Ubiquiti

Switch Pro XG 48

(32) 10 GbE, (16) 2.5 GbE ports(4) 25G SFP28 ports
Selected equipment price$2,862.60

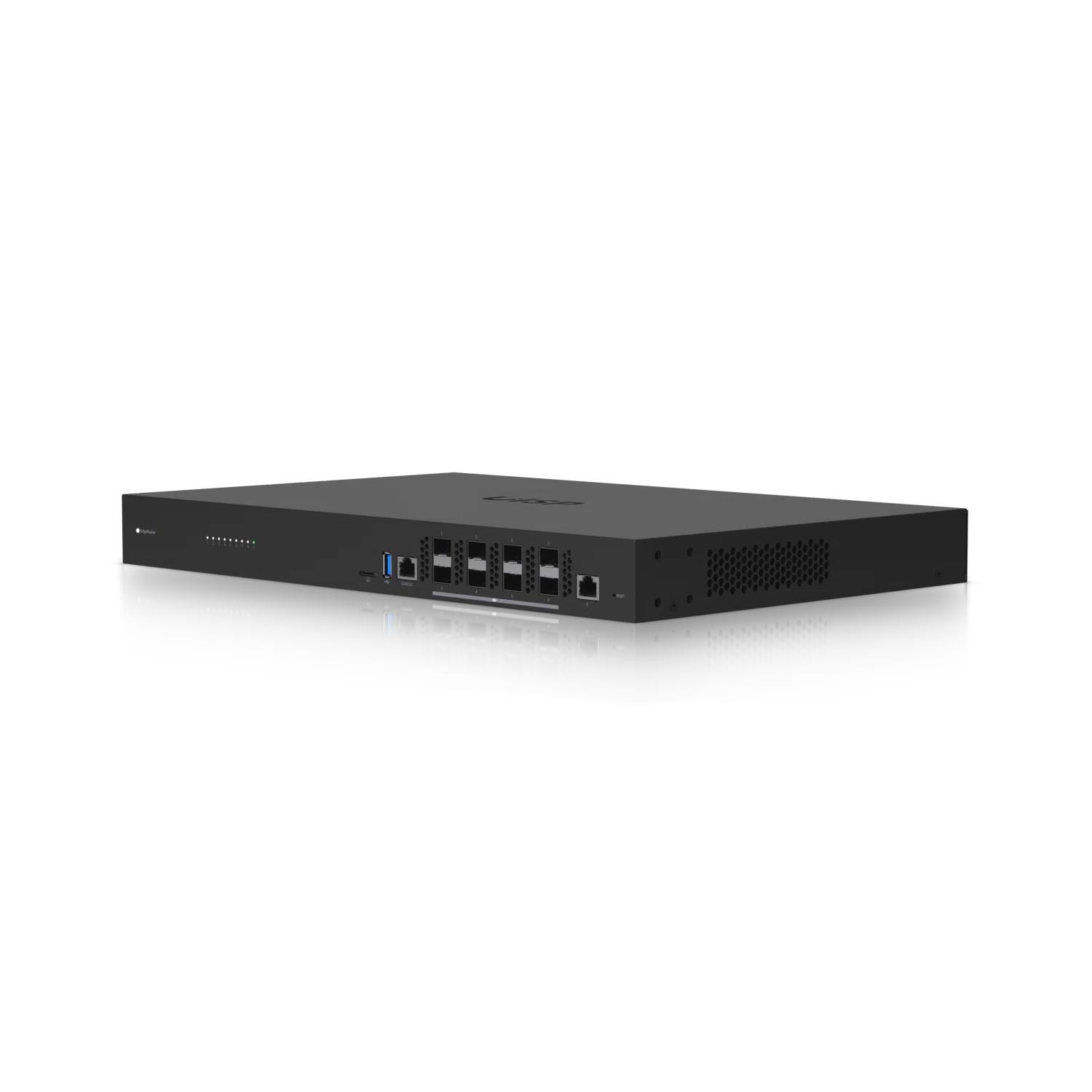

EdgeRouter InfinityEquipment
Networking · Ubiquiti

EdgeRouter Infinity

(1) GbE RJ45 port(8) 10G SFP+ ports
Selected equipment price$2,403.70
EdgeSwitch 16 XGEquipment
Networking · Ubiquiti

EdgeSwitch 16 XG

(4) GbE RJ45 ports(12) SFP+ ports
Selected equipment priceSold out
Fiber OLT 8Equipment
Networking · Ubiquiti

Fiber OLT 8

GPON. 2.488 Gbps down / 1.244 Gbps stream capacity1024 Client capacity (8 ports)
Selected equipment price$2,338.70
Gateway Lite — UBNT-UXG-LITEEquipment
Networking · Ubiquiti

Gateway Lite — UBNT-UXG-LITE

New professional-grade equipmentProfessional design and installation available
Selected equipment priceSold out

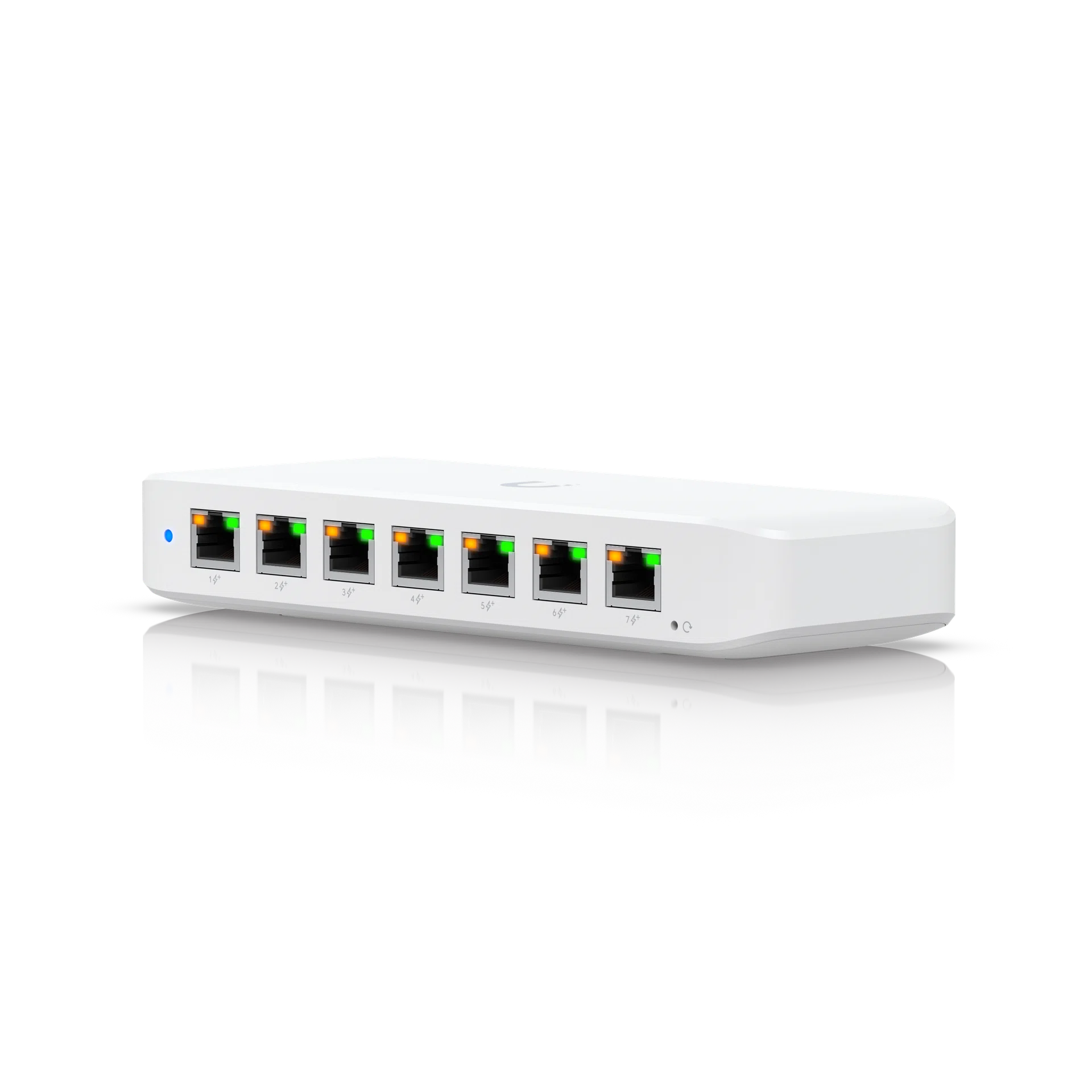

Switch Ultra 60WEquipment
Networking · Ubiquiti

Switch Ultra 60W

(7) GbE PoE+ output ports(1) GbE port with optional PoE++ input*
Selected equipment price$227.50
10 products loaded in this row
UISP Switch ProEquipment
Networking · Ubiquiti

UISP Switch Pro

(24) GbE RJ45 ports, including (16) with 27V passive PoE output(4) SFP+ ports
Selected equipment price$492.70
NanoSwitchEquipment
Networking · Ubiquiti

NanoSwitch

(3) GbE RJ45 ports with 24V passive PoE24W PoE supply
Selected equipment price$52.00

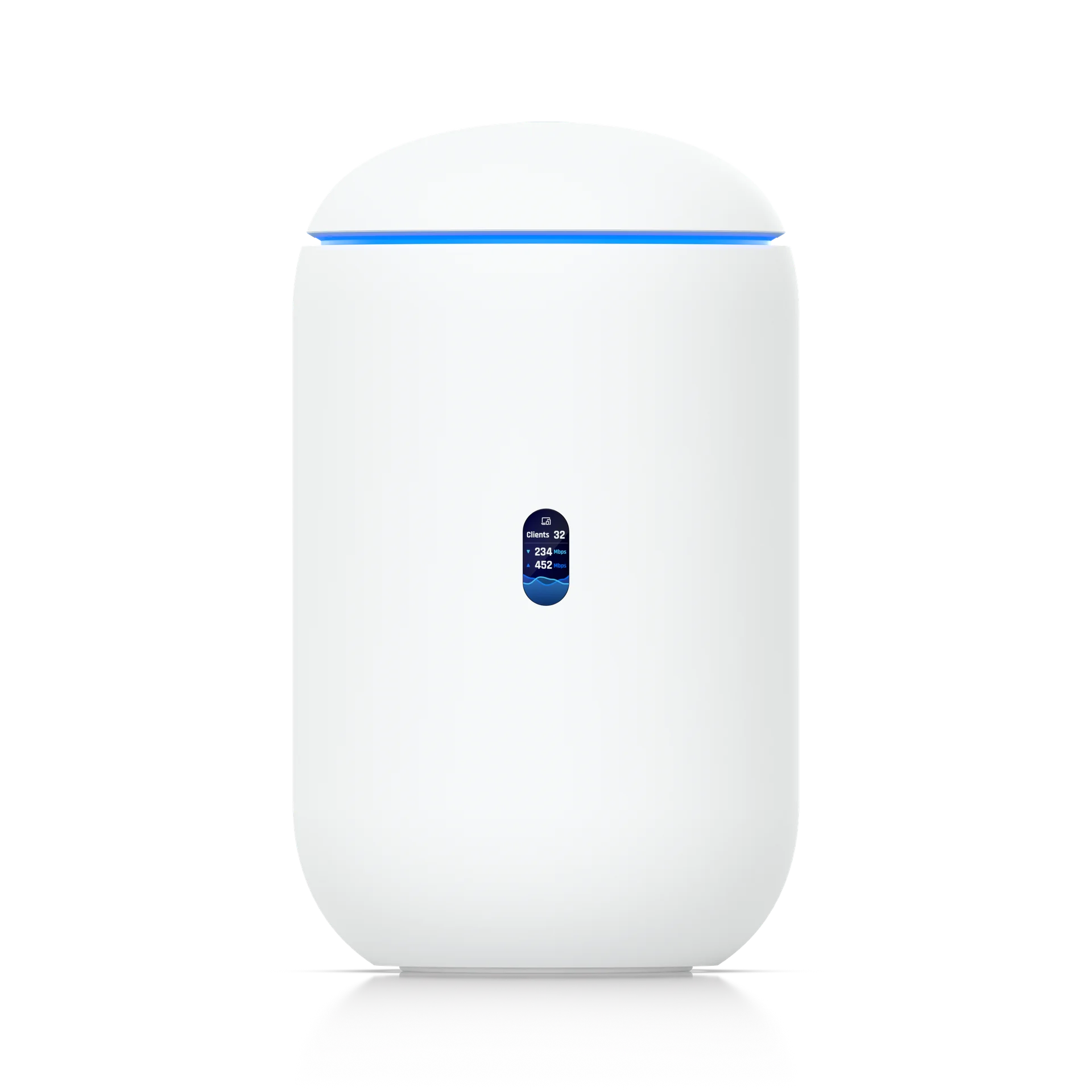

Dream Router 7Equipment
Networking · Ubiquiti

Dream Router 7

Integrated 6-stream WiFi 7 AP with 6 GHz supportIncludes full UniFi application suite for device management
Selected equipment price$399.10

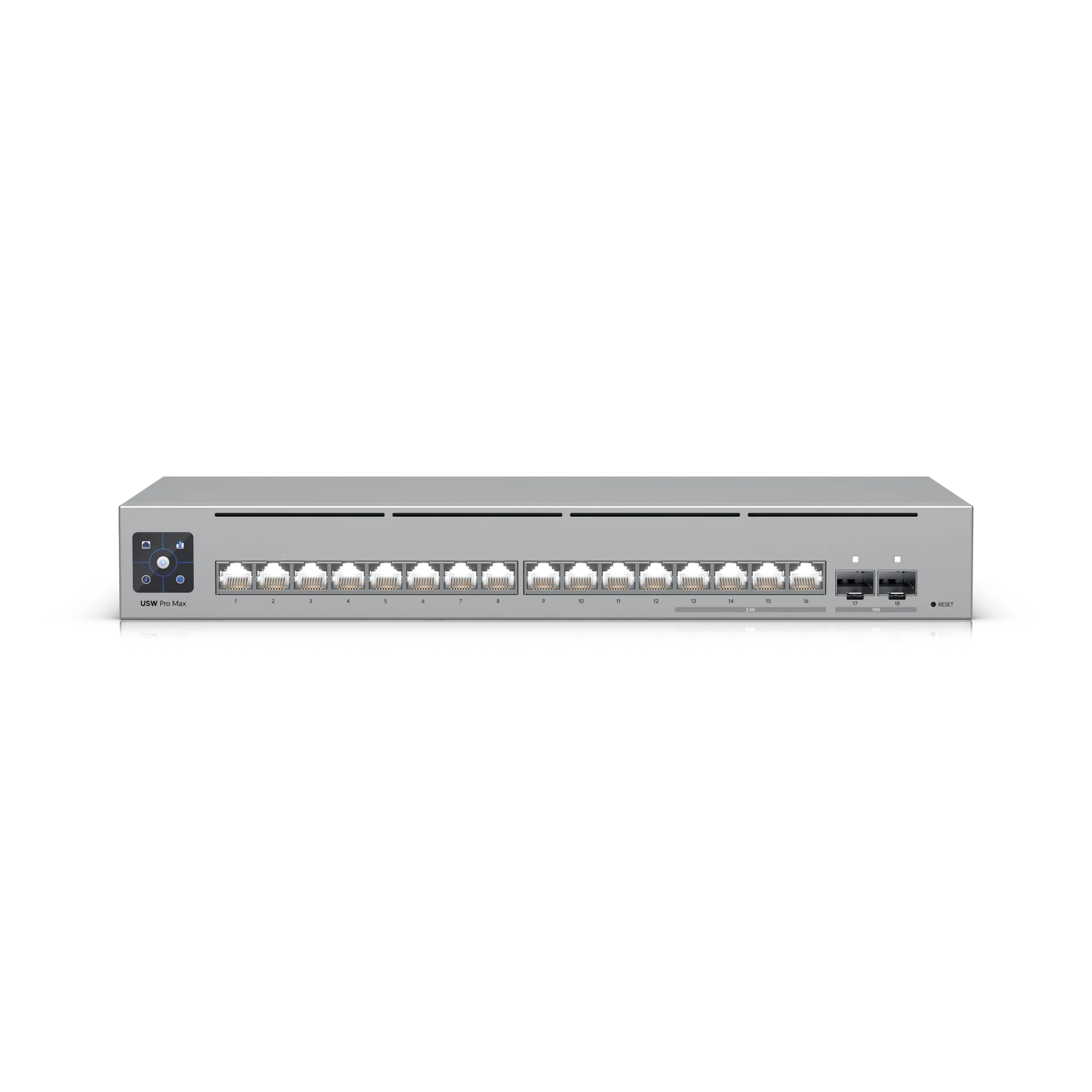

Switch Pro Max 16Equipment
Networking · Ubiquiti

Switch Pro Max 16

(4) 2.5 GbE RJ45 ports(12) GbE RJ45 ports
Selected equipment price$399.10
Switch Enterprise Campus 24 PoEEquipment
Networking · Ubiquiti

Switch Enterprise Campus 24 PoE

Equipment only; installation is quoted separatelySelect the required configuration before ordering
Selected equipment price$3,578.90

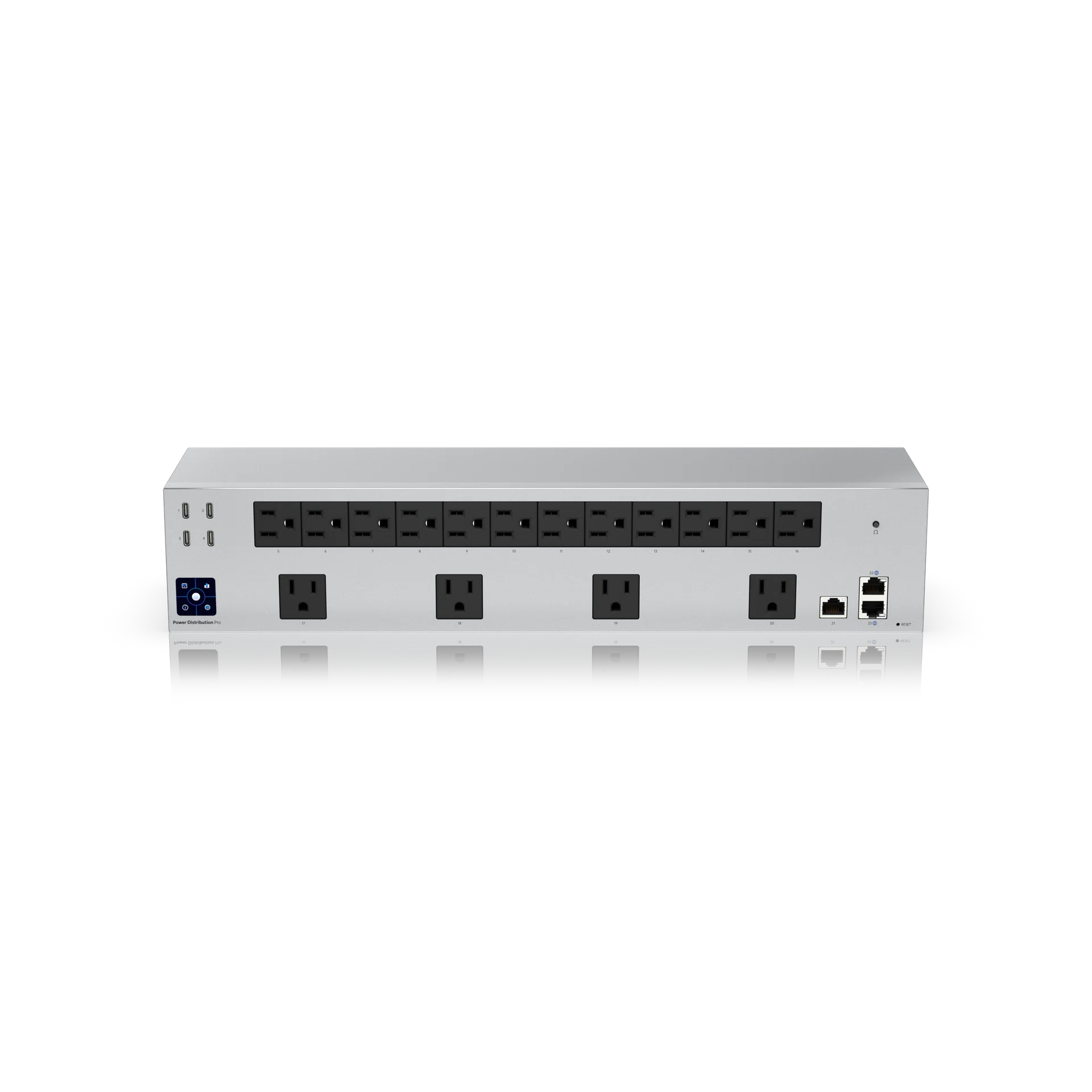

Power Distribution ProEquipment
