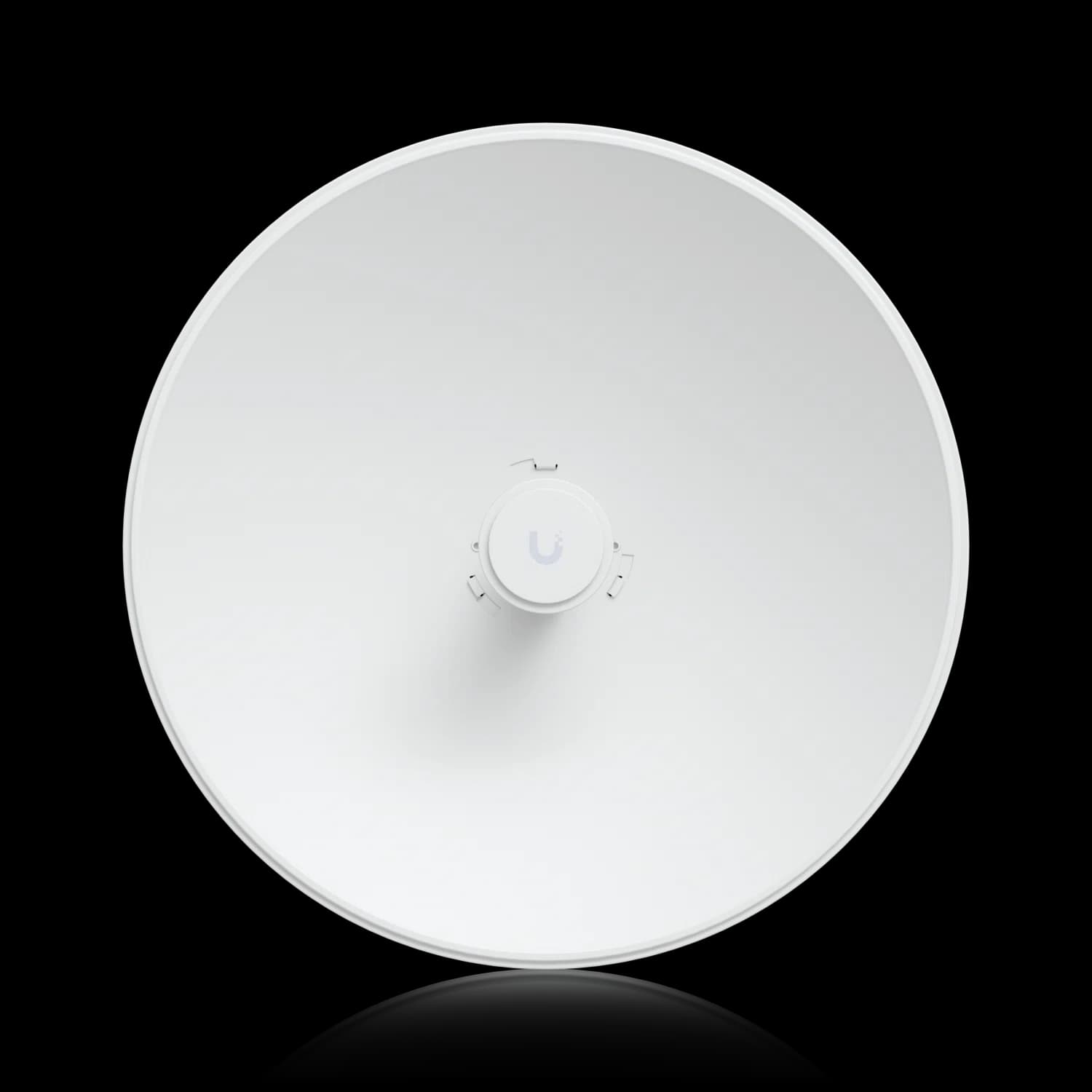

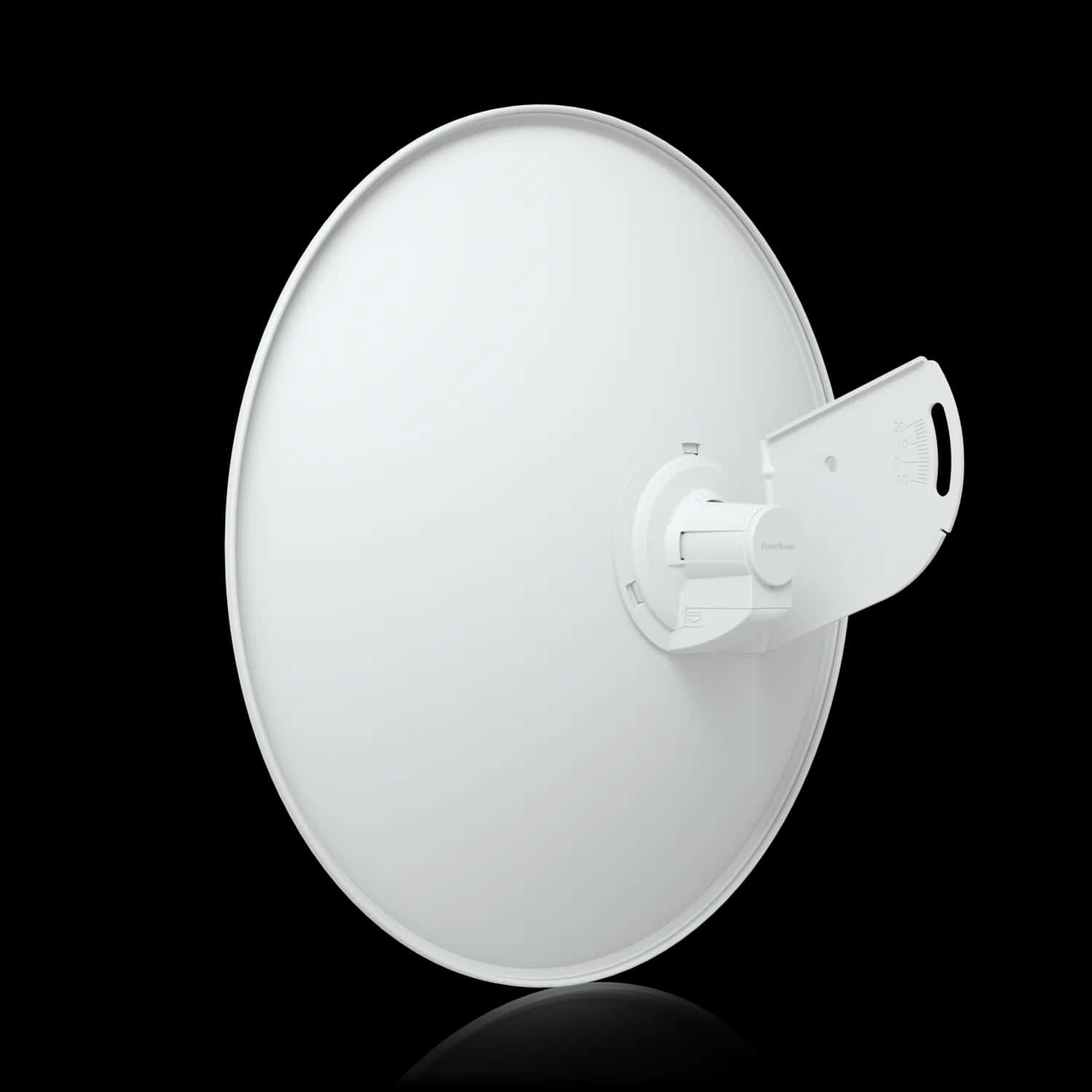

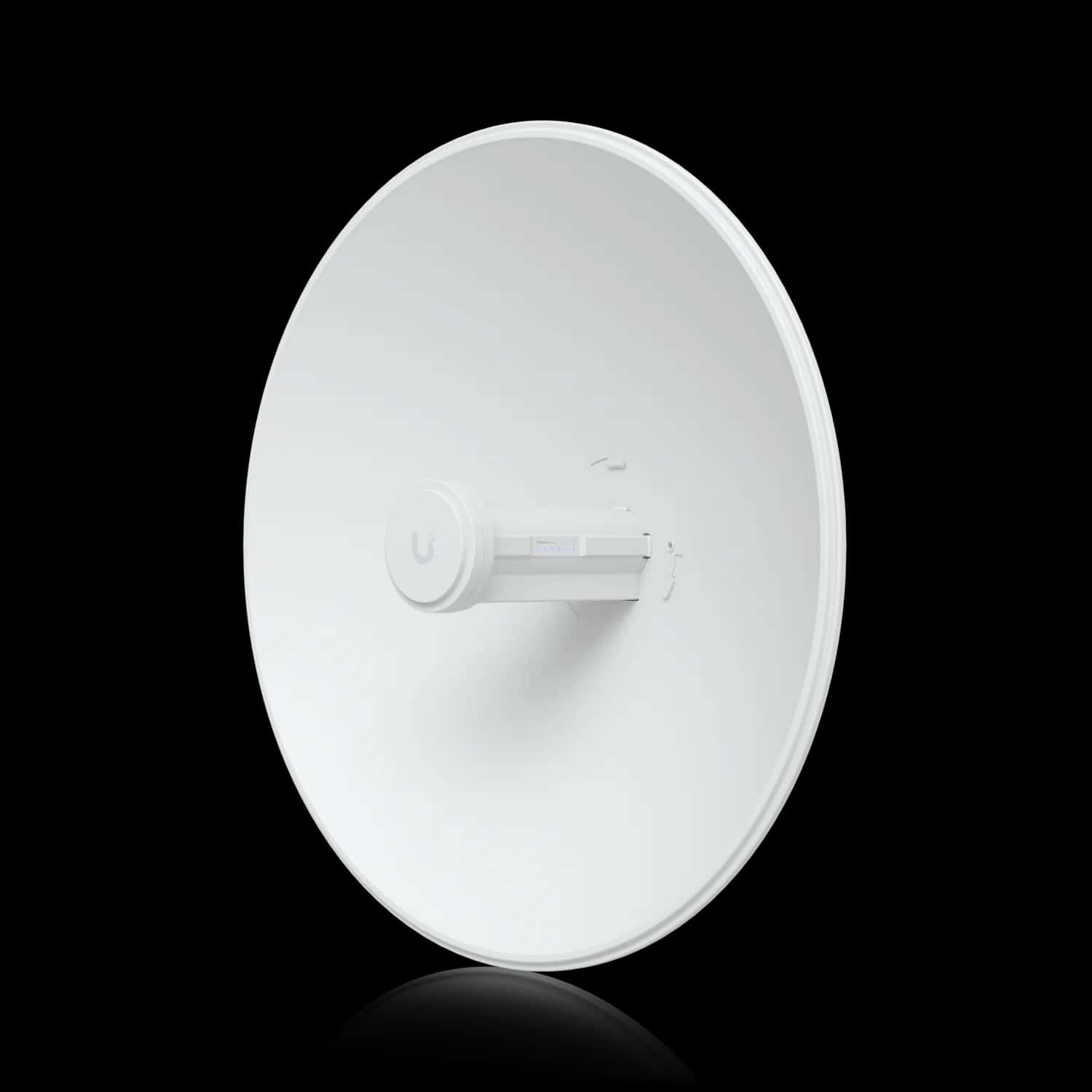

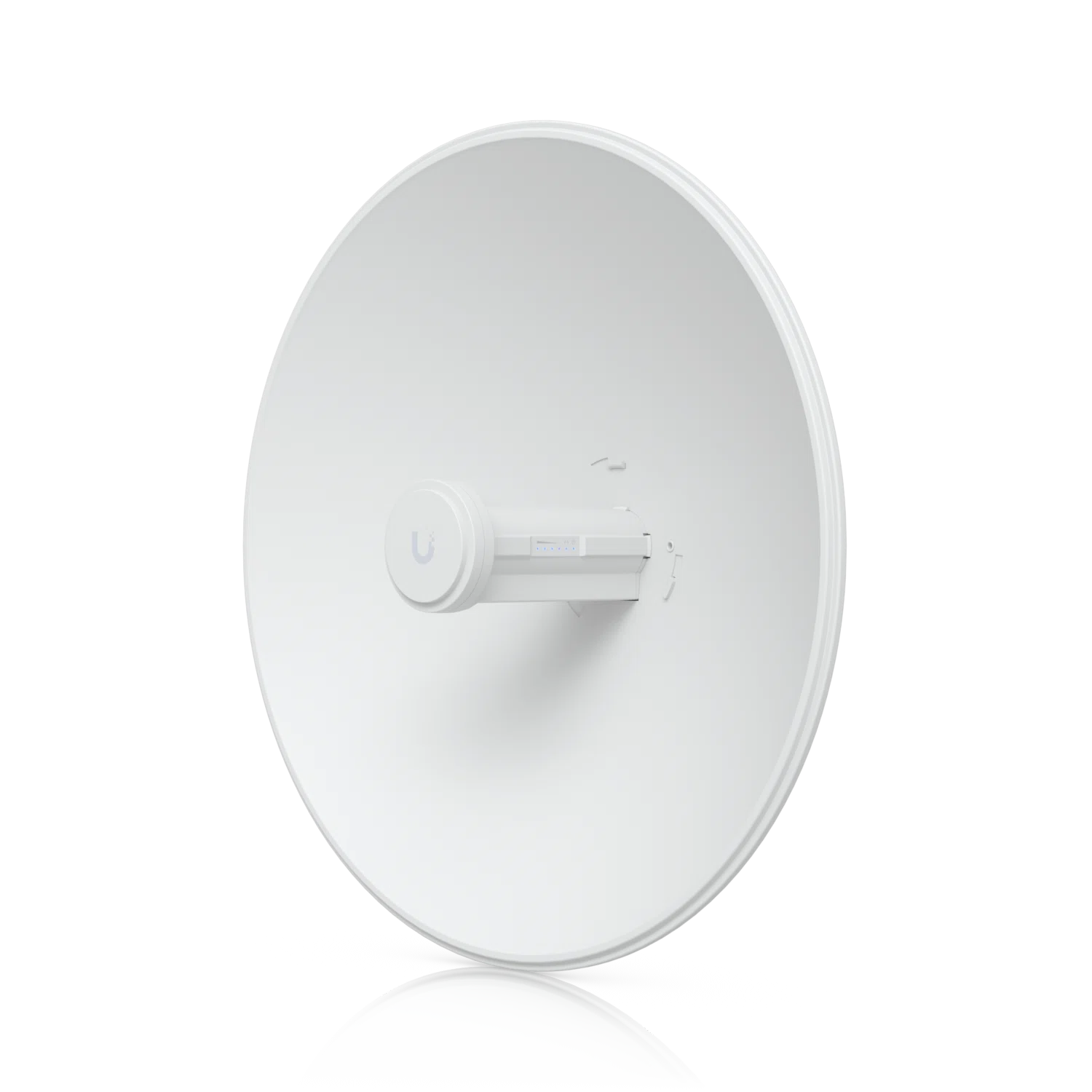

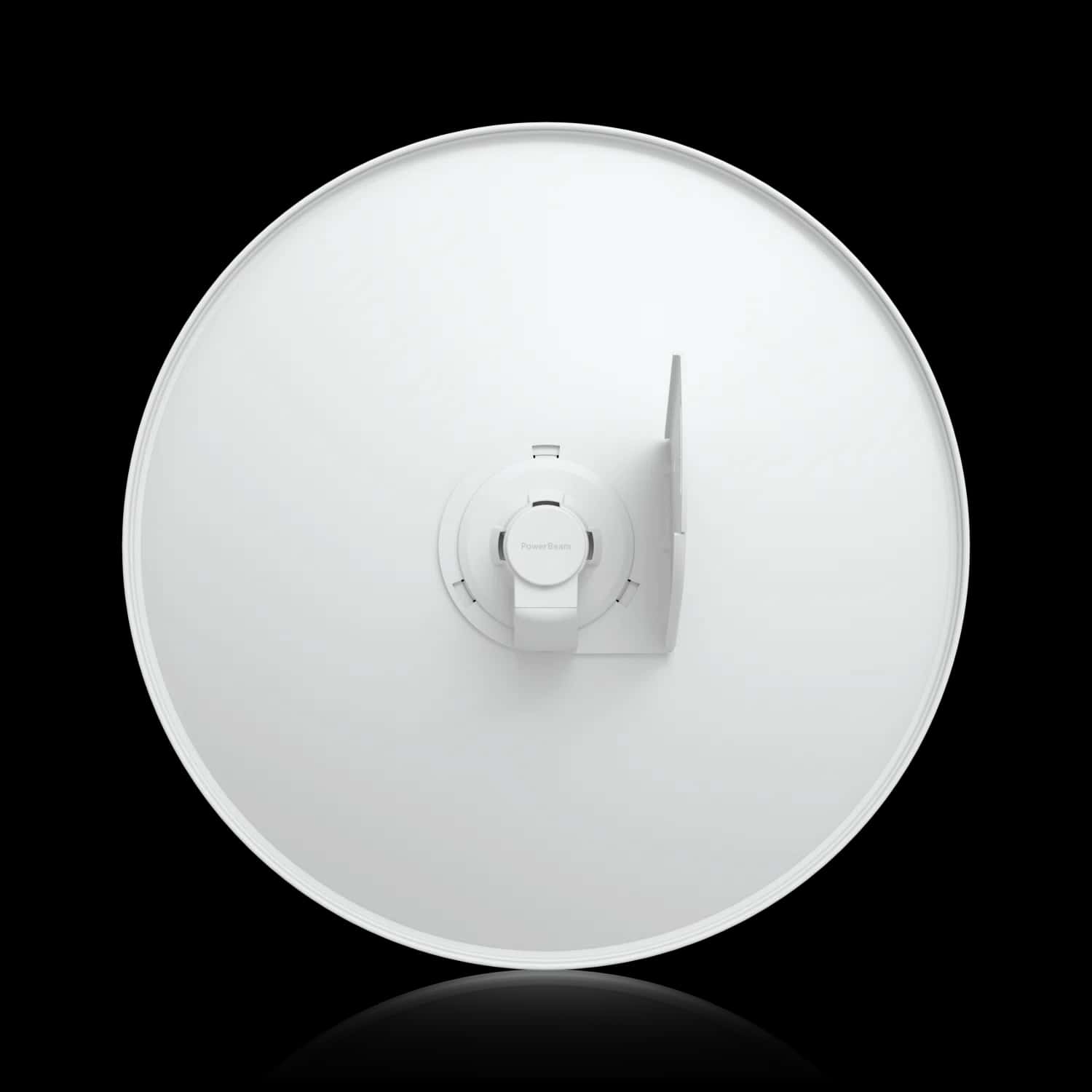

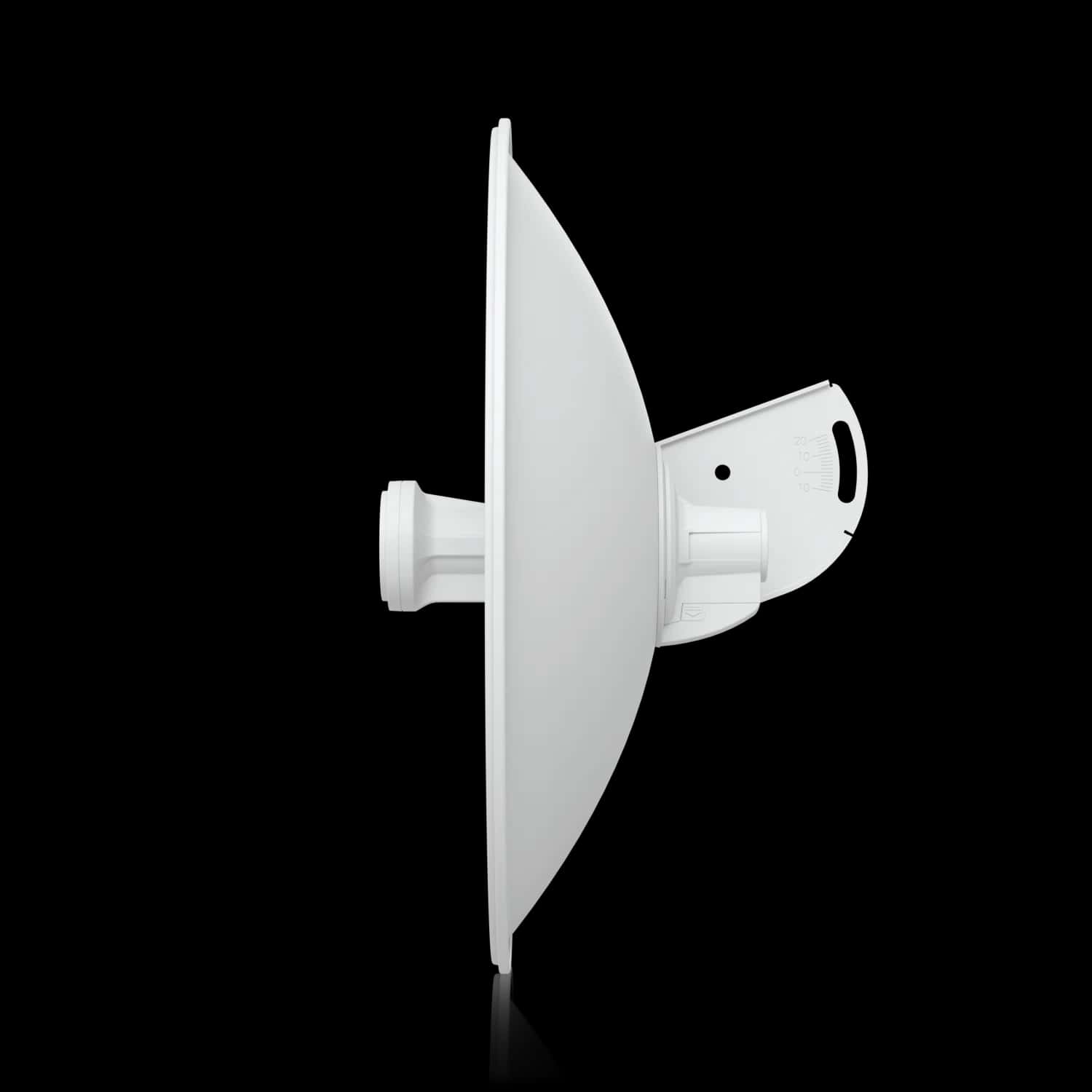

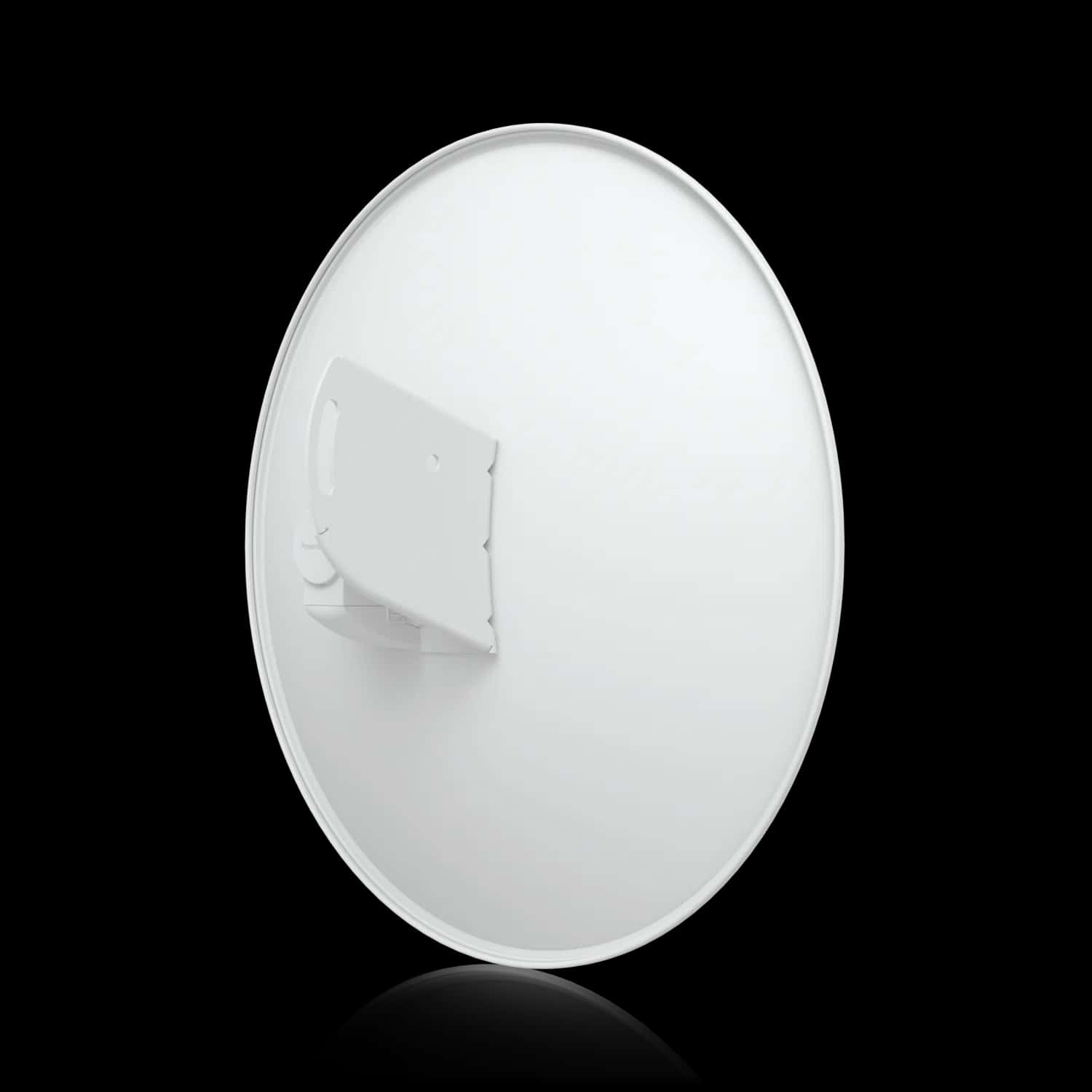

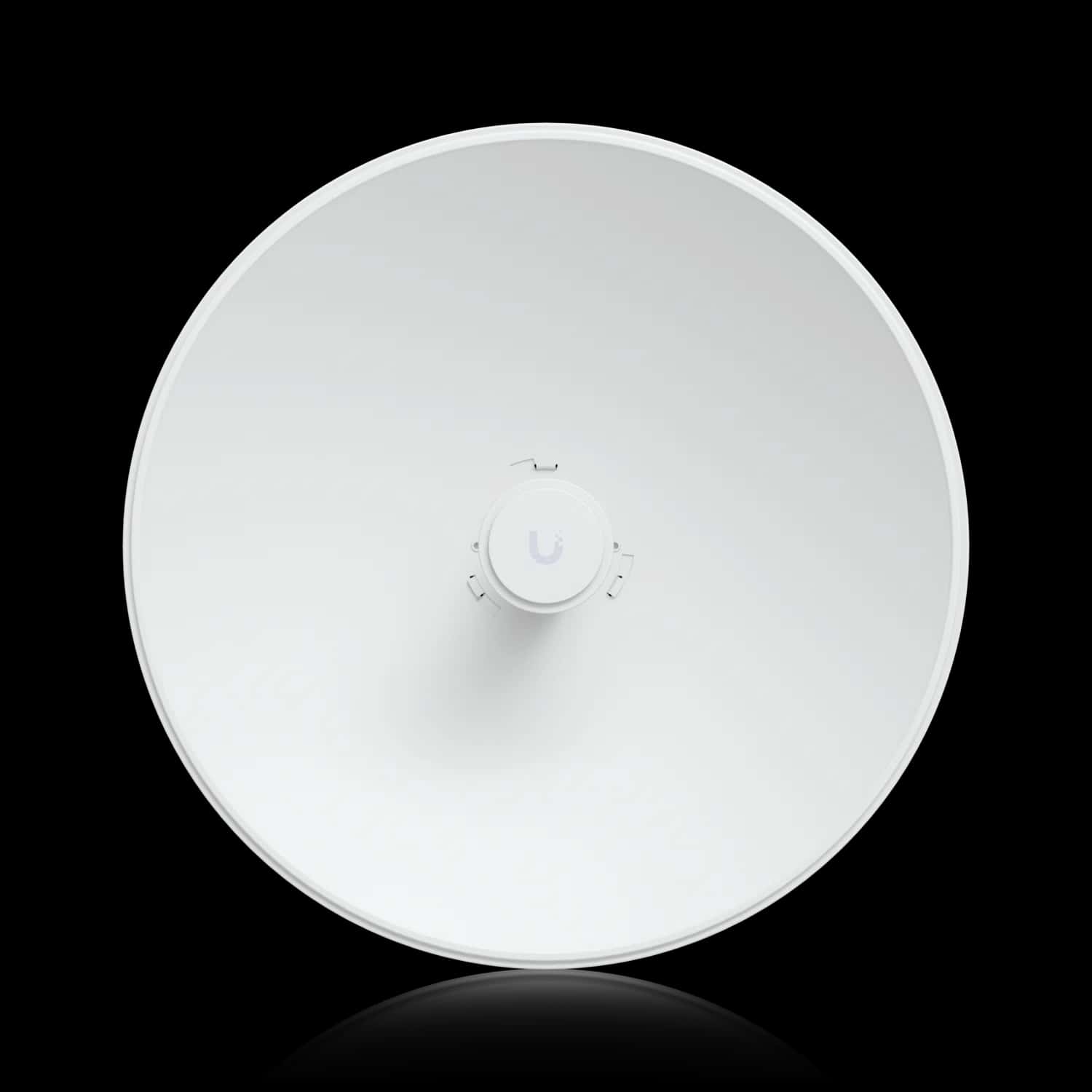

airMAX PowerBeam M5 400 mm Bridge

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti wireless and Wi-Fi

airMAX PowerBeam M5 400 mm Bridge

Read customer reviews
ModelPBE-M5-400Sold as1 unit

5 GHz, 25 dBi bridge with 150+ Mbps throughput.

Top highlights

Product detailsOverview, features and technical specifications

5 GHz, 25 dBi bridge with 150+ Mbps throughput.

At a glance

Highlight 15 GHz, 25+ km link range
Highlight 2150+ Mbps throughput
Highlight 3Improved mounting
airMAX PowerBeam M5 400 mm Bridge
airMAX PowerBeam M5 400 mm Bridge

Specifications

BrandUbiquiti
Manufacturer modelPBE-M5-400
InstallationQuoted separately
Dimensions420 x 420 x 275 mm (16.5 x 16.5 x 10.8")
Weight1.8 kg (4 lb)
Enclosure MaterialsUV-stabilized polycarbonate
MountingPole Mount (Included)
Wind Loading342.5 N @ 200 km/h (77 lbf @ 125 mph)
All specifications (26)
Wind Survivability200 km/h (125 mph)
Networking Interface(1) GbE RJ45 port
Power MethodPassive PoE 2-pair (Pairs 4, 5+; 7, 8 return)
Power Supply24V, 0.5A gigabit PoE adapter (Included)
Supported Voltage Range20–27V DC
Max. Power Consumption8W
Max. TX Power26 dBm
Ambient Operating Temperature-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, RoHS, Anatel: 01692-15-08356
Salt Fog TestIEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5
Temperature shock testIEC 68-2-14
UV testIEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4
Vibration testIEC 68-2-6
Wind-Driven Rain TestETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5
Antenna Gain25 dBi
Worldwide5170 - 5875 MHz
US/CA5725 - 5850 MHz
DownloadsSpecifications, manuals and product documents
