Equipment shop
Ubiquiti · Ubiquiti wireless and Wi-Fi

Access Point U7 Pro Outdoor

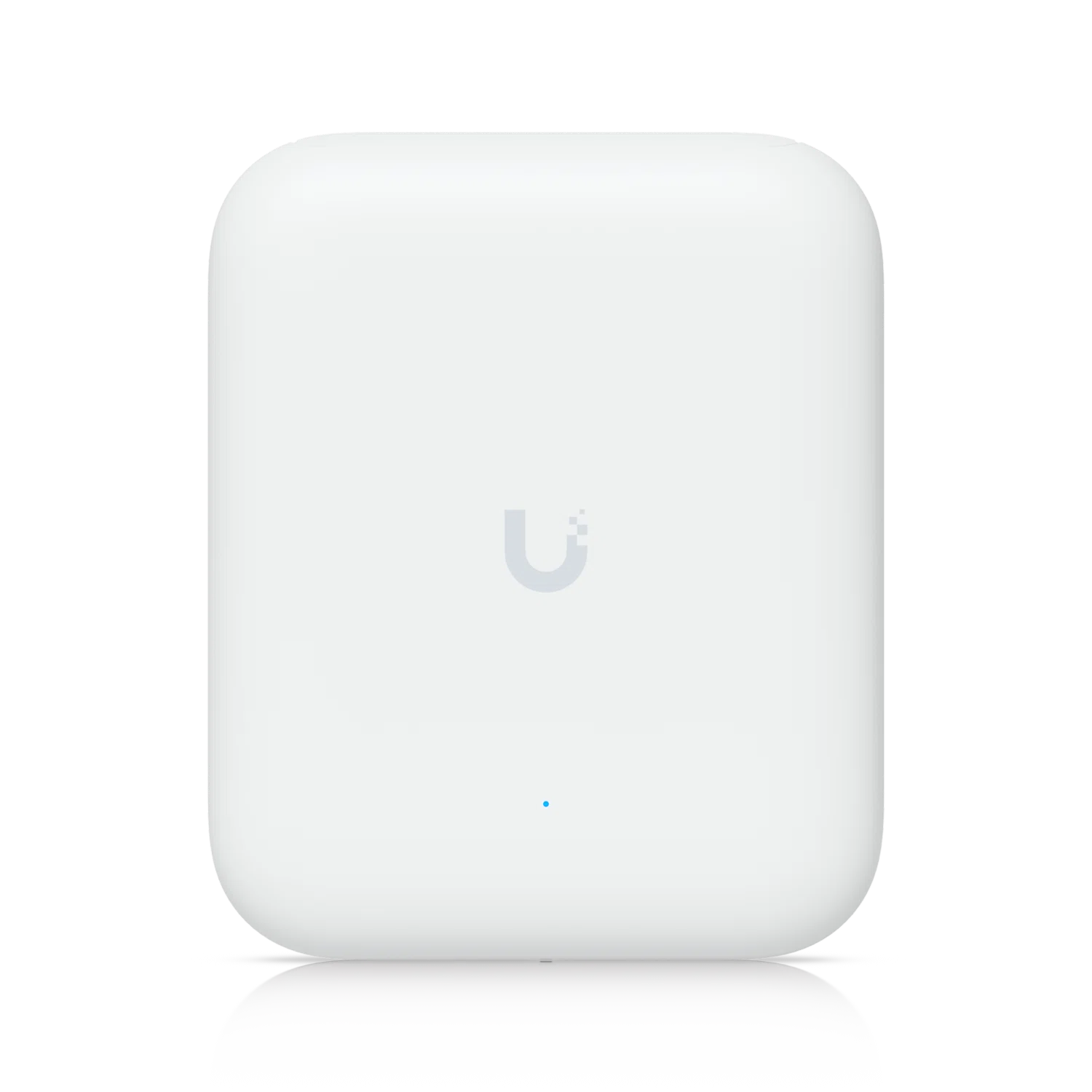

Image 1 of 14Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti wireless and Wi-Fi

Access Point U7 Pro Outdoor

Read customer reviews
ModelU7-Pro-OutdoorSold as1 unit

All-weather IP67 WiFi 7 AP with 6 spatial streams, extended-range AFC 6 GHz support, integrated directional super antenna, and articulation mounting bracket. Note . 6 GHz operation is supported in these countries . Long-range 6 GHz performance with AFC available in FCC/IC region only.

Top highlights

See more highlights
  • 465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
  • Software-switchable from internal directional to included external omni antennas
  • 300+ connected devices
  • Powered using PoE+
  • 2.5 GbE uplink
  • Versatile wall and pole mounting
  • Weatherproof (outdoor exposed)
  • Note. 6 GHz operation is supported in these countries .
  • *Available in FCC/IC region only.
Product detailsOverview, features and technical specifications

All-weather IP67 WiFi 7 AP with 6 spatial streams, extended-range AFC 6 GHz support, integrated directional super antenna, and articulation mounting bracket. Note . 6 GHz operation is supported in these countries . Long-range 6 GHz performance with AFC available in FCC/IC region only.

At a glance

Highlight 1WiFi 7 with 6 GHz support
Highlight 26 spatial streams
Highlight 3Long-range 6 GHz performance with AFC*
Highlight 4465 m² (5,000 ft²) open space coverage with the integrated directional super antenna
More highlights
Highlight 5Software-switchable from internal directional to included external omni antennas
Highlight 6300+ connected devices
Highlight 7Powered using PoE+
Highlight 82.5 GbE uplink
Highlight 9Versatile wall and pole mounting
Highlight 10Weatherproof (outdoor exposed)
Highlight 11Note. 6 GHz operation is supported in these countries .
Highlight 12*Available in FCC/IC region only.
Access Point U7 Pro Outdoor
Access Point U7 Pro Outdoor

Specifications

BrandUbiquiti
Manufacturer modelU7-Pro-Outdoor
InstallationQuoted separately
Max. Client Count300
WiFi7WiFi 7
Radio/Antenna6 GHz Radio
Uplink2.5 GbE
DimensionsWithout mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6") With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")
All specifications (47)
WiFi StandardWiFi 7
Spatial Streams6
Coverage Area465 m² (5,000 ft²)
Max. Client Count300+
MountingWall, Pole (Mounts Included)
WeatherproofingIPX6 IP67 (With cable-gland door kit)
Power MethodPoE+
6 GHz2 x 2 (DL/UL MU-MIMO)
5 GHz2 x 2 (DL/UL MU-MIMO)
2.4 GHz2 x 2 (DL/UL MU-MIMO)
6 GHz5.8 Gbps (BW320)
5 GHz4.3 Gbps (BW240)
2.4 GHz688 Mbps (BW40)
6 GHzDirectional internal: 10 dBi, 90° x 45°
5 GHzDirectional internal: 11 dBi, 90° x 45° External omni: 8 dBi, 360° x 15°
2.4 GHzDirectional internal: 8 dBi, 90° x 90° External omni: 6 dBi, 360° x 15°
6 GHz26 dBm
5 GHz26 dBm
2.4 GHz23 dBm
Max. BSSIDs8 per Radio
802.11be (WiFi 7)7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Max. Power Consumption21W
Supported Voltage Range42.5–57V DC
Networking Interface(1) 1/2.5 GbE RJ45 port
WeightDevice: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb)
Wind Loading74.6 N at 200 km/h (16.8 lbf at 125 mph)
Pole Mount Diameter1–2.5" (25–63.5 mm)
ManagementEthernet
Enclosure MaterialUV-stabilized polycarbonate, aluminum alloy
Mount MaterialUV-stabilized polycarbonate
System(1) Power: White/Blue (4) Mesh signal: Blue
Ambient Operating Temperature-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsFCC, IC
UniFi NetworkVersion 9.0.114 and later
Mobile AppiOS™ version 10.20.2 and later Android™ version 10.21.7 and later
DownloadsSpecifications, manuals and product documents
Compatible additions

These recommendations prioritize useful companion categories for this equipment—not a generic catalog list.

View all equipment
Cloud Gateway FiberEquipment
Ubiquiti gateway and switching · Ubiquiti

Cloud Gateway Fiber

Includes full UniFi application suite for device managementManages 50+ UniFi devices and 500+ clients
Selected equipment price$399.10
Access Point Lite Arm MountEquipment
Network mounts and accessories · Ubiquiti

Access Point Lite Arm Mount

Equipment only; installation is quoted separatelySelect the required configuration before ordering
Selected equipment price$26.00
AI Speaker Flush MountEquipment
Network equipment accessories · Ubiquiti

AI Speaker Flush Mount

Equipment only; installation is quoted separatelySelect the required configuration before ordering
Selected equipment price$76.70
airFiber 24 GHz BridgeEquipment
Wireless network bridge · Ubiquiti

airFiber 24 GHz Bridge

24 GHz, 13+ km link range1.5+ Gbps throughput
Selected equipment price$1,943.50

Before you add to cart

What you’re ordering

All-weather IP67 WiFi 7 AP with 6 spatial streams, extended-range AFC 6 GHz support, integrated directional super antenna, and articulation mounting bracket. Note . 6 GHz operation is supported in these countries . Long-range 6 GHz performance with AFC available in FCC/IC region only.

Review the selected option and quantity. Installation is quoted separately unless explicitly included in this item.

Shipping, returns & order policies

Build around your network

Check Ethernet port speed, cable category and length, and the number of connected devices. For PoE equipment, match the required PoE standard and power budget. Wireless equipment can require an existing router, controller, or wired uplink; review the listed requirements.
