Equipment shop
Ubiquiti · Door access control

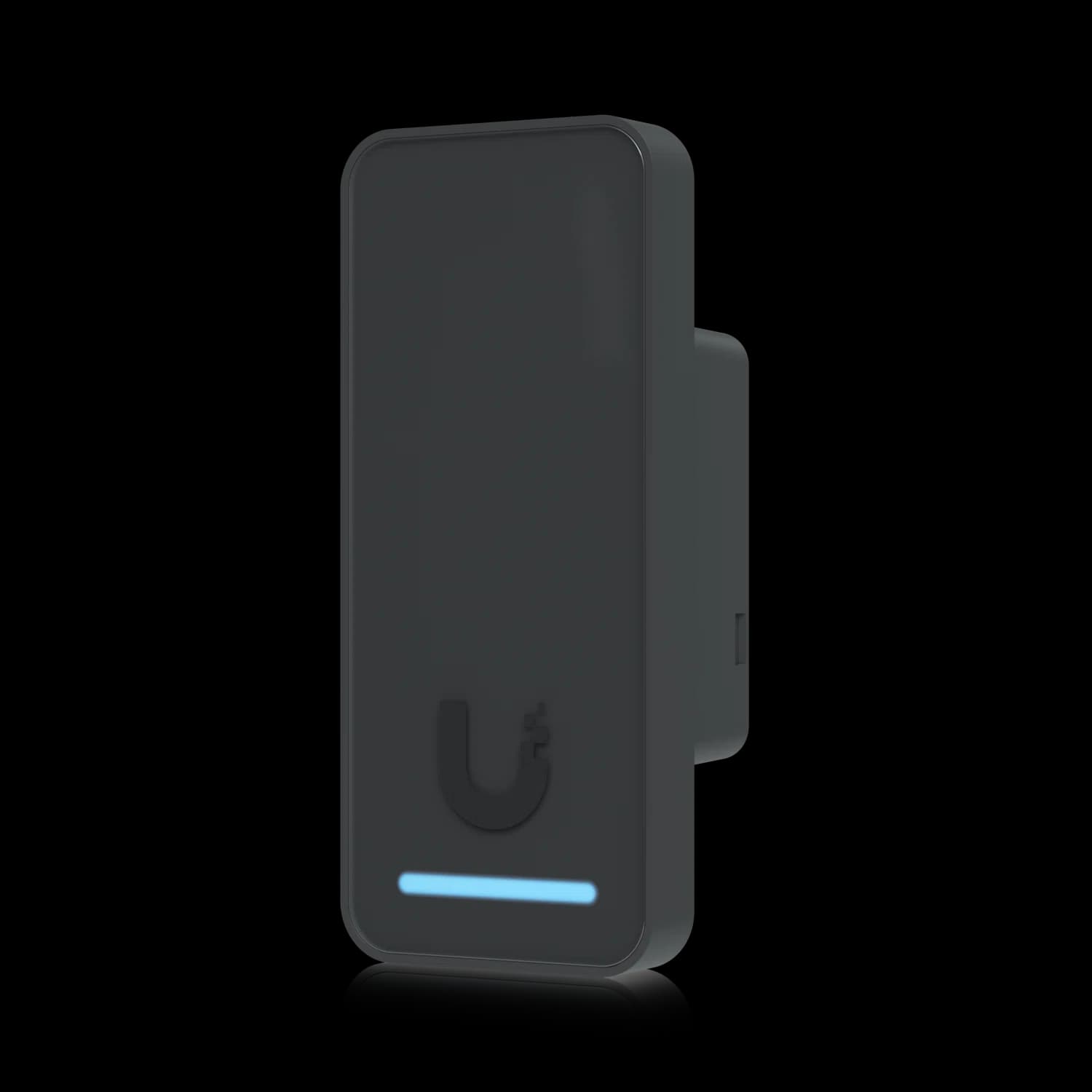

Access G2 Reader

Image 1 of 5Product view

Professional-grade equipment · Installation available
Ubiquiti · Door access control

Access G2 Reader

Read customer reviews
ModelUA-G2Sold as1 unit

Compact second-generation access reader.

Top highlights

See more highlights
  • IP55-rated weather resistance (-30 to 45° C)
  • Connects to UniFi Access Hub via PoE
Product detailsOverview, features and technical specifications

Compact second-generation access reader.

At a glance

Highlight 1Unlock with an NFC card or UniFi Endpoint mobile app
Highlight 2Supports hand-wave unlocking as a request-to-exit device
Highlight 3Provides entry and exit greeting messages
Highlight 4IP55-rated weather resistance (-30 to 45° C)
More highlights
Highlight 5Connects to UniFi Access Hub via PoE
Access G2 Reader
Access G2 Reader

Specifications

BrandUbiquiti
Manufacturer modelUA-G2
InstallationQuoted separately
NFCNFC
Physical UnlockHandwave Unlock
WeatherproofOutdoor Exposed
Dimensions93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
UniFi Application SuiteAccess
All specifications (36)
WeatherproofingIP55
UL 294 LevelDestructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weight82 g (2.9 oz)
Enclosure MaterialPolycarbonate, glass
Mount MaterialAluminum alloy
MountingIn-wall, gang box (Included) Junction box (Optional)
Indoor and Outdoor UseYes
Networking Interface(1) 10/100 MbE RJ45 port
ConnectivityBLE 4.1 NFC
Power MethodPoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption5W
Supported Voltage Range48V DC
ESD/EMP ProtectionAir: ± 15kV, contact: ± 8kV
SensorsProximity sensor
LEDsR/G/B/W Learn More
Button(1) Factory reset
NFC Frequency13.56 MHz
NFC Read Range< 30 mm (1.18'')
NFC TechnologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-G2/UA-G2-Black, V02
Ambient Operating Temperature-30 to 45° C (-22 to 113° F)
Ambient Operating Humidity5 to 90% noncondensing
Management ApplicationAccess
Software InformationThe software version can be checked at https://unifi.ui.com
DownloadsSpecifications, manuals and product documents
