Equipment shop
Ubiquiti · Door access control

Access G2 Starter Kit Pro

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Door access control

Access G2 Starter Kit Pro

Read customer reviews
ModelUA-G2-SK-ProSold as1 unit

Starter kit that provides complete entry and exit control for a single door with two readers.

Top highlights

See more highlights
  • (2) Pocket Keyfobs
Product detailsOverview, features and technical specifications

Starter kit that provides complete entry and exit control for a single door with two readers.

At a glance

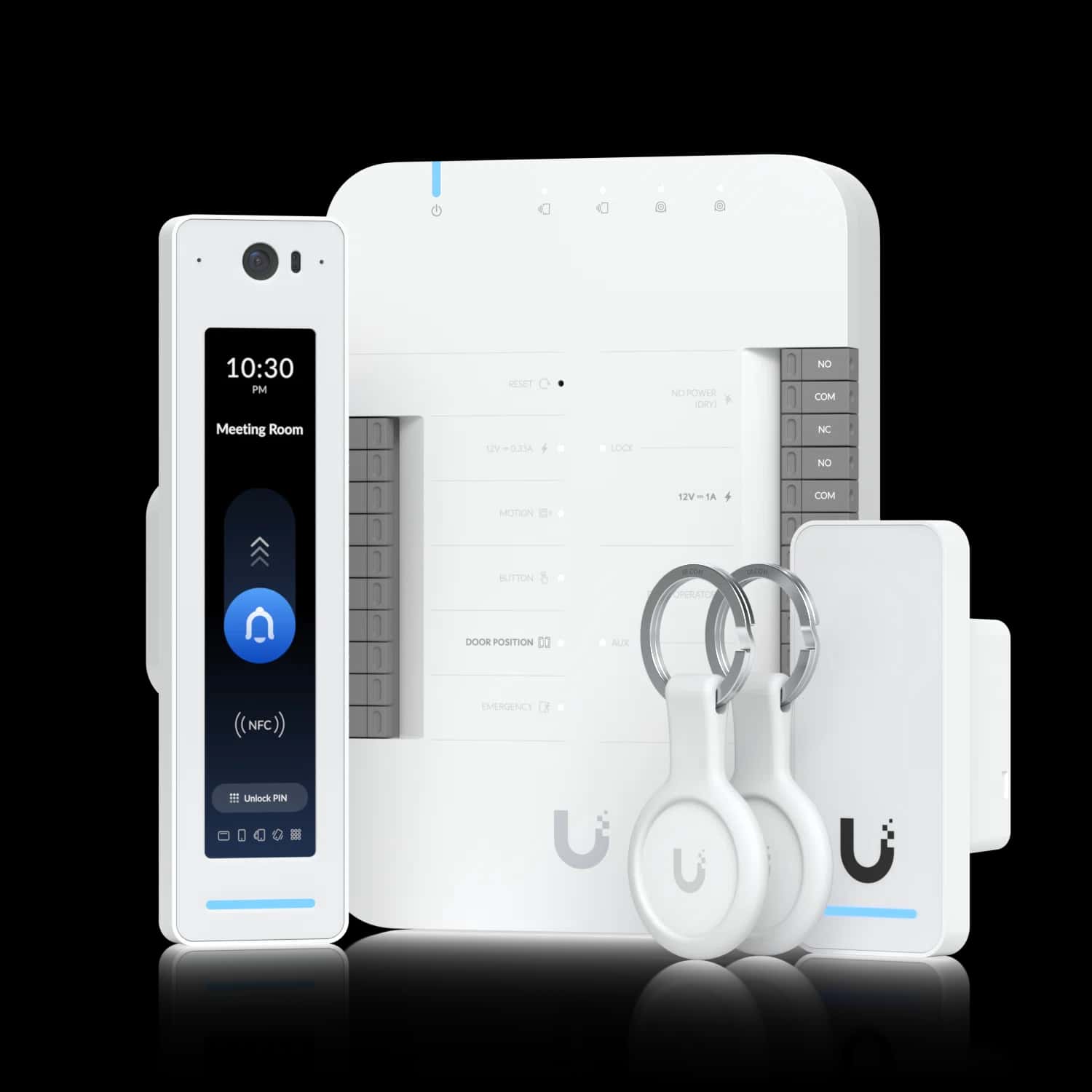

Highlight 1(1) Door Hub

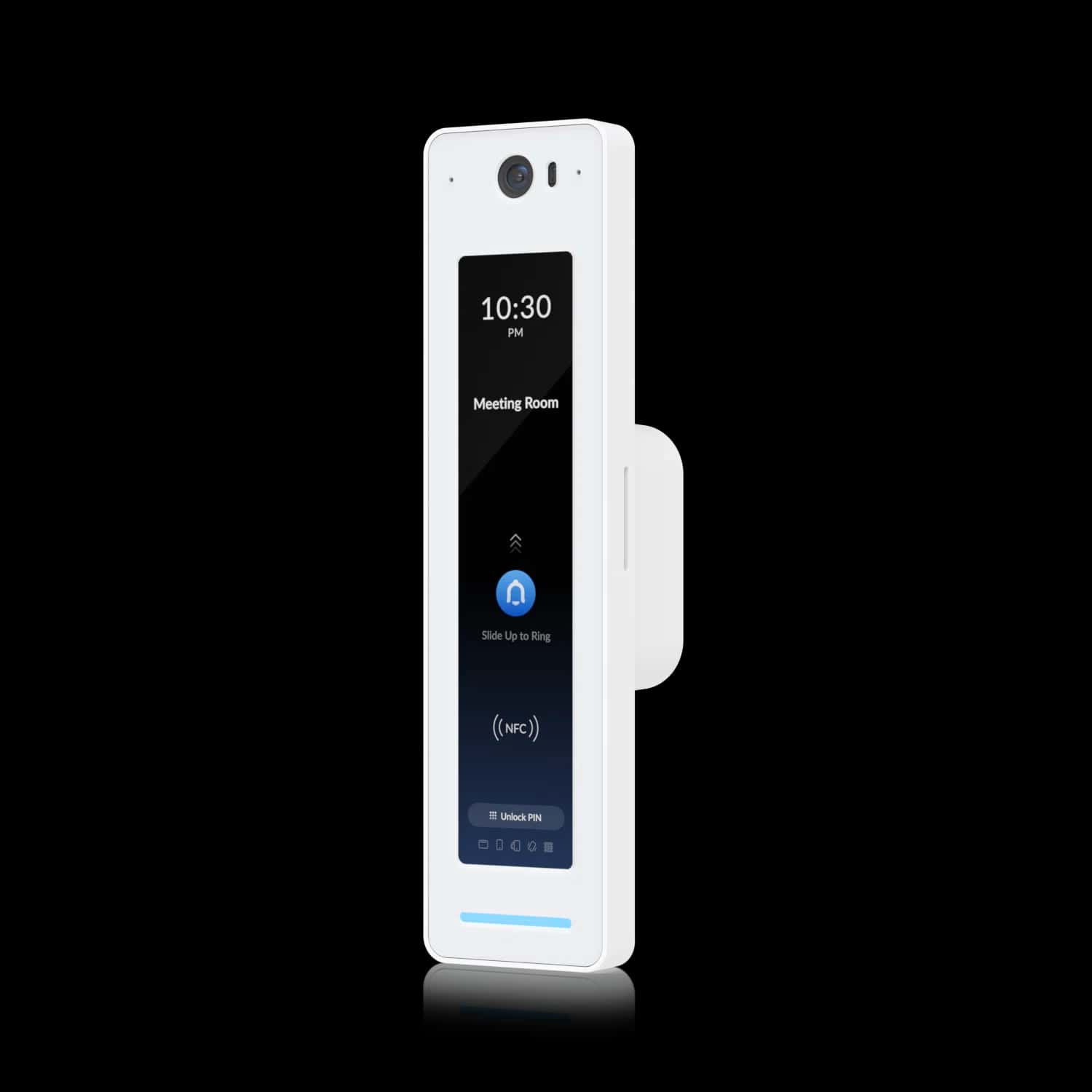

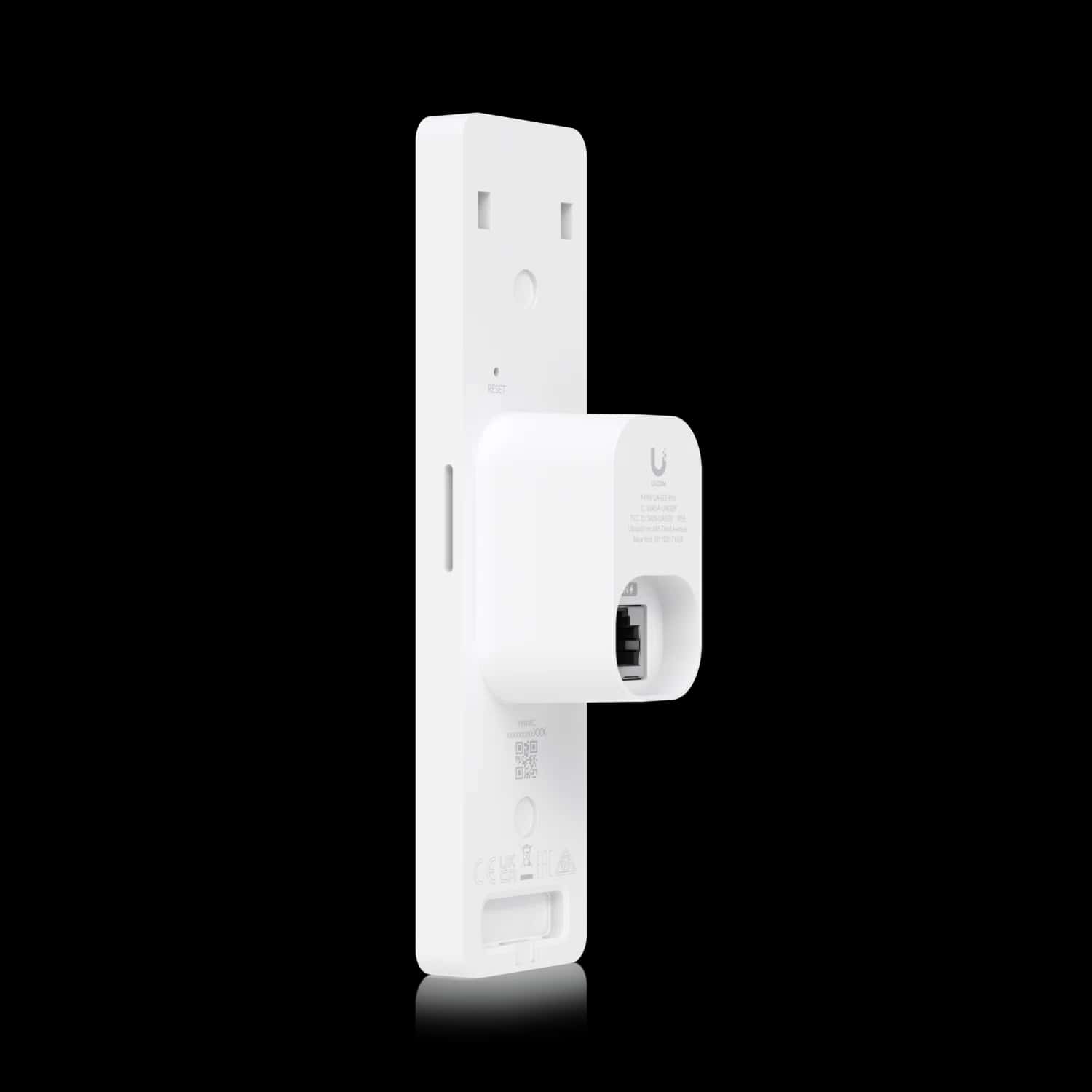

Highlight 2(1) G2 Reader Pro
Highlight 3(1) G2 Reader for door exit, or entry for an additional door (second Hub required)
Highlight 4(2) Pocket Keyfobs
Access G2 Starter Kit Pro
Access G2 Starter Kit Pro

Specifications

BrandUbiquiti
Manufacturer modelUA-G2-SK-Pro
InstallationQuoted separately
In the Box(1) Door Hub (1) G2 Reader Pro (1) G2 Reader (2) Pocket Keyfobs
Dimensions174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3")
Supported Doors1
Maximum User Count6,000
Input Terminals(2) Door exit request (1) Door position (1) Emergency
All specifications (85)
Power MethodPoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Weight363 g (12.8 oz)
Enclosure MaterialPolycarbonate
Mount MaterialPolycarbonate
MountingDIN-rail (Included)
Networking Interface(5) 10/100/1000 Base-T
PoE Interface(1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated)
Max. Power Consumption30W (Without PoE output) 50W (With PoE output)
Digital InputRequest to exit, request to enter, remote release, door position sensor
Dry Output RelayLock: 30V DC, 1A Aux: 30V DC, 1A
Powered Output RelayLock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A
LEDsB/W Learn More
Button(1) Factory reset
UA-Lock-Electric (400mA)24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 LevelDestructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 StatementCompliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: 1
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Management ApplicationUniFi Access
Software InformationThe software version can be checked at https://unifi.ui.com
Document number, and issue date and/or revision levelUA-Hub-Door002, V01
Dimensions160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")
WeatherproofingIP55
Weight136 g (4.8 oz)
Enclosure MaterialPolycarbonate, glass
Mount MaterialAluminum alloy
MountingWall, gang-box mount (Included) Angle mount, junction box (Optional)
Networking Interface(1) GbE RJ45 port
ConnectivityBLE 4.2 NFC
Power MethodPoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption6W
Supported Voltage Range48V DC
ESD/EMP ProtectionAir: ± 15kV, contact: ± 8kV
Max. Frame Rate30 FPS
Resolution2MP 1200 x 1600 (3:4)
Resolution12 MP (3072 × 4096)
Field of ViewH: 98.6°, V: 125.7°, D: 157.8°
SensorsProximity sensor
Luminance480 nits (Typical)
Screen OrientationPortrait
Resolution1280 x 286 px
Screen TechnologyCapacitive touch
Size120 mm (4.7") diagonal
Speaker(1) Yes, 1.5W
LEDsR/G/B/W/Amber Learn More
NFC Read Range< 30 mm (1.18'')
NFC TechnologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T
NFC Frequency13.56 MHz
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
Ambient Operating TemperatureDevice: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F)
Ambient Operating Humidity5 to 90% noncondensing
Document number, and issue date and/or revision levelUA-G2-Pro/UA-G2-Pro-Black, V02
Dimensions93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Weight82 g (2.9 oz)
MountingIn-wall, gang box (Included) Junction box (Optional)
Networking Interface(1) 10/100 MbE RJ45 port
ConnectivityBLE 4.1 NFC
Max. Power Consumption5W
Speaker(1) Yes, 0.7W
LEDsR/G/B/W Learn More
Ambient Operating Temperature-30 to 45° C (-22 to 113° F)
Document number, and issue date and/or revision levelUA-G2/UA-G2-Black, V02
Dimensions84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
Weight16 g (0.56 oz)
Enclosure MaterialPolycarbonate, stainless steel, silicone rubber
WeatherproofingIP54
Ambient Operating Humidity10 to 90% noncondensing
Ambient Operating Temperature-10 to 45° C (14 to 113° F)
NFC TechnologyISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol
CertificationCE
DownloadsSpecifications, manuals and product documents
