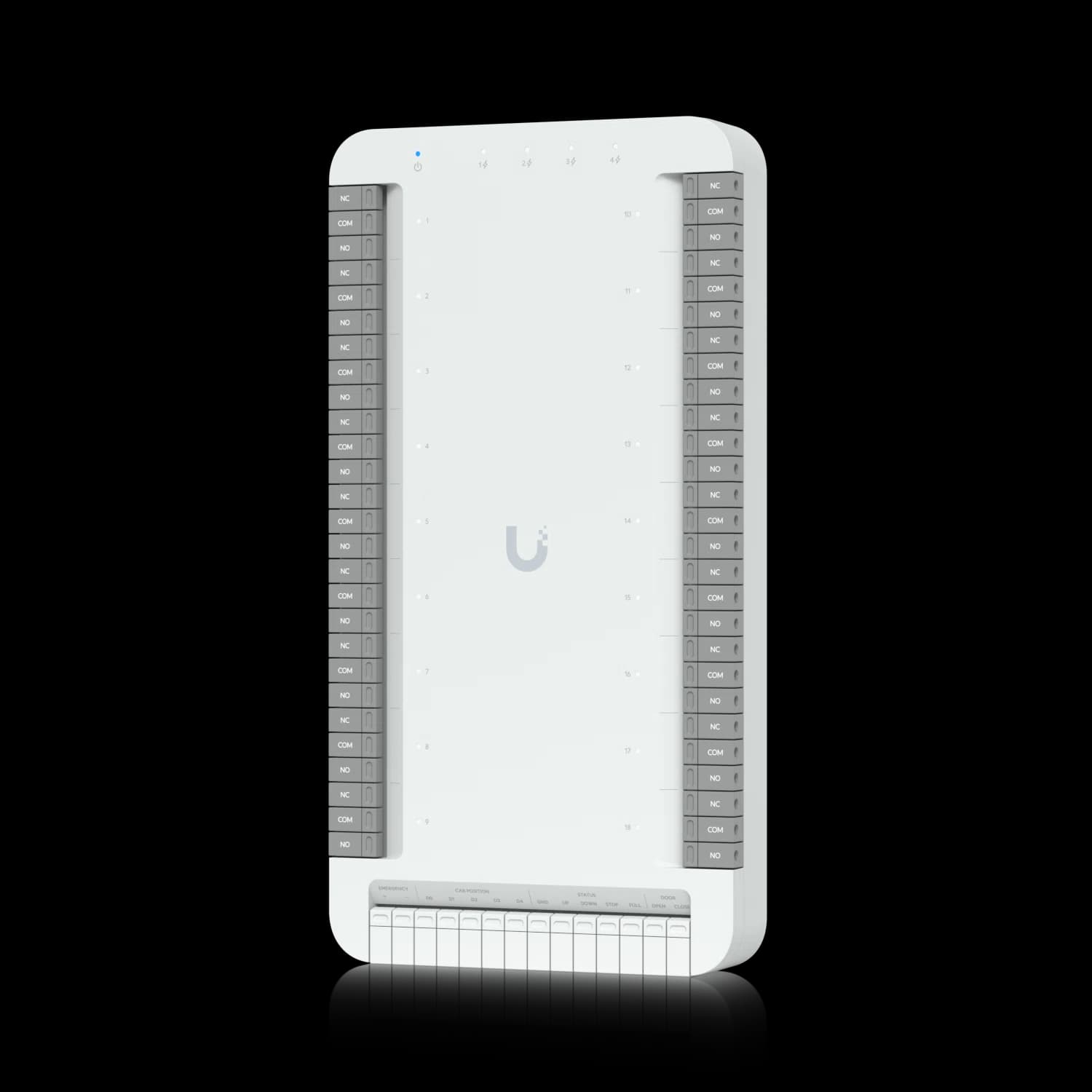

Access G3 Elevator Starter Kit

Name: Ubiquiti Access G3 Elevator Starter Kit
Brand: Ubiquiti
SKU: UBNT-CATALOG-UA-G3-SK-ELEVATOR
Price: 1298.70 USD
Availability: InStock

Image 1 of 5Product view

Professional-grade equipment · Installation available

Ubiquiti · Door access control

Access G3 Elevator Starter Kit

Read customer reviews

ModelUA-G3-SK-ElevatorSold as1 unit

Connects to in-elevator readers with PoE to authorize floor selection. Supports up to 18 floors with digital inputs for elevator car status and emergency. Note . 10 free 1-year Touch Passes included. Learn more .

Top highlights

Equipment only; installation is quoted separately
Select the required configuration before ordering

Product detailsOverview, features and technical specifications

At a glance

Highlight 1	Equipment only; installation is quoted separately
Highlight 2	Select the required configuration before ordering

Specifications

Brand	Ubiquiti
Manufacturer model	UA-G3-SK-Elevator
Installation	Quoted separately
In the Box	(1) Elevator Hub (1) G3 Reader (2) 2-wire PoE extenders (10) Access Cards
Touch Pass	10 free 1-year Touch Passes included Learn More
Dimensions	129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3")
Maximum User Count	6,000
Power Method	PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

All specifications (66)

Weight	537 g (1.2 lb)
Enclosure Material	Polycarbonate
Mounting Material	Polycarbonate
Networking Interface	(4) 10/100/1000 Base-T
PoE Interface	(1) PoE++ input, 50V DC, 1.2A (4) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated)
Management	(1) 10/100/1000 Base-T
Max. Power Consumption	7W (Without PoE output)
Digital Input	(1) Emergency (1) Car position (5-bit) (1) Car status: Up/Down/Stop/Full (1) Door status: Open/Close
Outputs	(18) Relays Rating 30V DC/2A
ESD/EMP Protection	Air: ± 8kV, contact: ± 4kV
LEDs	B/W Learn More
Buttons	(1) Factory reset Terminal blocks
Ambient Operating Temperature	-10 to 40° C (14 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC, UL 62368-1, CSA C22.2 No. 62368-1
Management Application	UniFi Access
Software Information	The software version can be checked at https://unifi.ui.com
Dimensions	93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
Weatherproofing	IP55
Weight	82 g (2.9 oz)
Enclosure Material	Polycarbonate, glass
Mount Material	Aluminum alloy
Mounting	In-wall, gang box (Included) Junction box (Optional)
Networking Interface	(1) 10/100 MbE RJ45 port
Connectivity	BLE 4.1 NFC
Power Method	PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption	5W
Supported Voltage Range	48V DC
ESD/EMP Protection	Air: ± 15kV, contact: ± 8kV
Sensors	Proximity sensor
Speaker	Yes
LEDs	R/G/B/W Learn More
Button	(1) Factory reset
NFC Frequency	13.56 MHz
NFC Read Range	< 30 mm (1.18'')
NFC Technology	ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 Statement	Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade	Grade assignment: I
Ambient Operating Temperature	-30 to 45° C (-22 to 113° F)
Ambient Operating Humidity	5 to 90% noncondensing
Certifications	CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1
Dimensions	85.6 x 53.98 x 0.84 mm (3.37 x 2.13 x 0.03")
Weight	5 g (0.18 oz)
Format	ISO 7810 ID-1
NFC Technology	ISO/IEC 14443 Type A MIFARE DESFire UniFi Access Proprietary Security Protocol
Model	UACC-Extender-2Wire-PoE-Tx/Rx
Dimensions	40 x 105 x 25 mm (1.6 x 4.1 x 1")
Weight	PoE in: 77 g (2.7 oz) PoE out: 79 g (2.8 oz)
Networking Interface	(1) 10/100 MbE (1) Homeplug AV
PoE Interface	PoE input: (1) PoE++, 50V DC, Max. 1.2A PoE output: (1) PoE+, 48V DC, 0.72A
Management	(1) 10/100 MbE
Power Method	PoE++
Max. Power Consumption	3W (Without PoE output)
Recommend Max. Cable Length	Learn More
LEDs	White
Certifications	CE, FCC, IC
