Ubiquiti · Door access control

Access Intercom Viewer

Read customer reviews
ModelUA-Intercom-ViewerSold as1 unit

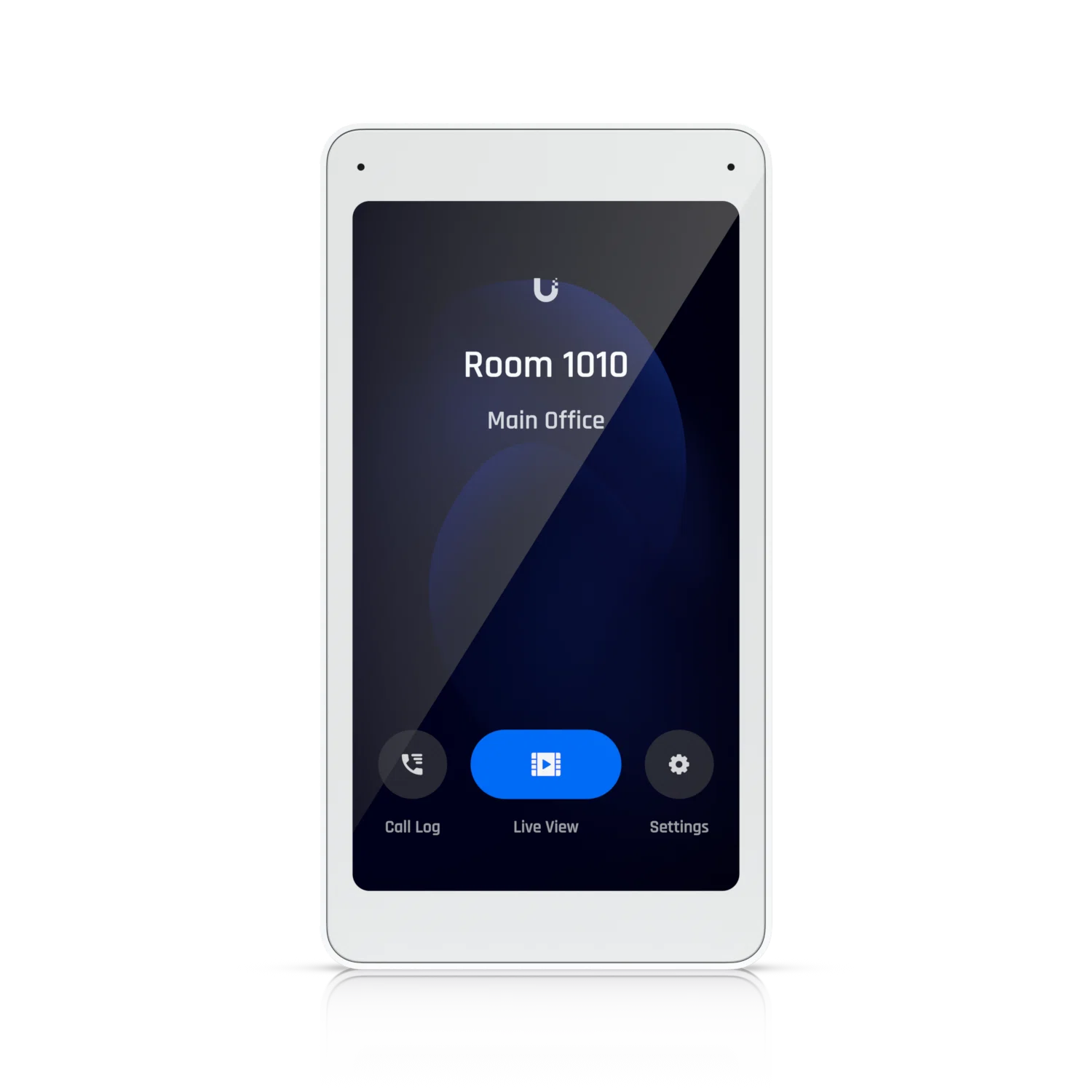

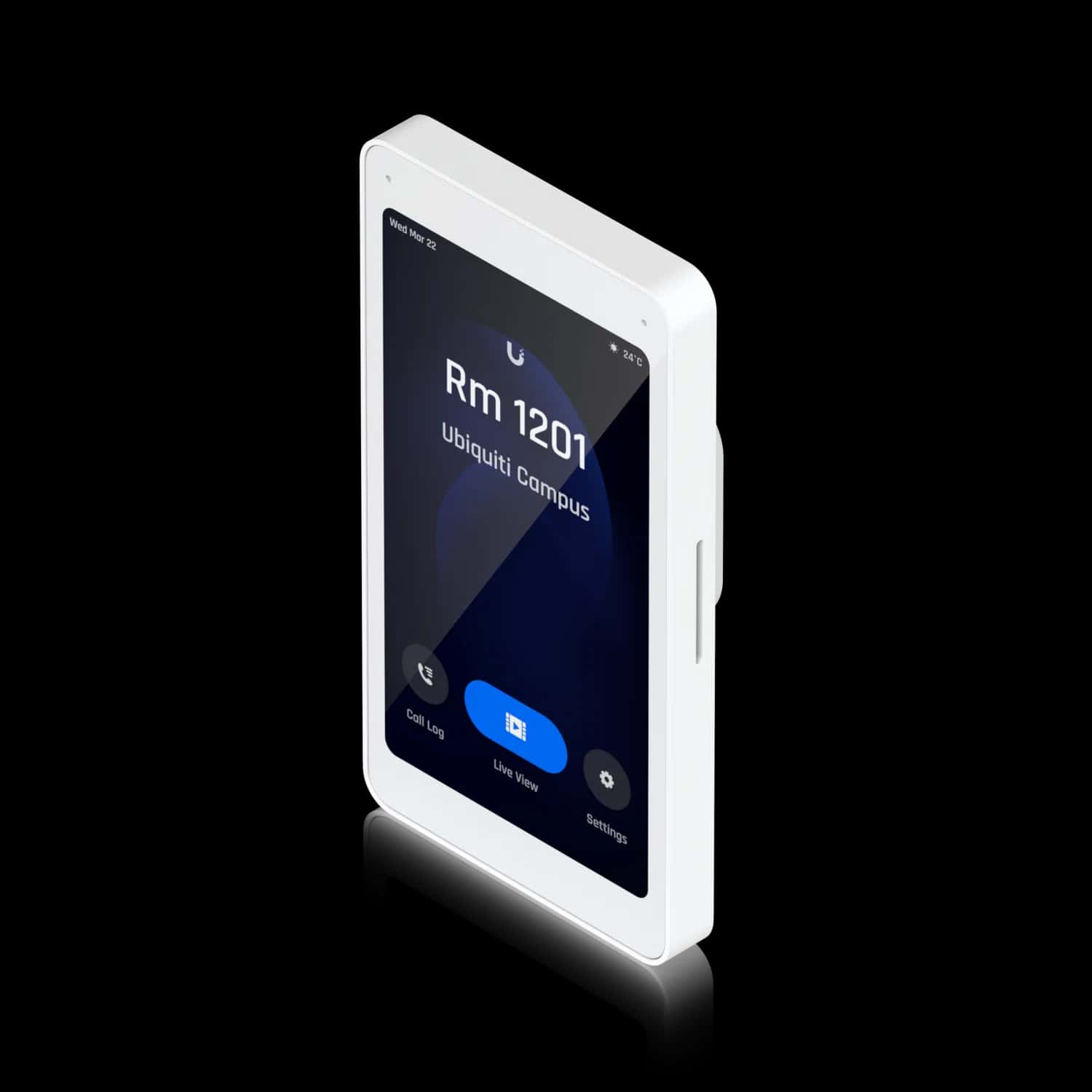

Display that works with Intercom and Reader Pro for visitor screening and remote access control.

Top highlights

See more highlights
  • 5" touch display
  • Connect and power using a PoE switch
Product detailsOverview, features and technical specifications

Display that works with Intercom and Reader Pro for visitor screening and remote access control.

At a glance

Highlight 1Receives doorbell calls from one or more locations
Highlight 2Two-way audio
Highlight 3Instant live view
Highlight 45" touch display
More highlights
Highlight 5Connect and power using a PoE switch
Access Intercom Viewer
Access Intercom Viewer

Specifications

BrandUbiquiti
Manufacturer modelUA-Intercom-Viewer
InstallationQuoted separately
DisplayTouch display
LivestreamLive View
SoundTwo-Way Audio
Dimensions135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3")
UL 294 LevelDestructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
All specifications (32)
Weight168 g (5.9 oz)
Enclosure MaterialGlass, polycarbonate
Mount MaterialAluminum alloy
MountingWall (Included) Gang box mount (Optional)
Indoor and Outdoor UseIndoor only
Networking Interface(1) 10/100 Mbps RJ45 port
ConnectivityEthernet
Power MethodPoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption5W
Supported Voltage Range44–57V DC
Size127 mm (5") diagonal
Luminance300 nits (Typical)
Screen OrientationPortrait
Resolution1280 x 720 px
Buttons(1) Factory reset
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-Intercom-Viewer, V01
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
Management ApplicationAccess
Software InformationThe software version can be checked at https://unifi.ui.com
