Equipment shop
Ubiquiti · Door access control

Door Lock Relay Cable

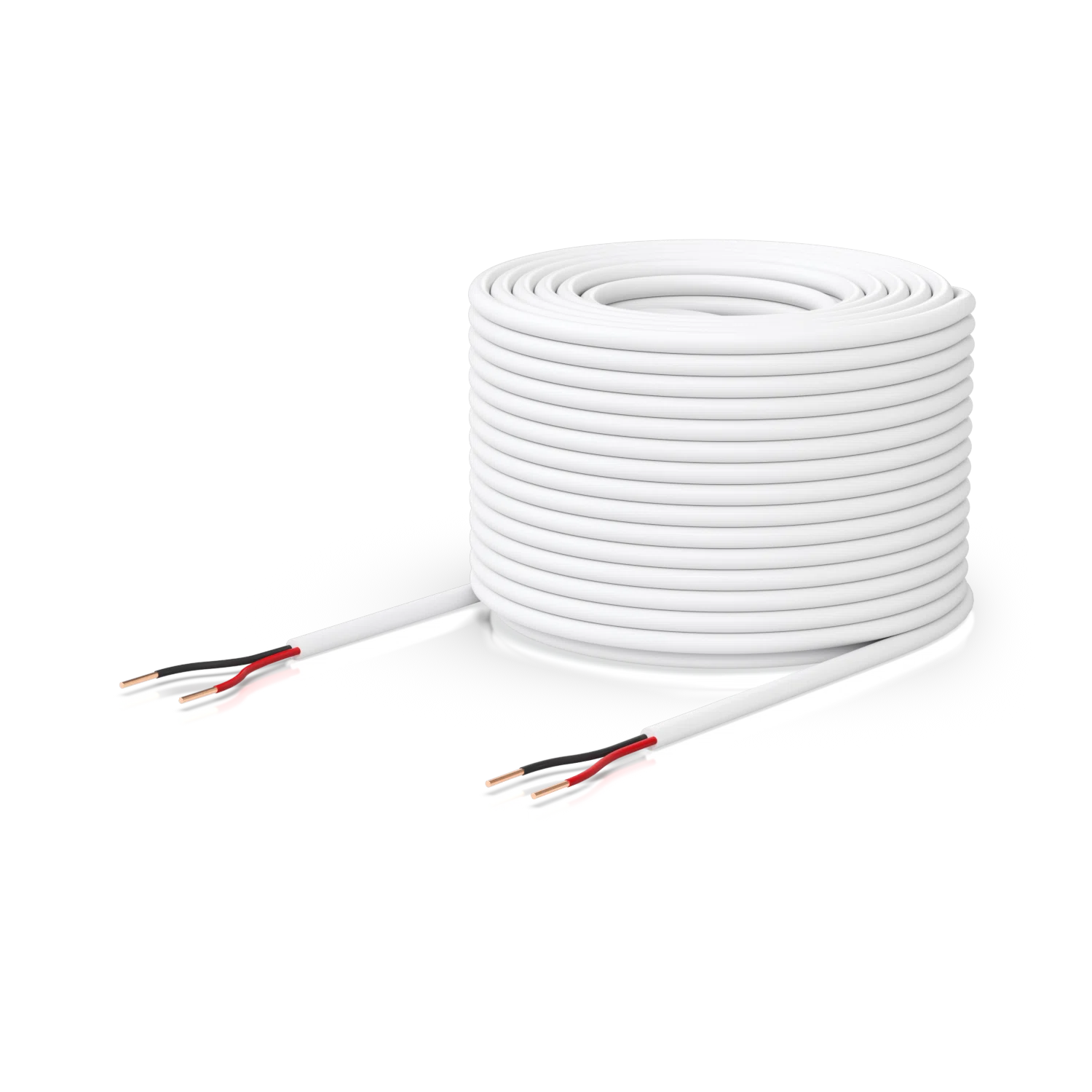

Image 1 of 2Manufacturer product view 1

Professional-grade equipment · Installation available
Ubiquiti · Door access control

Door Lock Relay Cable

Read customer reviews
ModelUACC-Cable-DoorLockRelaySold as1 unit

A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.

Top highlights

See more highlights
  • 2-Pair Relay Cable: — (2) 18 AWG conductors for an electric/magnetic lock — (2) 22 AWG conductors for a door position sensor
  • Cable length 152.4 m
Product detailsOverview, features and technical specifications

A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.

At a glance

Highlight 11-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub
Highlight 22-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub
Highlight 31-Pair Relay Cable: — (2) 18 AWG conductors for an electric/magnetic lock
Highlight 42-Pair Relay Cable: — (2) 18 AWG conductors for an electric/magnetic lock — (2) 22 AWG conductors for a door position sensor
More highlights
Highlight 5Cable length 152.4 m
Door Lock Relay Cable
Door Lock Relay Cable

Specifications

BrandUbiquiti
Manufacturer modelUACC-Cable-DoorLockRelay
InstallationQuoted separately
Length152.4 m (500 ft)
MaterialConductor: Solid bare copper Jacket: Thermoplastic elastomer (TPE) Insulation: Semi-rigid polyvinyl chloride (SR-PVC)
InsulationUACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) UACC-Cable-DoorLockRelay-1P: black/red (18AWG)
Current Rating18AWG: 2A for 500 ft length 22AWG: 1A for 500 ft length
Flame RatingVW-1
All specifications (19)
Conductor Wire GaugeUACC-Cable-DoorLockRelay-2P: 18/22 AWG UACC-Cable-DoorLockRelay-1P: 18 AWG
WeightUACC-Cable-DoorLockRelay-2P: 5.6 kg (12.3 lb) UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb)
Jacket Outer DiameterUACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18") UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17")
Jacket ColorWhite
Bend RadiusUACC-Cable-DoorLockRelay-2P: 56 mm (2.2") UACC-Cable-DoorLockRelay-1P: 33 mm (1.3")
Pulling TensionUACC-Cable-DoorLockRelay-2P: 24.2 kgf UACC-Cable-DoorLockRelay-1P: 16.4 kgf
Conductor DCRUACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG)
Supported Voltage Range36V DC
Number of ConductorsUACC-Cable-DoorLockRelay-2P: 4 UACC-Cable-DoorLockRelay-1P: 2
Ambient Storage Temperature-45 to 65° C (-49 to 149° F)
Ambient Operating Temperature-45 to 65° C (-49 to 149° F)
