Ubiquiti · Ethernet range extenders

Long-Range Ethernet Repeater

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Ethernet range extenders

Long-Range Ethernet Repeater

Read customer reviews
ModelUACC-LRESold as1 unit

Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.

Top highlights

See more highlights
  • 10kA+ surge protection
  • Works reliably in extreme temperatures (-40 to 80° C)
  • *Repeaters must be placed in 100 m increments.
  • **Powered with pins 1, 2+; 3, 6- which may not be supported by certain third-party switches. We recommend using a UniFi switch to power the device.
Product detailsOverview, features and technical specifications

Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.

At a glance

Highlight 1Extend PoE connections up to 1 km*

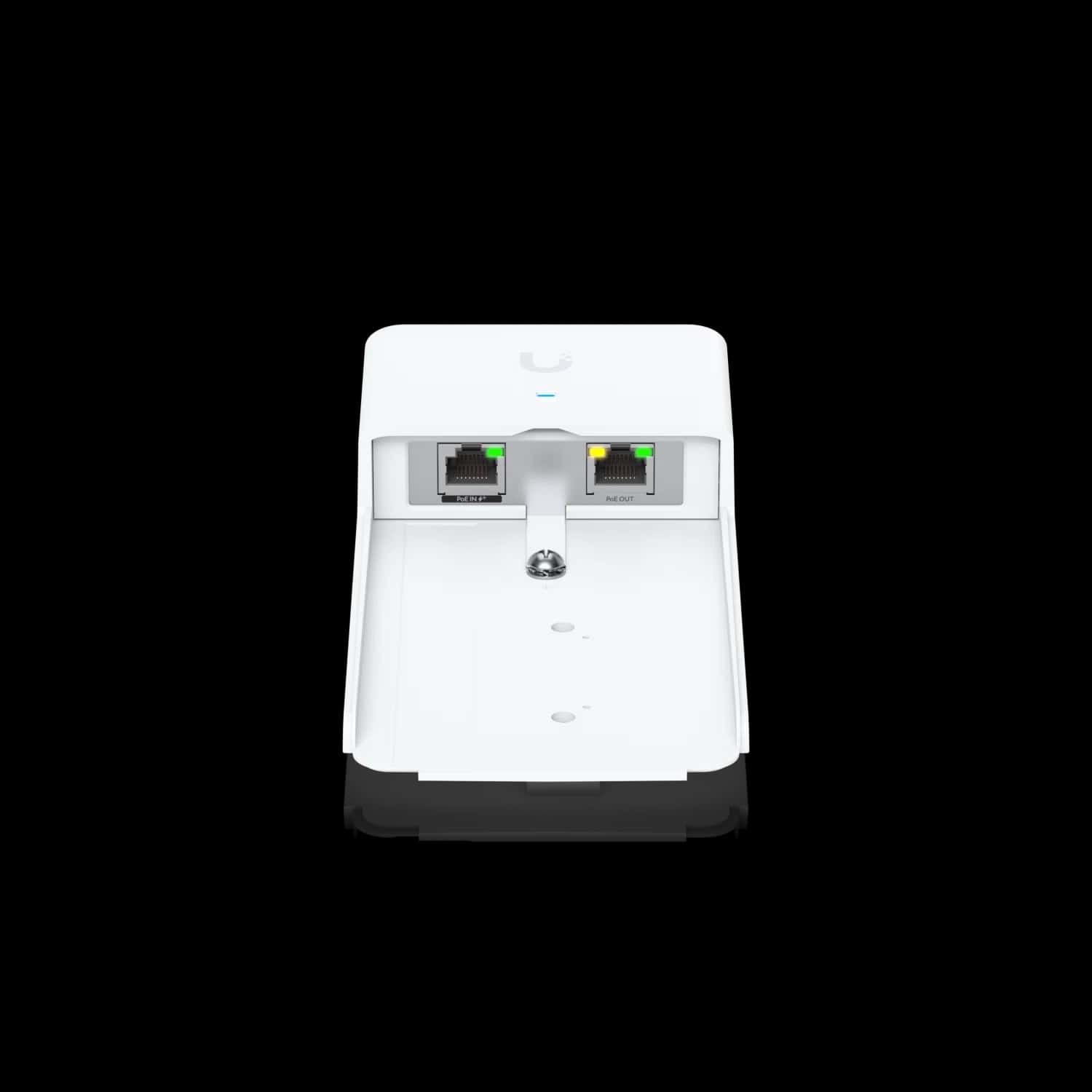

Highlight 2(1) GbE RJ45 port for PoE/PoE+ input**
Highlight 3(1) GbE RJ45 port for passthrough PoE output
Highlight 410kA+ surge protection
More highlights
Highlight 5Works reliably in extreme temperatures (-40 to 80° C)
Highlight 6*Repeaters must be placed in 100 m increments.
Highlight 7**Powered with pins 1, 2+; 3, 6- which may not be supported by certain third-party switches. We recommend using a UniFi switch to power the device.
Long-Range Ethernet Repeater
Long-Range Ethernet Repeater

Specifications

BrandUbiquiti
Manufacturer modelUACC-LRE
InstallationQuoted separately
Dimensions196.5 x 93.5 x 39 mm (7.7 x 3.7 x 1.5")
Weight350 g (12.3 oz)
Enclosure MaterialUV stabilized polycarbonate

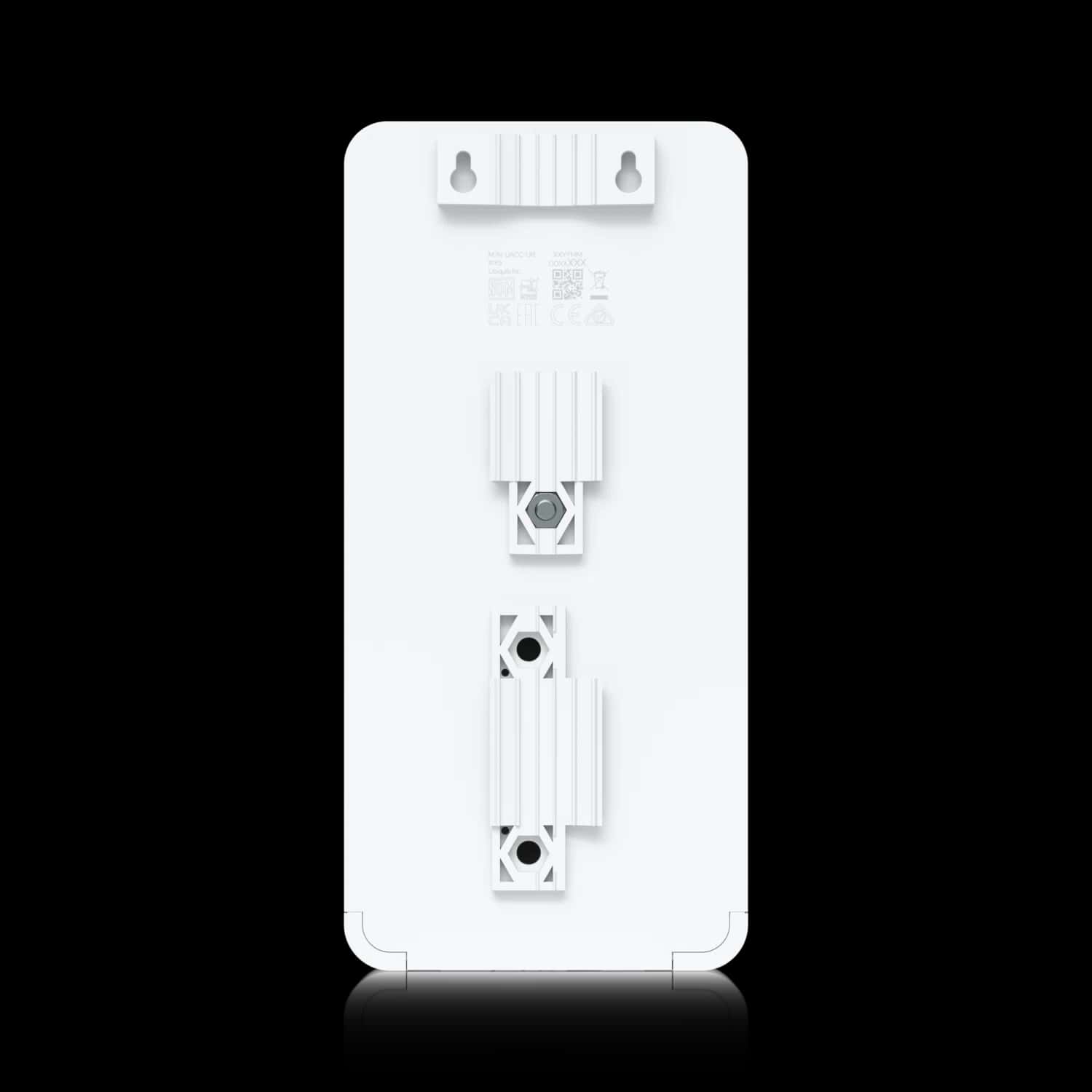

Mounting MaterialStainless steel
WeatherproofingIPX5
All specifications (27)
Power MethodPoE/PoE+ 2-pairs (Pins 1, 2+; 3, 6-)
Max. Power Consumption1.5W (Excluding PoE output)
Networking Interface(2) GbE RJ45 ports
PoE Interface(1) Passthrough PoE output 2-pairs (pins 1,2+; 3,6-)
Total Non-Blocking Line Rate2 Gbps
Switching Capacity4 Gbps
Forwarding Rate1.488 Mpps
Total Available PoE22.5W
Voltage Range PoE Mode37—57V DC
ESD/EMP ProtectionAir/contact: ± 30kV
DC Sparkover Voltage90V at 100V/s
Max. Impulse Sparkover Voltage700V at 1kV/μs
Discharge Current10kA+
Max. MTU1,500 bytes
SystemBlue: power ON
EthernetGreen: 1 Gbps Amber: 10/100 Mbps
PoEAmber: passthrough PoE out
Ambient Operating Temperature-40 to 80° C (-40 to 176° F)
Ambient Operating Humidity10 to 95% noncondensing
DownloadsSpecifications, manuals and product documents
