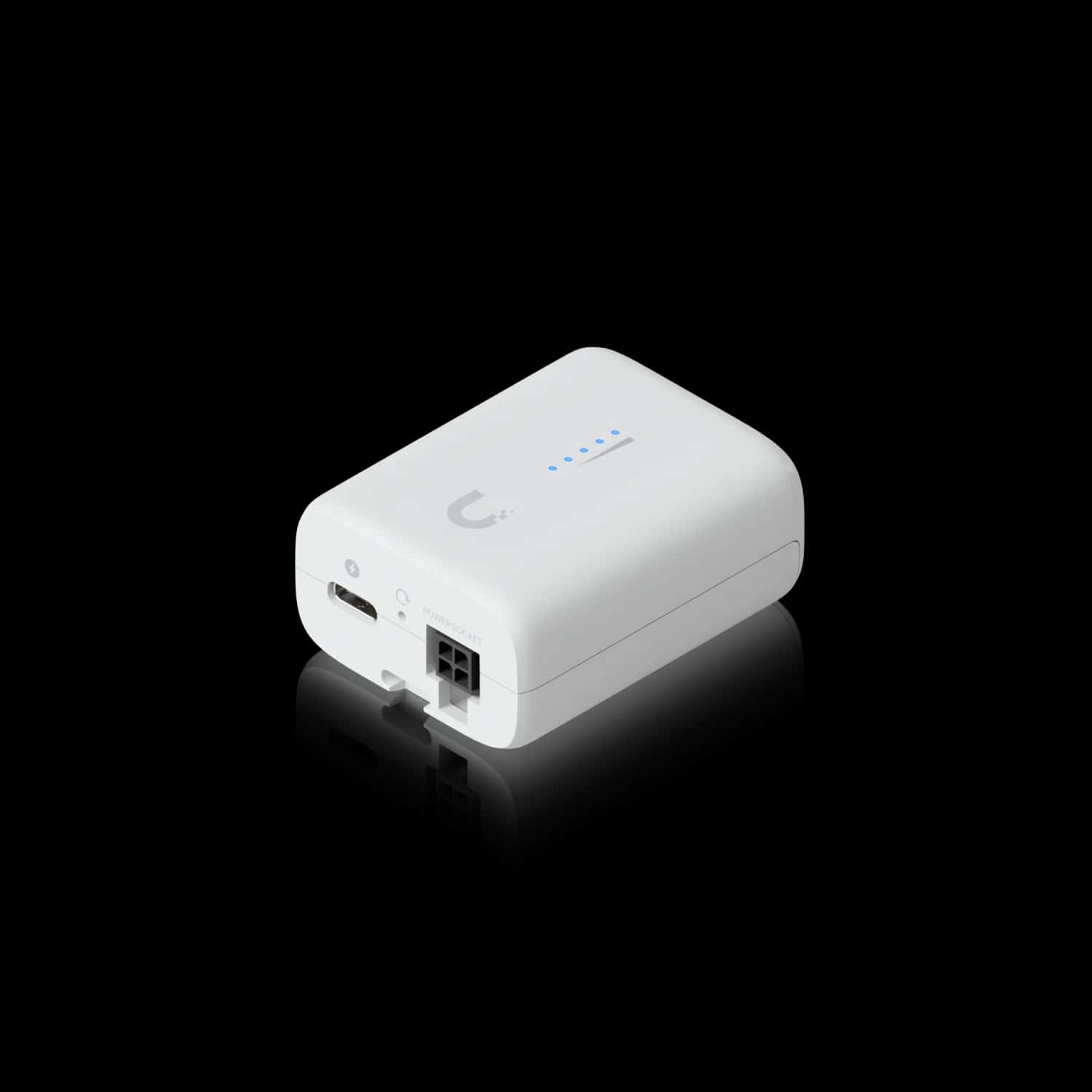

Image 1 of 9Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti wireless and Wi-Fi

Device Bridge IoT

Read customer reviews
ModelUDB-IoTSold as1 unit

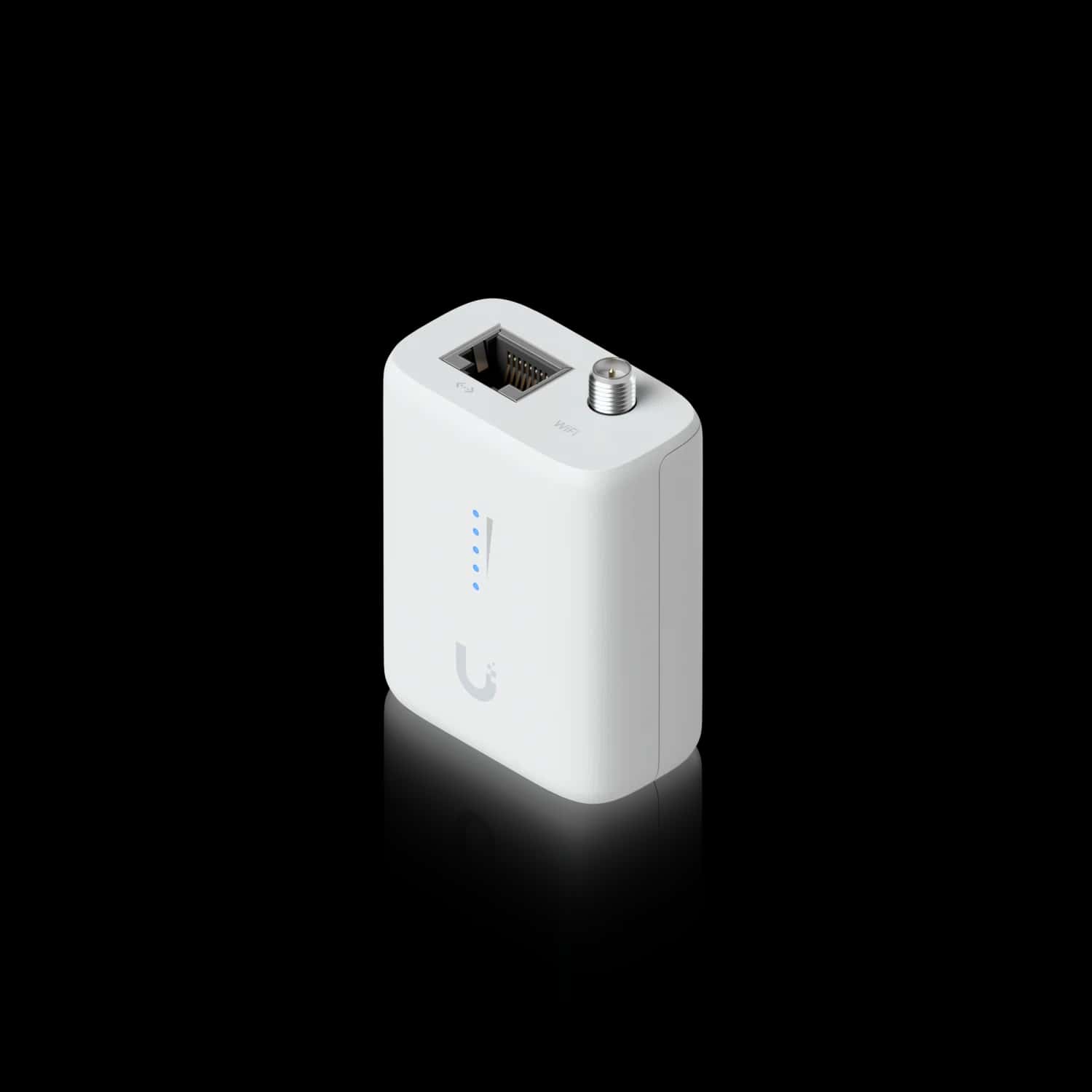

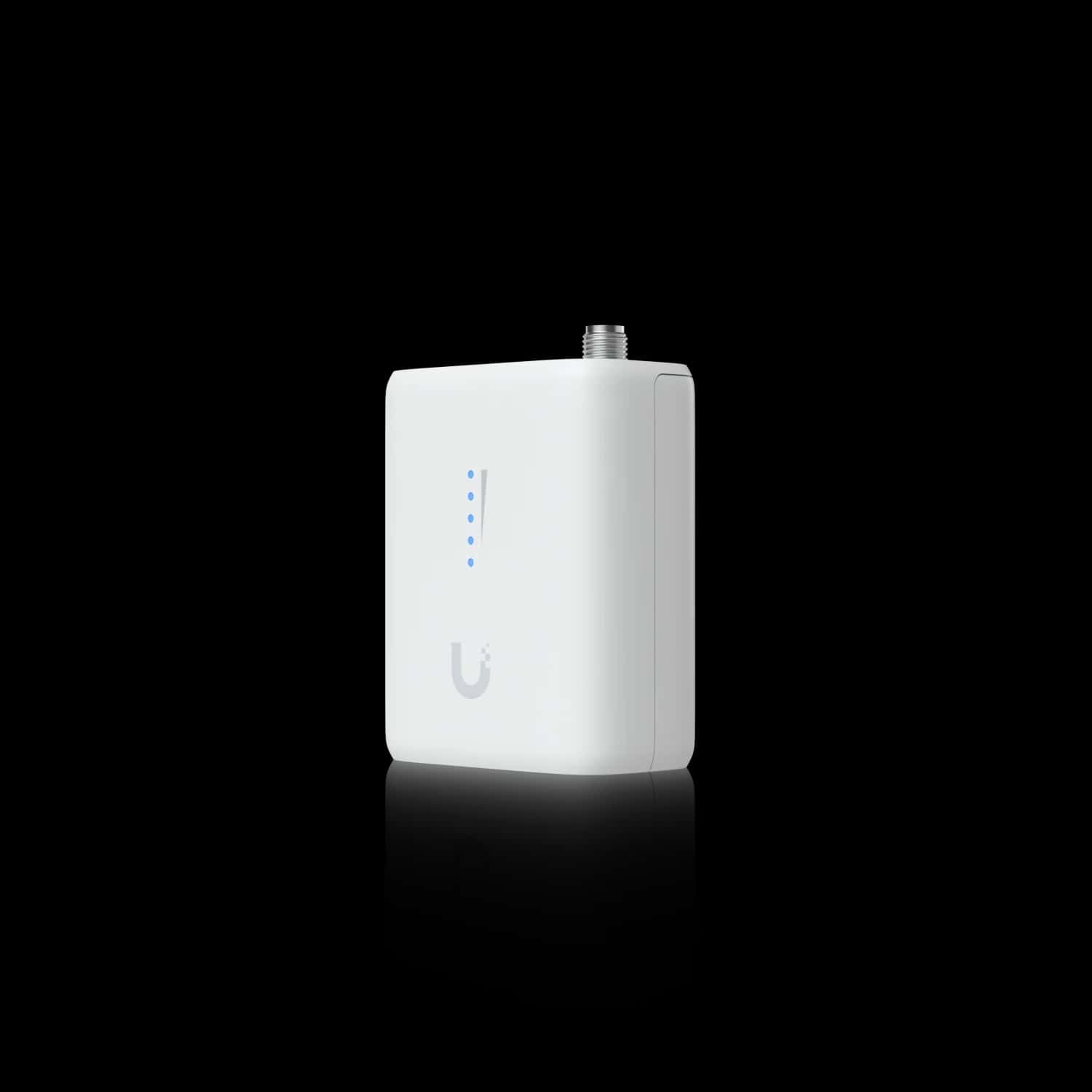

Ultra-compact wireless bridge for IoT devices with integrated UniFi WiFi Auto-Link, versatile mounting options, and powered by USB Type-C or 4-pin DC socket. Note . Full VLAN functionality is available on Access Points running Early Access (EA) firmware.

Top highlights

Product detailsOverview, features and technical specifications

Ultra-compact wireless bridge for IoT devices with integrated UniFi WiFi Auto-Link, versatile mounting options, and powered by USB Type-C or 4-pin DC socket. Note . Full VLAN functionality is available on Access Points running Early Access (EA) firmware.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering

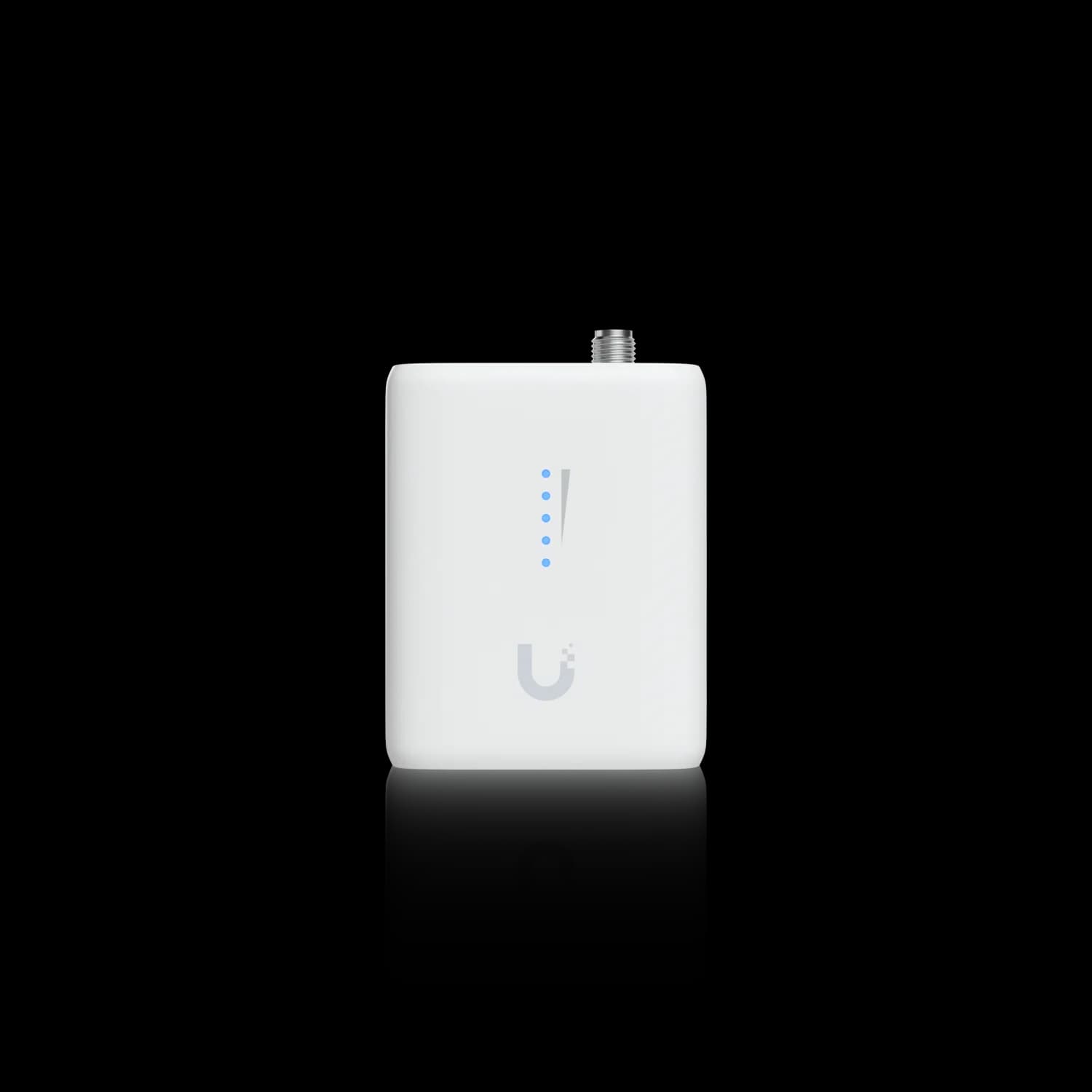

Device Bridge IoT
Device Bridge IoT

Specifications

BrandUbiquiti
Manufacturer modelUDB-IoT
InstallationQuoted separately

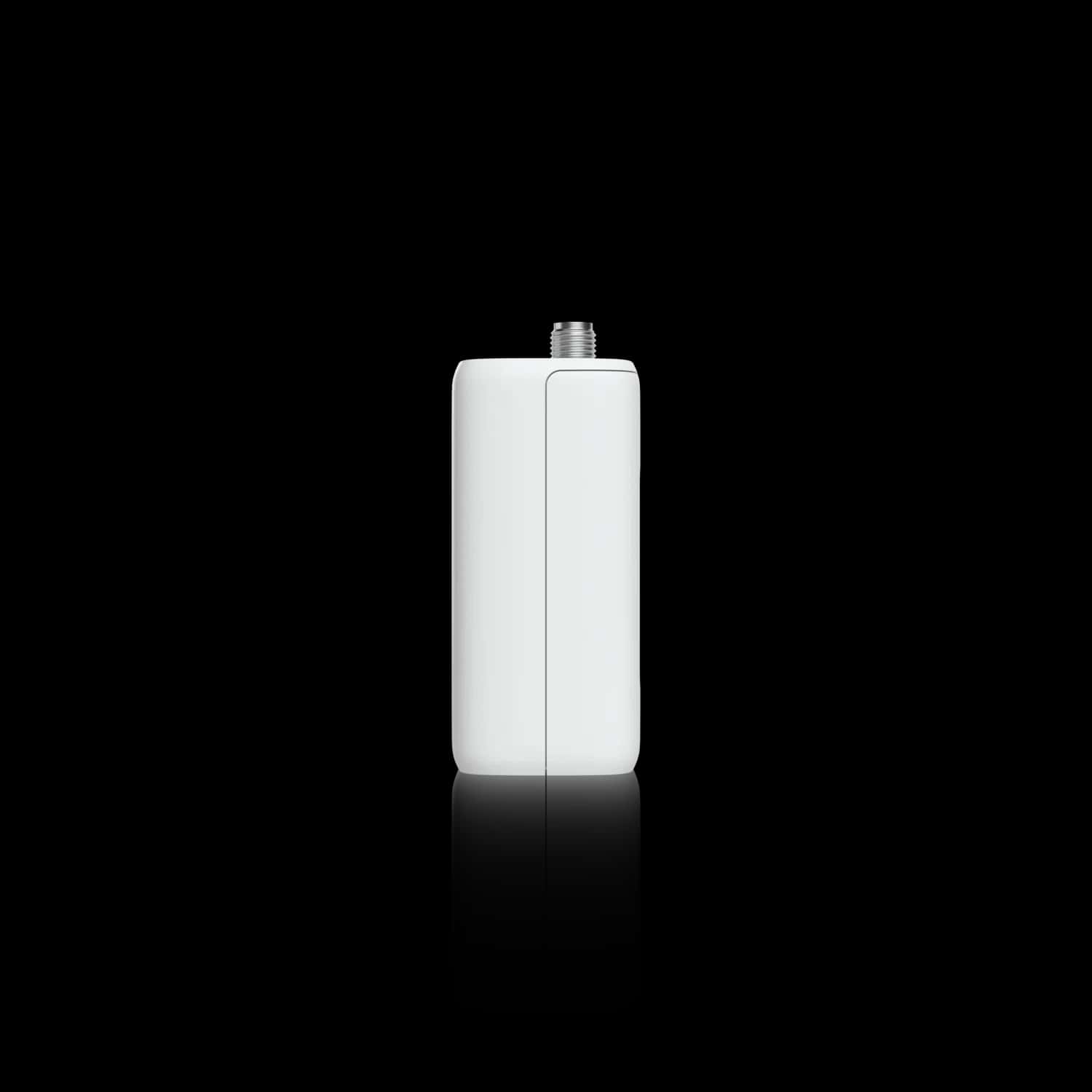

DimensionsDevice: 63 x 44.5 x 25.5 mm (2.5 x 1.8 x 1") With external antenna: 89 x 44.5 x 25.5 mm (3.5 x 1.8 x 1")
WiFi StandardWiFi 4
Spatial Streams2
Mounting LocationsWall, DIN rail
MountingIncluded mount
All specifications (30)

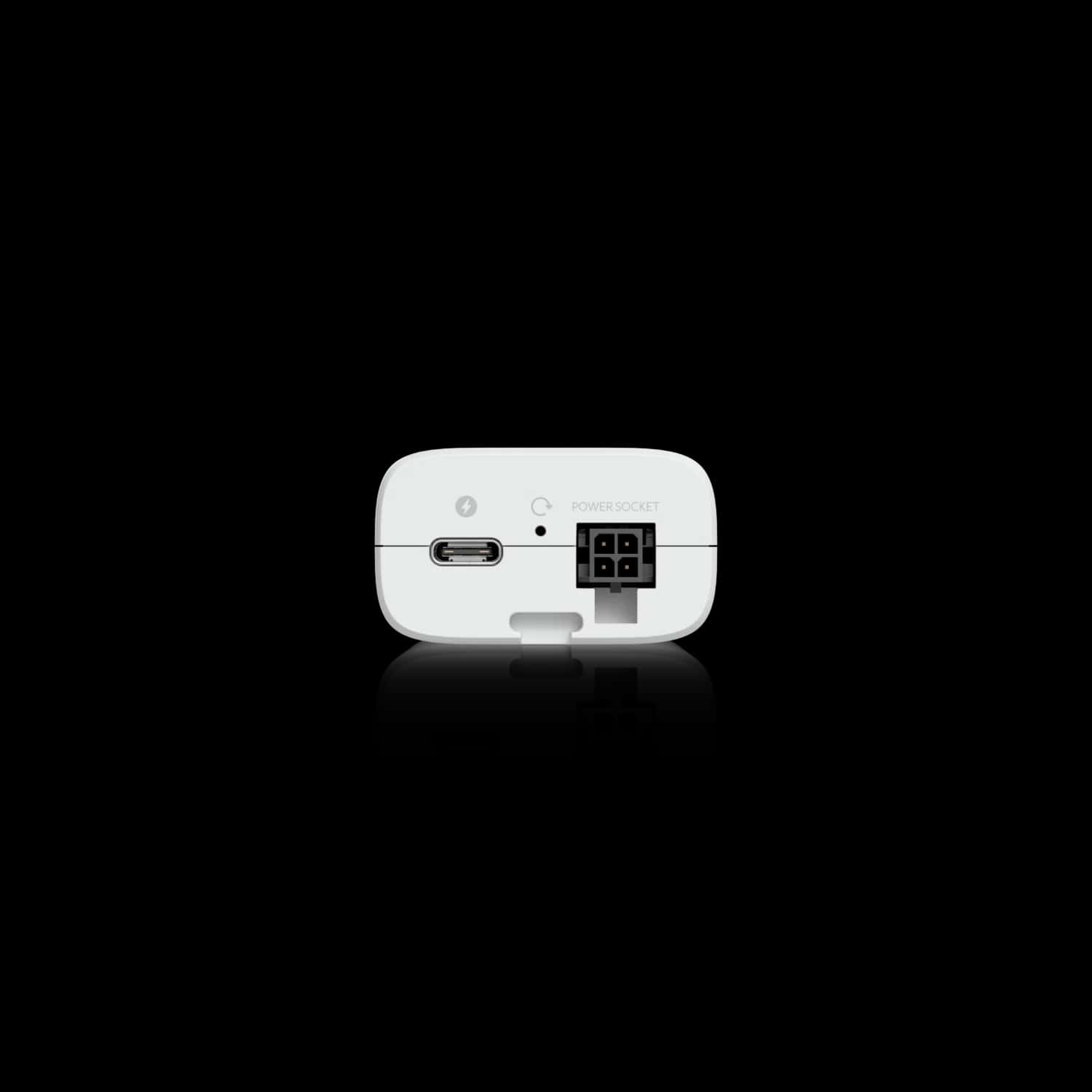

Power MethodUSB Type-C (5V DC, 1A) 4-pin DC (9–30V DC)
2.4 GHz2 x 2
2.4 GHz300 Mbps (BW40)
2.4 GHzInternal: 4dBi External omni: 3dBi
2.4 GHz20 dBm
Max. Conducted TX Power20 dBm (Combined)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless SecurityWPA2 AES (Always On)
Max. Power Consumption2.3W
Supported Voltage RangeUSB-C: 5V DC Socket: 9–30V DC

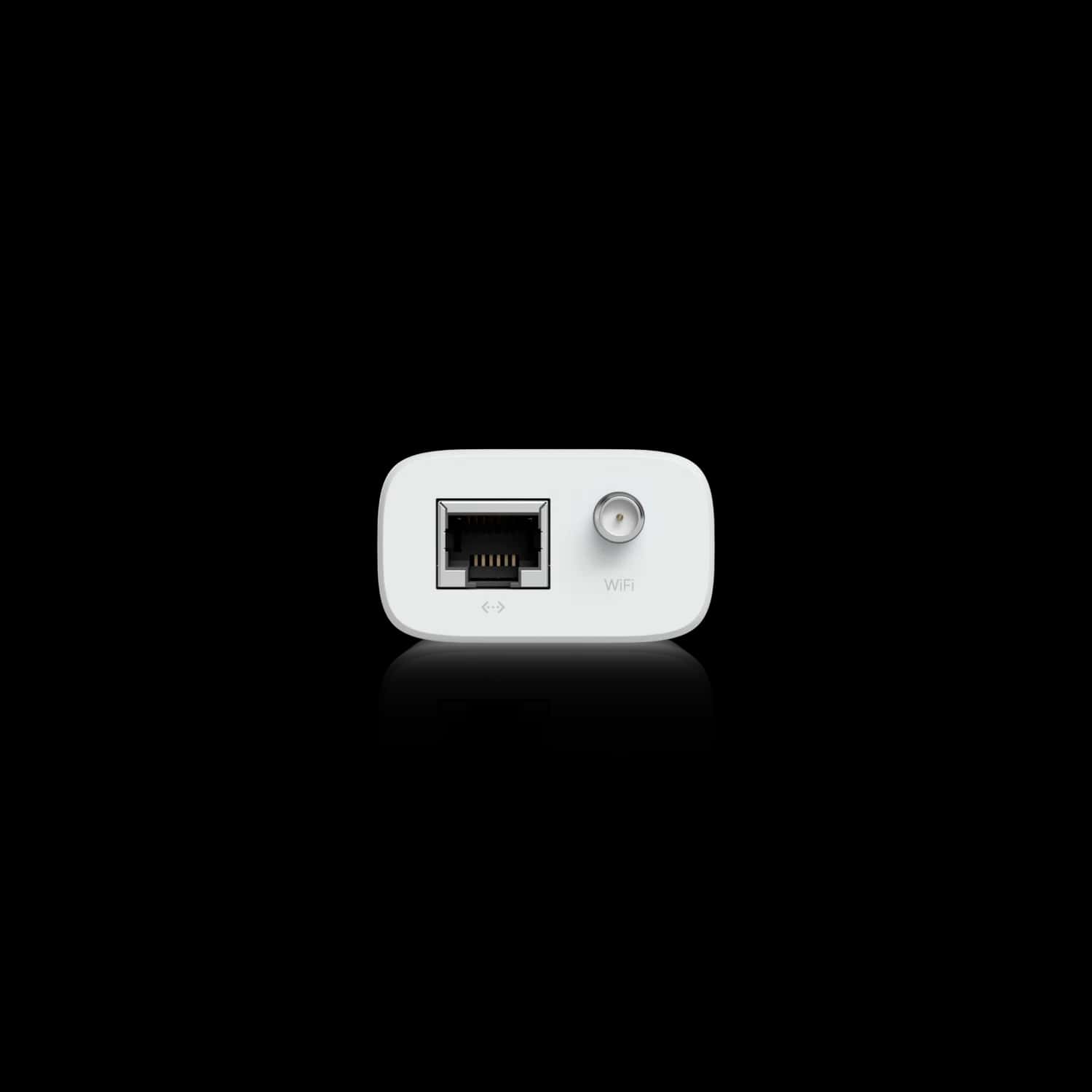

Networking Interface(1) 10/100M RJ45 port

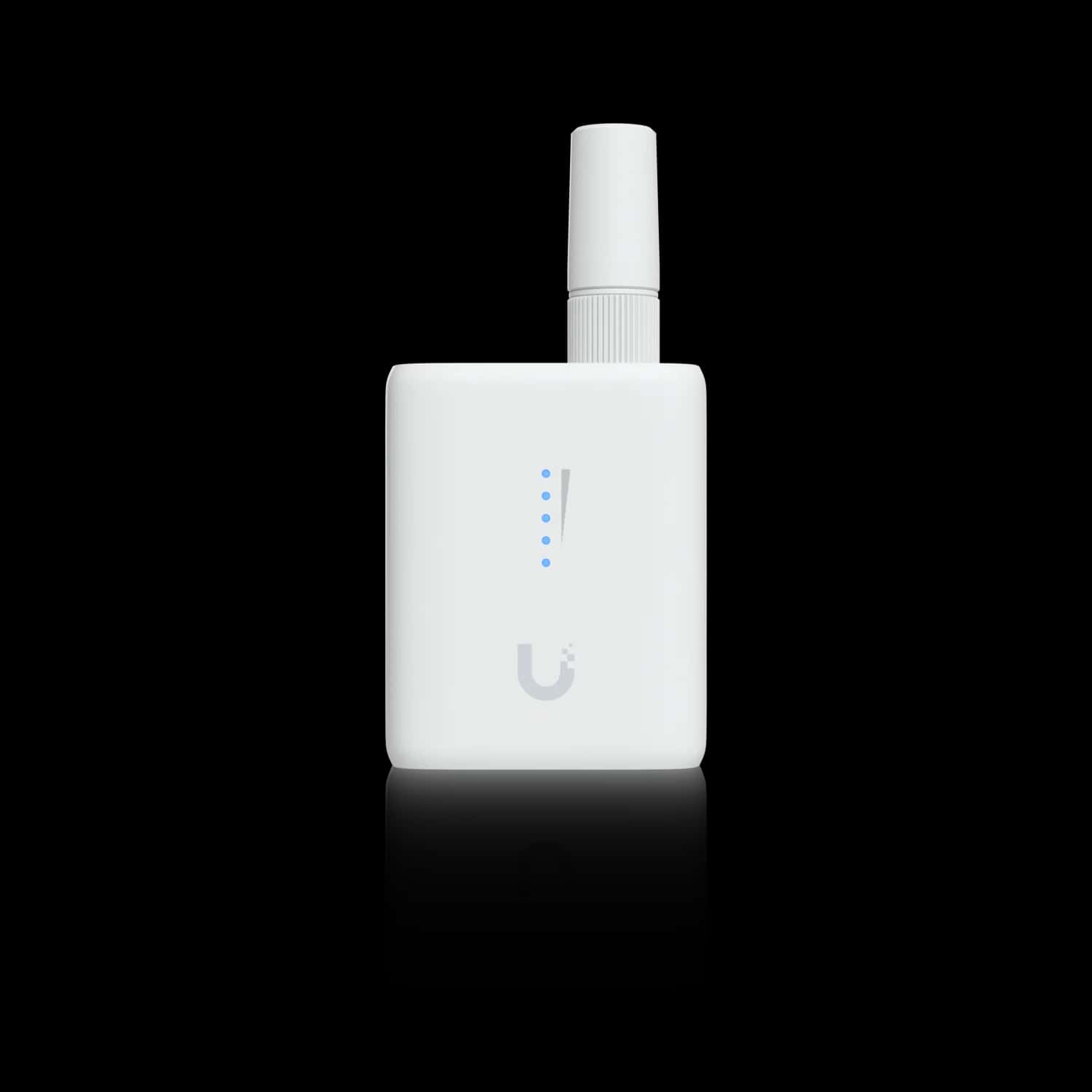

Antennas(1) Internal antenna (1) RP-SMA connector for external omni-antenna
ManagementWiFi
Channel Bandwidth20/40 MHz
WeightDevice: 45 g (1.6 oz) With external antenna: 53 g (1.9 oz)
Enclosure MaterialPolycarbonate
Mount MaterialPolycarbonate
Button(1) Factory reset
System(4) Blue: signal (1) White/blue: indicator

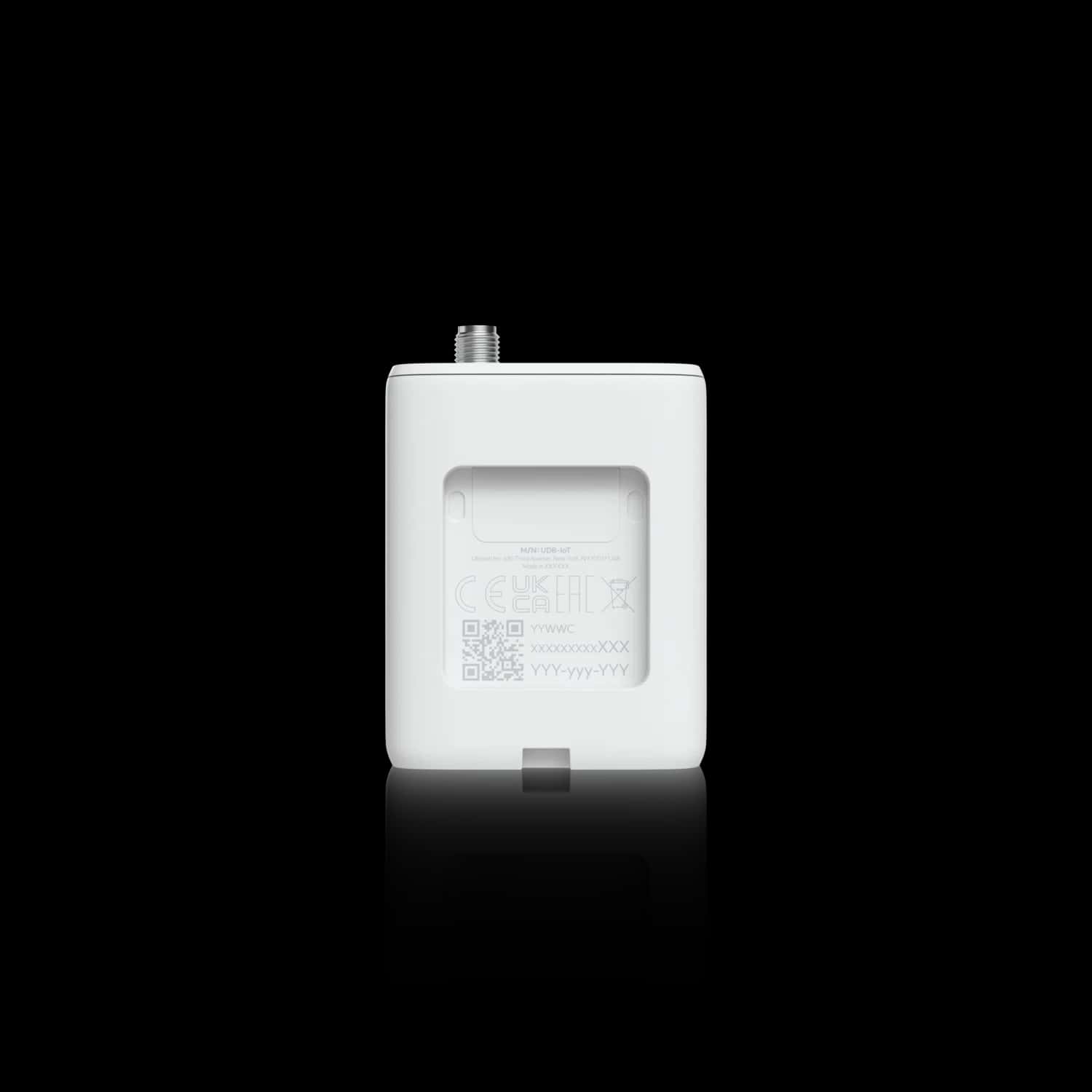

CertificationsCE, FCC, IC
Ambient Operating Temperature-10 to 50° C (14 to 122° F)
Ambient Operating Humidity5 to 95% noncondensing
DownloadsSpecifications, manuals and product documents
