Equipment shop
Ubiquiti · Ubiquiti wireless and Wi-Fi

Device Bridge Pro

Image 1 of 12Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti wireless and Wi-Fi

Device Bridge Pro

Read customer reviews
ModelUDB-ProSold as1 unit

5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi. Note. Managed via UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server. For the longest range, uplink to another UDB Pro or UDB Pro Sector is recommended. PoE adapter included. PoE+ input required for PoE passthrough.

Top highlights

Product detailsOverview, features and technical specifications

5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi. Note. Managed via UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server. For the longest range, uplink to another UDB Pro or UDB Pro Sector is recommended. PoE adapter included. PoE+ input required for PoE passthrough.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
Device Bridge Pro
Device Bridge Pro

Specifications

BrandUbiquiti
Manufacturer modelUDB-Pro
InstallationQuoted separately
Dimensions⌀189.5 x 64.3 mm (⌀7.4 x 2.5")
WiFi StandardWiFi 5
Spatial Streams2
Coverage Area5 km (3.1 mi)
Mounting LocationsWall, pole
All specifications (38)
MountingPole (Included)
WeatherproofingIPX6
Power MethodPoE PoE+ (Required for PoE output)
Power Supply48V, 0.32A PoE adapter (Included)
5 GHz2 x 2
5 GHz867 Mbps (BW80)
5 GHz19 dBi
5 GHz25 dBm
Max. Conducted TX Power25 dBm (Combined)
802.11ac (WiFi 5)6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless SecurityWPA2 AES
Max. Power Consumption9W
Supported Voltage Range42.5–57V DC
Networking Interface(2) GbE RJ45 ports
AntennasInternal
Management(1) PoE in (PoE output not used) (1) Passive PoE output
Channel Bandwidth20/40/80 (MHz)
Wind Loading69 N at 200 km/h (15.5 lbf at 125 mph)
WeightDevice: 431 g (0.95 lb) With mount: 515 g (1.1 lb)
Enclosure MaterialUV-resistant polycarbonate
Mount MaterialUV-stabilized polycarbonate, stainless steel
Pole Mount Diameter0.8–2.1" (20–53.1 mm)
Button(1) Factory reset
SystemPower, (2) Ethernet status - main port/PoE out port, (4) signal strength
CertificationsCE, FCC, IC
Operating FrequencyUS/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz
Ambient Operating Temperature-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity5 to 95% noncondensing
DownloadsSpecifications, manuals and product documents
Compatible additions

These recommendations prioritize useful companion categories for this equipment—not a generic catalog list.

View all equipment
Cloud Gateway FiberEquipment
Ubiquiti gateway and switching · Ubiquiti

Cloud Gateway Fiber

Includes full UniFi application suite for device managementManages 50+ UniFi devices and 500+ clients
Selected equipment price$399.10
Access Point Lite Arm MountEquipment
Network mounts and accessories · Ubiquiti

Access Point Lite Arm Mount

Equipment only; installation is quoted separatelySelect the required configuration before ordering
Selected equipment price$26.00
AI Speaker Flush MountEquipment
Network equipment accessories · Ubiquiti

AI Speaker Flush Mount

Equipment only; installation is quoted separatelySelect the required configuration before ordering
Selected equipment price$76.70
airFiber 24 GHz BridgeEquipment
Wireless network bridge · Ubiquiti

airFiber 24 GHz Bridge

24 GHz, 13+ km link range1.5+ Gbps throughput
Selected equipment price$1,943.50

Before you add to cart

What you’re ordering

5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi. Note. Managed via UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server. For the longest range, uplink to another UDB Pro or UDB Pro Sector is recommended. PoE adapter included. PoE+ input required for PoE passthrough.

Review the selected option and quantity. Installation is quoted separately unless explicitly included in this item.

Shipping, returns & order policies

Build around your network

Check Ethernet port speed, cable category and length, and the number of connected devices. For PoE equipment, match the required PoE standard and power budget. Wireless equipment can require an existing router, controller, or wired uplink; review the listed requirements.

Help me choose
Customer feedback

Ratings and reviews

Loading…

Loading reviews…

Keep shopping

Products and complete systems

Recommended for your next project

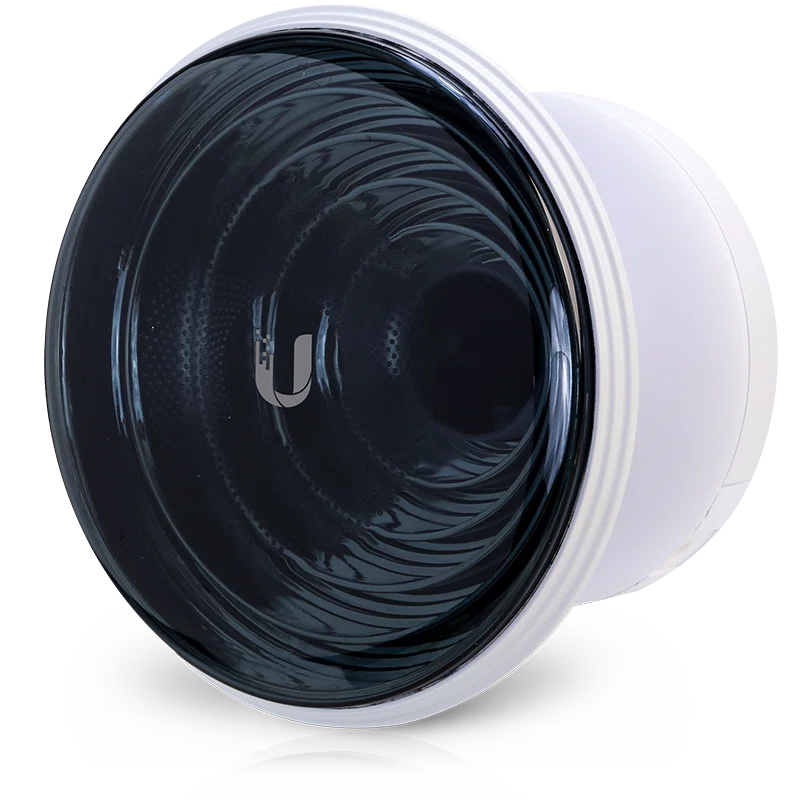

airMAX IsoStation M5Equipment
Networking · Ubiquiti

airMAX IsoStation M5

5 GHz frequency bandIsolation antenna design rejects RF noise
Selected equipment price$65.00
Access Point U7 Pro XGEquipment
Networking · Ubiquiti

Access Point U7 Pro XG

Black
WiFi 7 with 6 GHz support6 spatial streams
Selected equipment price$284.70
Wave ProEquipment
Networking · Ubiquiti

Wave Pro

Max. total throughput: 5.4 Gbps5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
Selected equipment price$858.00

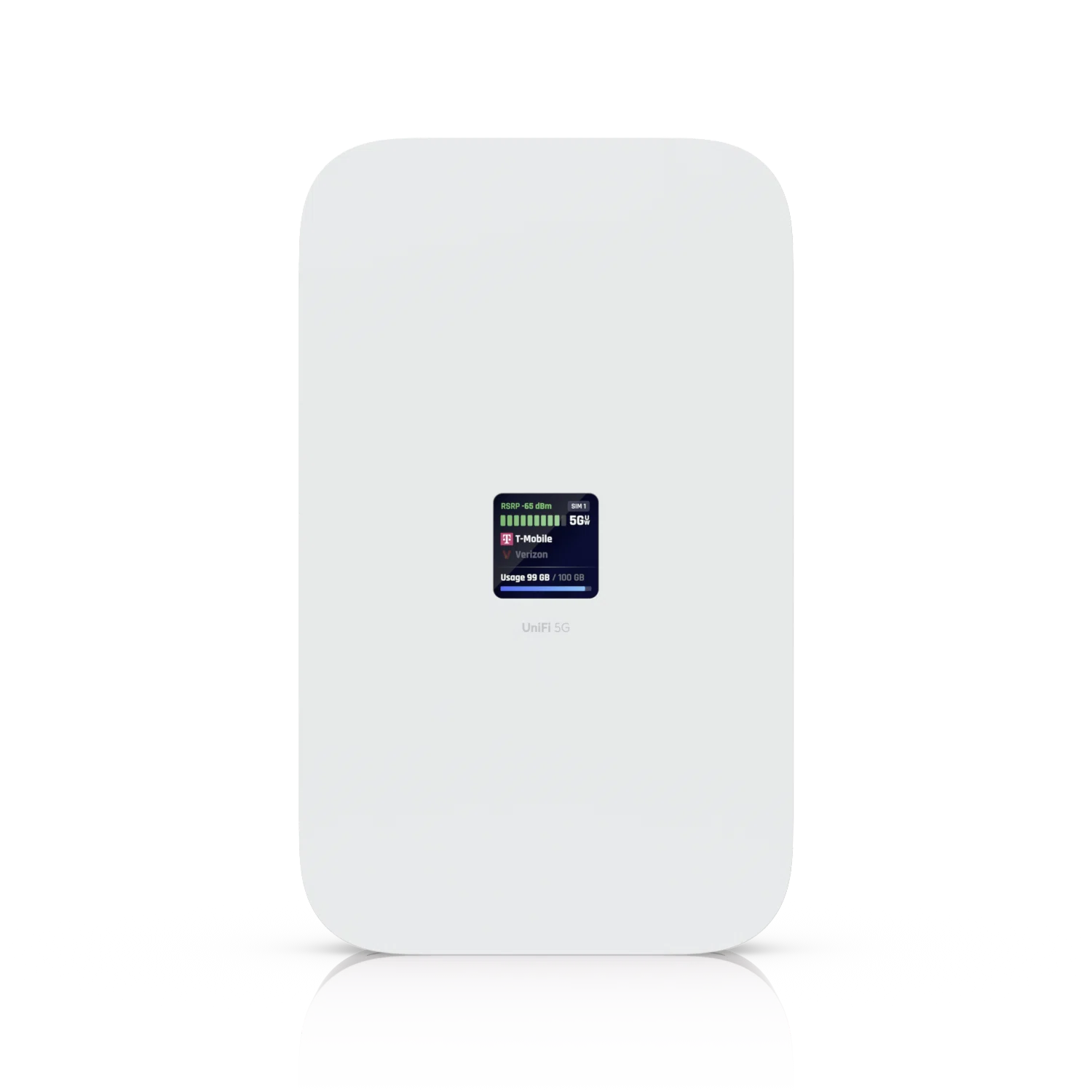

UniFi 5G MaxEquipment
Networking · Ubiquiti

UniFi 5G Max

Equipment only; installation is quoted separatelySelect the required configuration before ordering
Selected equipment price$570.70

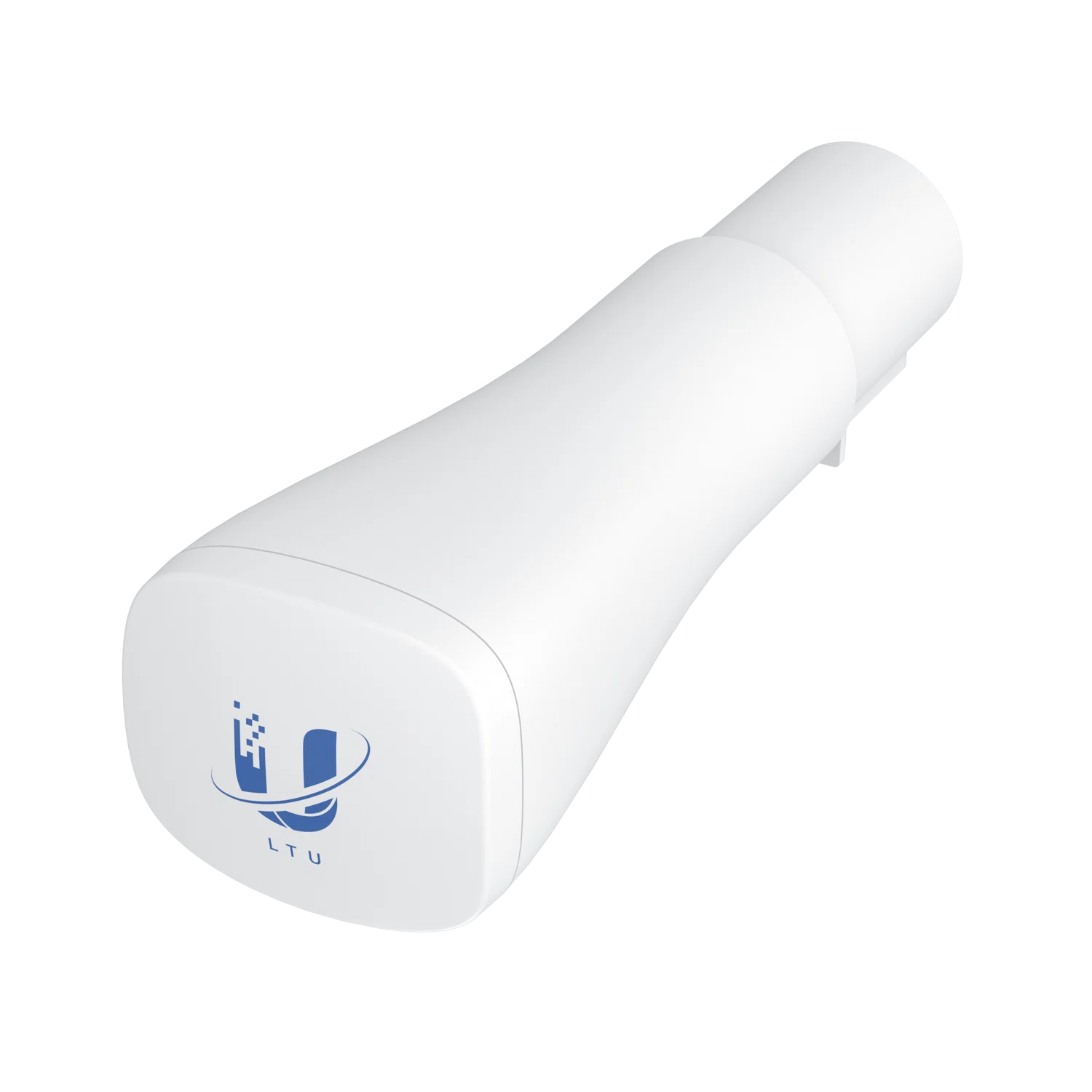

LTU Instant (5-pack)Equipment
