Device Bridge Pro Sector

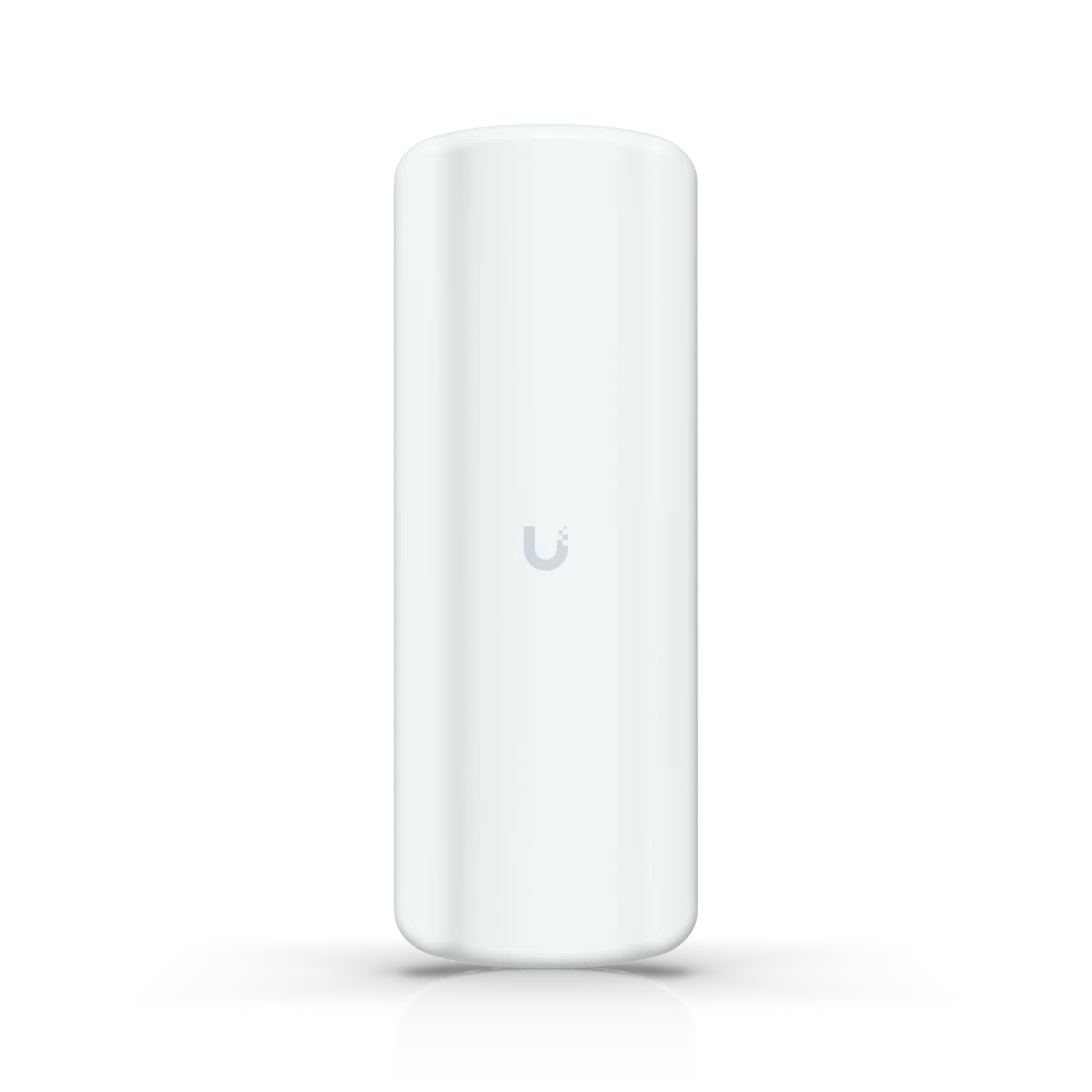

Image 1 of 7Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti wireless and Wi-Fi

Device Bridge Pro Sector

Read customer reviews
ModelUDB-Pro-SectorSold as1 unit

5 GHz point-to-multipoint access point that wirelessly bridges 50+ Device Bridge Pro clients at 5+ km distances.

Top highlights

See more highlights
  • Pole mounting
  • Weatherproof (outdoor exposed)
Product detailsOverview, features and technical specifications

5 GHz point-to-multipoint access point that wirelessly bridges 50+ Device Bridge Pro clients at 5+ km distances.

At a glance

Highlight 1Enables Point-to-Multi-Point (PtMP connectivity) with 50+ UDB-Pro clients
Highlight 290° sector coverage
Highlight 3Powered using PoE
Highlight 4Pole mounting
More highlights
Highlight 5Weatherproof (outdoor exposed)
Device Bridge Pro Sector
Device Bridge Pro Sector

Specifications

BrandUbiquiti
Manufacturer modelUDB-Pro-Sector
InstallationQuoted separately
Dimensions360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8”)
WiFi StandardWiFi 5
Spatial Streams2
Coverage Area5 km (3.1 mi)
Mounting LocationsPole
All specifications (36)
WeatherproofingIPX6
Power MethodPoE
5 GHz2 x 2
5 GHz400 Mbps (BW40)
5 GHz17 dBi
5 GHz25 dBm
Max. Conducted TX Power25 dBm (Combined)
802.11ac (WiFi 5)6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless SecurityWPA2 AES
Max. Power Consumption6W
Supported Voltage Range42.5–57V DC
Networking Interface(1) GbE RJ45 port
AntennasInternal
ManagementEthernet WiFi
Channel Bandwidth20/40 MHz
Wind Loading128.2N at 200 km/h
WeightDevice: 782 g (1.7 lb) With mount: 835 g (1.8 lb)
Enclosure MaterialUV-stabilized polycarbonate
Mount MaterialUV-stabilized polycarbonate, stainless steel
Pole Mount Diameter0.9—2.4" (24—60 mm)
Button(1) Factory reset
SystemPower, Ethernet
CertificationsCE, FCC, IC, Anatel: 05978-25-08356
Operating FrequencyUS/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz
Ambient Operating Temperature-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity5 to 95% noncondensing
DownloadsSpecifications, manuals and product documents
