Equipment shop
Ubiquiti · Ubiquiti gateway and switching

Device Bridge Switch

Image 1 of 7Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti gateway and switching

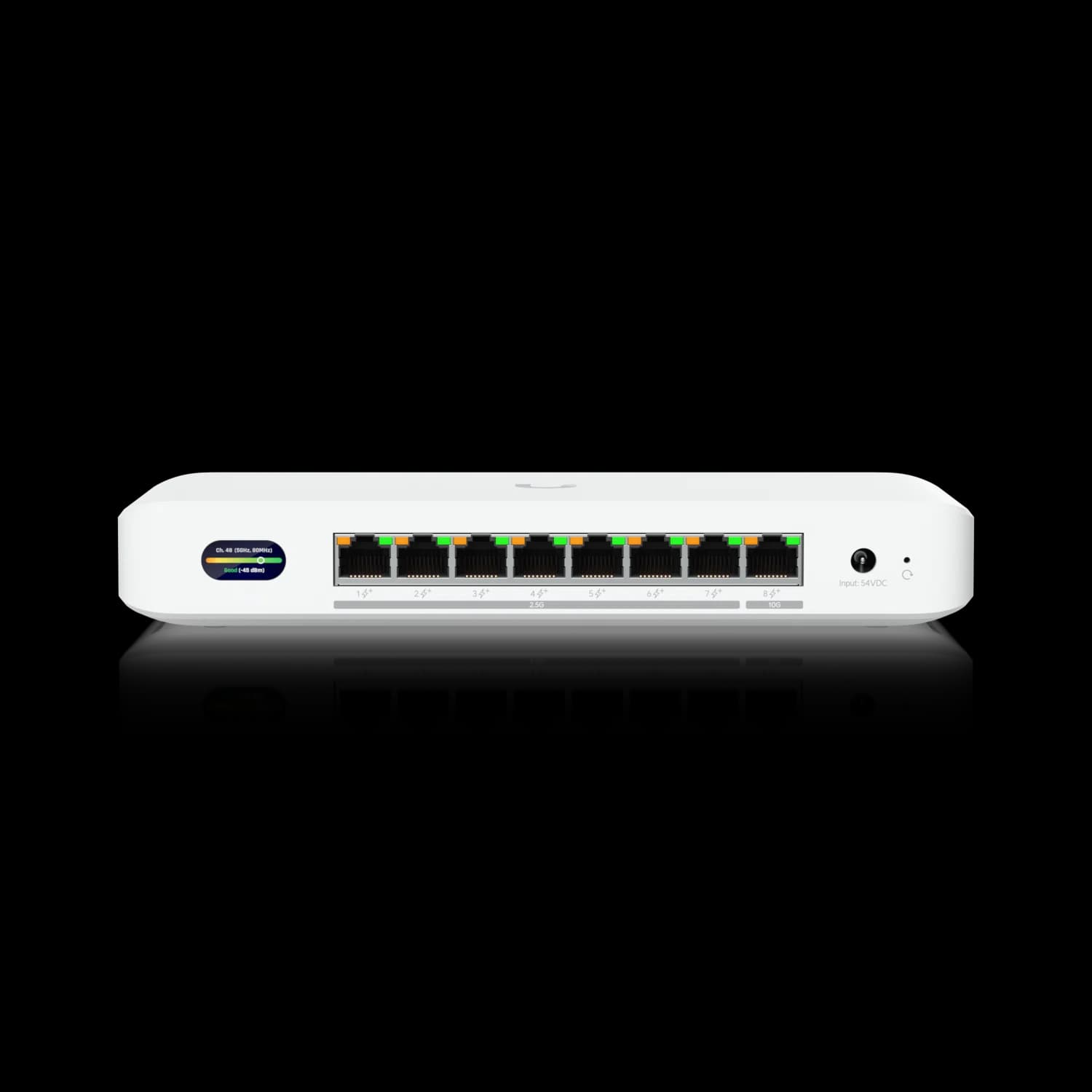

Device Bridge Switch

Read customer reviews
ModelUDB-Switch (35W)Sold as1 unit

Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi. *The Device Bridge Switch provides 35W of PoE power with the included 60W adapter, or up to 185W with the optional 210W adapter.

Top highlights

Product detailsOverview, features and technical specifications

Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi. *The Device Bridge Switch provides 35W of PoE power with the included 60W adapter, or up to 185W with the optional 210W adapter.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
Device Bridge Switch
Device Bridge Switch

Specifications

BrandUbiquiti
Manufacturer modelUDB-Switch (35W)
InstallationQuoted separately
Dimensions212.9 x 113 x 32.5 mm (8.4 x 4.4 x 1.3")
WiFi StandardWiFi 7
Spatial Streams4
Mounting LocationsDesktop, wall
Power MethodDC jack (54V DC/1.1A)
All specifications (43)
Power Supply54V DC/1.1A (Adapter included)
6 GHz2 x 2
5 GHz2 x 2
6 GHz5.8 Gbps (BW320)
5 GHz4.3 Gbps (BW240)
6 GHz8 dBi
5 GHz8 dBi
6 GHz23 dBm
5 GHz26 dBm
Max. Conducted TX Power26 dBm (Combined)
802.11be (WiFi 7)6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless SecurityWPA3 SAE (Always On)
Max. Power Consumption25W (Excluding PoE output)
Supported Voltage Range42.5–57V DC
Networking Interface(1) 10 GbE RJ45 port (7) 2.5 GbE RJ45 ports
PoE Interface(8) PoE+ ports
Max. PoE Wattage per Port30W
Total PoE Availability60W AC adapter input: 35W 210W AC adapter input: 185W
Antennas(1) Internal
ManagementEthernet WiFi
Channel Bandwidth20/40/80/160/240/320 MHz
WeightDevice: 548 g (1.21 lb) With mount: 563 g (1.24 lb)
Enclosure MaterialPolycarbonate
Mount MaterialPolycarbonate
LCM Display0.96" status display
Button(1) Factory reset
CertificationsCE, FCC, IC
Operating FrequencyWorldwide: 5150—5875 MHz 5945—7125 MHz
Ambient Operating Temperature-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
UniFi NetworkVersion 10.0.156 or later.
DownloadsSpecifications, manuals and product documents
