Equipment shop
Ubiquiti · Ubiquiti wireless and Wi-Fi

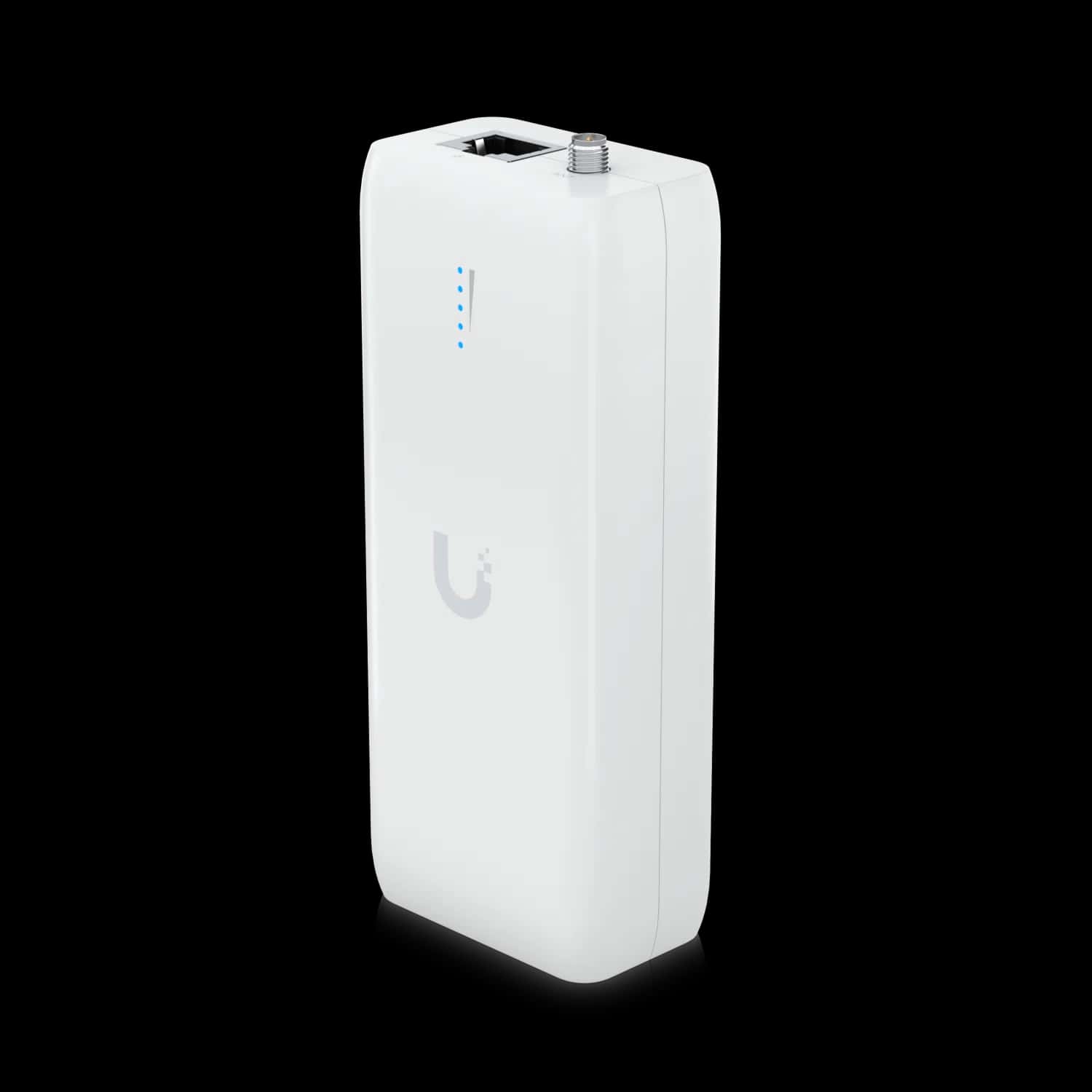

UniFi Device Bridge

Image 1 of 5Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti wireless and Wi-Fi

UniFi Device Bridge

Read customer reviews
ModelUDBSold as1 unit

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link. Note . UniFi Consoles and APs must have the latest software updates installed.

Top highlights

See more highlights
  • Note . UniFi Consoles and APs must have the latest software updates installed.
Product detailsOverview, features and technical specifications

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link. Note . UniFi Consoles and APs must have the latest software updates installed.

At a glance

Highlight 1(1) GbE LAN port that provides up to 15W of PoE
Highlight 25 GHz band with up to 867 Mbps throughput rate
Highlight 3Compatible with UniFi Protect PoE cameras, Talk phones, and various IoT devices via an Ethernet connection
Highlight 4Note . UniFi Consoles and APs must have the latest software updates installed.
UniFi Device Bridge
UniFi Device Bridge

Specifications

BrandUbiquiti
Manufacturer modelUDB
InstallationQuoted separately
Dimensions130 x 55 x 34 mm (5.1 x 2.2 x 1.3")
WiFi StandardWiFi 5
Spatial Streams2
Mounting LocationsWall, table
MountingWall (Included)
All specifications (32)
Power Method100–240V AC, 0.45A Max., 50/60 Hz
5 GHz2 x 2
5 GHz866.7 Mbps (BW80)
5 GHzInternal: 5 dBi External omni: 4 dBi, 360° x 30°
5 GHz21 dBm
802.11ac (WiFi 5)6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless SecurityWPA2 AES
Max. Power Consumption25W (AC input) 10W (Excluding PoE output)
Supported Voltage Range100–240V AC
Networking Interface(1) GbE RJ45 port
Antennas(1) Internal antenna (1) RP-SMA connector for external omni-antenna
ManagementWiFi
Channel Bandwidth20/40/80 (MHz)
Weight200 g (7.1 oz)
Enclosure MaterialPolycarbonate
Mount MaterialPolycarbonate
Button(1) Factory reset
System(4) Blue: signal (1) White/blue: indicator
CertificationsCE, FCC, IC, Anatel: 03885-25-08356
Operating FrequencyUS/CA: U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz Worldwide: 5150 - 5875 MHz
Ambient Operating Temperature-10 to 40° C (14 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
DownloadsSpecifications, manuals and product documents
