Equipment shop
Ubiquiti · Ubiquiti gateway and switching

Dream Machine Beast

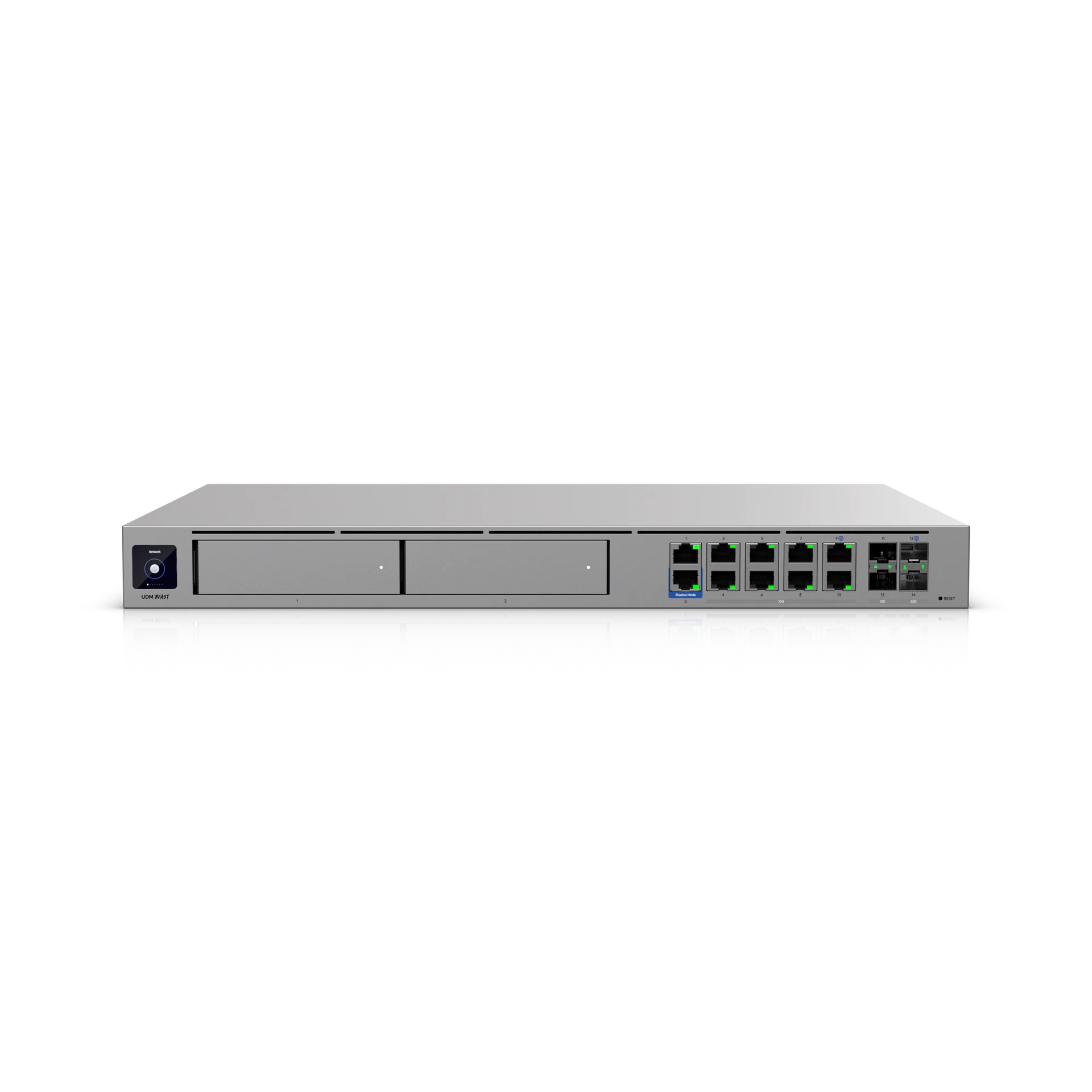

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti gateway and switching

Dream Machine Beast

Read customer reviews
ModelUDM-BeastSold as1 unit

Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.

Top highlights

Product detailsOverview, features and technical specifications

Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
Dream Machine Beast
Dream Machine Beast

Specifications

BrandUbiquiti
Manufacturer modelUDM-Beast
InstallationQuoted separately
IDS/IPS25 Gbps
Dimensions442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
Managed UniFi Devices750+
Managed Cameras(100) HD (60) 2K (40) 4K
Managed Access Hubs200
All specifications (41)
Simultaneous Users Connected7,500+
Max. WAN Port Count8
Default WAN Ports(1) 25G SFP28 (1) 10 GbE RJ45
1 GbE RJ452 (1G/100M/10M)
10 GbE RJ458 (10G/5G/2.5G/1G/100M)
10G SFP+2 (10G/1G)
25G SFP282 (25G/10G/1G)
Console1
IDS/IPS Throughput25 Gbps
Form FactorRack mount (1U)
RedundancyShadow Mode (VRRP) Gateway Failover DC Power Backup
IDS/IPS Signatures55,000+ with CyberSecure
MAC Address Table Size32,000
NVR Storage(2) 3.5" NVR HDD bays Built-in 128 GB SSD for Faster Experience
Max. Power Consumption100W
Power Method(1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.05A
Power SupplyAC/DC, internal, 150W
Supported Voltage Range100–240V AC
Heat Dissipation342 BTU/hr
ProcessorOcta-core ARM® v9 at 2.1 GHz
System Memory16 GB
On-board StorageIntegrated 128 GB SSD
Weight5.5 kg (12.13 lb)
Enclosure MaterialAluminium CNC, SGCC steel
Mount MaterialSGCC steel
LCM Display1.3" touchscreen
ManagementEthernet Bluetooth
Button(1) Factory reset
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
Mobile AppUniFi iOS™: Version 10.34.0 and later UniFi Android™: Version 10.37.1 and later
DownloadsSpecifications, manuals and product documents
