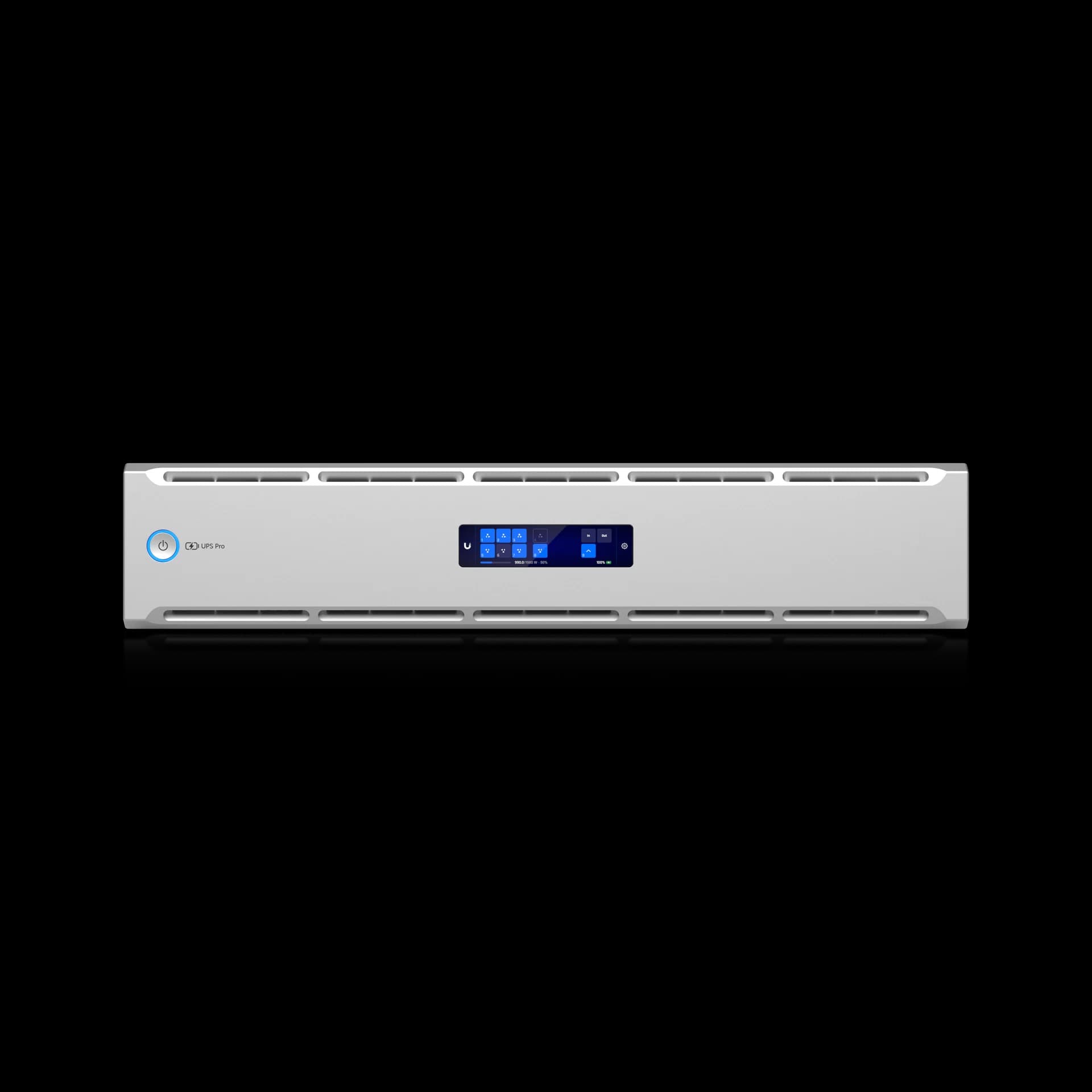

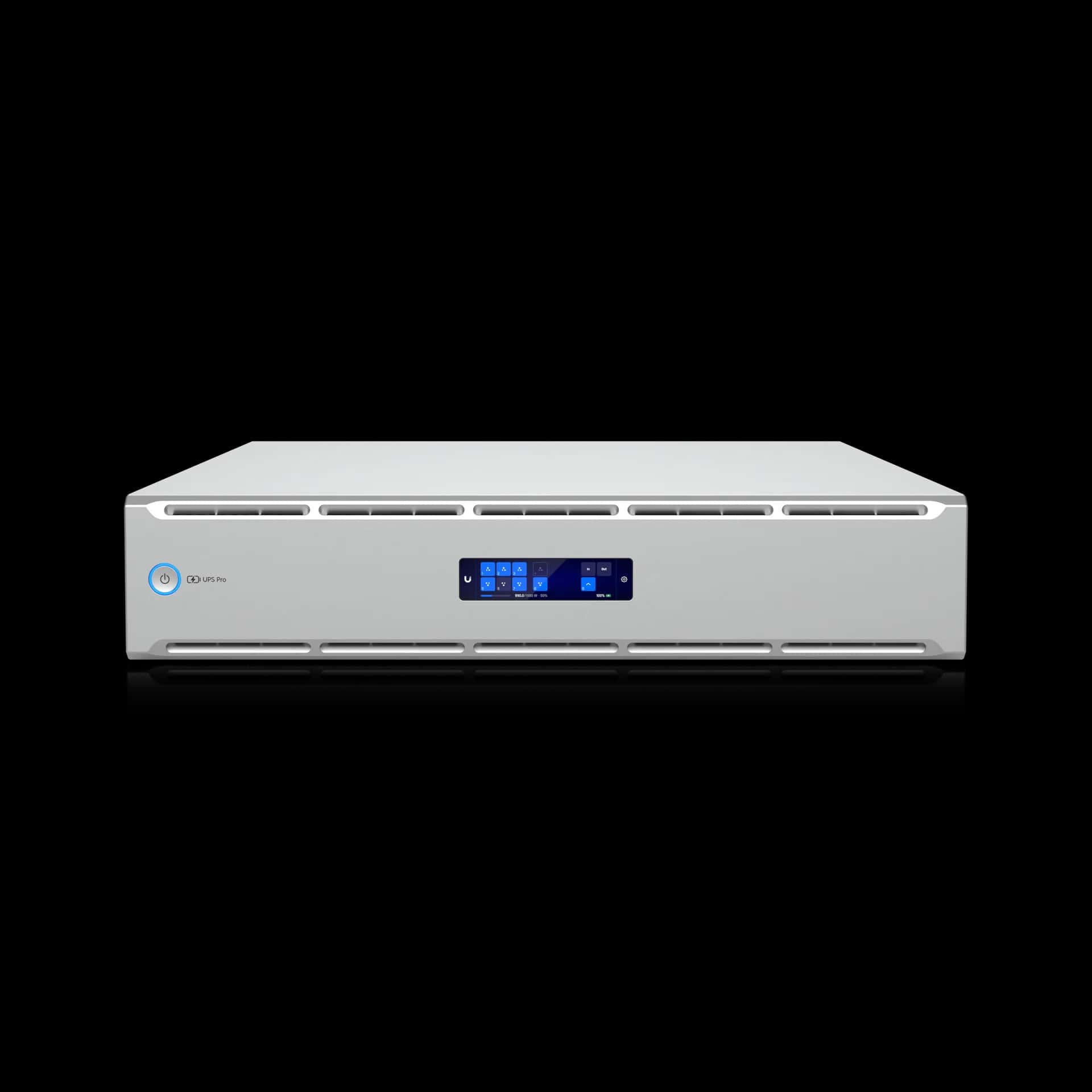

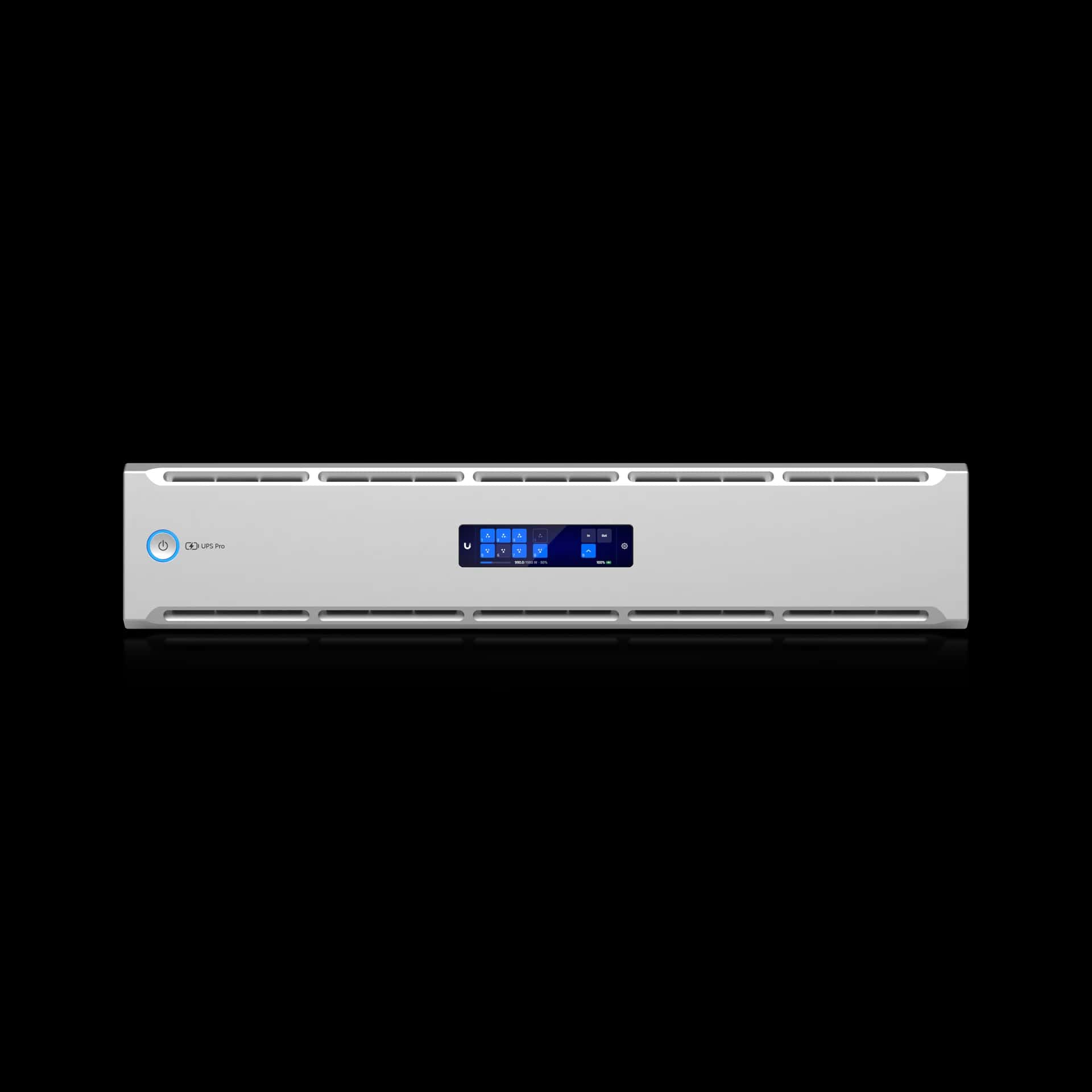

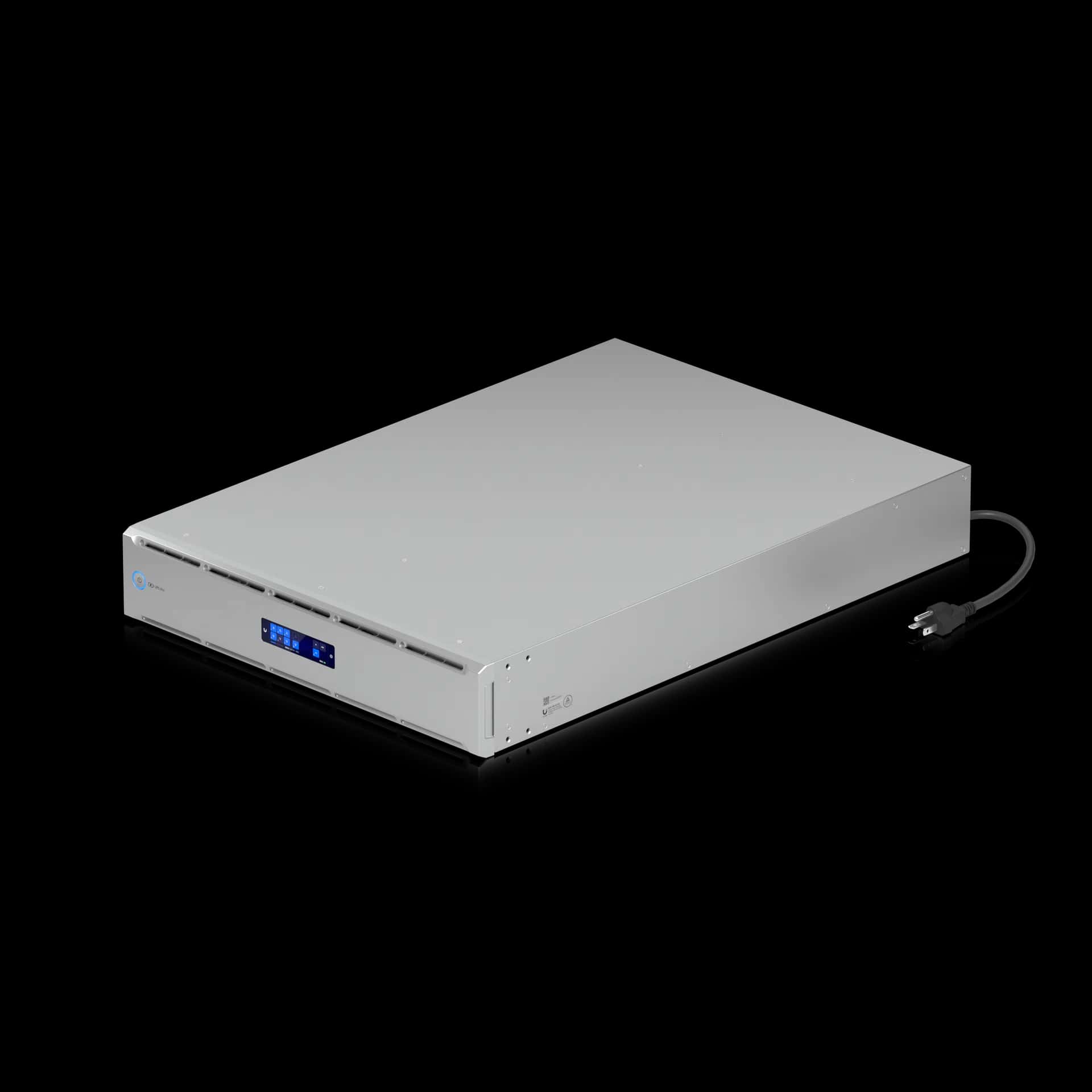

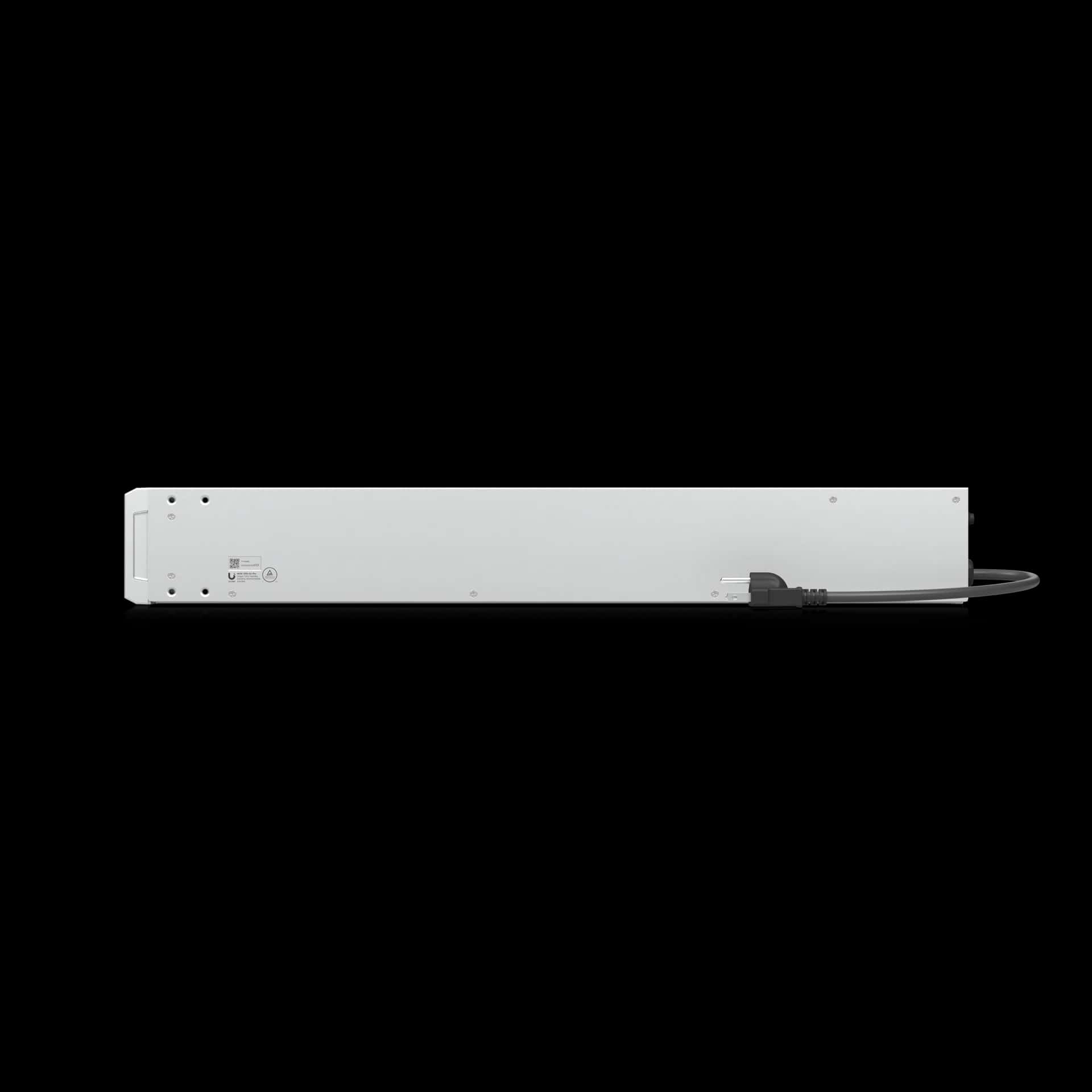

UPS 2U Pro

Read customer reviews
ModelUPS-2U-ProSold as1 unit

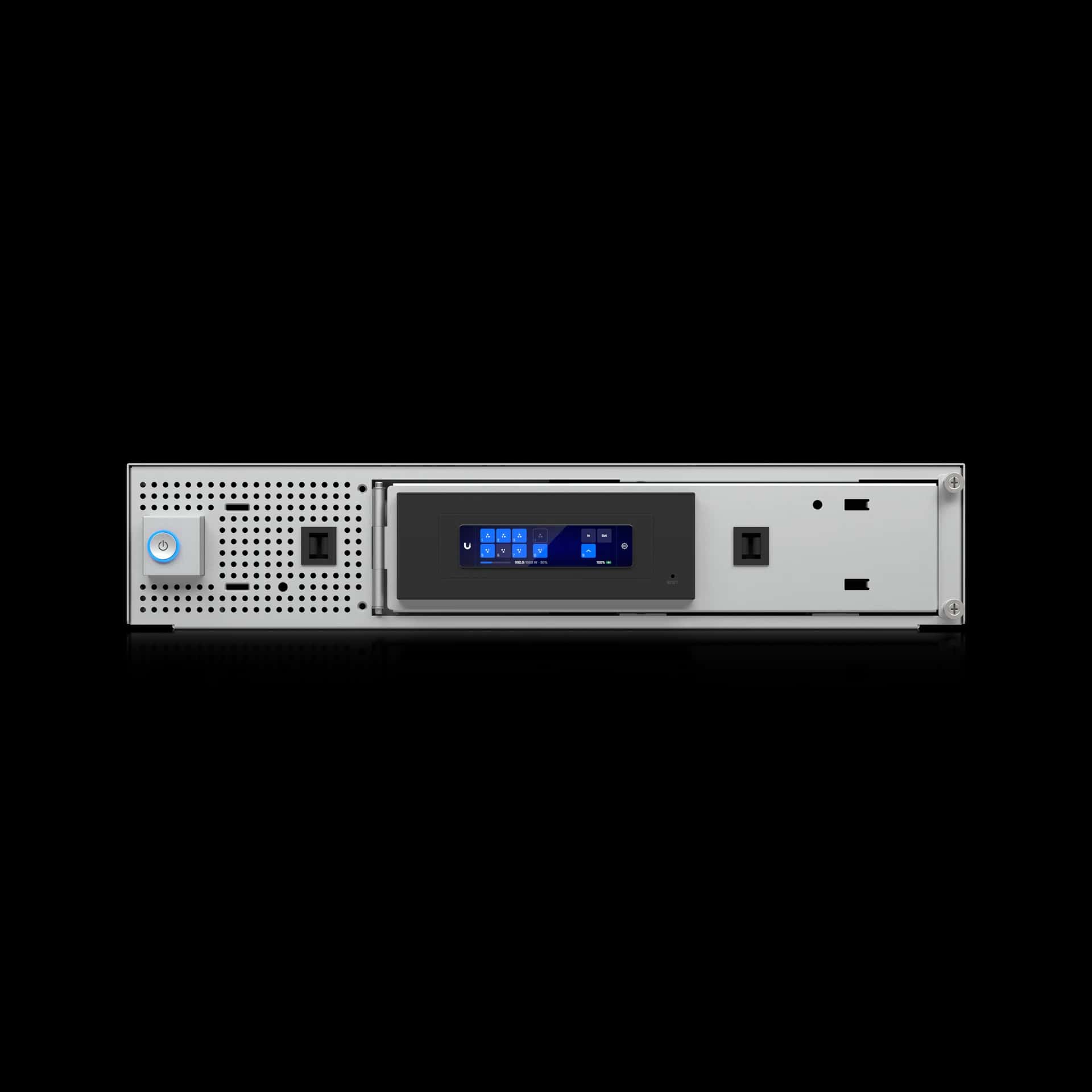

UniFi-managed 1.92kVA rackmount UPS with pure sine wave output, 8 individually controllable outlets with per-port power monitoring and remote power cycling, a hot-swappable 720Wh battery, and up to 22 minutes of runtime at half load 960W. Supports Graceful Shutdown for UNVR and UNAS, and NUT compatibility for third-party devices. Requires : UniFi OS 5.1.25 or later UniFi Network 10.5.67 or later UniFi Mobile Android 10.39.3 or later UniFi Mobile iOS 10.36.1 or later Note . For Graceful Shutdown functionality, UniFi OS version 4.4.3 or higher is required.

Top highlights

Product detailsOverview, features and technical specifications

UniFi-managed 1.92kVA rackmount UPS with pure sine wave output, 8 individually controllable outlets with per-port power monitoring and remote power cycling, a hot-swappable 720Wh battery, and up to 22 minutes of runtime at half load 960W. Supports Graceful Shutdown for UNVR and UNAS, and NUT compatibility for third-party devices. Requires : UniFi OS 5.1.25 or later UniFi Network 10.5.67 or later UniFi Mobile Android 10.39.3 or later UniFi Mobile iOS 10.36.1 or later Note . For Graceful Shutdown functionality, UniFi OS version 4.4.3 or higher is required.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
UPS 2U Pro
UPS 2U Pro

Specifications

BrandUbiquiti
Manufacturer modelUPS-2U-Pro
InstallationQuoted separately
Dimensions442.4 x 87.4 x 630 mm (17.4 x 3.4 x 24.8")
Weight32 kg (70.5 lb)
Enclosure MaterialGalvanized steel
Form FactorRack mount (2U)
WeatherproofingIP20
All specifications (39)
ManagementEthernet
Networking Interface(1) 100/10 MbE port for network connection (2) GbE ports for surge in/out

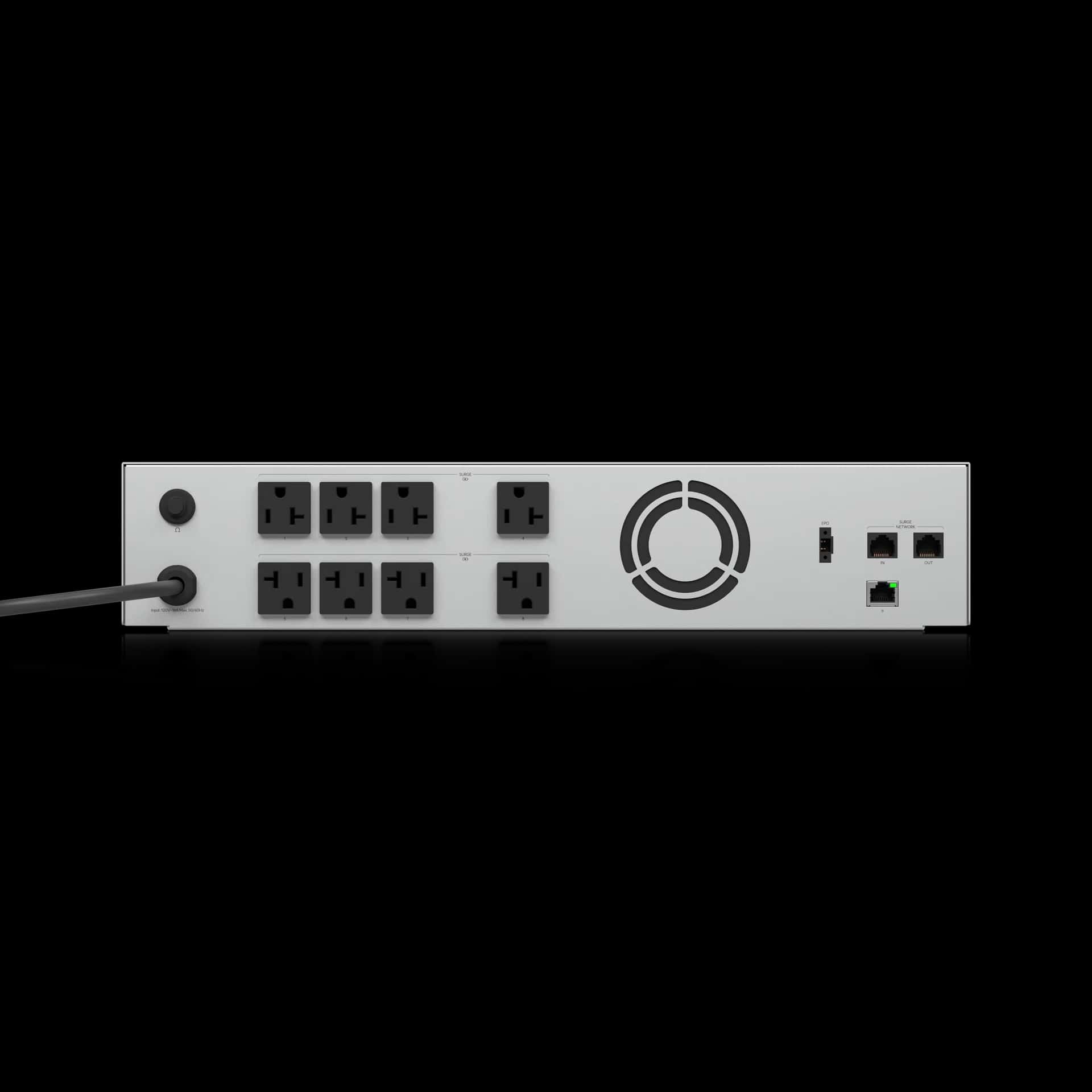

Power(1) OVC II AC in: NEMA 5‑20P (8) Battery backup/surge protection: NEMA 5‑20R
Capacity1920VA/1920W
TypeLine interactive
Input Voltage Range89–145V AC
Power Method(1) TN system, 120V AC, 16A Max., 50/60 Hz
Nominal Input Voltage120V AC
Output Voltage120V AC
Nominal Output Voltage120V AC
Frequency RangeAC mode: 50/60 Hz ±5 Hz (Auto sensing) Battery mode: 60 Hz ±1 Hz
AC Voltage Regulation±1.5% (Battery mode)
Transfer Time6 ms typical; 10 ms max. (Battery mode)
Wave FormPure sine wave (Battery mode)
Battery Type(1) Lead Acid 72V, 10Ah
RuntimeFull load: 9 min Half load: 22 min
Battery Charging Time8 hours recovery to 90% capacity
Overload at On-Line Mode103–120% 5 min go to fault 120–150% 10 sec go to fault 150% 1 sec go to fault
Overload at Battery Mode103–120% 1 min go to fault 120–150% 10 sec go to fault 150% 0.5 sec go to fault
Short Circuit Protection at On-Line ModeBreaker, 250V AC, 20A
Display3.7” touchscreen
Buttons(1) Power (1) Factory reset (1) Circuit breaker
StatusOff: device not turned on Flashing white: initializing / factory default Steady white: waiting for adoption Steady blue: device adoption and working Flashing blue: battery mode Alternating white/blue: firmware upgrading Rapid flashing blue: locate Steady red: warning Flashing red: low battery
Operating Altitude3,000 m (1.9 mi)
Operating EnvironmentPollution Degree 2
Ambient Storage Temperature-15 to 50° C (5 to 122° F)
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity0 to 95% noncondensing
CertificationsFCC, IC, UL 1778, CSA C22.2 No. 107.3
Mobile AppsiOS™: Version 10.36.1 and later Android™: Version 10.39.3 and later
UniFi NetworkVersion 10.5.67 and later
DownloadsSpecifications, manuals and product documents
