Ubiquiti · Ubiquiti gateway and switching

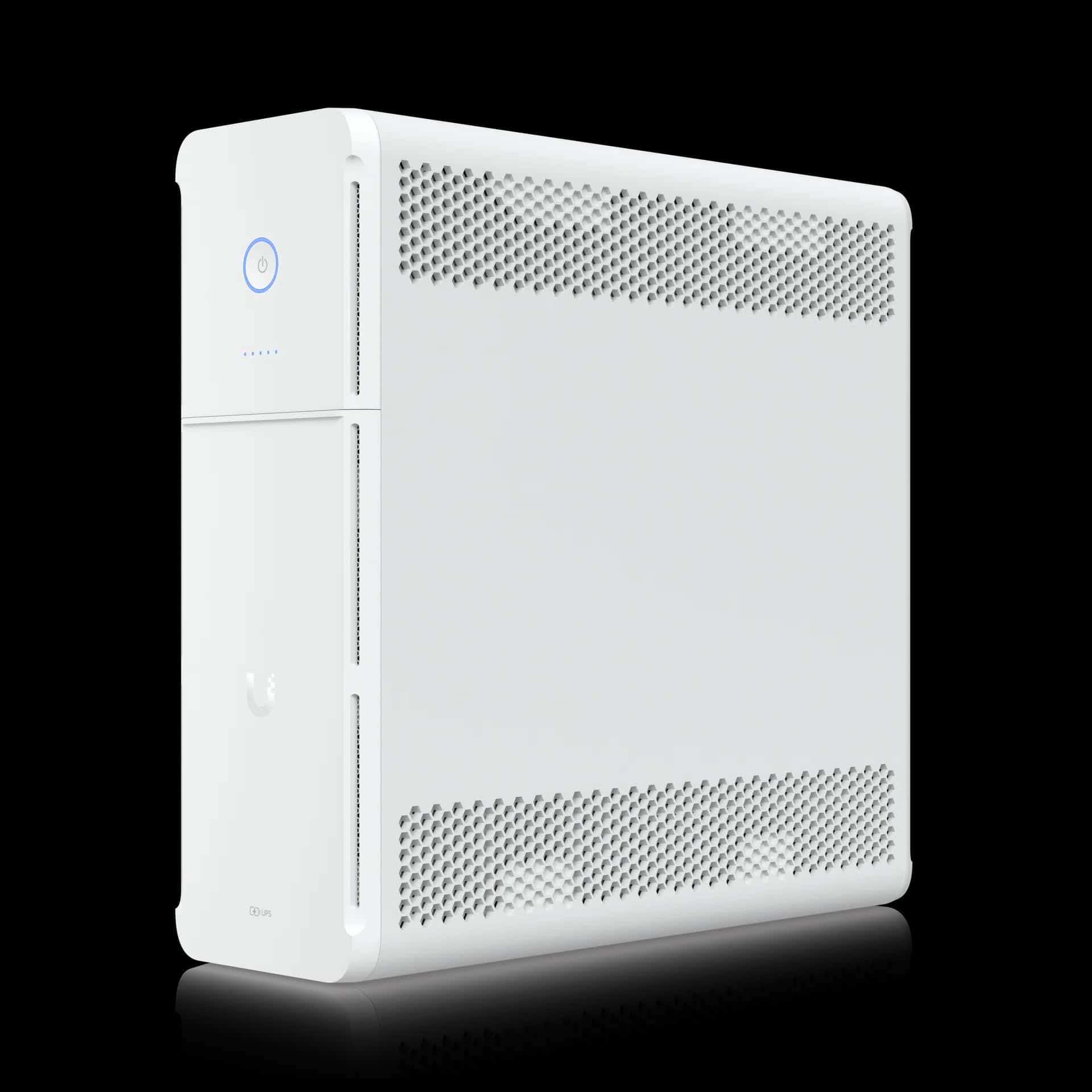

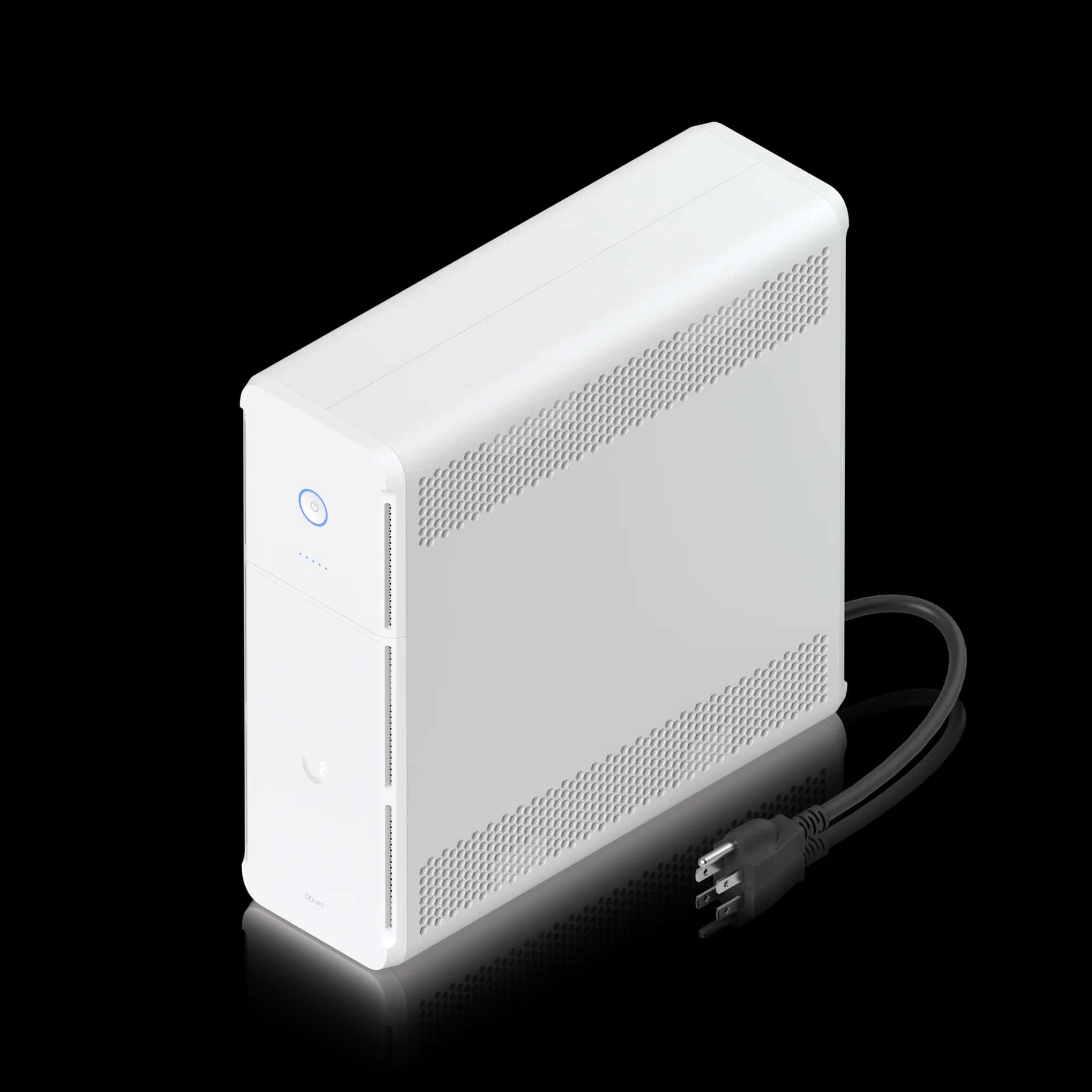

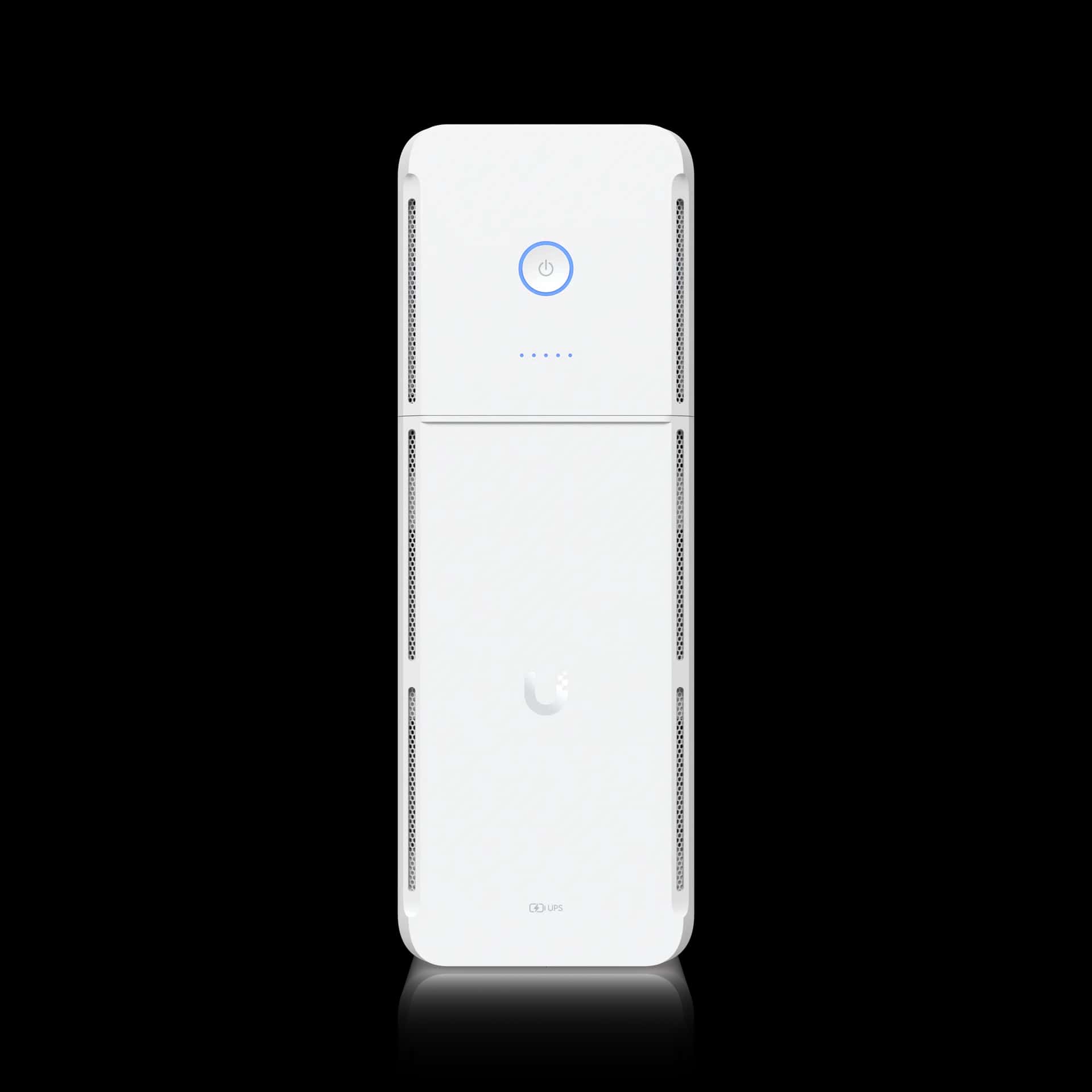

UPS Tower

Read customer reviews
ModelUPS-TowerSold as1 unit

UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices. Note. For Graceful Shutdown functionality, UniFi OS version 4.4.3 or higher is required.

Top highlights

Product detailsOverview, features and technical specifications

UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices. Note. For Graceful Shutdown functionality, UniFi OS version 4.4.3 or higher is required.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
UPS Tower
UPS Tower

Specifications

BrandUbiquiti
Manufacturer modelUPS-Tower
InstallationQuoted separately
Dimensions288 x 99 x 280.5 mm (11.3 x 3.9 x 11")
Weight8.17 kg (18 lb)
Enclosure MaterialPolycarbonate and acrylonitrile butadiene styrene blend
Form FactorDesktop
WeatherproofingIP20
All specifications (37)
ManagementEthernet
Networking Interface(1) 100/10 MbE port for network connection (2) GbE ports for surge in/out

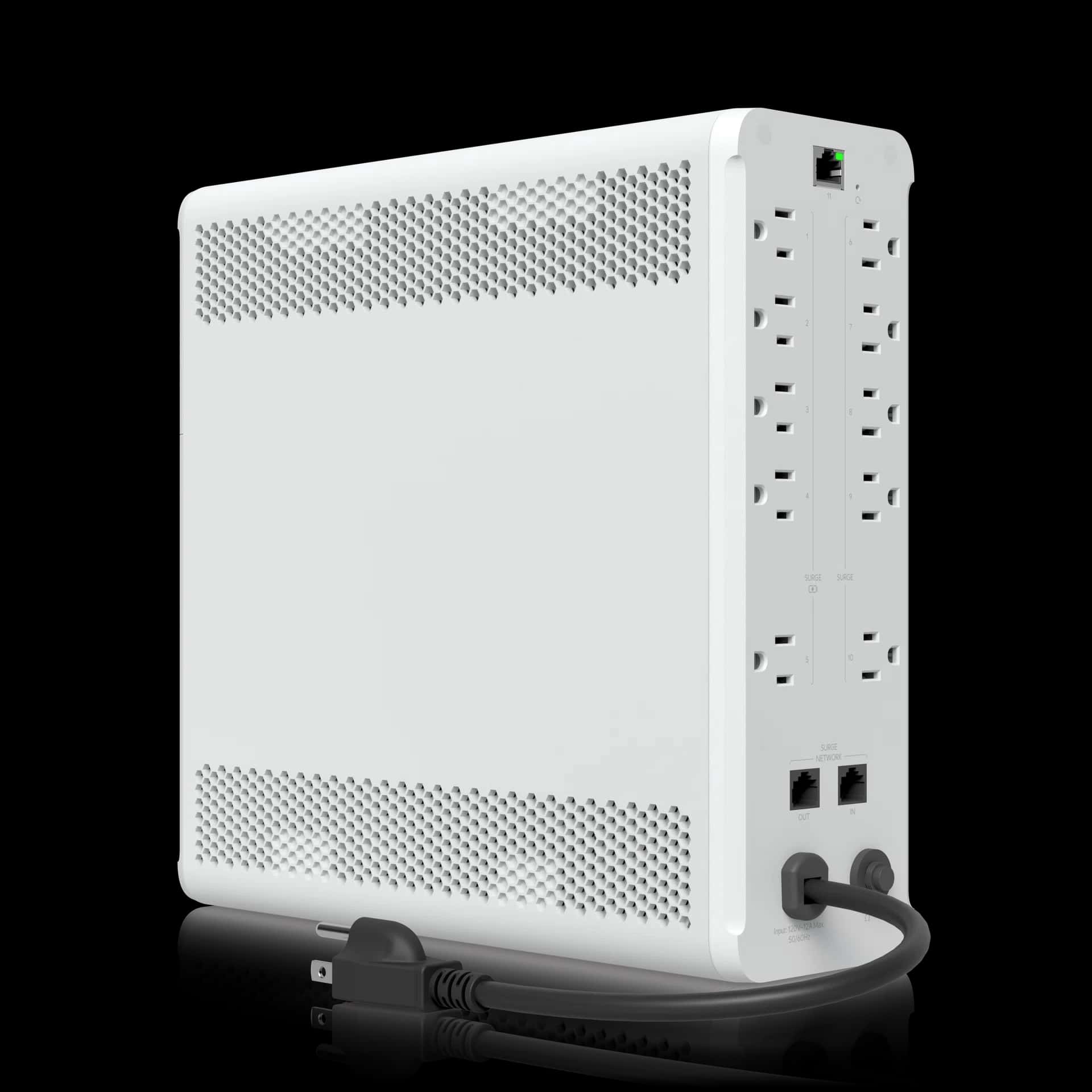

Power(1) OVC II AC in: NEMA 5‑15P, 1.8 m (5.9 ft) non-removable power cord (5) Battery backup/surge protection: NEMA 5‑15R (5) Surge protection: NEMA 5‑15R
Capacity1,000VA/600W
TypeLine interactive
Input Voltage Range89–145V AC
Power Method(1) TN system, 120V AC, 12A Max., 50/60 Hz
Nominal Input Voltage120V AC
Output Voltage120V AC
Frequency RangeAC mode: 50/60 Hz ±5 Hz (Auto sensing) Battery mode: 60 Hz ±1 Hz
AC Voltage Regulation±10% (Battery mode)
Transfer Time6 ms typical; 10 ms max. (Battery mode)
Wave FormSimulated sine wave (Battery mode)
Battery Type(1) Lead Acid 12V, 9Ah
RuntimeFull load: 2 min Half load: 7 min
Battery Charging Time6-8 hours recovery to 90% capacity
Overload at On-Line Mode110% 5 min go to fault 120% go to fault immediately
Overload at Battery Mode110% shutdown in 5 sec 120% shutdown immediately
Short Circuit Protection at On-Line ModeBreaker, 250V AC, 15A
Output Short-Circuit CurrentIpeak 334.8A Irms 68.2A
Buttons(1) Power (1) Factory reset
StatusOff: device not turned on Flashing white: initializing / factory default Steady white: waiting for adoption Steady blue: device adoption and working Flashing blue: battery mode Alternating white/blue: firmware upgrading Rapid flashing blue: locate Steady red: warning Flashing red: low battery
Battery IndicatorAll off: 0% (1) Steady blue: battery 1–19% (2) Steady blue: battery 20–39% (3) Steady blue: battery 40–59% (4) Steady blue: battery 60–79% (5) Steady blue: battery 80–100%
Operating Altitude3,000 m (1.9 mi)
Operating EnvironmentPollution Degree 2
Ambient Storage Temperature-20 to 50° C (-4 to 122° F)
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity0 to 95% noncondensing
CertificationsFCC, IC, UL 1778, CSA C22.2 No. 107.3
DownloadsSpecifications, manuals and product documents
