Ubiquiti · Ubiquiti gateway and switching

Switch 24

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti gateway and switching

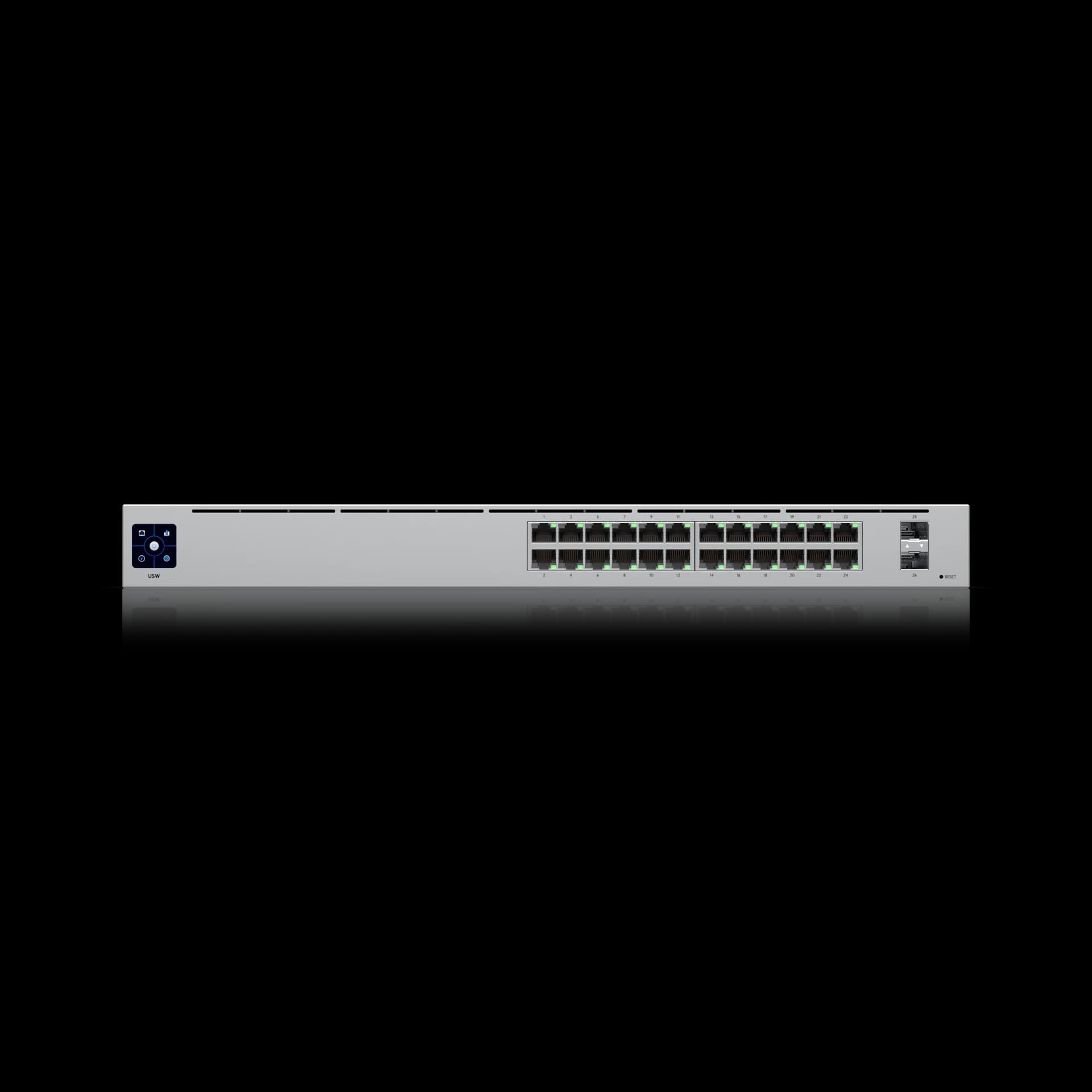

Switch 24

Read customer reviews
ModelUSW-24Sold as1 unit

A 24-port, Layer 2 switch with a silent, fanless cooling system.

Top highlights

Product detailsOverview, features and technical specifications

A 24-port, Layer 2 switch with a silent, fanless cooling system.

At a glance

Highlight 1(24) GbE ports
Highlight 2(2) 1G SFP ports
Highlight 3Fanless, silent cooling
Switch 24
Switch 24

Specifications

BrandUbiquiti
Manufacturer modelUSW-24
InstallationQuoted separately
Dimensions442 x 200 x 44 mm (17.4 x 7.9 x 1.7")
1 GbE RJ4524 (1G/100M/10M)
1G SFP2 (1G)
Form FactorRack mount (1U)
Switching Capacity52 Gbps
All specifications (31)
Total Non-Blocking Throughput26 Gbps
Forwarding Rate39 Mpps
Supported VLANs1,000
MAC Address Table Size8,000
Packet Buffer Size0.5 MB
IPv4128
MAC128
Max. Power Consumption25W
Power MethodUniversal input, 100–240V AC, 50/60 Hz
Power Input MethodAC input
Power SupplyAC/DC, internal, 36W
Supported Voltage Range100–240V AC
ManagementEthernet AR
Heat Dissipation85.3 BTU/hr
WeightWithout mounting brackets: 2.7 kg (6 lb) With mounting brackets: 2.8 kg (6.2 lb)
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth400~1200 mm (15.7-47.2")
LCM Display1.3" touchscreen
Ambient Operating Temperature-5 to 45° C (23 to 113° F)
Ambient Operating Humidity10 to 90% noncondensing
CertificationsCE, FCC, IC, Anatel: 17193-20-08356
UniFi NetworkVersion 7.2.94 and later
DownloadsSpecifications, manuals and product documents
