Ubiquiti · Ubiquiti gateway and switching

Switch Flex 2.5G PoE

Name: Ubiquiti Switch Flex 2.5G PoE
Brand: Ubiquiti
SKU: UBNT-CATALOG-USW-FLEX-2-5G-8-POE
Price: 284.70 USD
Availability: OutOfStock

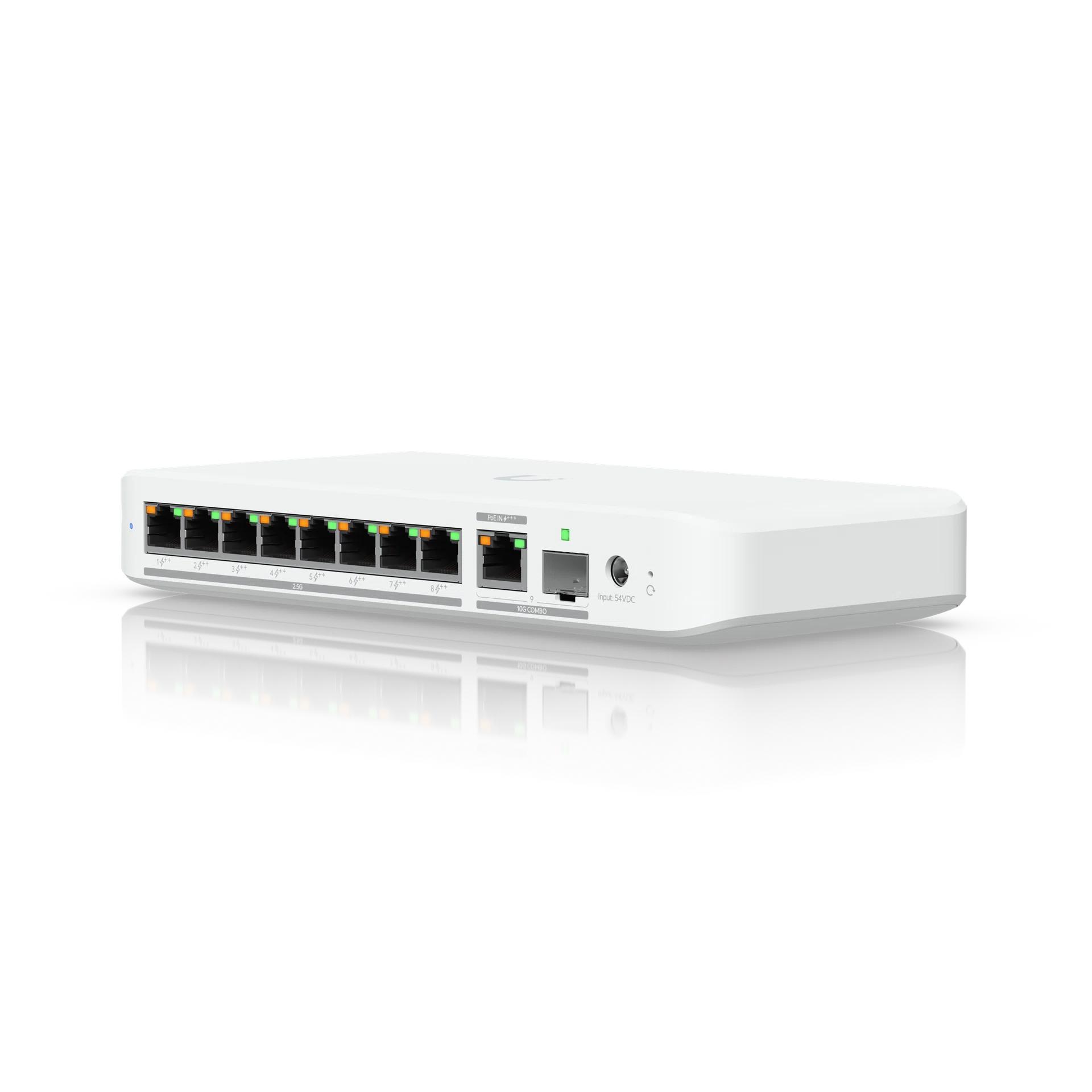

Image 1 of 5Product view

Professional-grade equipment · Installation available

Ubiquiti · Ubiquiti gateway and switching

Switch Flex 2.5G PoE

Read customer reviews

ModelUSW-Flex-2.5G-8-PoE (196W)Sold as1 unit

Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter. Note . Actual PoE availability may vary based on input cable length and quality. AC power adapter sold separately.

Top highlights

(8) 2.5 GbE PoE++ output ports
(1) 10 GbE PoE+++ input port for power / SFP+ port combo — 76W PoE availability with PoE+++ input* — 46W PoE availability with PoE++ input* — 16W PoE availability with PoE+ input*
196W PoE availability with optional AC power adapter**

See more highlights

*Actual PoE availability may vary based on input cable length and quality. **AC power adapter sold separately.

Product detailsOverview, features and technical specifications

At a glance

Highlight 1	(8) 2.5 GbE PoE++ output ports
Highlight 2	(1) 10 GbE PoE+++ input port for power / SFP+ port combo — 76W PoE availability with PoE+++ input* — 46W PoE availability with PoE++ input* — 16W PoE availability with PoE+ input*
Highlight 3	196W PoE availability with optional AC power adapter**
Highlight 4	Actual PoE availability may vary based on input cable length and quality. *AC power adapter sold separately.

Specifications

Brand	Ubiquiti
Manufacturer model	USW-Flex-2.5G-8-PoE (196W)
Installation	Quoted separately
Dimensions	212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3")
2.5 GbE RJ45	8 (All PoE++) (2.5G/1G/100M/10M)
10 GbE RJ45	1 (PoE+++) (10G/5G/2.5G/1G/100M)
10G SFP+	1 (10G/1G)
Max. PoE Output	Up to PoE++

All specifications (31)

Total PoE Availability	PoE+++ input: 76W PoE++ input: 46W PoE+ input: 16W 210W AC adapter input: 196W
Form Factor	Compact Desktop
Switching Capacity	60 Gbps
Total Non-Blocking Throughput	30 Gbps
Forwarding Rate	45 Mpps
Supported VLANs	256
MAC Address Table Size	4,000
PoE++	8
PoE	15.4W
PoE+	32W
PoE++	64W
Max. Power Consumption	14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output)
Power Method	(1) AC/DC adapter (Excluded) (1) PoE+++
Power Input Method	DC Input PoE
Supported Voltage Range	50–57V DC/PoE
Management	Ethernet
Weight	567 g (20 oz)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate
Ambient Operating Temperature	-20 to 45° C (-4 to 113° F)
Ambient Operating Humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
UniFi Network	Version 9.0.114 and later
