Switch Industrial DIN 8

Image 1 of 9Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti gateway and switching

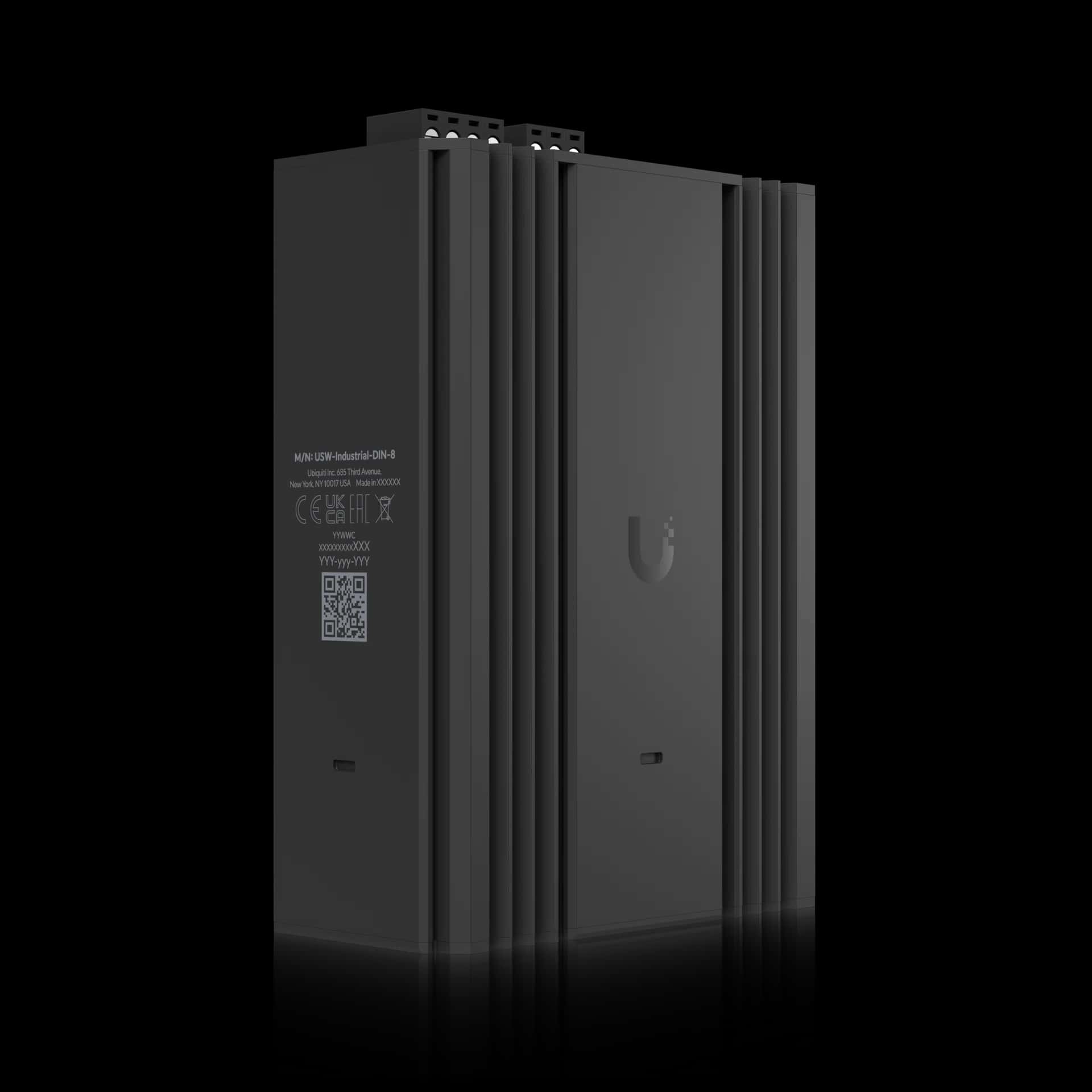

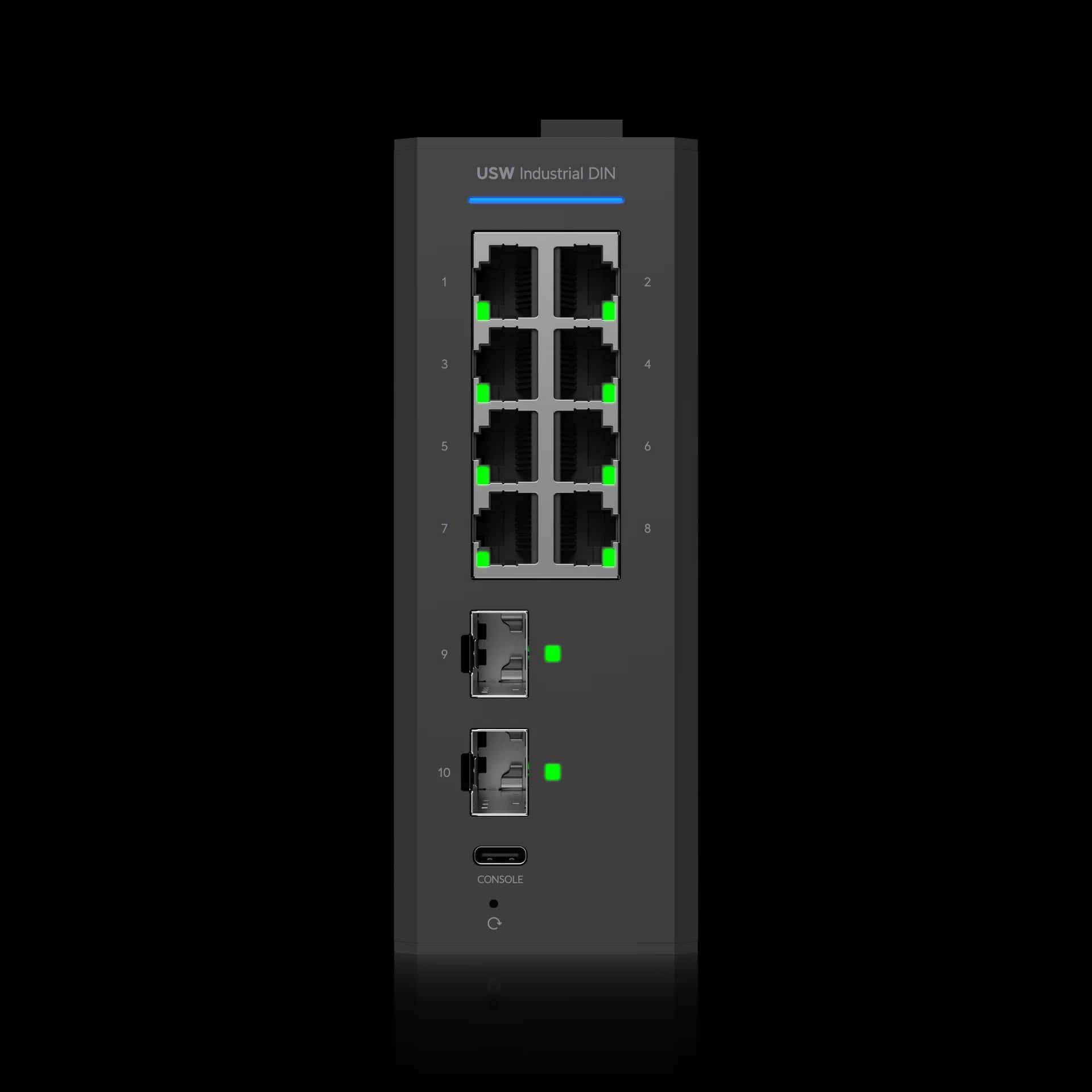

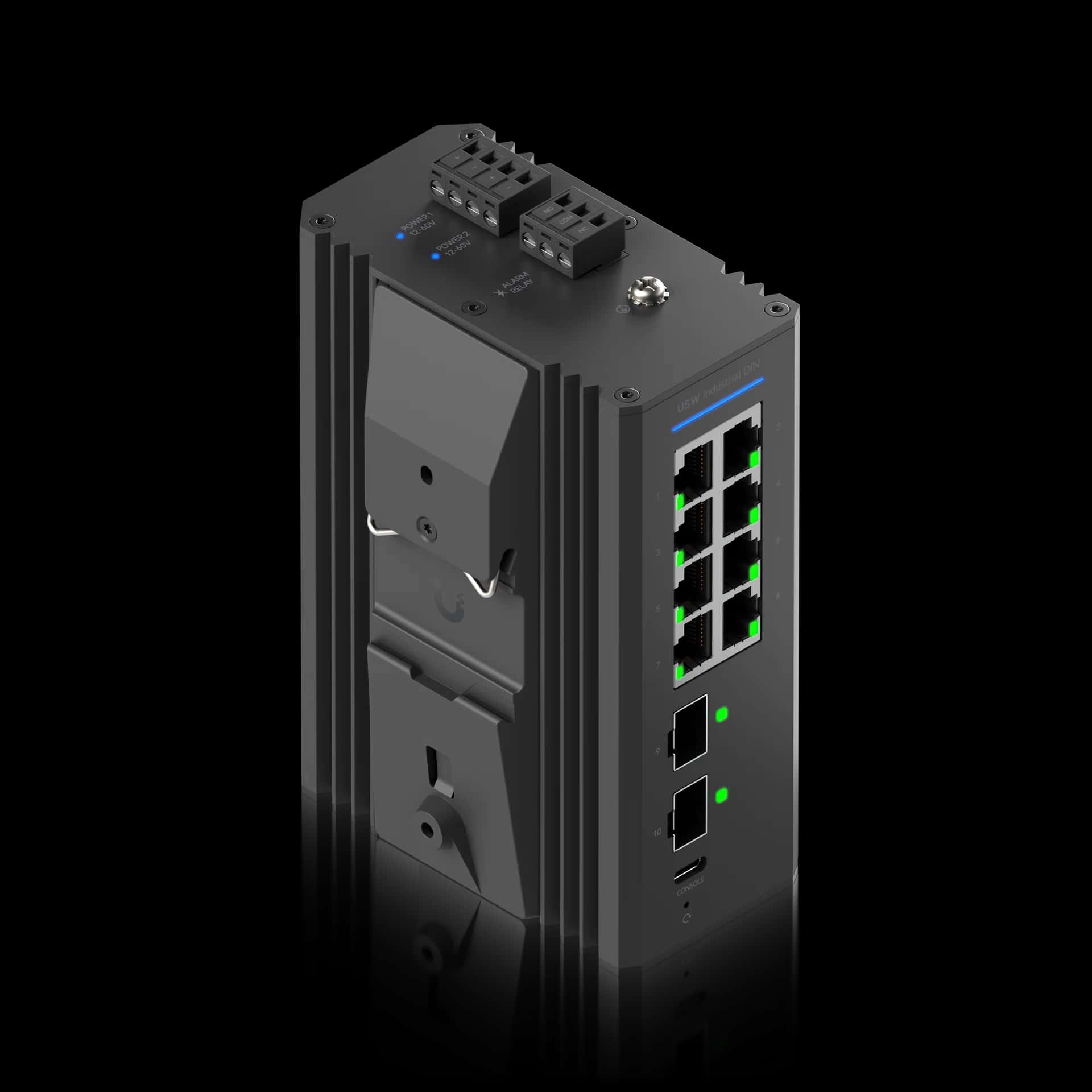

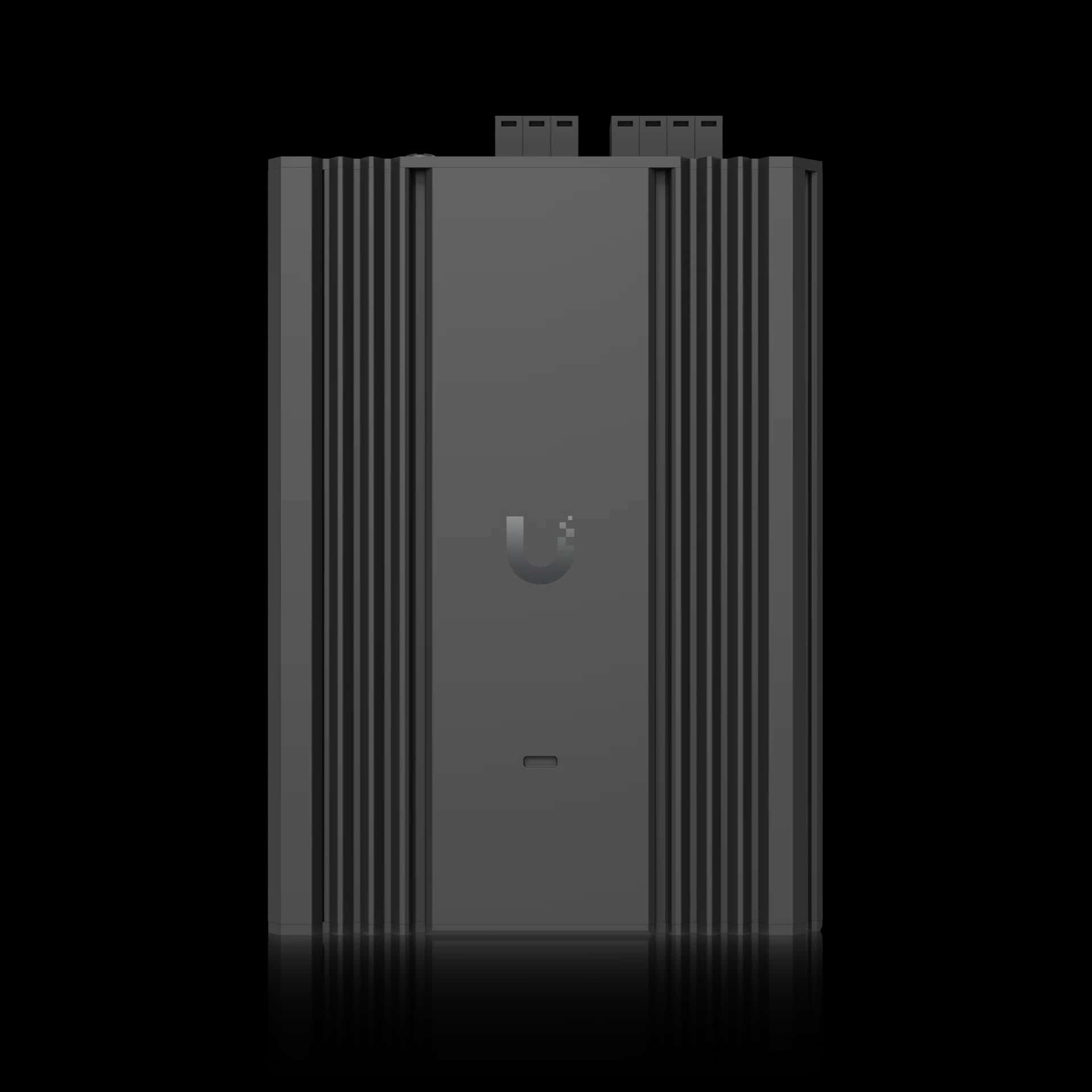

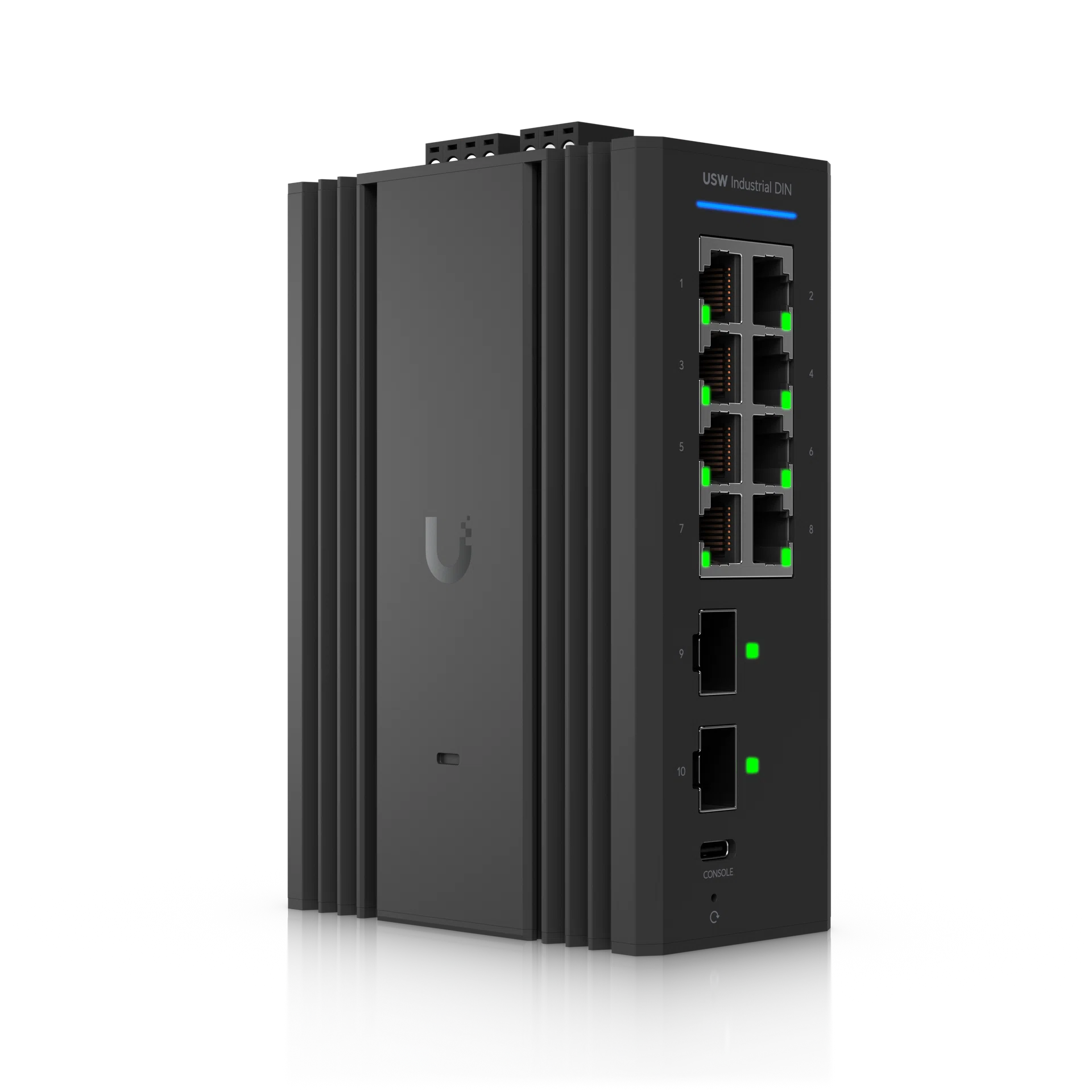

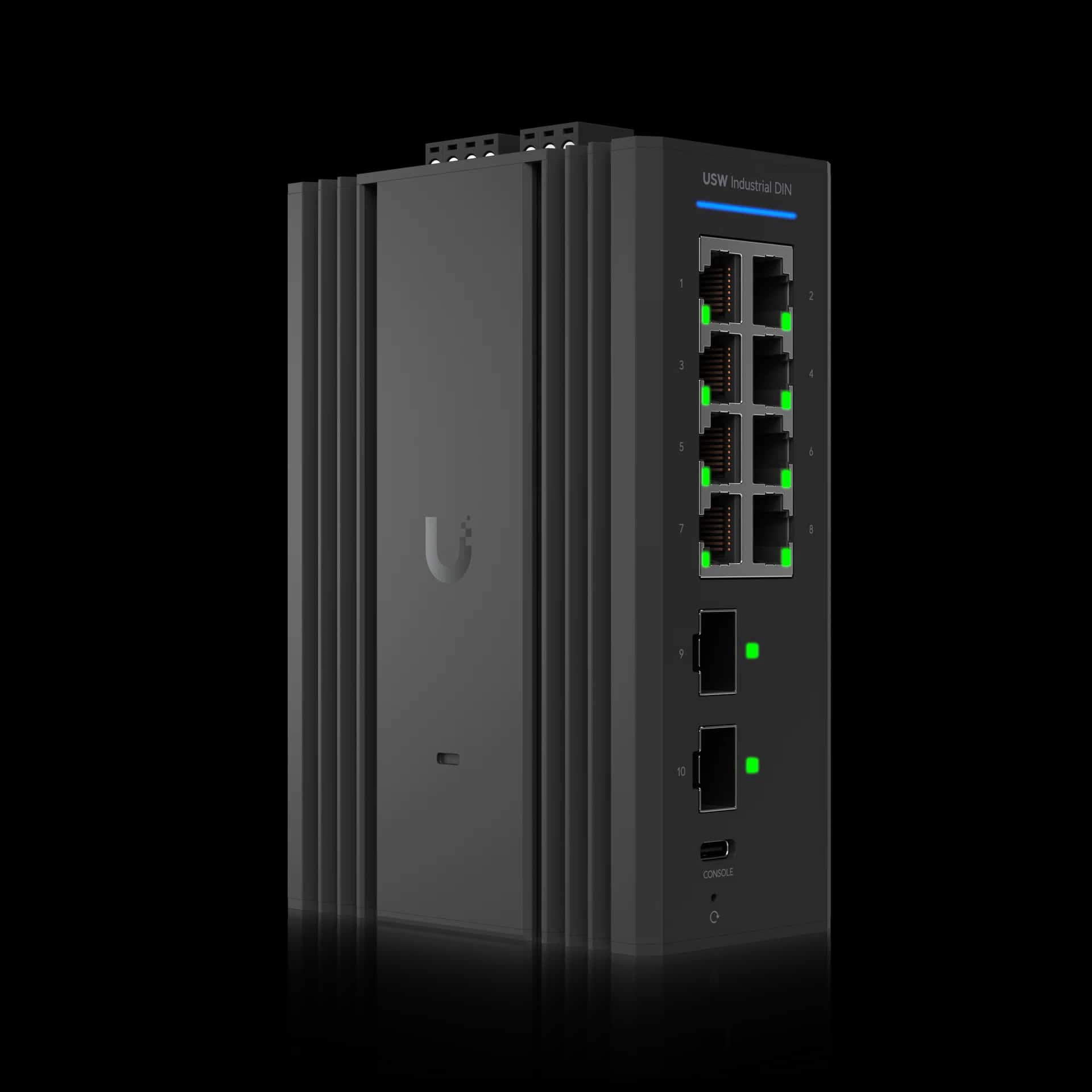

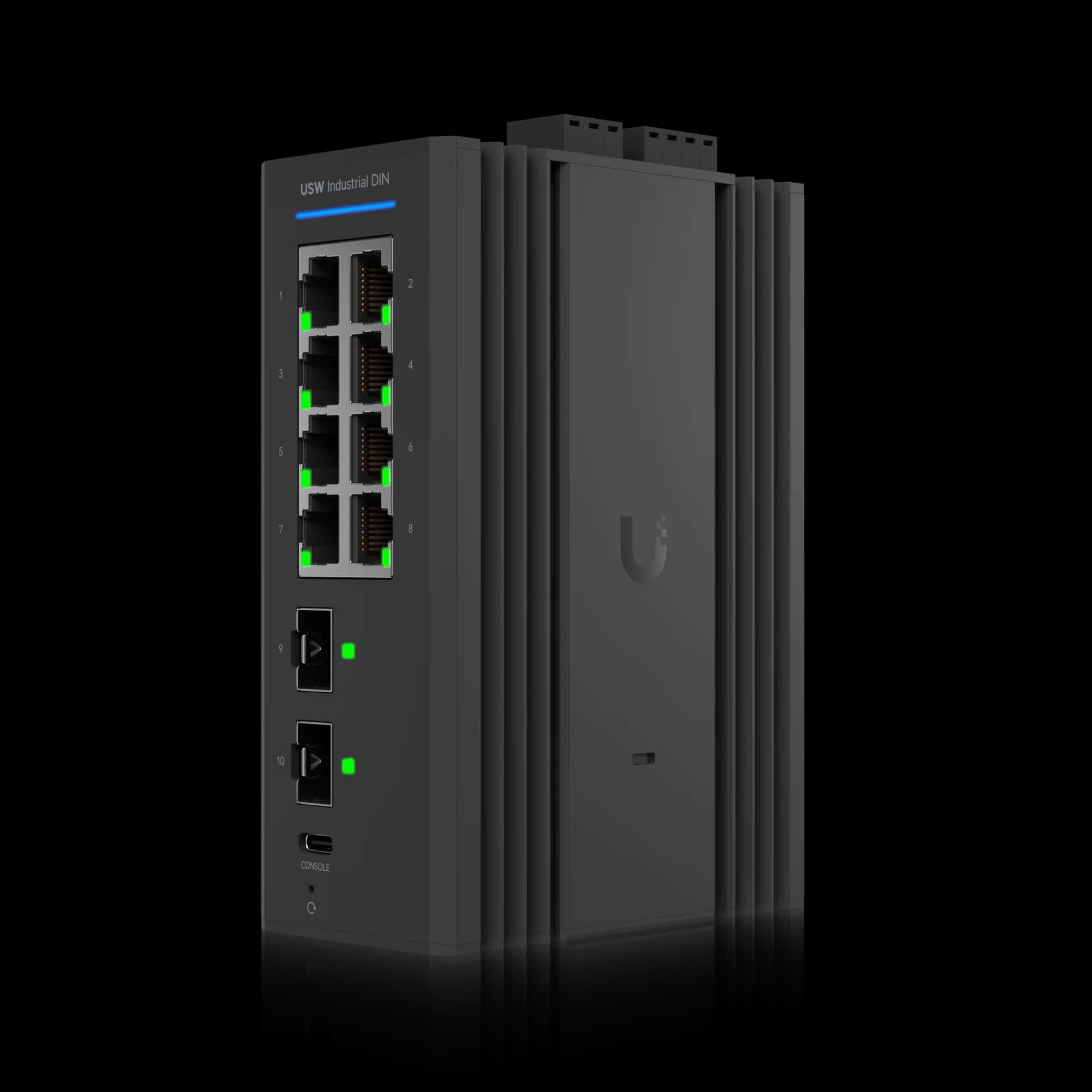

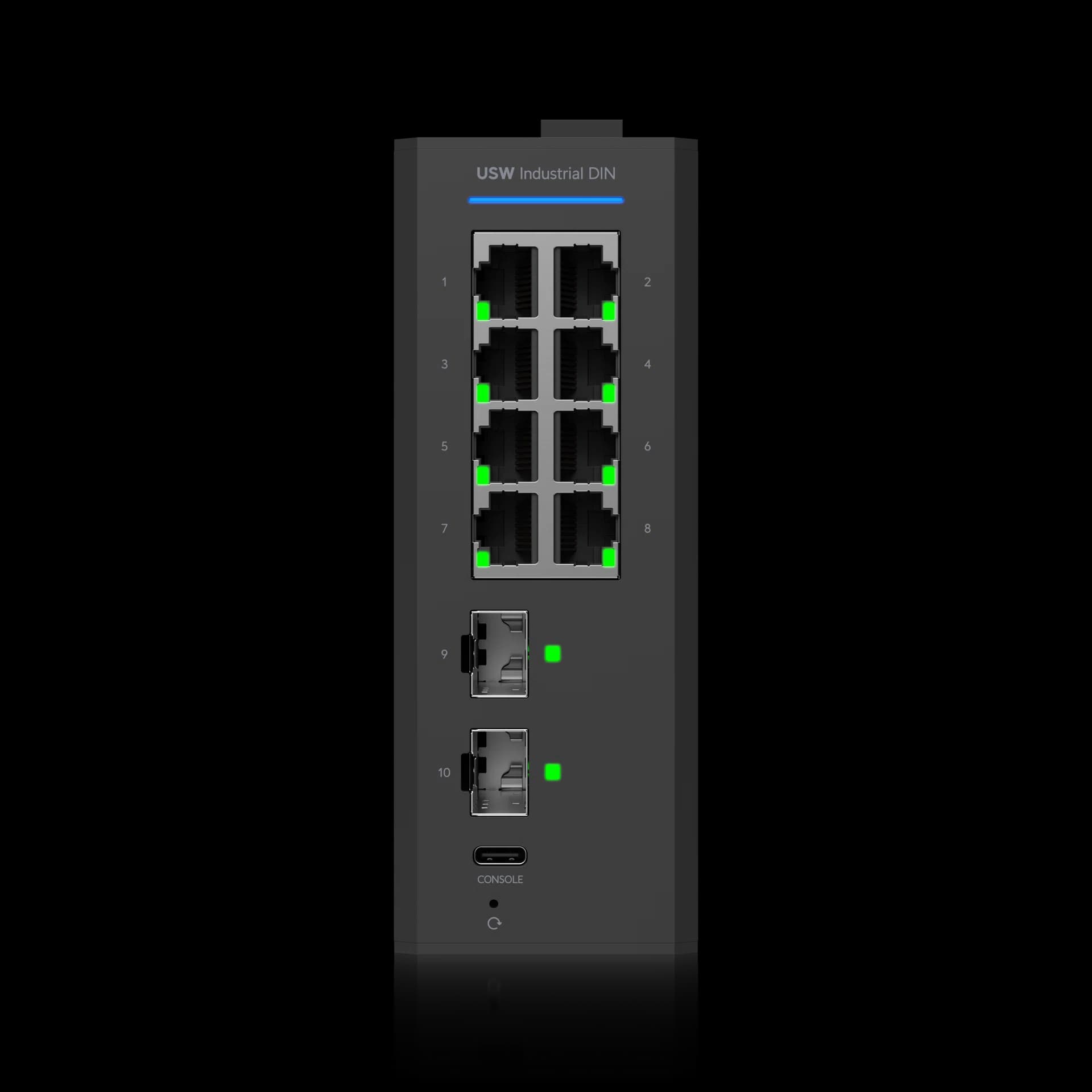

Switch Industrial DIN 8

Read customer reviews
ModelUSW-Industrial-DIN-8Sold as1 unit

Robust, industrial-grade 8-port GbE switch with dual SFP ports, DIN-rail mounting and power redundancy. Note . Power supply not included; please use a 12–60V 20W+ power supply.

Top highlights

Product detailsOverview, features and technical specifications

Robust, industrial-grade 8-port GbE switch with dual SFP ports, DIN-rail mounting and power redundancy. Note . Power supply not included; please use a 12–60V 20W+ power supply.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
Switch Industrial DIN 8
Switch Industrial DIN 8

Specifications

BrandUbiquiti
Manufacturer modelUSW-Industrial-DIN-8
InstallationQuoted separately
Dimensions139 x 100 x 52 mm (5.5 x 3.9 x 2.1")
1 GbE RJ458
1G SFP2
Console1
Redundancy(2) DC inputs
All specifications (29)
Form FactorCompact DIN rail and wall-mountable
Switching Capacity20 Gbps
Total Non-Blocking Throughput10 Gbps
Forwarding Rate14.88 Mpps
Supported VLANs1,000
MAC Address Table Size8,000
Packet Buffer Size0.5 MB
IPv4128
MAC128
Max. Power Consumption12W
Power Method(2) 2-pin DC inputs with terminal block
Power Input MethodDC input
Supported Voltage Range12–60V DC
ManagementEthernet Serial Console
WeightWithout mount: 870 g (1.9 lb) With mount: 890 g (2 lb)
Enclosure MaterialAluminum
Mount MaterialPolycarbonate
ESD ProtectionAir: ± 15kV, contact: ± 8kV
Ambient Operating Temperature-30 to 70° C (-22 to 158° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
