Switch Pro XG 24 PoE
Image 1 of 6Product view
Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti gateway and switchingRead customer reviews

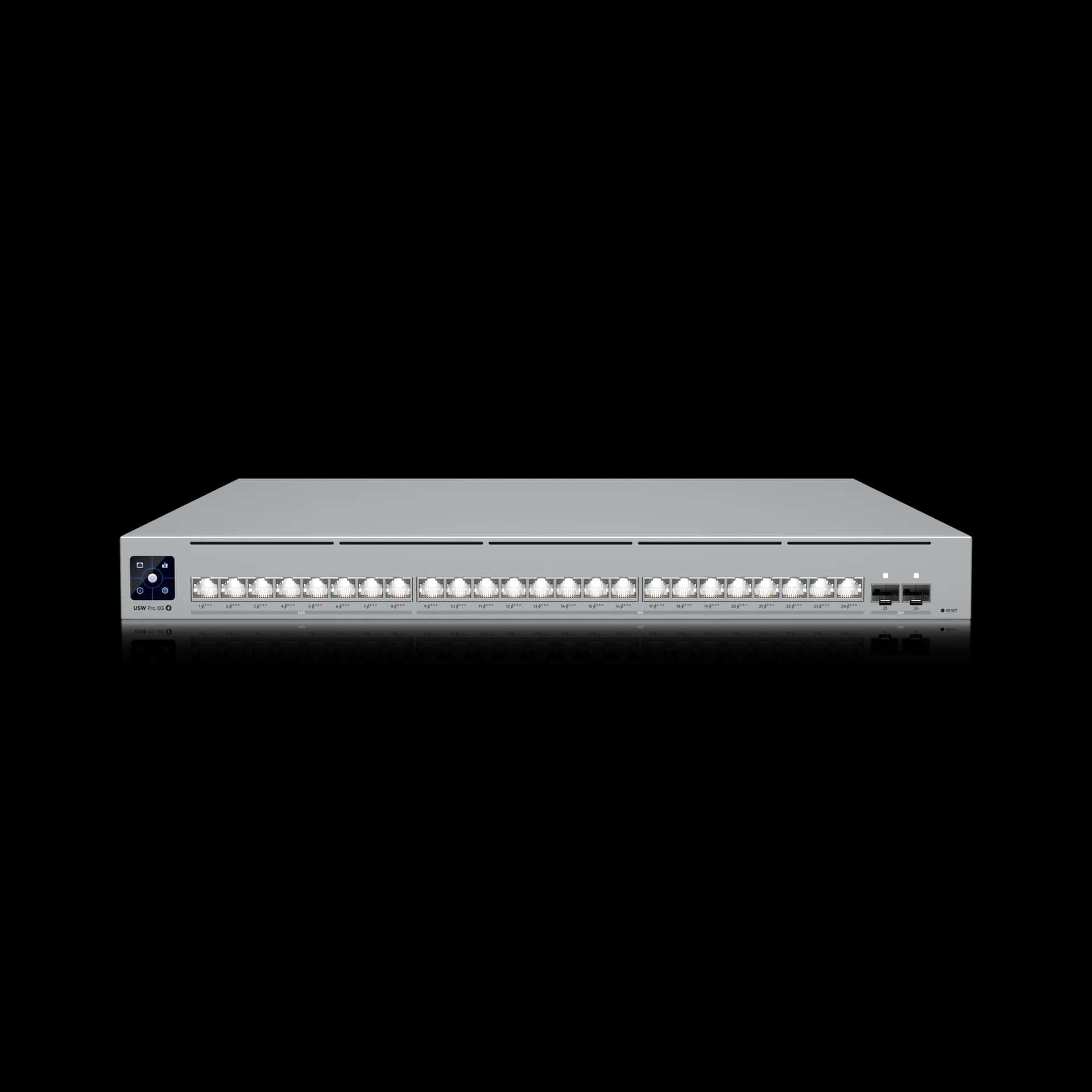

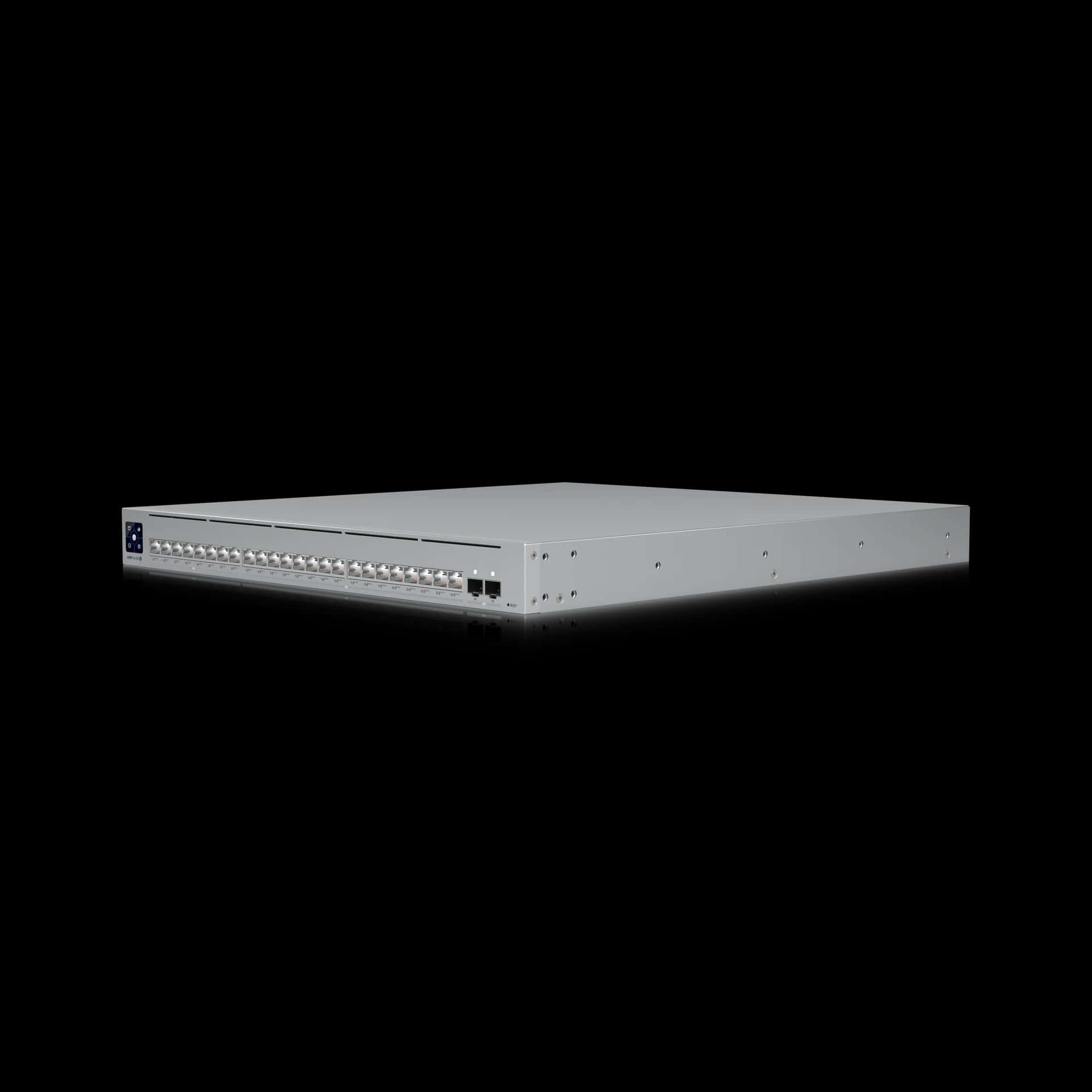

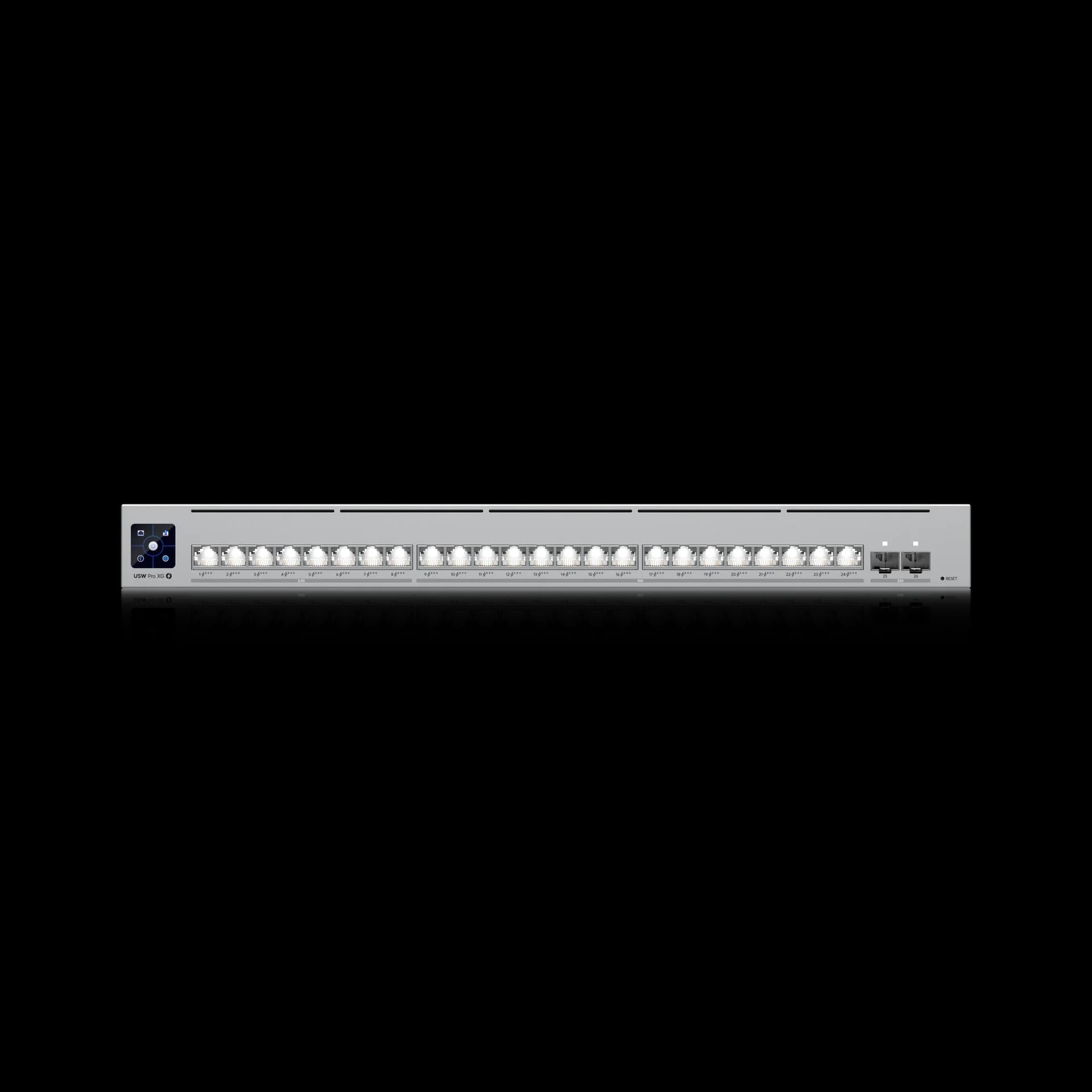

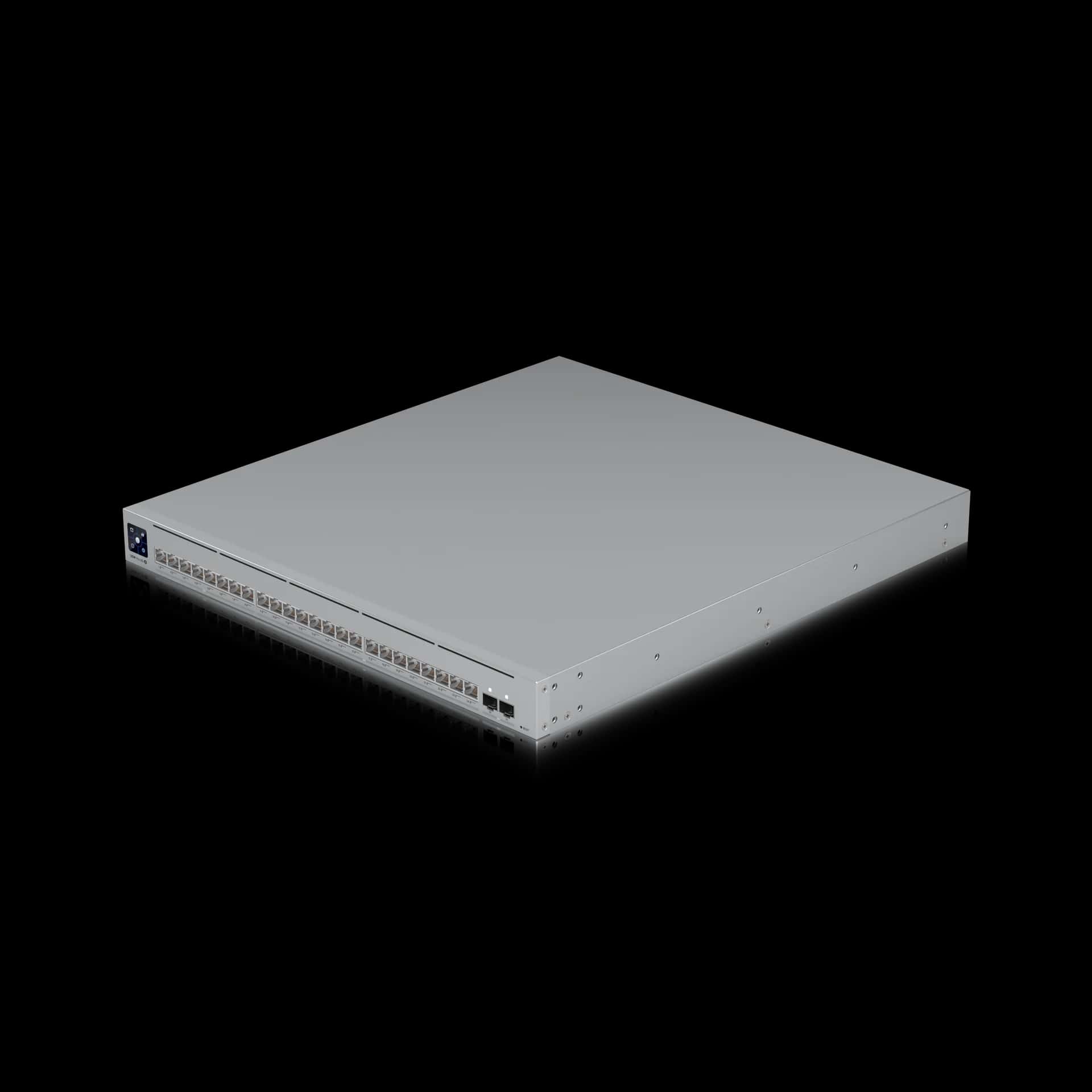

Switch Pro XG 24 PoE
ModelUSW-Pro-XG-24-PoE (720W)Sold as1 unit
Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
Top highlights
- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (16) 10 GbE, (8) 2.5 GbE ports, all PoE+++ (90W capable)
- (2) 25G SFP28 ports
See more highlights
- DC power backup ready**
- 720W total PoE availability
- *Pair with UniFi Etherlighting Patch Cables for optimal brightness. **Requires UniFi RPS .
Product detailsOverview, features and technical specifications
Professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
At a glance
| Highlight 1 | Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network* |
|---|---|
| Highlight 2 | (16) 10 GbE, (8) 2.5 GbE ports, all PoE+++ (90W capable) |
| Highlight 3 | (2) 25G SFP28 ports |
| Highlight 4 | DC power backup ready** |
More highlights
| Highlight 5 | 720W total PoE availability |
|---|---|
| Highlight 6 | *Pair with UniFi Etherlighting Patch Cables for optimal brightness. **Requires UniFi RPS . |
Specifications
| Brand | Ubiquiti |
|---|---|
| Manufacturer model | USW-Pro-XG-24-PoE (720W) |
| Installation | Quoted separately |
| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| 2.5 GbE RJ45 | 8 (All PoE+++) (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) |
| 25G SFP28 | 2 (25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ |
All specifications (41)
| Total PoE Availability | 720W |
|---|---|
| Redundancy | DC Power Backup |
| Form Factor | Rack mount (1U) |
| Switching Capacity | 460 Gbps |
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| IPv4 | 256 |
| MAC | 256 |
| PoE+++ | 24 |
| PoE | 15.4W |
| PoE+ | 30W |
| PoE++ | 60W |
| PoE+++ | 90W |
| Max. Power Consumption | 150W (Excluding PoE Output) 870W (Including PoE Output) |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 870W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Weight | Without mounting brackets: 7.9 kg (17.4 lb) With mounting brackets: 8 kg (17.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 30kV, contact: ± 20kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 04322-25-08356 |
| UniFi Network | Version 9.1.120 and later |
