Ubiquiti · Security camera

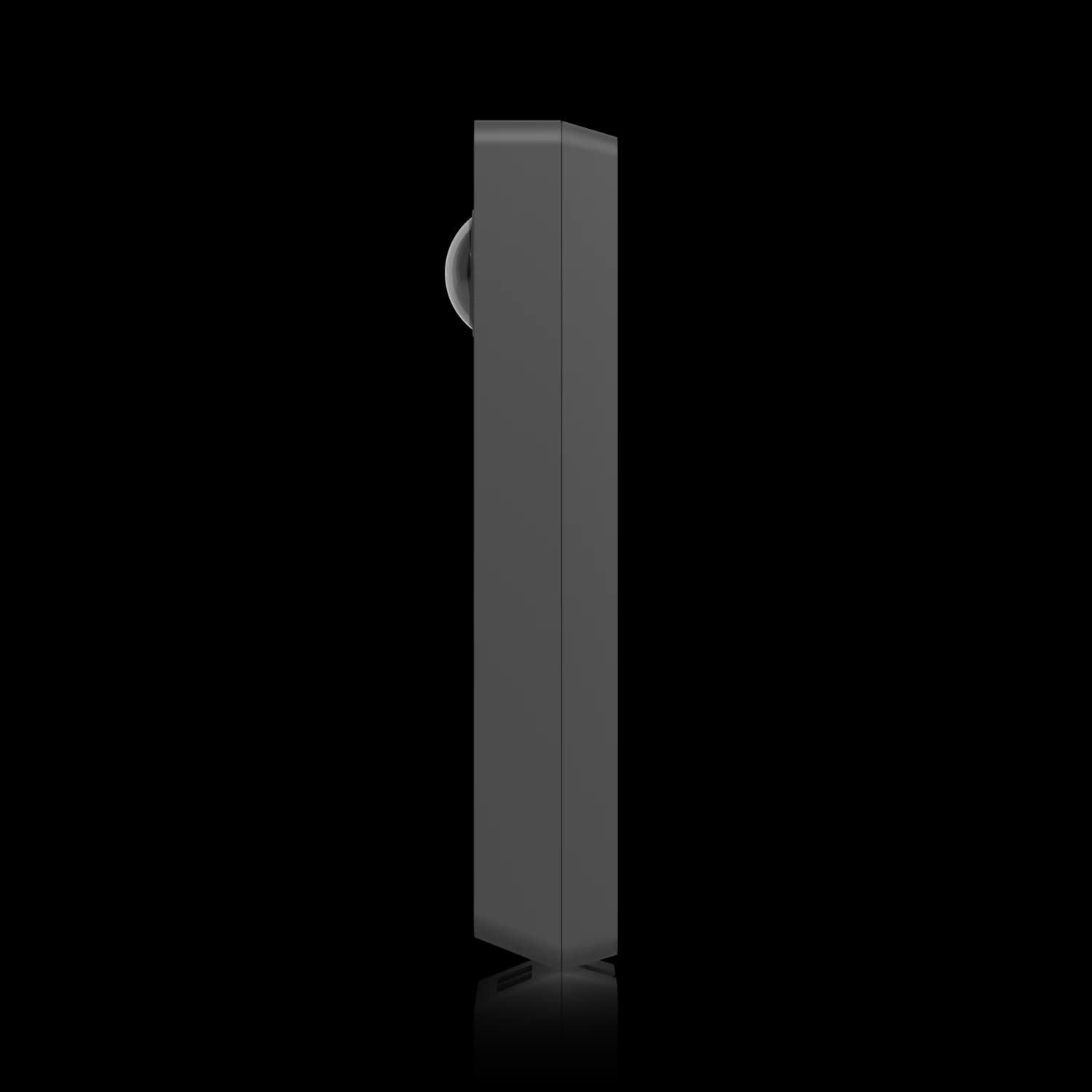

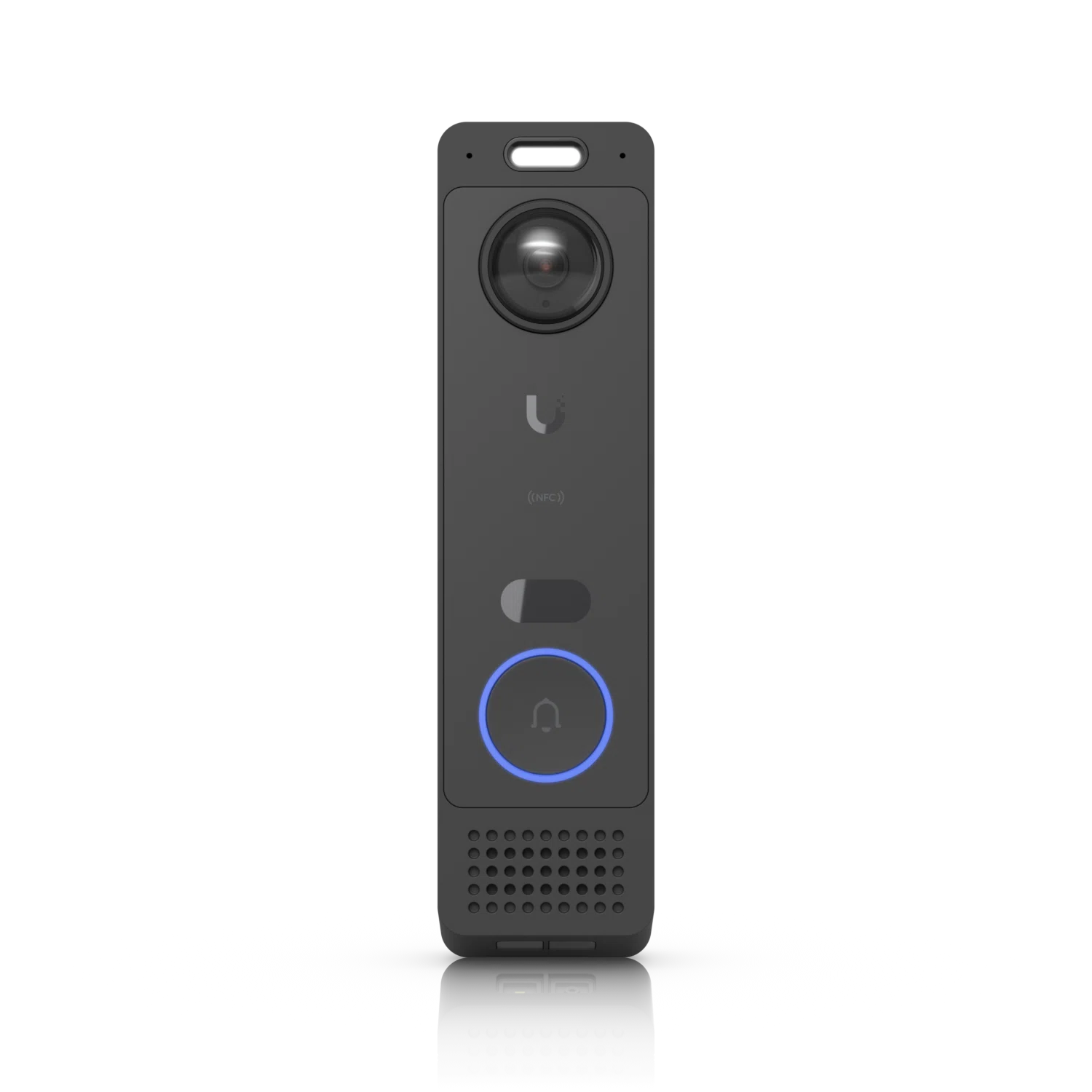

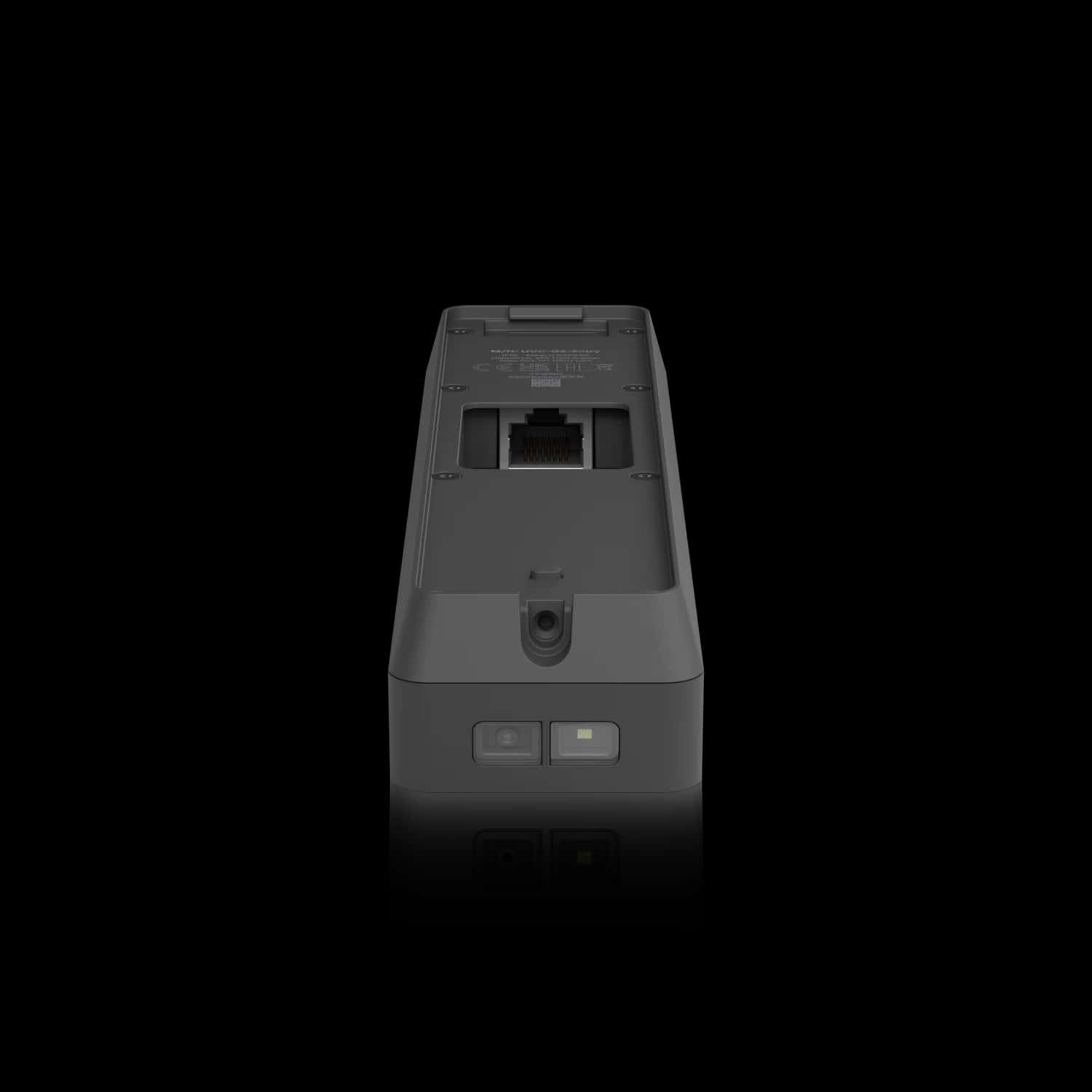

Reader G6 Entry

Image 1 of 5Product view

Professional-grade equipment · Installation available
Ubiquiti · Security camera

Reader G6 Entry

Read customer reviews
ModelUVC-G6-EntrySold as1 unit

An intelligent door entry system with native UniFi Protect and UniFi Access integration, including enhanced two-way audio. This product was optimized for enterprise environments. Learn more . Note. 10 free 1-year Touch Passes included. Learn more . To enable door access features such as NFC, Face ID, and Interface Designer configuration, an Access Hub is required, and both UniFi Protect and UniFi Access applications must be installed.

Top highlights

Product detailsOverview, features and technical specifications

An intelligent door entry system with native UniFi Protect and UniFi Access integration, including enhanced two-way audio. This product was optimized for enterprise environments. Learn more . Note. 10 free 1-year Touch Passes included. Learn more . To enable door access features such as NFC, Face ID, and Interface Designer configuration, an Access Hub is required, and both UniFi Protect and UniFi Access applications must be installed.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
Reader G6 Entry
Reader G6 Entry

Specifications

BrandUbiquiti
Manufacturer modelUVC-G6-Entry
InstallationQuoted separately
AppleTouch Pass
SoundTwo-Way Audio
WeatherproofOutdoor Covered
AIAI Detections
IR5 m (16 ft)
All specifications (45)
Lens Resolution8 MP Camera
Dimensions176 x 45 x 29.6 mm (6.9 x 1.8 x 1.2")
IR Night Vision5 m (16 ft)
ResolutionMain camera: 5MP Package camera: 8MP
UniFi Application SuiteProtect Access
WeatherproofingIP55
Tamper ResistanceIK07
AudioTwo-way audio
UL 294 LevelDestructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weight275 g (9.7 oz)
Enclosure MaterialAluminum
Mount MaterialWall mount: Stainless steel Gangbox mount plate: SGCC steel Gangbox mount cover: Polycarbonate Wedge mount: Aluminum
MountingWall mount, Gangbox mount plate, 20° wedge mount (Included) Junction box (Optional)
Indoor and Outdoor UseYes
Networking InterfaceGbE RJ45 port
ConnectivityBLE 4.1 NFC
Power MethodPoE+ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption16W
Supported Voltage Range42—57V DC
Image SettingsColor, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
Max. Frame RateMain camera: 30 FPS Package camera: 3 FPS
ResolutionMain camera: 5MP, 1920 x 2560 (3:4) Package camera: 8MP 3264 x 2448 (4:3)
ResolutionMain camera: 5MP CMOS Package camera: 8MP CMOS
Field of ViewMain camera: H: 100°, V: 135°, D: 180° Package camera: H: 66°, V: 51.7°, D: 78°
SensorMain camera: 5MP CMOS Package camera: 8MP CMOS
LensFixed focal length
Night ModeBuilt-in IR LED illumination and IR cut filter
LEDsR/G/B/W Learn More
Button(1) Ring button (1) Factory reset (1) Tamper switch
ProcessorQuad-core Arm® Cortex®-A53 based chip
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUVC-G6-Entry, V01
Ambient Operating Temperature-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity5 to 90% noncondensing
DownloadsSpecifications, manuals and product documents
