Equipment shop
Ubiquiti · Ubiquiti wireless and Wi-Fi

WiFi BaseStation XG

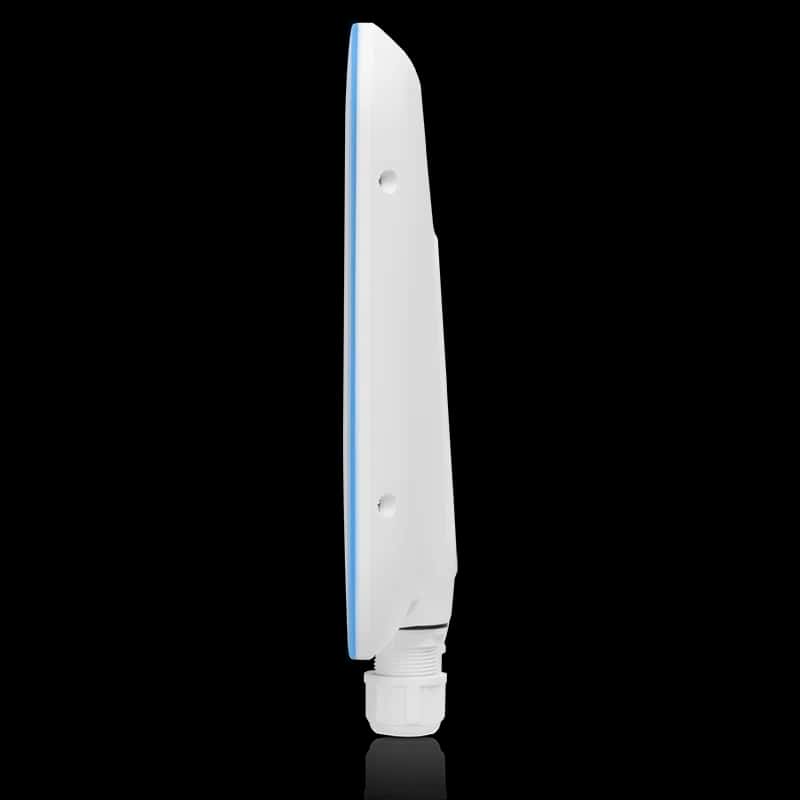

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti wireless and Wi-Fi

WiFi BaseStation XG

Read customer reviews
ModelUWB-XGSold as1 unit

Tri-radio WiFi 5 AP with 12 spatial streams and a selectable beamforming antenna, designed for high-density applications at large venues.

Top highlights

See more highlights
  • 1,500+ connected devices
  • Powered using PoE++
  • (1) GbE and (1) 10 GbE uplink

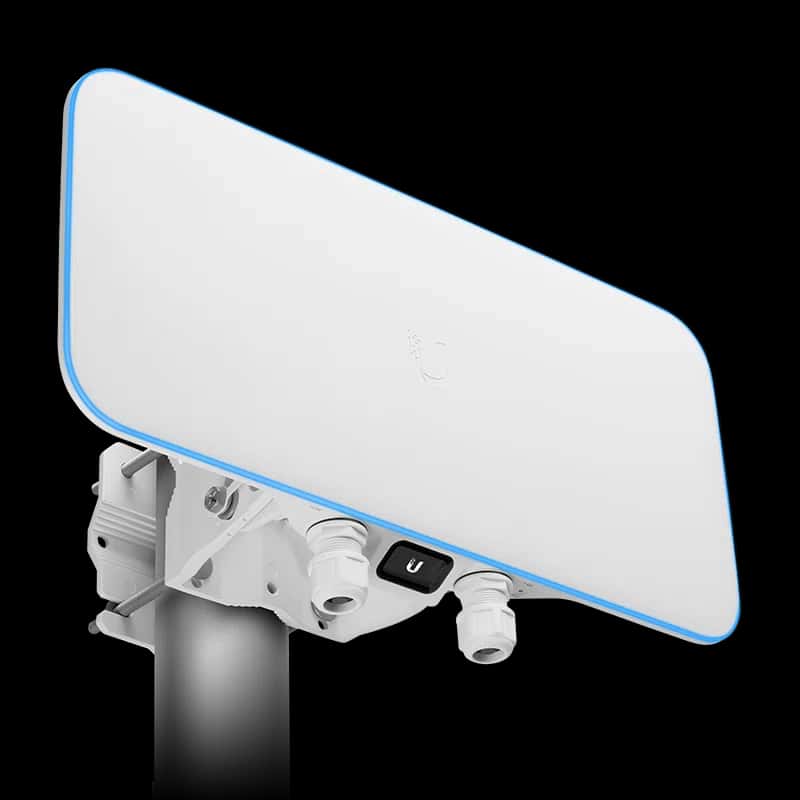

  • Versatile wall and pole mounting
  • Phased array antenna system with software-adjustable coverage (50° or 90°)
  • Weatherproof (outdoor exposed)
Product detailsOverview, features and technical specifications

Tri-radio WiFi 5 AP with 12 spatial streams and a selectable beamforming antenna, designed for high-density applications at large venues.

At a glance

Highlight 1WiFi 5 (5 GHz only)
Highlight 212 spatial streams
Highlight 3465+ m² (5,000+ ft²) open space coverage
Highlight 41,500+ connected devices
More highlights
Highlight 5Powered using PoE++
Highlight 6(1) GbE and (1) 10 GbE uplink
Highlight 7Versatile wall and pole mounting
Highlight 8Phased array antenna system with software-adjustable coverage (50° or 90°)
Highlight 9Weatherproof (outdoor exposed)
WiFi BaseStation XG
WiFi BaseStation XG

Specifications

BrandUbiquiti
Manufacturer modelUWB-XG
InstallationQuoted separately
Max. Client Count1,500
WiFi5WiFi 5
Uplink10 GbE
Dimensions471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7")
WiFi StandardWiFi 5
All specifications (36)
Spatial Streams12
Coverage Area465 m² (5,000 ft²)
Max. Client Count1500+
MountingWall, Pole (Mounts Included), VESA (Optional)
WeatherproofingIP67
Power MethodPoE++
5 GHzLow Band: 4 x 4 (DL MU-MIMO) Vertical Band: 4 x 4 (DL MU-MIMO) High Band: 4 x 4 (DL MU-MIMO)
5 GHzLow Band: 1.7 Gbps (BW80) Vertical Band: 1.7 Gbps (BW80) High Band: 1.7 Gbps (BW80)
5 GHzDirectional internal: 15 dBi, 50° x 50° Directional internal: 10 dBi, 90° x 90°
5 GHz25 dBm
Max. BSSIDs8 per Radio
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS23, HT 20/40)
Max. Power Consumption31W
Supported Voltage Range44–57V DC
Networking Interface(1) GbE RJ45 port (1) 1/10 GbE ICM Ethernet port
Weight3.2 kg (7.1 lb)
Pole Mount Diameter1~3" (25~76 mm)
Antennas(1) Integrated dual-mode antenna array
ManagementEthernet Bluetooth
Enclosure MaterialPolycarbonate, aluminum alloy
SystemR/G/B
Channel BandwidthHT 20/40, VHT 20/40/80, HE 20/40/80 (MHz)
Operating FrequencyUS/CA: U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5670 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5670 MHz
Ambient Operating Temperature-40 to 70° C (-40 to 158° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, Anatel: 08960-24-08356
UniFi NetworkVersion 6.0.45 and later
DownloadsSpecifications, manuals and product documents
