Ubiquiti · Ubiquiti wireless and Wi-Fi

Wave AP Gen2

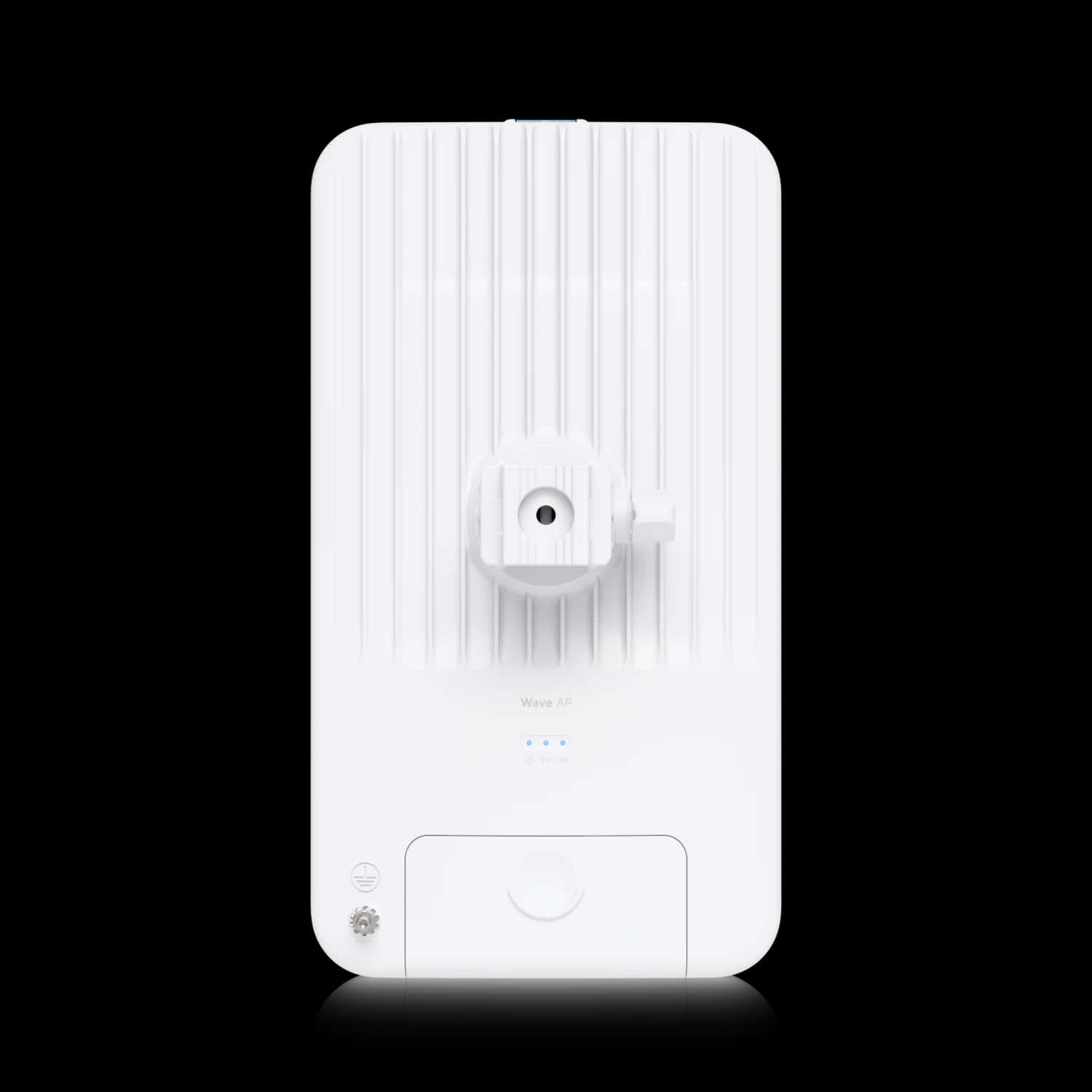

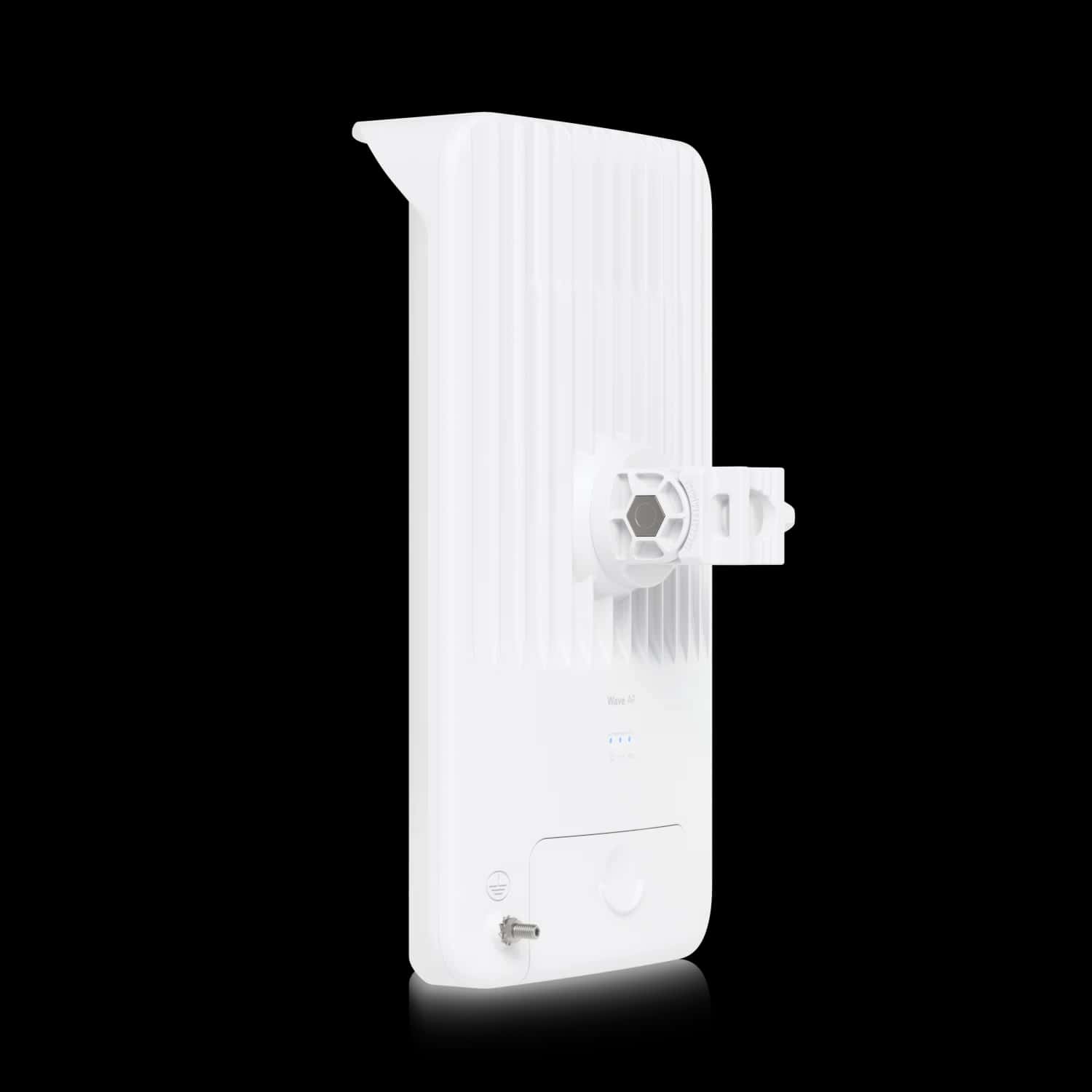

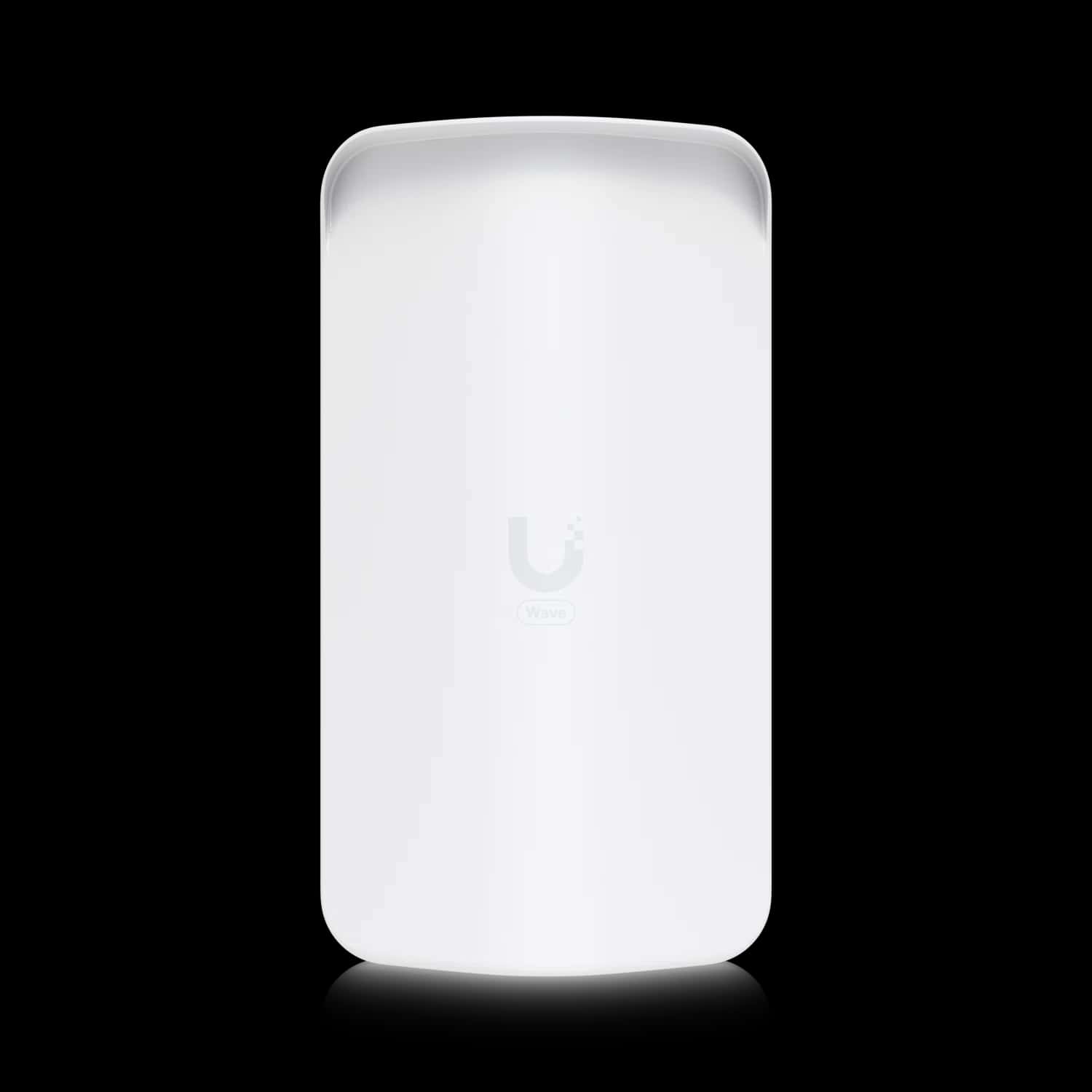

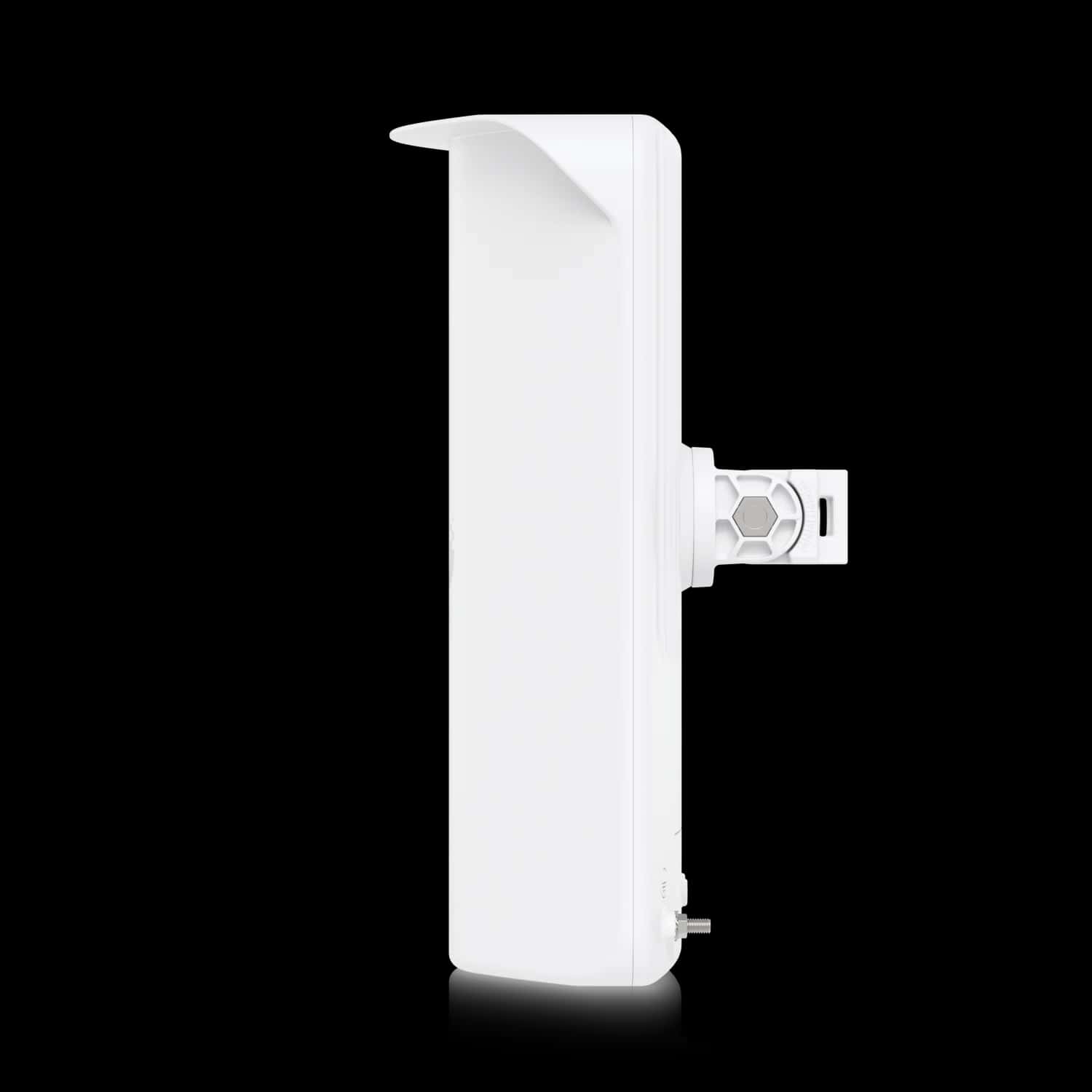

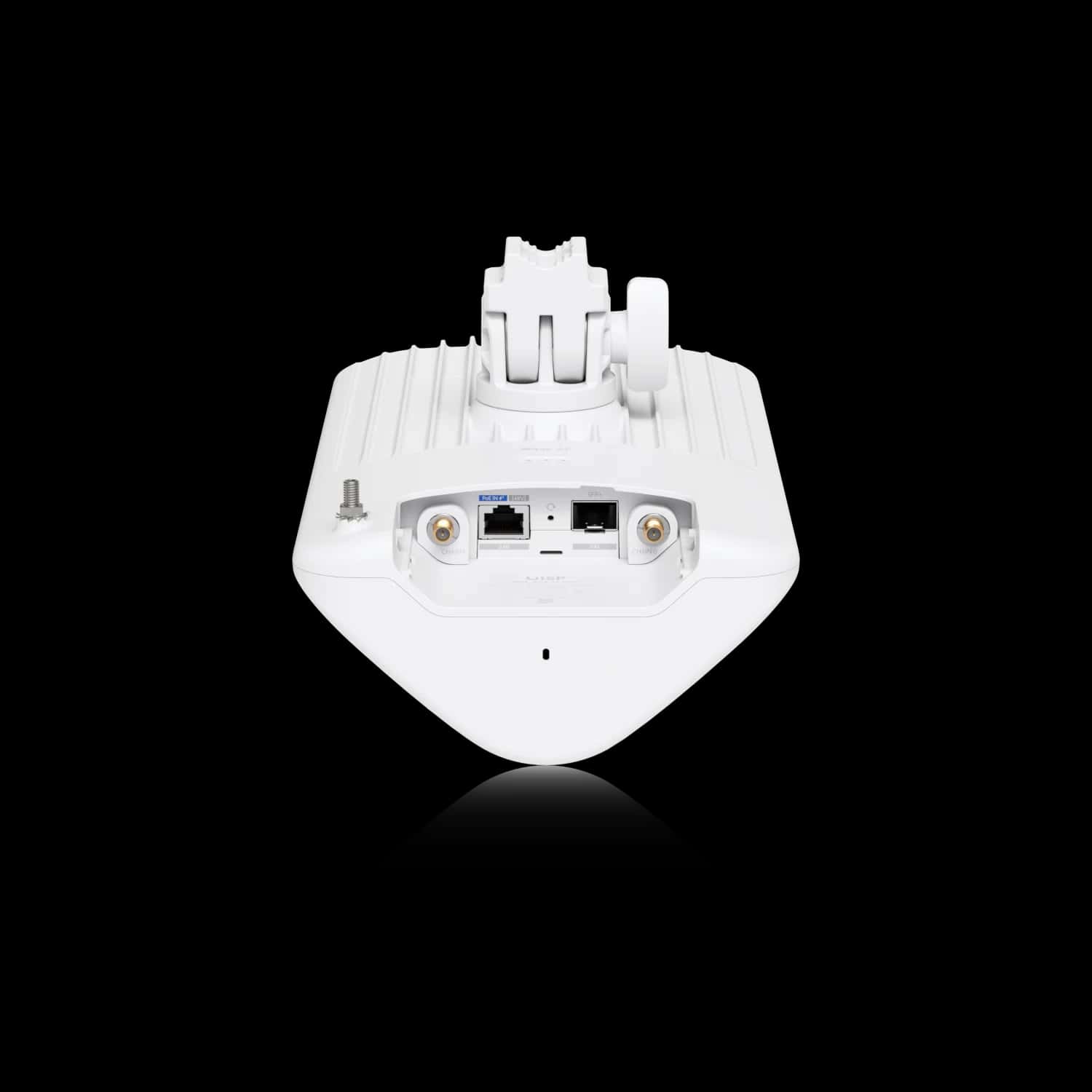

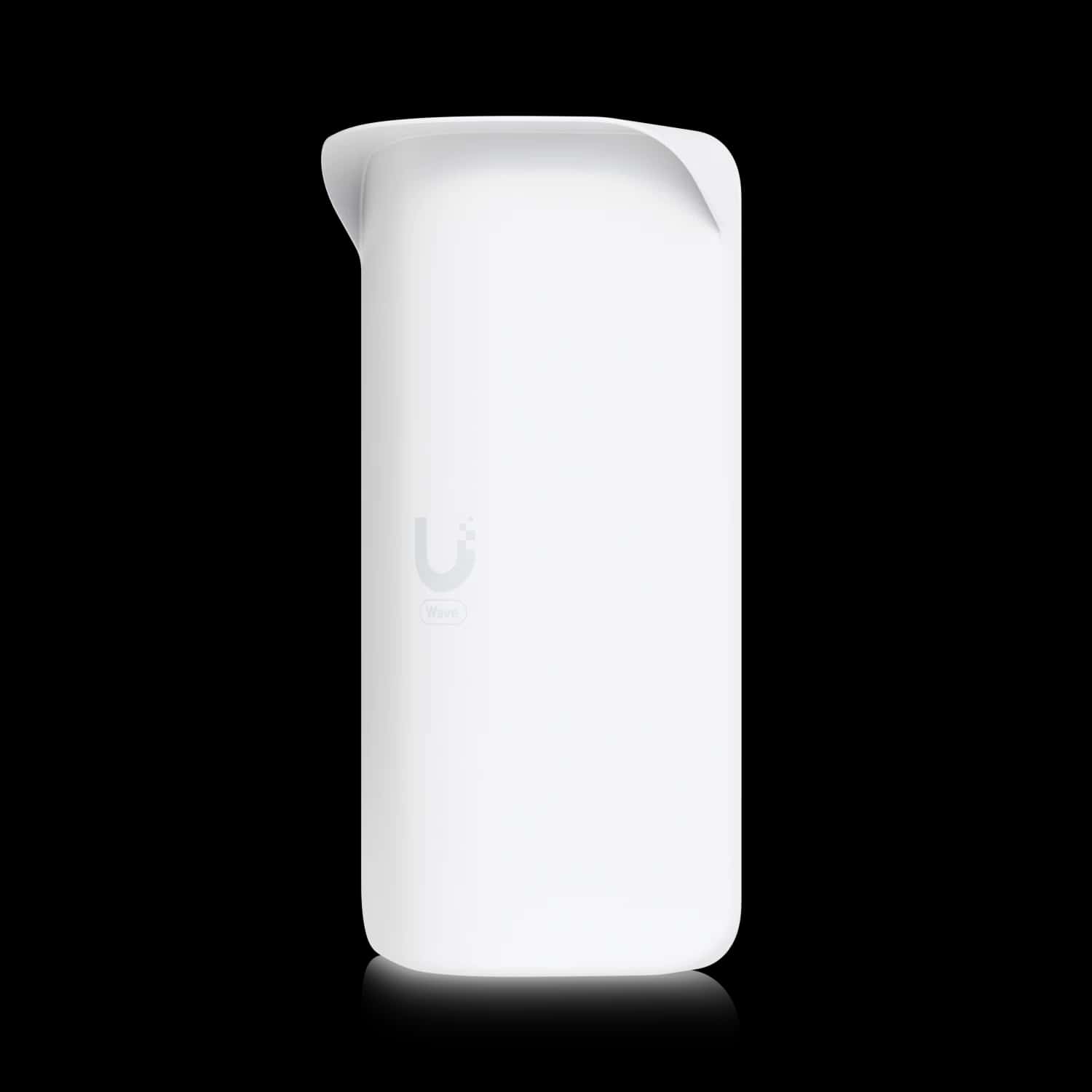

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti wireless and Wi-Fi

Wave AP Gen2

Read customer reviews
ModelWave-AP-Gen2Sold as1 unit

60 GHz + 5 GHz multipoint base station featuring 90-degree sectoral coverage, 31-client capacity, 2.7 Gbps symmetrical speed, and antenna connectors for 5 GHz range extension.

Top highlights

Product detailsOverview, features and technical specifications

60 GHz + 5 GHz multipoint base station featuring 90-degree sectoral coverage, 31-client capacity, 2.7 Gbps symmetrical speed, and antenna connectors for 5 GHz range extension.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
Wave AP Gen2
Wave AP Gen2

Specifications

BrandUbiquiti
Manufacturer modelWave-AP-Gen2
InstallationQuoted separately
Dimensions158.3 x 286.8 x 100.2 mm (6.2 x 11.3 x 3.9")
Weight1.5 kg (3.3 lb)
Enclosure MaterialUV stabilized polycarbonate, aluminum alloy
Pole Mount Diameter25.4 to 60 mm (1 to 2.4")
Wind Loading109.8 N at 200 km/h (25 lbf at 125 mph)
All specifications (47)
WeatherproofingIPX6
ProcessorQuad-core ARM® Cortex®-A53 at 1.4 GHz
Memory512 MB
Networking Interface(1) 2.5 GbE RJ45 port (1) 10G SFP+ port
Max. Power Consumption24W
Power MethodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Supported Voltage Range44–54V DC 22–27V DC
Power Supply48V DC, 0.65A 2.5 GbE PoE adapter (Included)
Buttons(1) Factory reset
PowerFlashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress
EthernetFlashing white: Ethernet traffic detected Flashing blue: SFP+ traffic detected
GPSBlue: receiving at least (4) GPS satellite signal
Ambient Operating Temperature-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsFCC, IC, CE
Operating ModesPtMP access point
NetworkBridge Mode
UISPVersion 2.4.205 and later
Total Throughput5.4 Gbps
Supported Clients31
Max. RangeConnecting to a Wave Pro: up to 6 km Connecting to a Wave Long-Range: up to 6 km Connecting to a Wave Nano: up to 4 km Connecting to a Wave Pico: up to 0.9 km
EncryptionWPA2-PSK (AES)
Worldwide57–71 GHz
Channel Bandwidth2160, 1080, 540 MHz
Operating Channels58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz
Modulation16QAM, QPSK
Antenna Gain20 dBi
PolarizationVertically-Linear
BeamwidthAzimuth: 3 dB 90° Elevation: 3 dB 7°
Electrical Downtilt0°
WiFi Standard802.11ax (WiFi 6)
US/CAU-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz
Worldwide5150 - 5875 MHz
Channel Bandwidth20, 40, 80 MHz
ModulationBPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna Gain13 dBi
PolarizationDual-Linear
BeamwidthAzimuth: 6 dB 95° Elevation: 6 dB 25°
Cross-Pol Isolation18 dB
