Equipment shop
Ubiquiti · Ubiquiti wireless and Wi-Fi

Wave Long-Range

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti wireless and Wi-Fi

Wave Long-Range

Read customer reviews
ModelWave-LRSold as1 unit

60 GHz PtMP station powered by Wave Technology.

Top highlights

See more highlights
  • (1) GbE RJ45 port
  • Precision alignment mount
  • Integrated GPS & Bluetooth
Product detailsOverview, features and technical specifications

60 GHz PtMP station powered by Wave Technology.

At a glance

Highlight 1Max. link range: — Wave AP: 8 km — Wave AP Micro: 6 km
Highlight 2Max. total throughput: 2 Gbps
Highlight 35 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
Highlight 4(1) GbE RJ45 port
More highlights
Highlight 5Precision alignment mount
Highlight 6Integrated GPS & Bluetooth

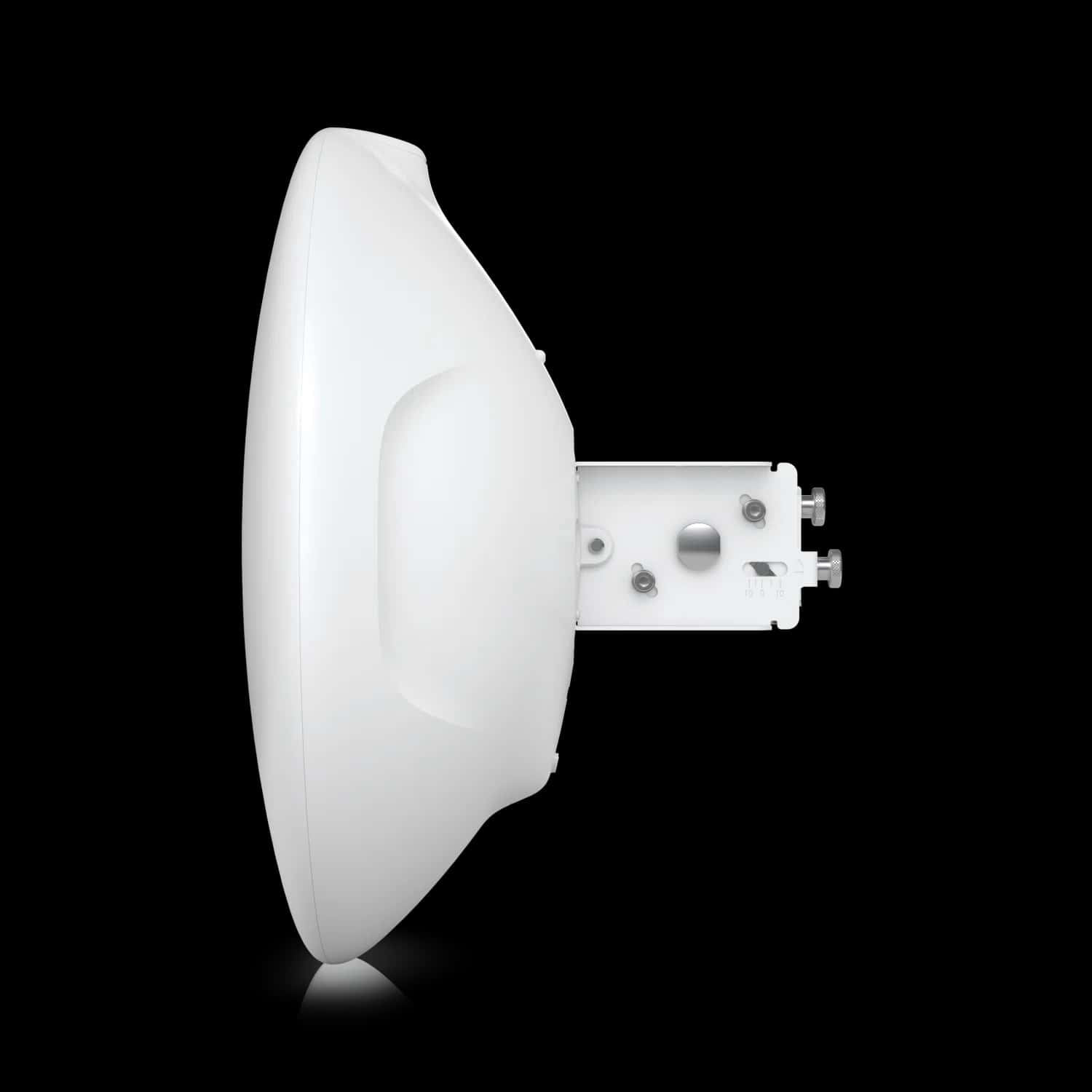

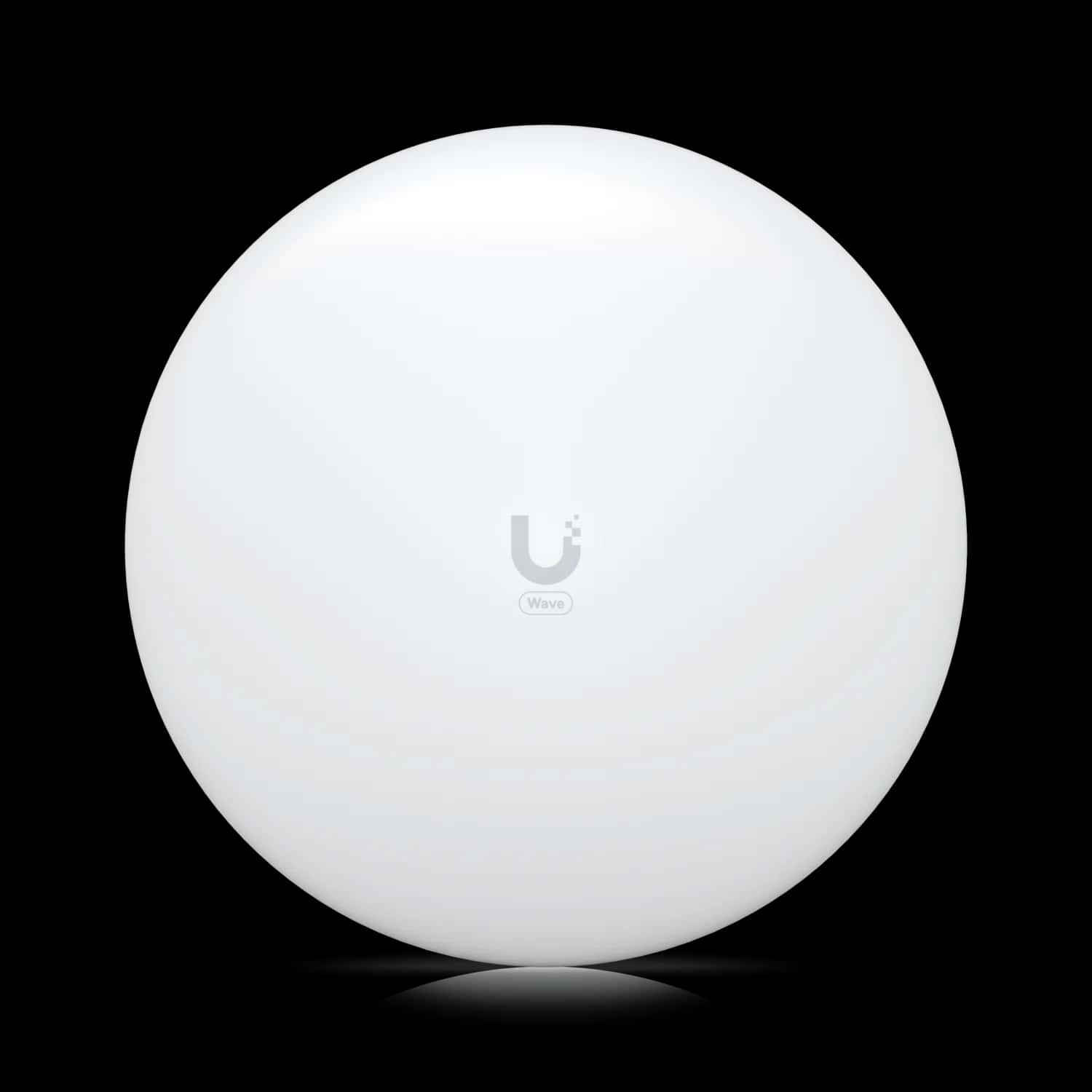

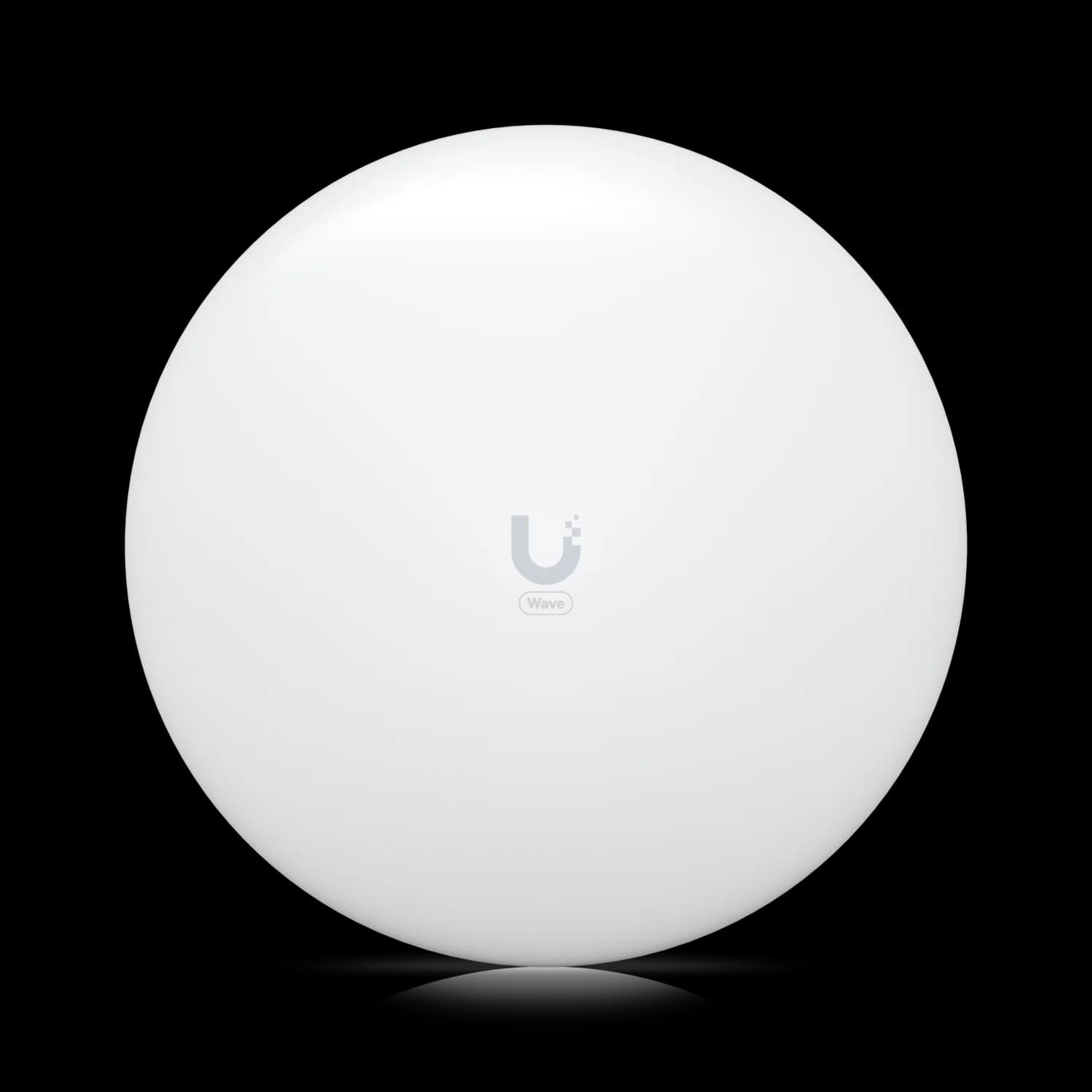

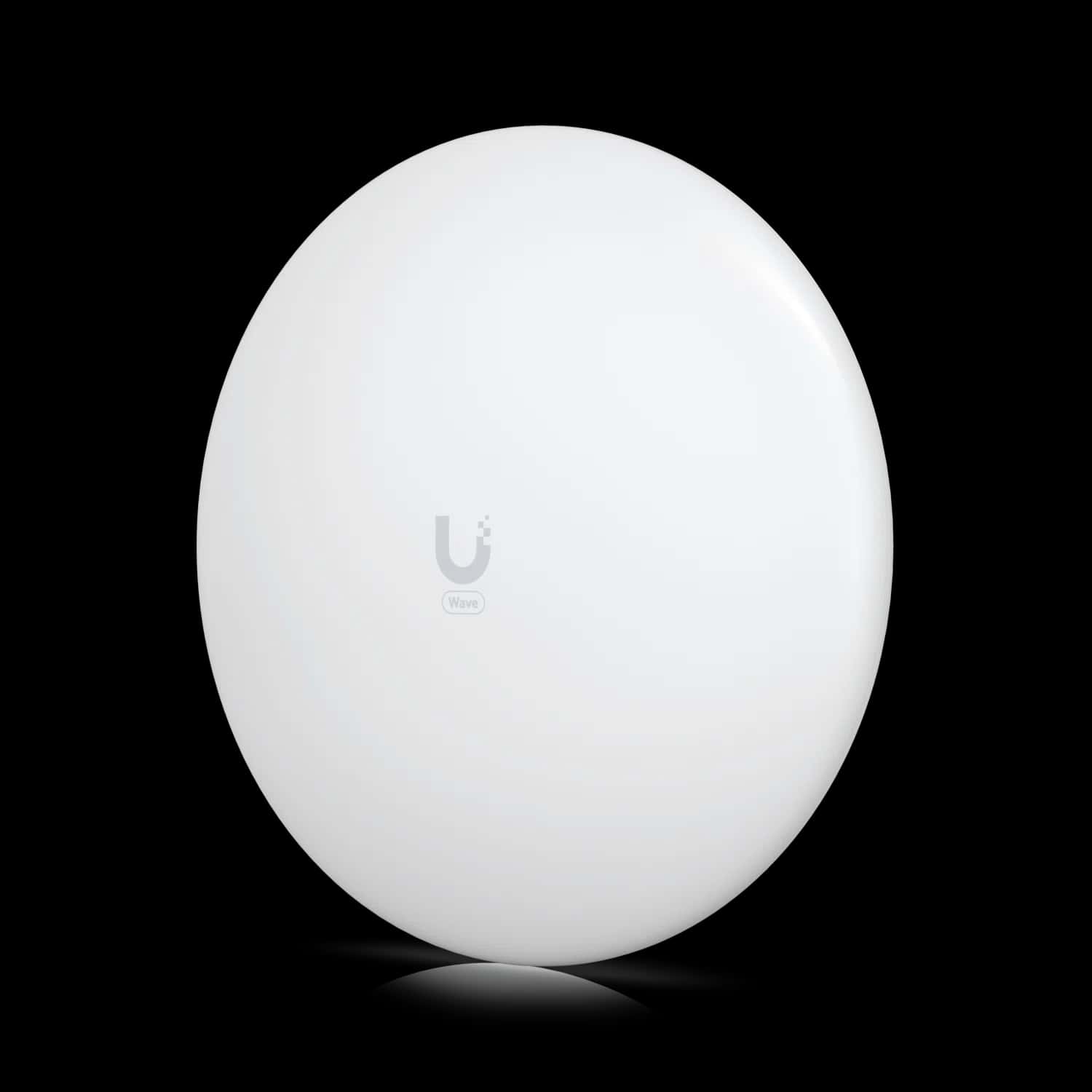

Wave Long-Range
Wave Long-Range

Specifications

BrandUbiquiti
Manufacturer modelWave-LR
InstallationQuoted separately
Dimensions⌀424.4 x 166.2 mm (⌀16.7 x 6.5")
WeightWithout mount: 2.6 kg (5.7 lb) With mount: 3.8 kg (8.4 lb)
Enclosure MaterialUV stabilized polycarbonate
Mount MaterialStainless steel
MountingPole Mount
All specifications (47)
Pole Mount Diameter25 to 76.2 mm (1 to 3")
Wind Loading286 N at 200 km/h (64.3 lbf at 125 mph)
WeatherproofingIPX6
ProcessorDual-core ARM® Cortex®-A53 at 1 GHz
Memory512 MB
Networking Interface(1) GbE RJ45 port
Max. Power Consumption20W
Power MethodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Supported Voltage Range44–54V DC 22–27V DC
Power Supply48V DC, 0.65A gigabit PoE adapter (Included)
Buttons(1) Factory reset
PowerFlashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress
EthernetFlashing blue: Ethernet traffic detected
GPSBlue: receiving at least (4) GPS satellite signal
LinkWhite: 5GHz link Blue: 60GHz link
Ambient Operating Temperature-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsFCC, IC, CE
Operating ModesPtP PtMP Station
NetworkBridge/Router mode
UISPVersion 1.4.5 and later
Total Throughput2 Gbps
Max. Range8+ km (5 mi)
EncryptionWPA2-PSK (AES)
Worldwide57–71 GHz
Channel Bandwidth2160, 1080, 540 MHz
Operating Channels58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz
Modulation16QAM, QPSK
Antenna Gain46 dBi
PolarizationVertically-Linear
BeamwidthAzimuth: 3 dB 1° Elevation: 3 dB 1°
WiFi Standard802.11ax (WiFi 6)
US/CAU-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz
Worldwide5150 - 5875 MHz
Channel Bandwidth20, 40, 80 MHz
Antenna Gain22 dBi
PolarizationDual-Linear
BeamwidthAzimuth: 3 dB 8° Elevation: 3 dB 8°
Cross-Pol Isolation20 dB
DownloadsSpecifications, manuals and product documents
