Wave MLO6

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti wireless and Wi-Fi

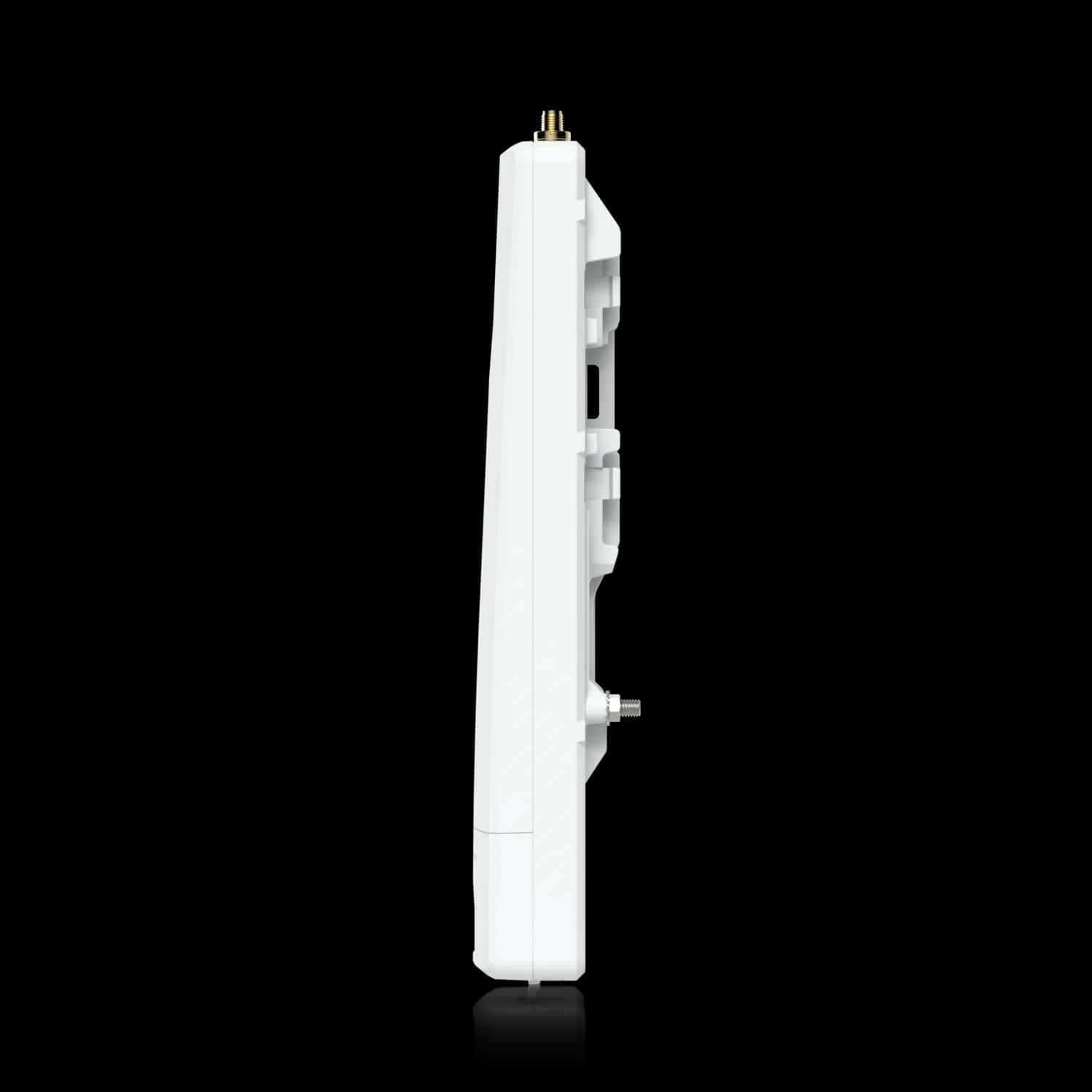

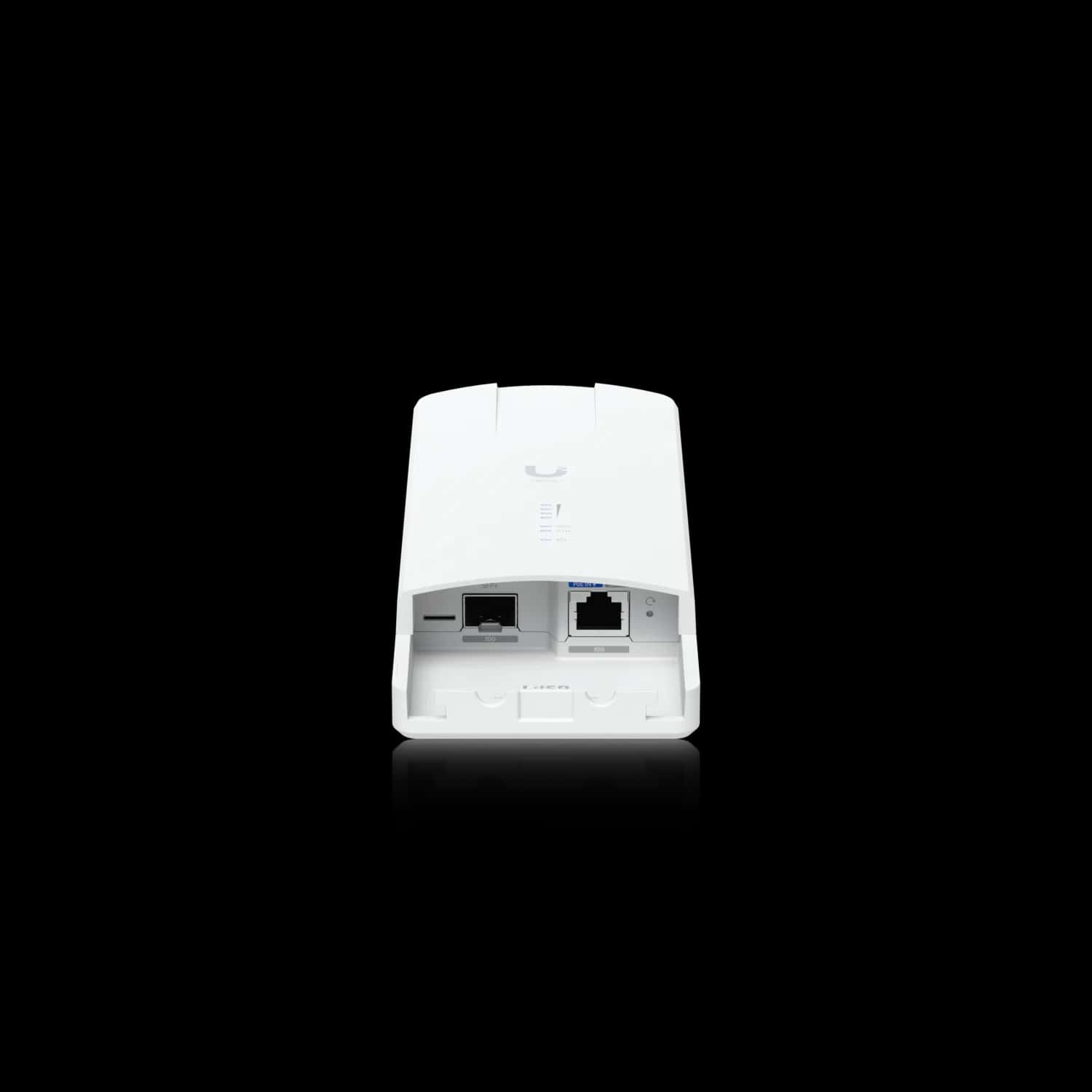

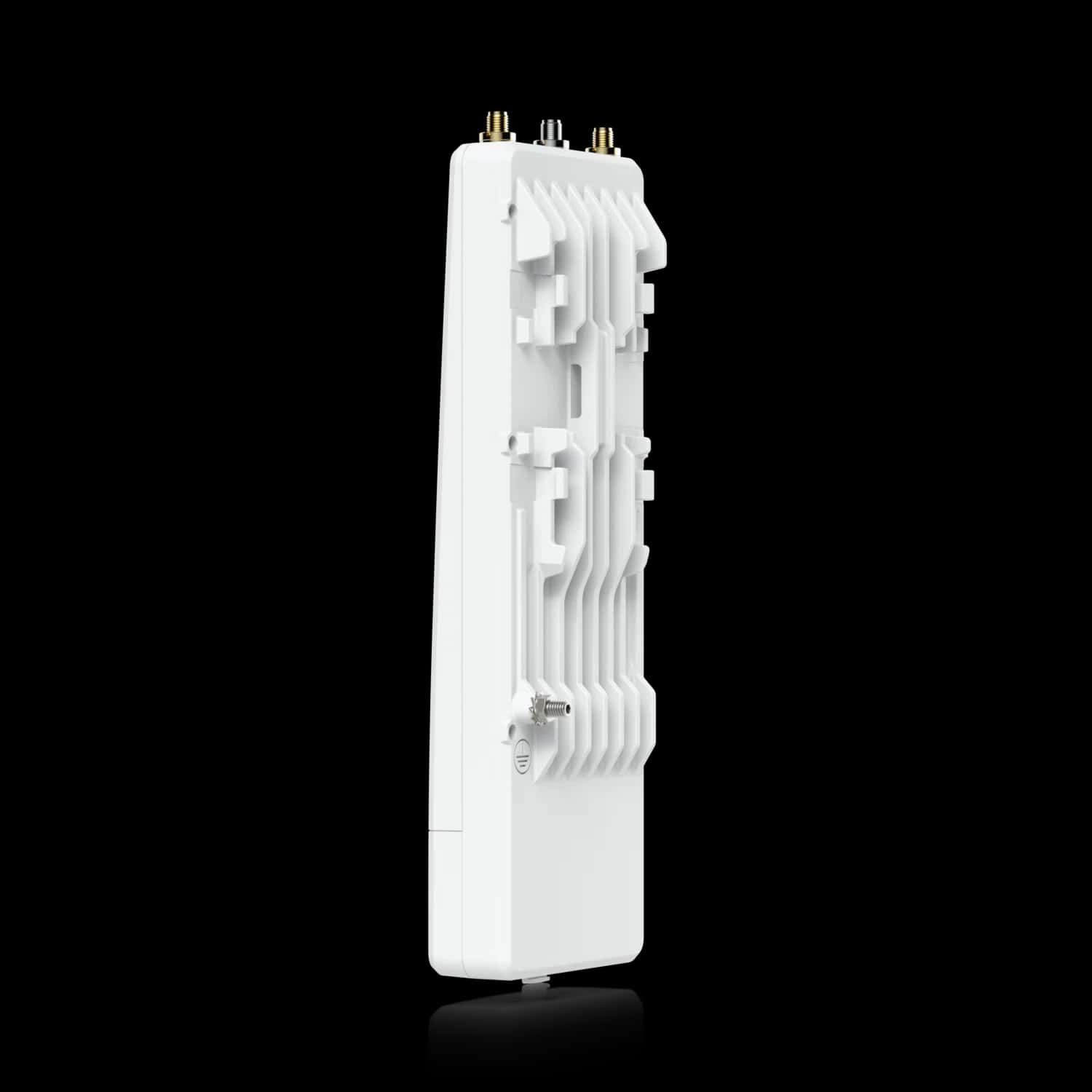

Wave MLO6

Read customer reviews
ModelWave-MLO6Sold as1 unit

High-performance 5 + 6 GHz WiFi 7-based radios with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity. Note . 6 GHz radio is disabled by default; permanent internet connection is required for 6 GHz link operation.

Top highlights

Product detailsOverview, features and technical specifications

High-performance 5 + 6 GHz WiFi 7-based radios with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity. Note . 6 GHz radio is disabled by default; permanent internet connection is required for 6 GHz link operation.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
Wave MLO6
Wave MLO6

Specifications

BrandUbiquiti
Manufacturer modelWave-MLO6
InstallationQuoted separately
Dimensions249.3 x 82 x 47.6 mm (9.8 x 3.2 x 1.9")
WeightWithout mount: 575 g (1.27 lb) With mount: 595 g (1.31 lb)
Enclosure MaterialAluminum alloy, UV-resistant polycarbonate
Mount MaterialStrap: stainless steel Universal bracket: UV-resistant polycarbonate
MountingPole Mount
All specifications (38)
Pole Mount Diameter1—2" (25.4—50.8 mm)
WeatherproofingIPX6
ProcessorQuad-core IPQ5322 at 1.5 GHz
Memory1 GB
Networking Interface(1) 10 GbE RJ45 port (1) 10G SFP+ port
Max. Power Consumption20W
Power MethodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Supported Voltage Range44–54V DC 22–27V DC
Power Supply54V DC, 0.56A, 10 GbE PoE adapter (Included)
5 GHz2 x 2
6 GHz2 x 2
5 GHz24 dBm
6 GHz24 dBm
RF Connections(2) RP-SMA (Waterproof) (1) GPS (Waterproof)
Buttons(1) Factory reset
Power(1) Blue
Ethernet(1) Blue
GPS(1) Blue
Signal Strength(4) Blue
Ambient Operating Temperature-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsFCC, IC
Operating ModesPtP
NetworkBridge Mode
Total Throughput8+ Gbps
Max. Range100 km (62.1 mi)
EncryptionWPA3-PSK (AES)
US/CA5 GHz: 5180 – 5320, 5500 – 5700, 5745 – 5825 MHz 6 GHz: 5945 – 6425, 6525 – 6875 MHz
Channel BandwidthRadio 1: 20, 40, 80, 160, 240 MHz Radio 2: 20, 40, 80, 160, 320 MHz
ModulationBPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (⅔), 64QAM (¾), 64QAM (⅚), 256QAM (¾), 256QAM (⅚), 1024QAM (¾), 1024QAM (⅚), 4096QAM (¾), 4096QAM (⅚)
