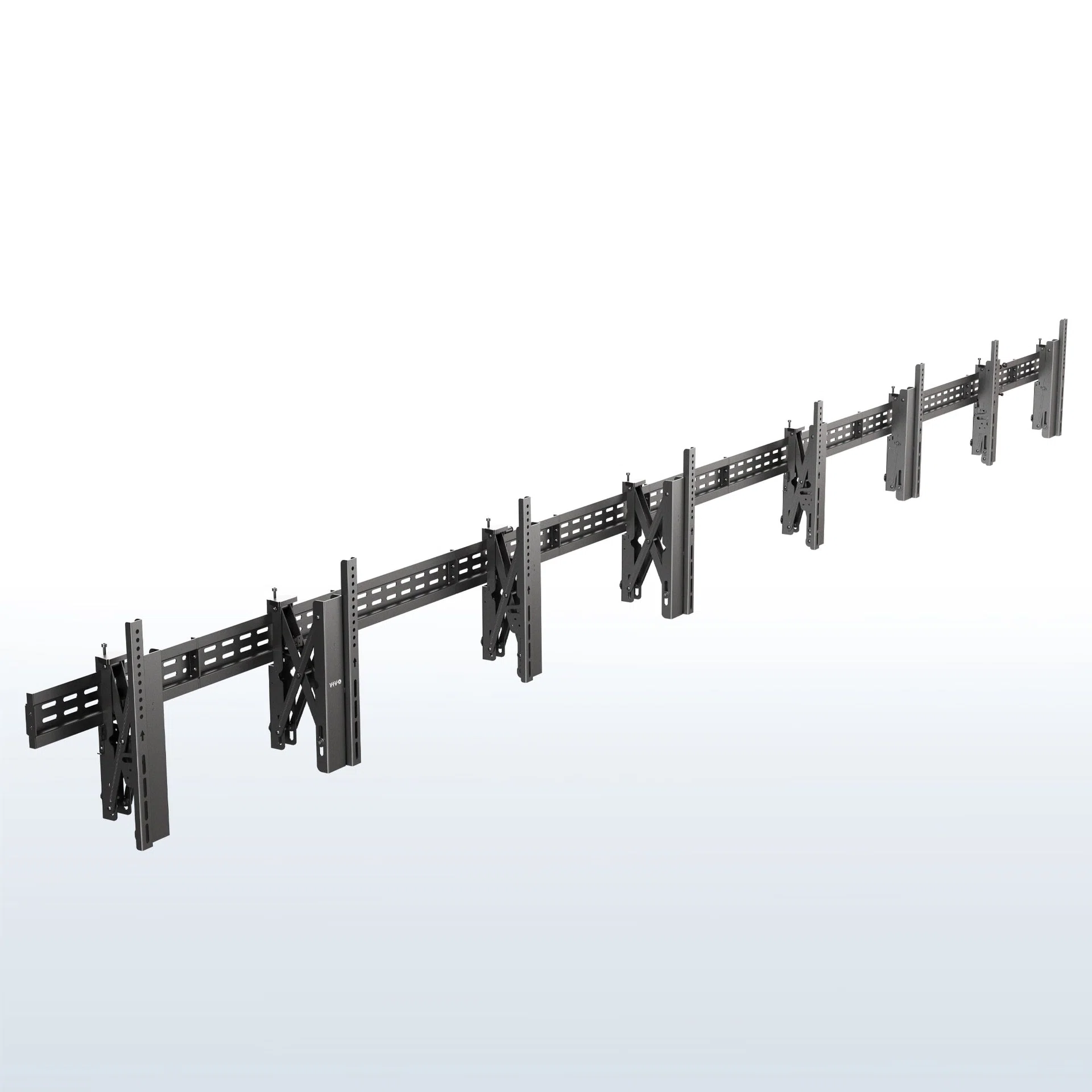

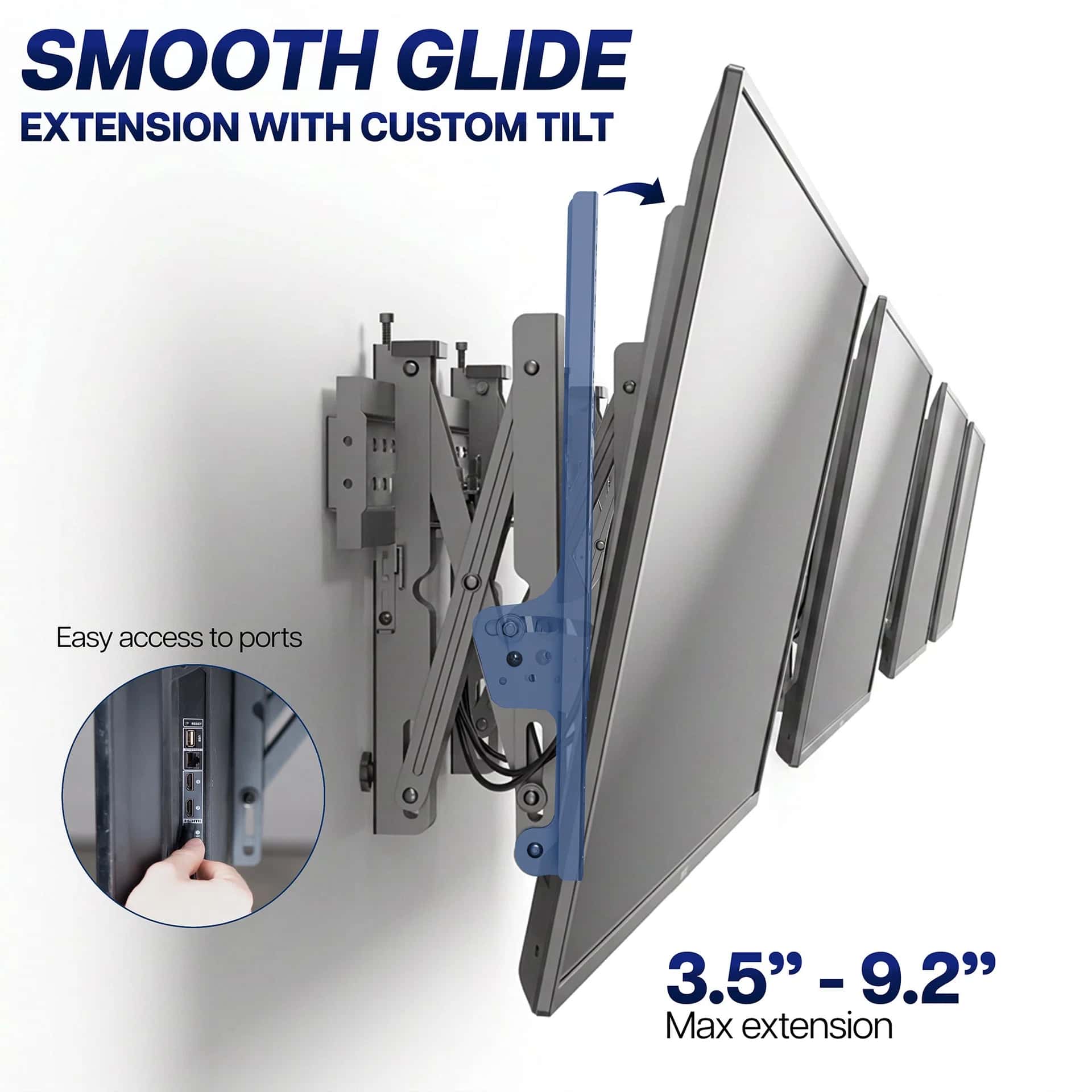

The VIVO MOUNT-VW65-4T is a modular 1x4 video wall mounting system designed to display four 37" to 65" screens in either portrait or landscape orientation, perfect for digital signage, menu boards, home theaters, or commercial environments. This heavy-duty steel mount features a convenient pop-out design with push-in, push-out VESA brackets that provide quick, tool-free access to the back of each TV for cable management, hardware installation, and port access without dismantling the entire wall. The system accommodates VESA patterns from 100x100mm to 600x400mm and offers precise screen adjustments including -5°, -10°, or -15° tilt for improved line-of-sight, plus ±3° swivel for fine-tuned post-installation leveling. The rail supports up to 616 lbs total on concrete walls (154 lbs per screen) or 440 lbs on wood studs (110 lbs per screen). The modular design allows multiple kits and components to be combined, making it easy to scale your video wall to virtually any size or configuration. Computers, displays, appliances, food and surroundings shown for demonstration are not included unless expressly listed. Purchase includes the selected VIVO item or kit.

At a glance

Specifications
