Equipment shop
Ubiquiti · Network video recorder

Enterprise NVR Core

Image 1 of 9Product view

Professional-grade equipment · Installation available
Ubiquiti · Network video recorder

Enterprise NVR Core

Read customer reviews
ModelENVR-CoreSold as1 unit

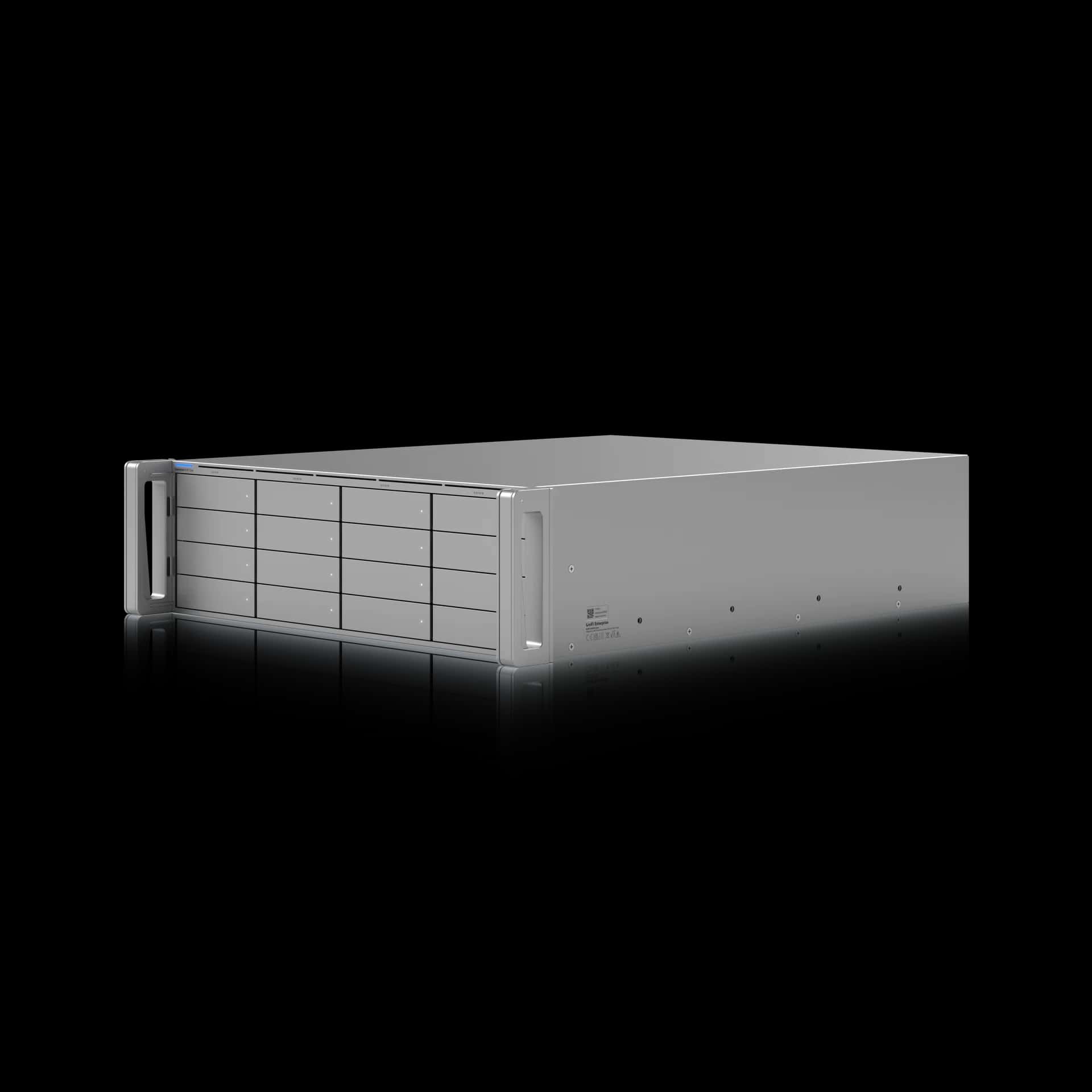

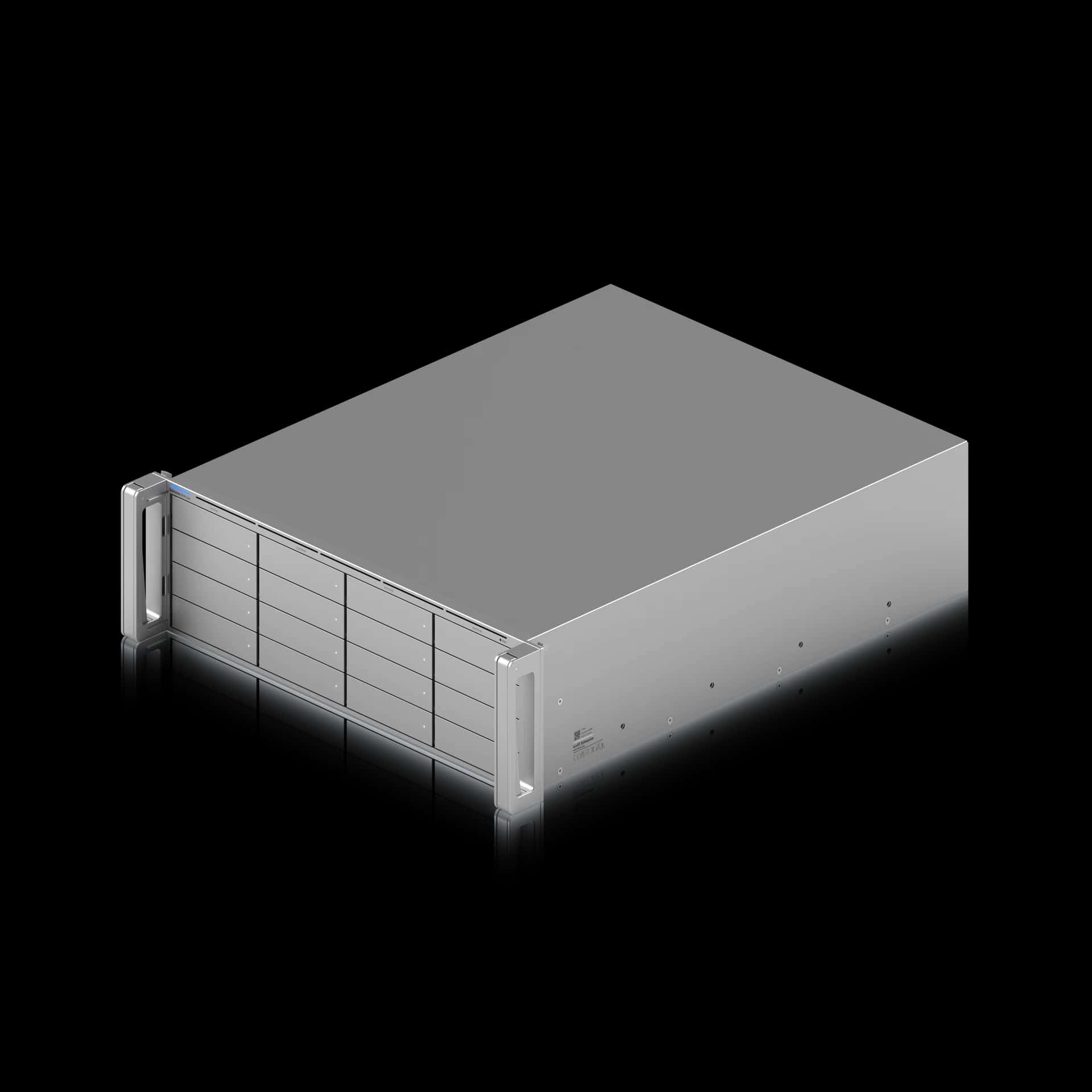

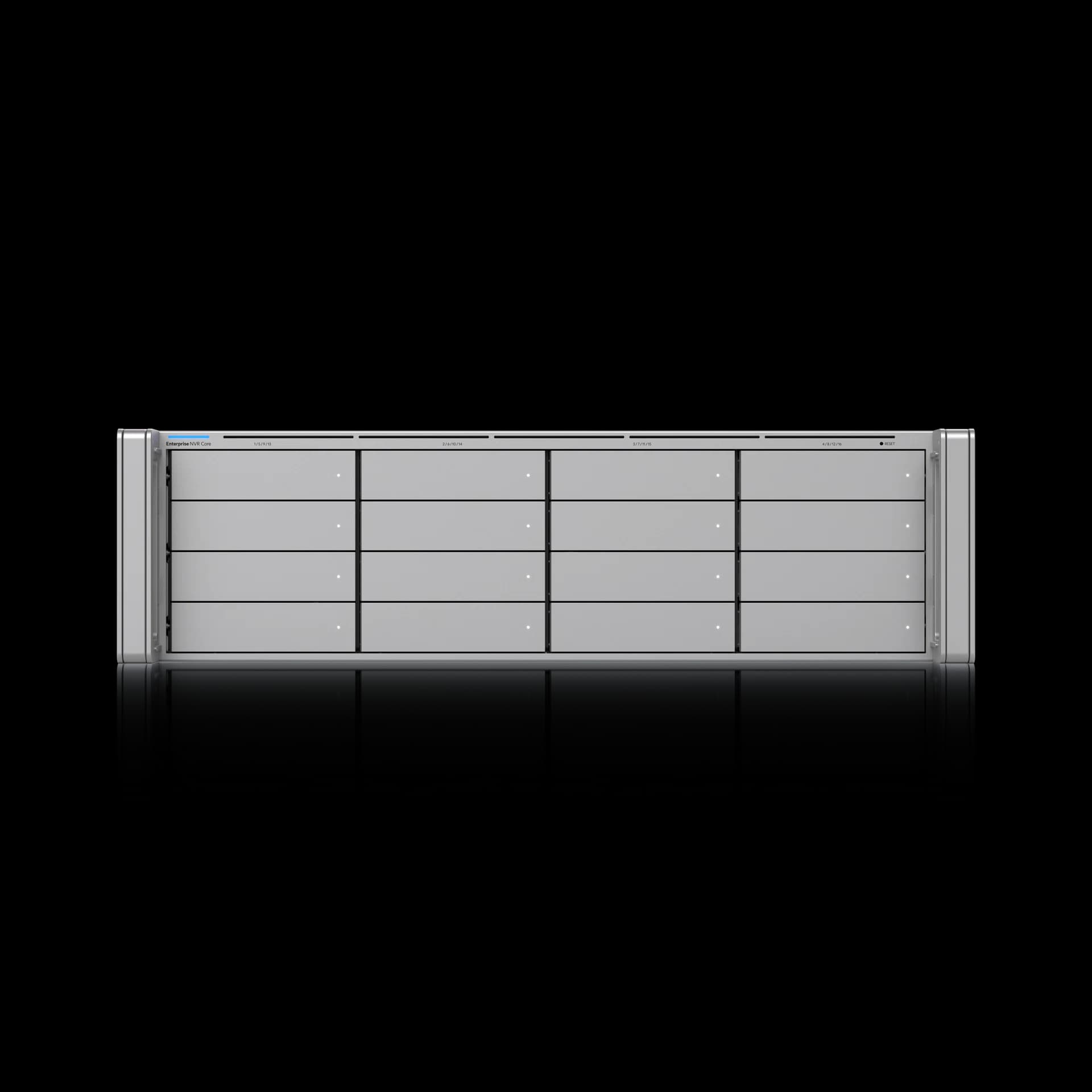

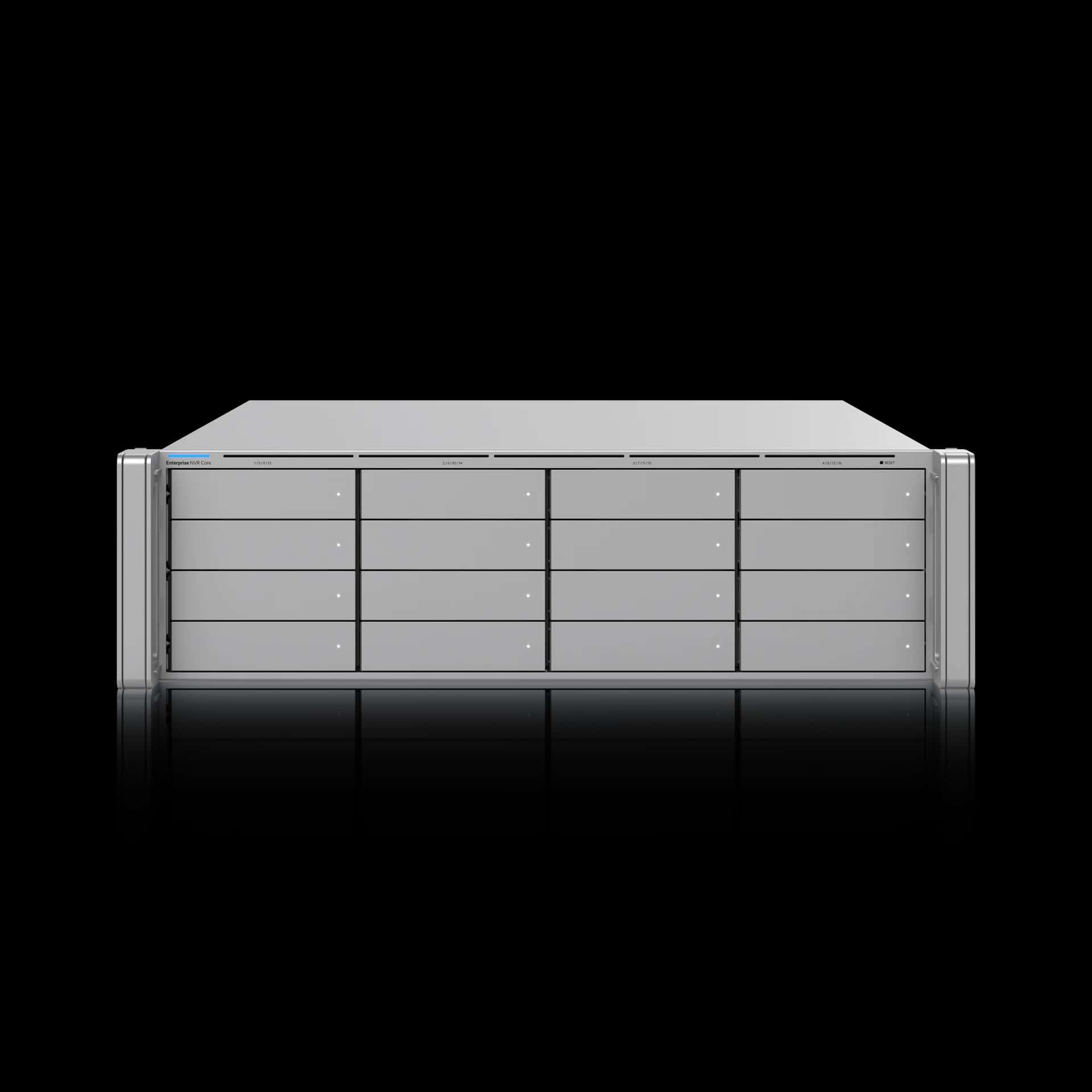

3U UniFi Protect NVR with 16-bay support for 2.5"/3.5" HDDs/SSDs, up to (300) 4K or (500) Full HD cameras, hot-swappable power supplies and optional 16-bay storage expansion units.

Top highlights

Product detailsOverview, features and technical specifications

3U UniFi Protect NVR with 16-bay support for 2.5"/3.5" HDDs/SSDs, up to (300) 4K or (500) Full HD cameras, hot-swappable power supplies and optional 16-bay storage expansion units.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
Enterprise NVR Core
Enterprise NVR Core

Specifications

BrandUbiquiti
Manufacturer modelENVR-Core
InstallationQuoted separately
Managed Cameras (grid)500 HD or 300 4K
PortsGbE MGMT + 2 SFP28 + 2 SFF-8644
Power2 Hot-Swap PSUs
SecurityRAID Protection
Storage16 3.5" HDD / SSD
All specifications (34)
App SuiteUniFi Protect
Dimensions481.4 x 550 x 132 mm (19 x 21.7 x 5.2")
Managed Cameras(500) HD (400) 2K (300) 4K
Managed Access Hubs300+

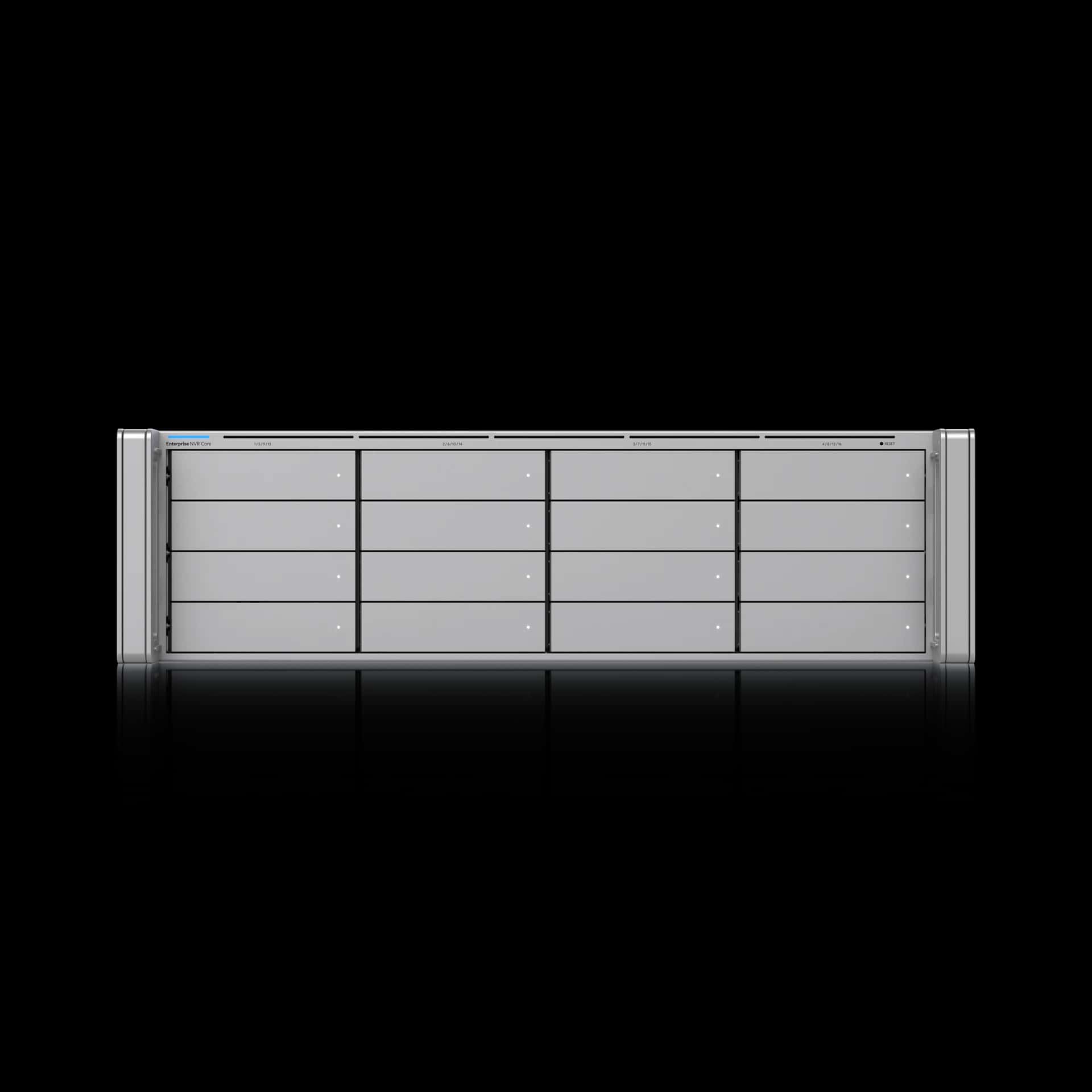

Storage Capacity(16) 3.5" drive bays

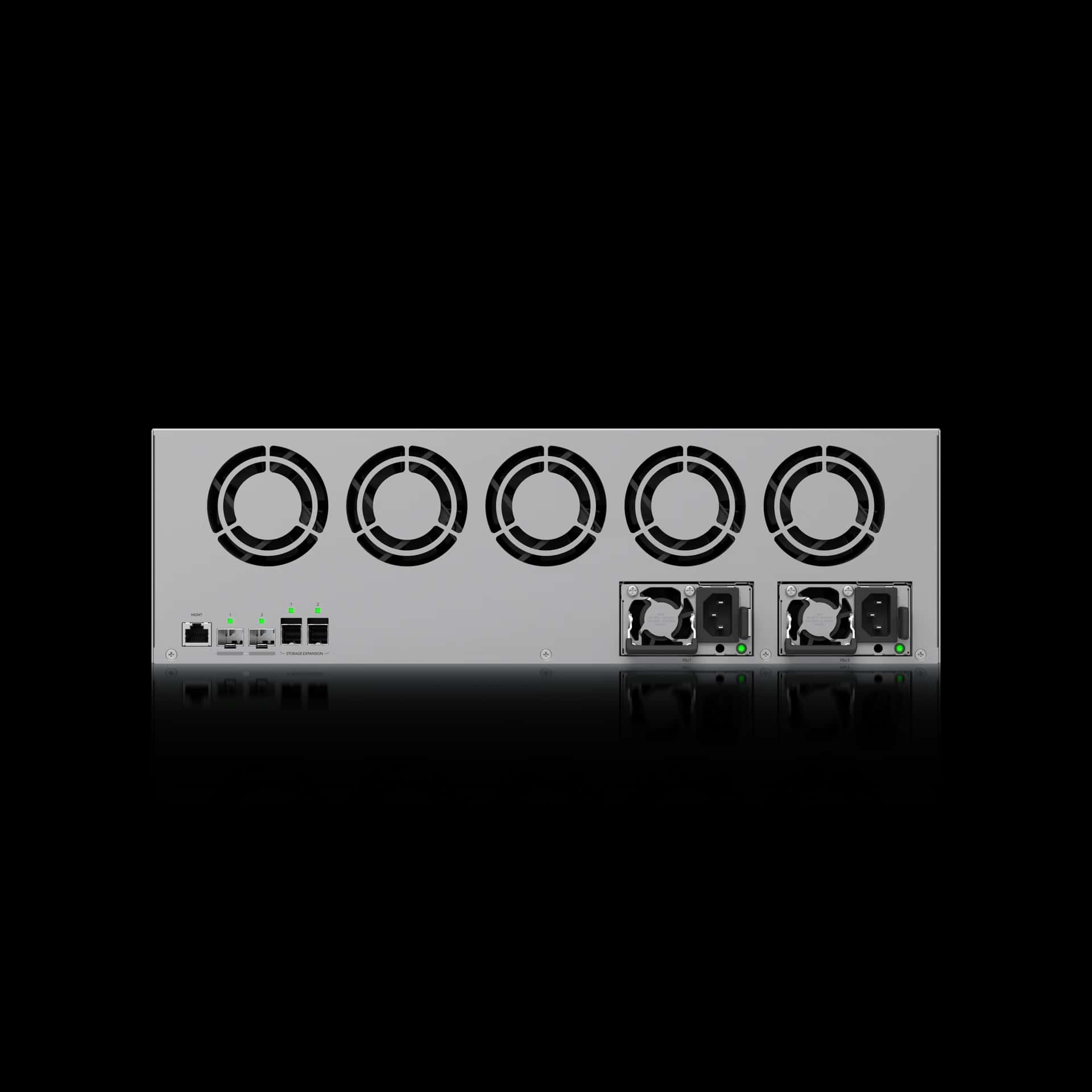

Networking Interface(2) 25G SFP28 ports (25G/10G/1G) (1) GbE MGMT RJ45 port (1G/100M)
Expansion Port(2) SFF-8644 ports (24G)
Form FactorRack Mount (3U)
Management ApplicationUniFi Protect UniFi Access UniFi Connect
Hard Drive Capacity(16) 2.5/3.5" HDD / SSD support (2) Expansion ports, support up to 48 total HDD/SSD
Max. Power Budget for Drives313W
Max. Power Consumption237W
Power Method(2) AC input, 100–240V, 7A Max., 50/60Hz (Redundant, hot-swappable)
Power SupplyHot-swappable 550W CRPS
Processor128-core Arm® v8.2 at 2.6 GHz
Memory64 GB
ManagementEthernet Bluetooth
WeightWithout rails: 20.5 kg (45.2 lb) With rails: 23.4 kg (51.6 lb)
Enclosure MaterialSGCC steel
Mount MaterialAluminum

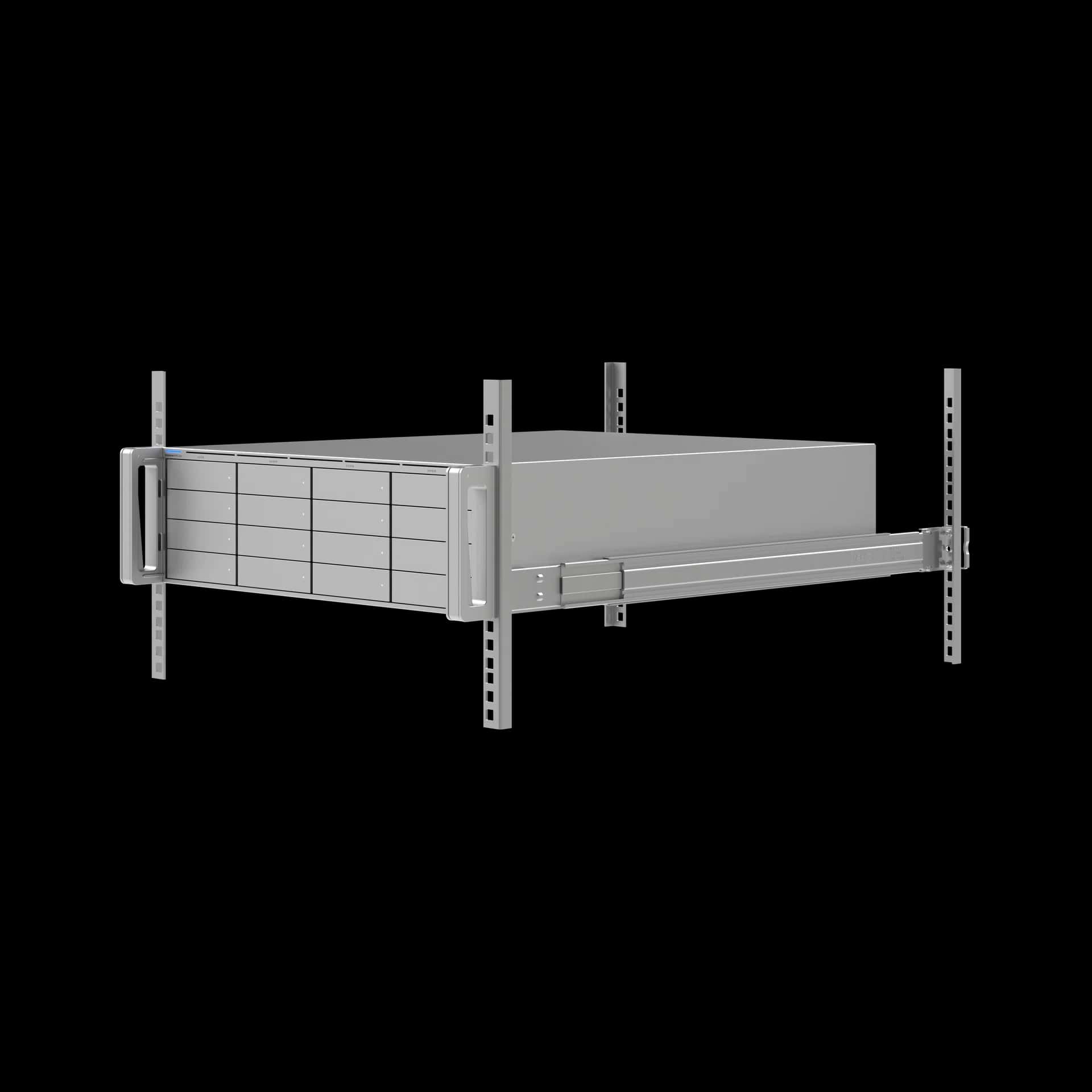

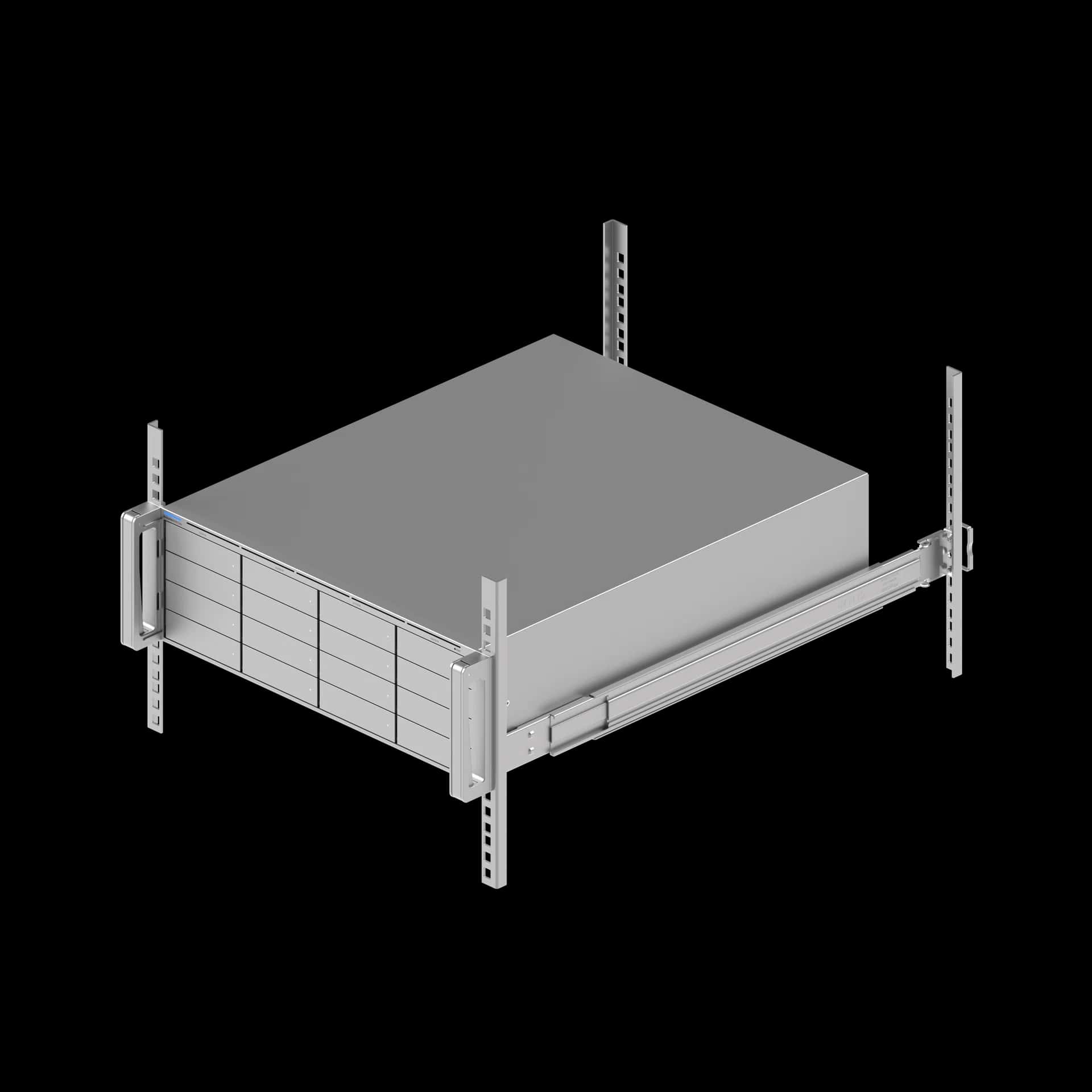

Slide RailsThe rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 600–1066 mm (23.6–42")

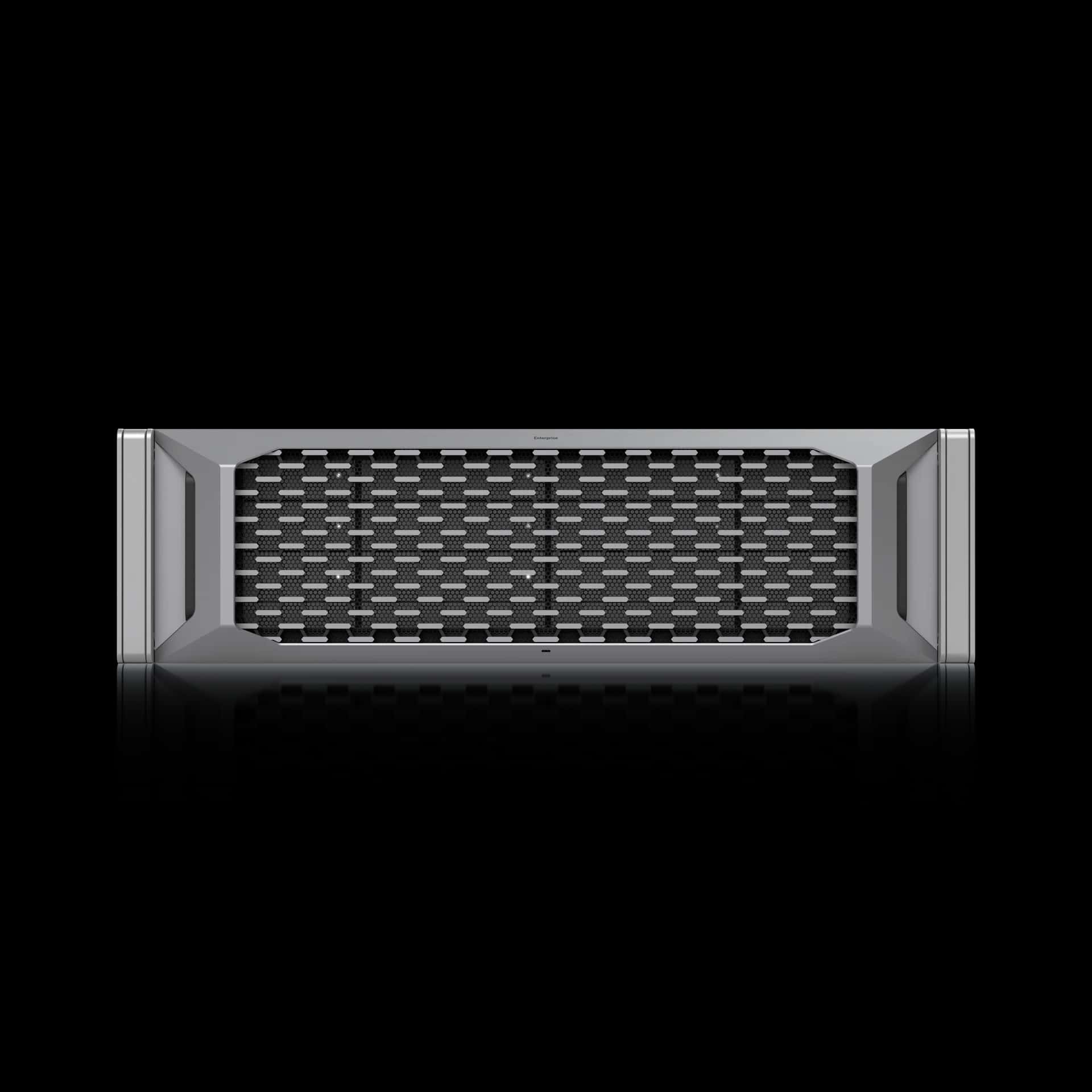

Faceplate3U Bezel Lite (Included) 3U Bezel (Optional)
Ambient Operating Temperature10 to 35° C (50 to 95° F)
Ambient Operating Humidity20 to 90% noncondensing
CertificationsCE, FCC, IC
Mobile AppUniFi Protect iOS™ version 3.3.0 and later UniFi Protect Android™ version 3.2.0 and later
DownloadsSpecifications, manuals and product documents
