Equipment shop
Ubiquiti · Power supplies, PoE and surge protection

UniFi 10G PoE++ Adapter (60W)

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Power supplies, PoE and surge protection

UniFi 10G PoE++ Adapter (60W)

Read customer reviews
ModelUACC-PoE++-10GSold as1 unit

An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Top highlights

See more highlights
  • LED indicator for status monitoring
Product detailsOverview, features and technical specifications

An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

At a glance

Highlight 1Delivers up to 60W of PoE++
Highlight 2Surge, peak pulse, and overcurrent protection
Highlight 3Contains RJ45 data input, AC cable with earth ground, and PoE++ output
Highlight 4LED indicator for status monitoring

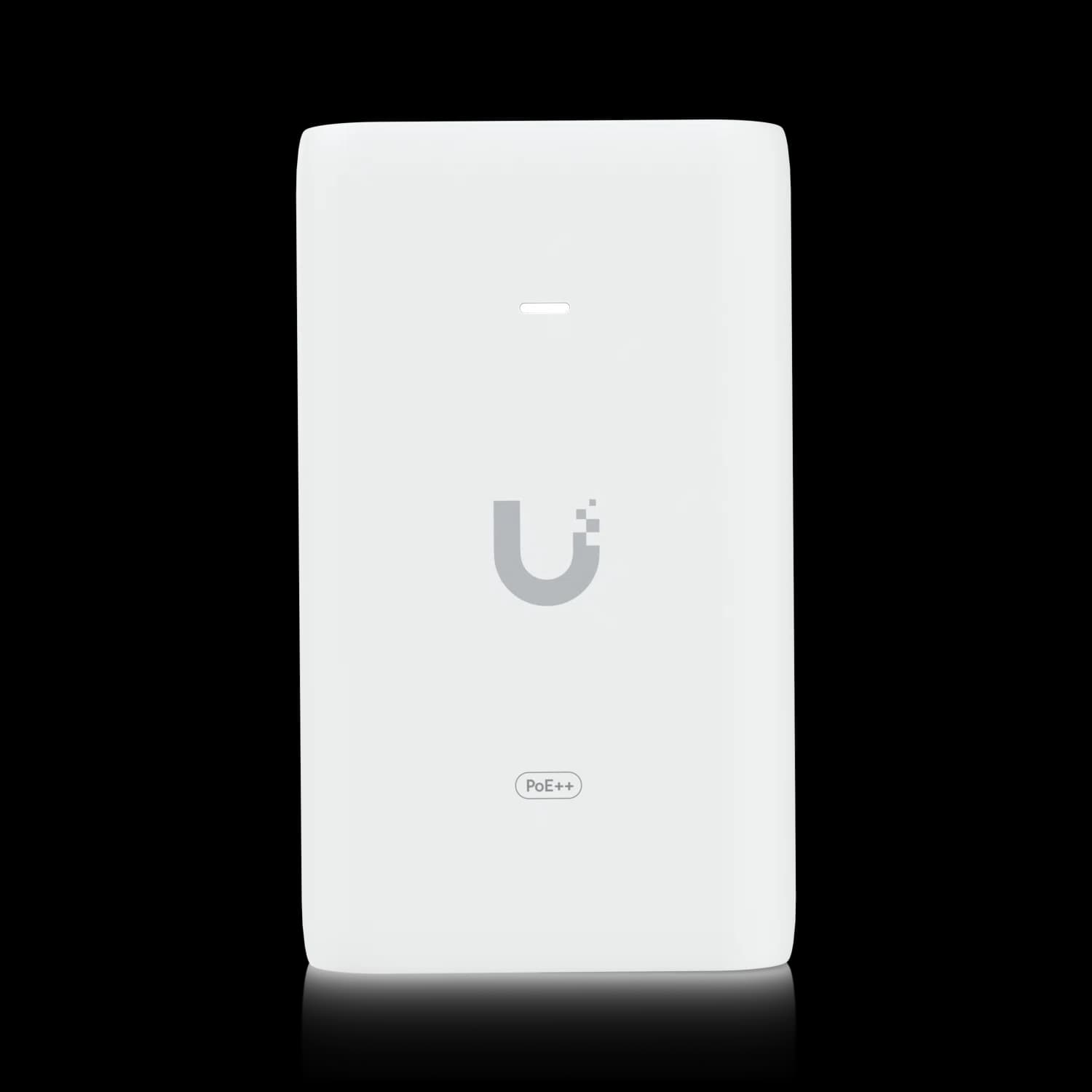

UniFi 10G PoE++ Adapter (60W)
UniFi 10G PoE++ Adapter (60W)

Specifications

BrandUbiquiti
Manufacturer modelUACC-PoE++-10G
InstallationQuoted separately
Dimensions106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight210 g (7.4 oz)
Power CableIncluded
Output Voltage54V DC at 1.12A
Rated Voltage100–240V AC at 50/60Hz
All specifications (29)
4-pair PoweringPins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Clamping Protection11V Data, 60V power
Data In / PoERJ45 Shielded Socket
Input Current1.5A Max.
Inrush Current<150A peak at 230V AC
Efficiency>88%
Switching Frequency65 kHz
Output Ripple1% Max.
Line Regulation≤ 2%
Load Regulation≤ 5%
Max. PoE+ Wattage per Port by PSE60W
Max. Surge Discharge1500A (8/20 μs) power
Peak Pulse Current36A (10/1000 μs) data
Response Time<1 ns
Shunt Capacitance<5 pF data
Surge ProtectionDifference and common mode
Supported IEEE Standards802.3af (PoE 15.4 W) 802.3at (PoE+ 30 W) 802.3bt Type 3 (PoE++ 60 W)
Ambient Storage Temperature-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity10 to 95% noncondensing
CertificationsCE, FCC, IC, UL, UKCA, KC, CCC, RoHS
DownloadsSpecifications, manuals and product documents
