Equipment shop
Ubiquiti · EV charger

EV Station Lite

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · EV charger

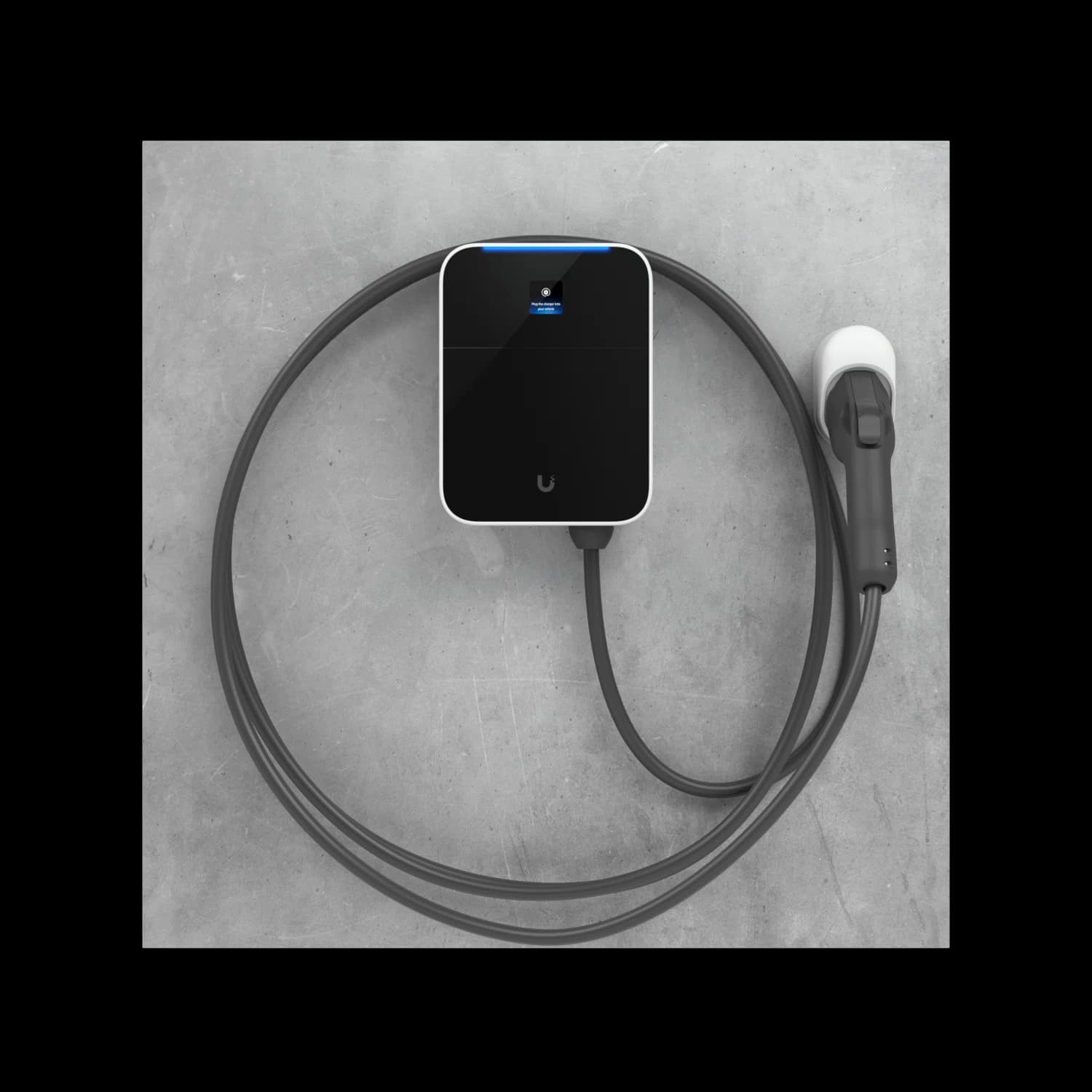

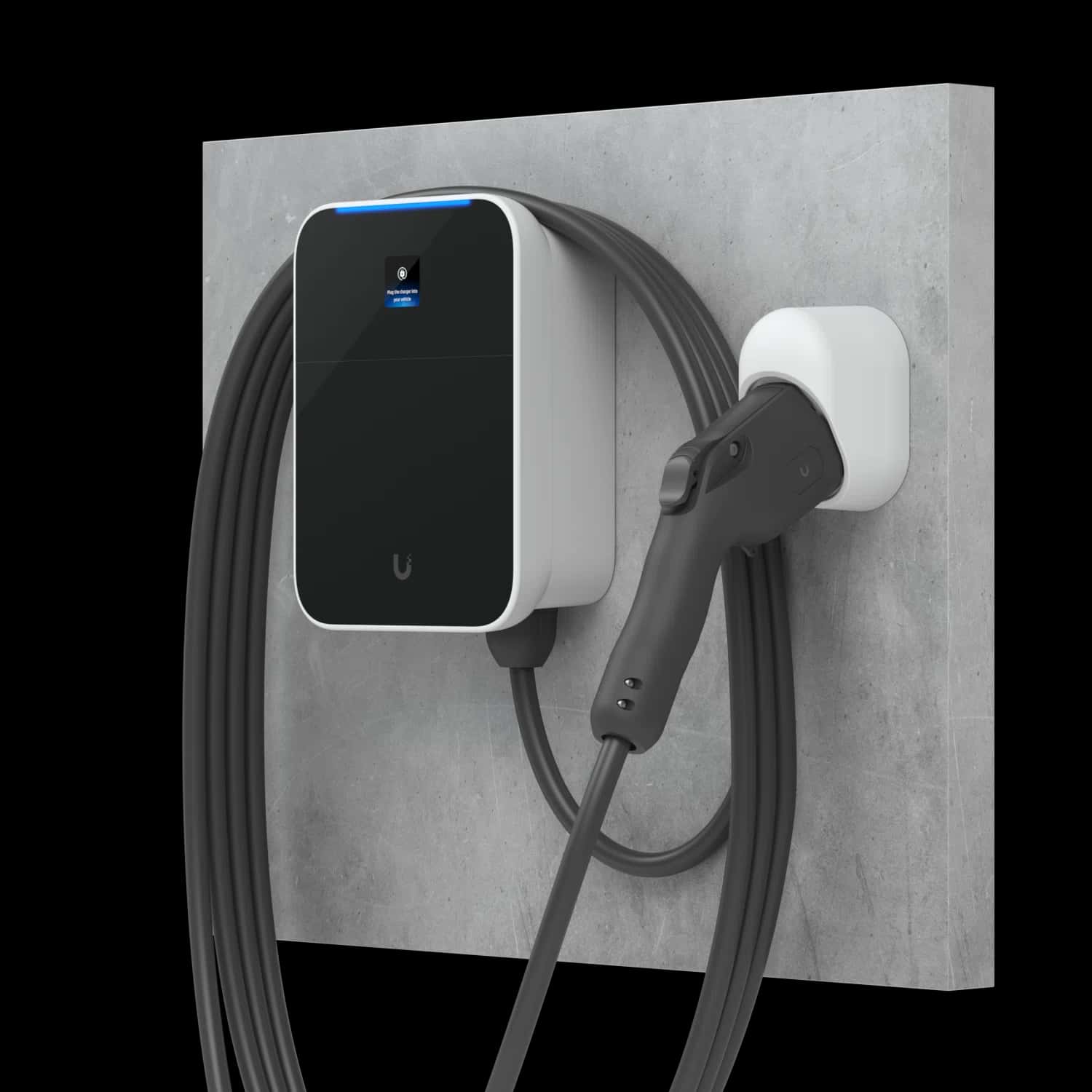

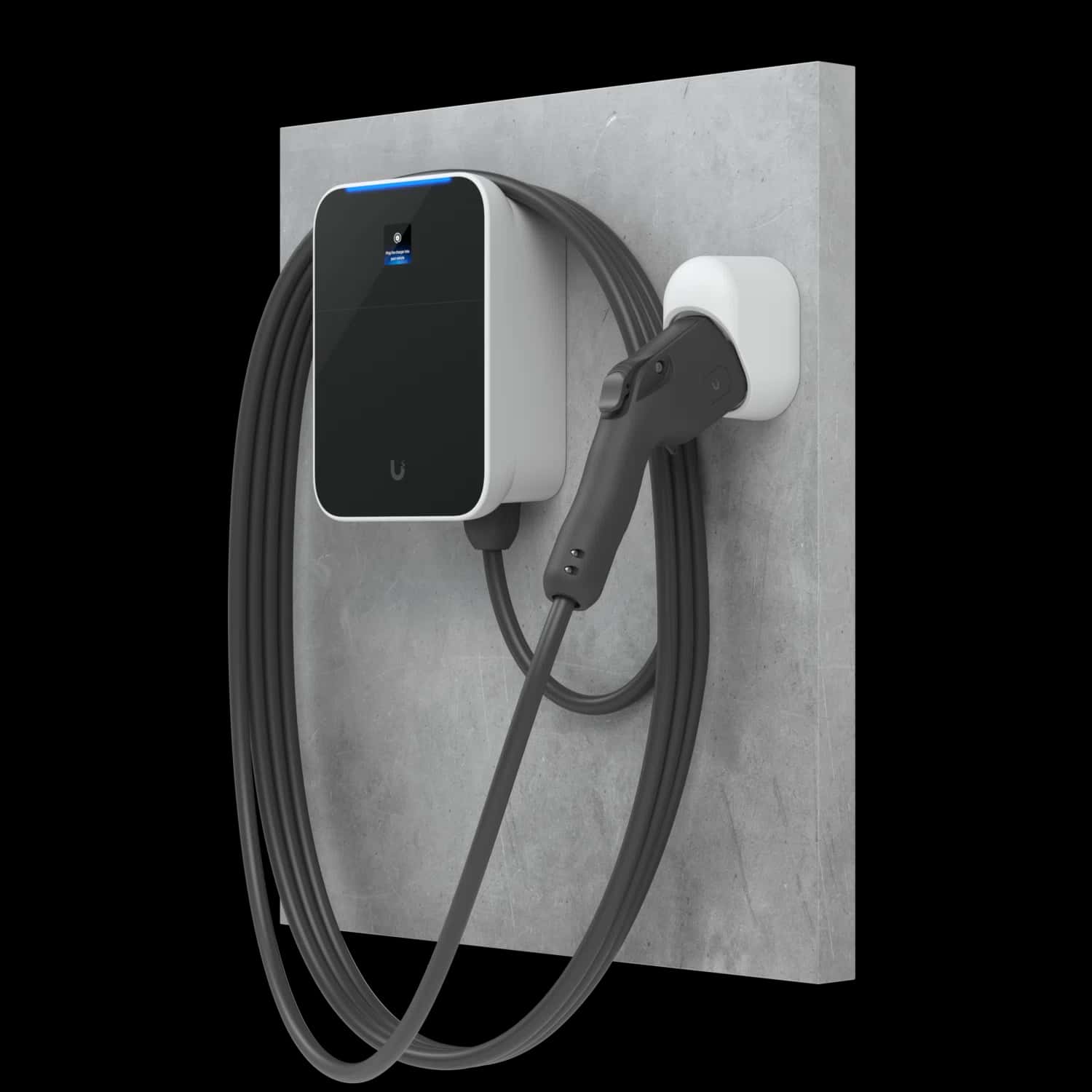

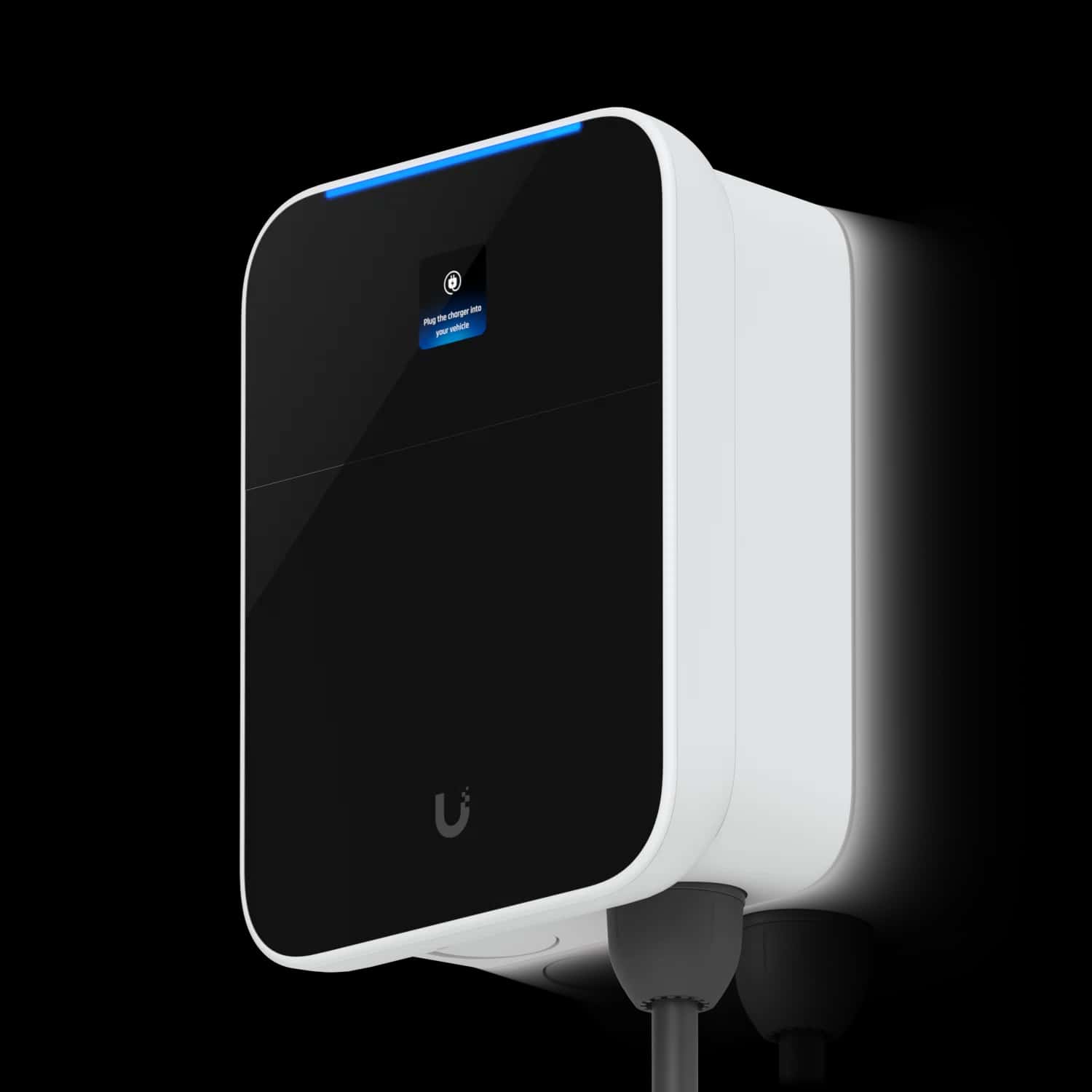

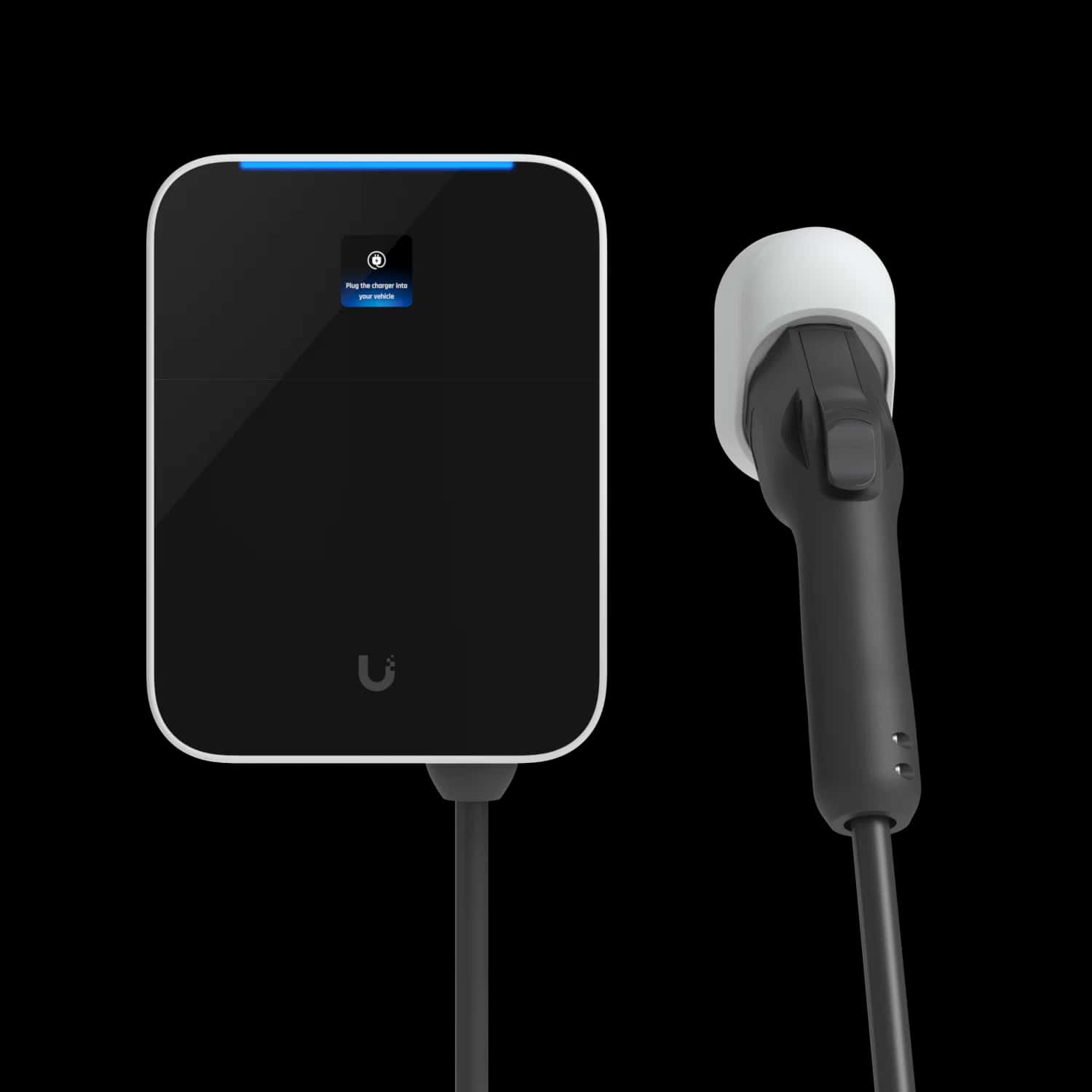

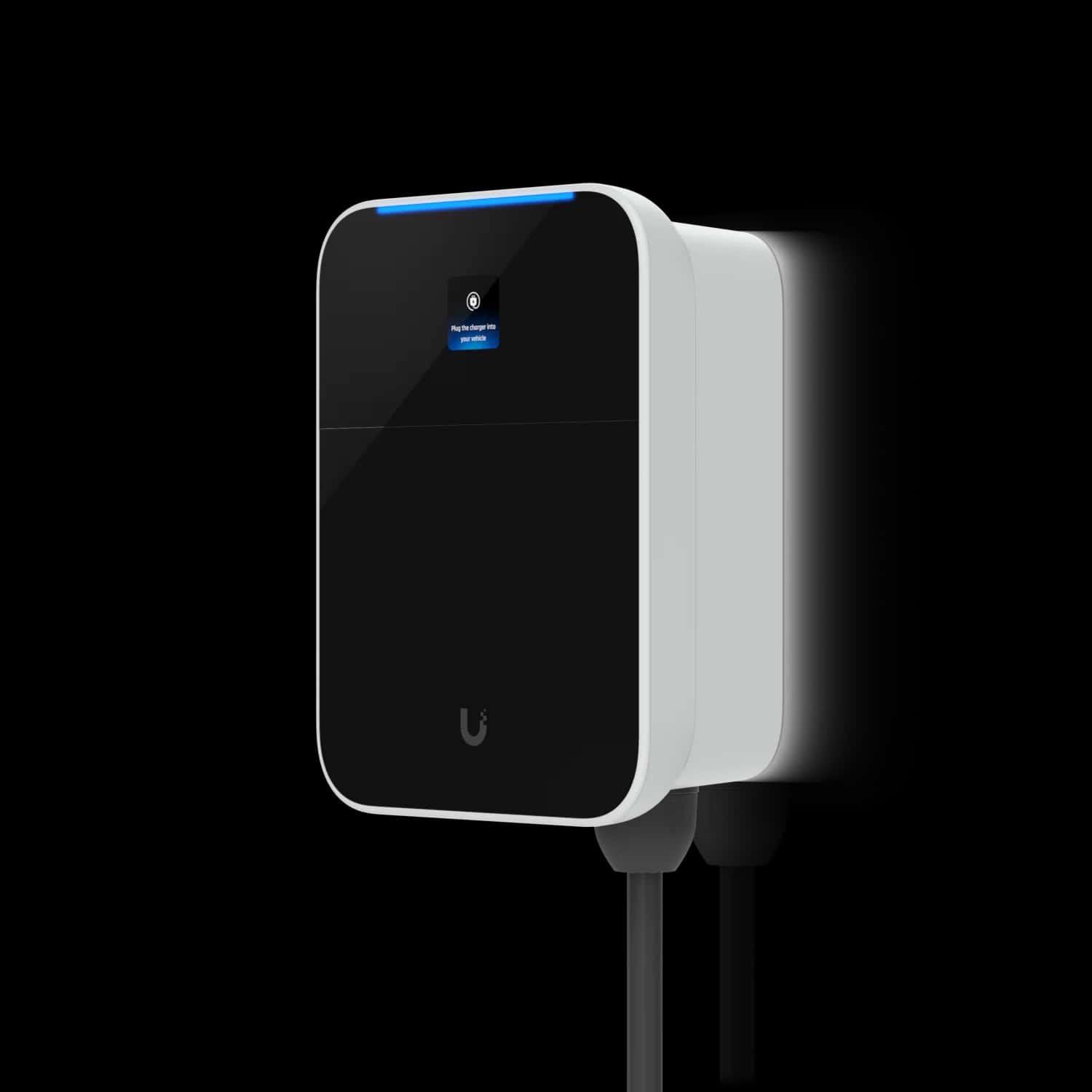

EV Station Lite

Read customer reviews
ModelUC-EV-Station-LiteSold as1 unit

Weatherproof, 11 kW Level 2 electric vehicle charging station with flexible access control designed for scalable deployment. Note . UniFi Access must be running on the same console as UniFi Connect for NFC card registration. Requires UniFi OS 4.0.6 and later for UniFi Identity Enterprise.

Top highlights

See more highlights
  • Connected with UniFi WiFi Auto-Link or Ethernet
  • UL certified
  • Hardwire installation
  • Wallmount kit included
  • *UniFi Access must be running on the same console as UniFi Connect with a Control Hub and Access Reader adopted for NFC card registration. Requires UniFi OS 4.0.6 and later for UniFi Identity Enterprise.
Product detailsOverview, features and technical specifications

Weatherproof, 11 kW Level 2 electric vehicle charging station with flexible access control designed for scalable deployment. Note . UniFi Access must be running on the same console as UniFi Connect for NFC card registration. Requires UniFi OS 4.0.6 and later for UniFi Identity Enterprise.

At a glance

Highlight 111 kW max charging output with SAE J1772 charging plug
Highlight 21.7" LCM display
Highlight 3Access control with UniFi Identity mobile app and NFC card*
Highlight 4Connected with UniFi WiFi Auto-Link or Ethernet
More highlights
Highlight 5UL certified
Highlight 6Hardwire installation
Highlight 7Wallmount kit included
Highlight 8*UniFi Access must be running on the same console as UniFi Connect with a Control Hub and Access Reader adopted for NFC card registration. Requires UniFi OS 4.0.6 and later for UniFi Identity Enterprise.
EV Station Lite
EV Station Lite

Specifications

BrandUbiquiti
Manufacturer modelUC-EV-Station-Lite
InstallationQuoted separately
Dimensions254.7 x 192.7 x 85 mm (10 x 7.6 x 3.3”)
MountingWall Mount or Stand
Power Input200–240V ~ 50A, 50/60Hz, 1φ
Power Output200–240V ~ 50A, 50/60Hz, 1φ
WeatherproofingType 3R
All specifications (21)
Weight5.9 kg (13 lb)
Enclosure MaterialPolycarbonate
Charging Cable Length7 m (23 ft)
Size1.7" status display
ProcessorDual-core Arm® Cortex®-A53, 1 GHz
Connectivity(1) GbE RJ45 port (1) USB-C port Bluetooth® 5.0 WiFi
Max. load70A: 50A 60A: 48A 50A: 40A 40A: 32A 30A: 24A 20A: 16A
Plug-in70A: No 60A: No 50A: Yes 40A: Yes 30A: Yes 20A: Yes
Hardwired70A: Yes 60A: Yes 50A: Yes 40A: Yes 30A: Yes 20A: Yes
Ambient Operating Humidity5 to 90% noncondensing
Ambient Operating Temperature-40 to 50° C (-40 to 122° F)
CertificationsFCC, IC, UL
Management ApplicationUniFi Connect: Version 3.14.4 and later. UniFi Connect iOS™ and Android™: Version 2.18 and later.
