UniFi Express 7

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti gateway and switching

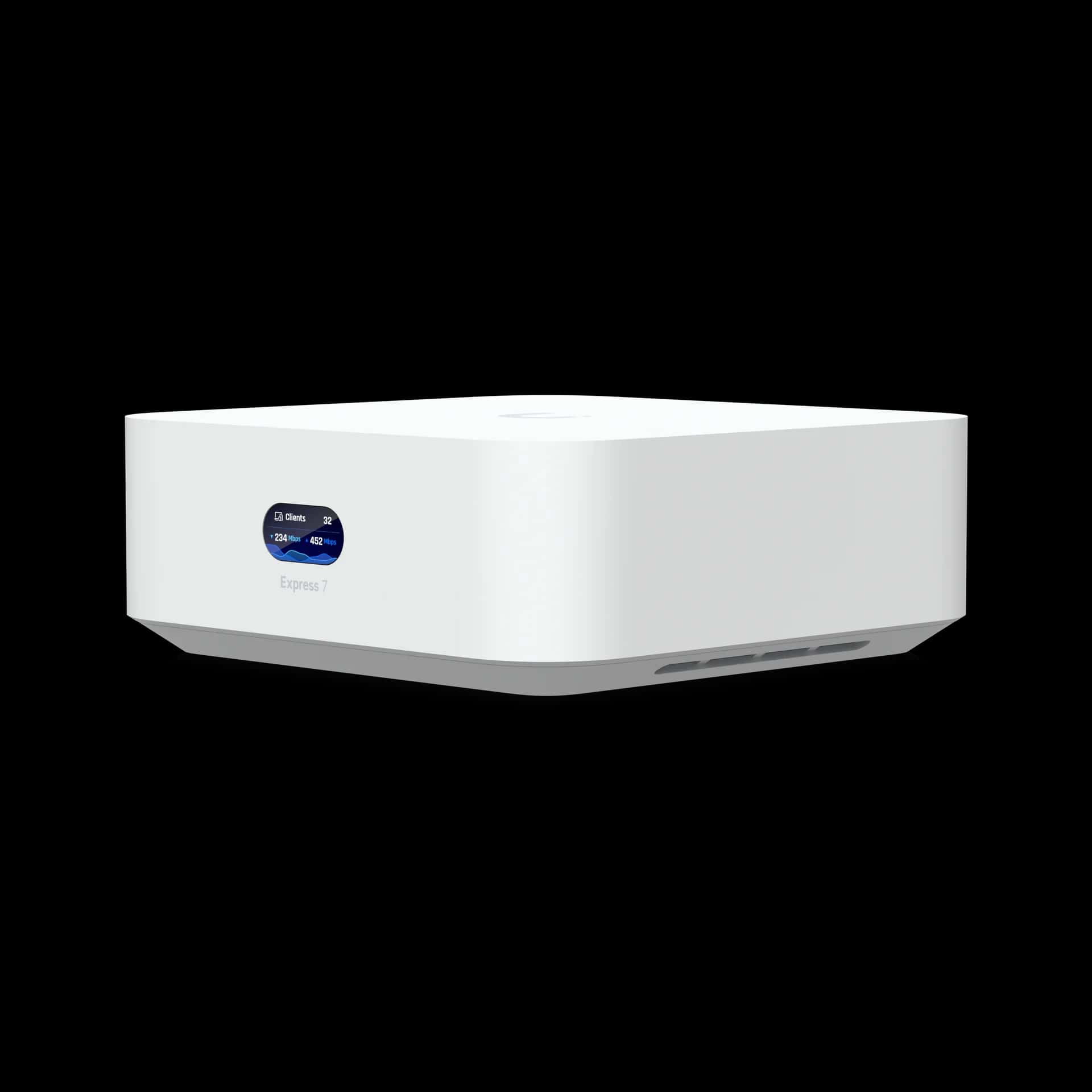

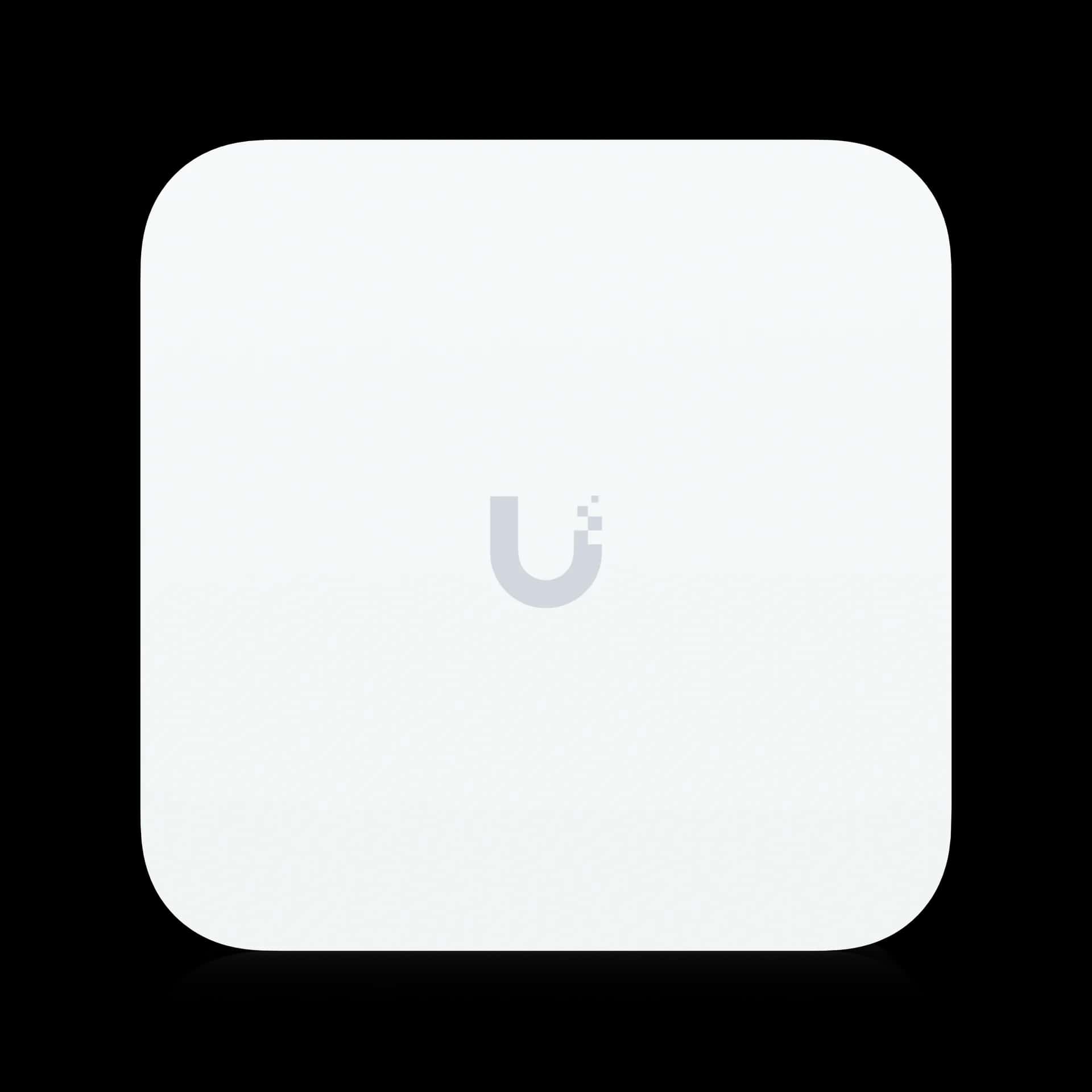

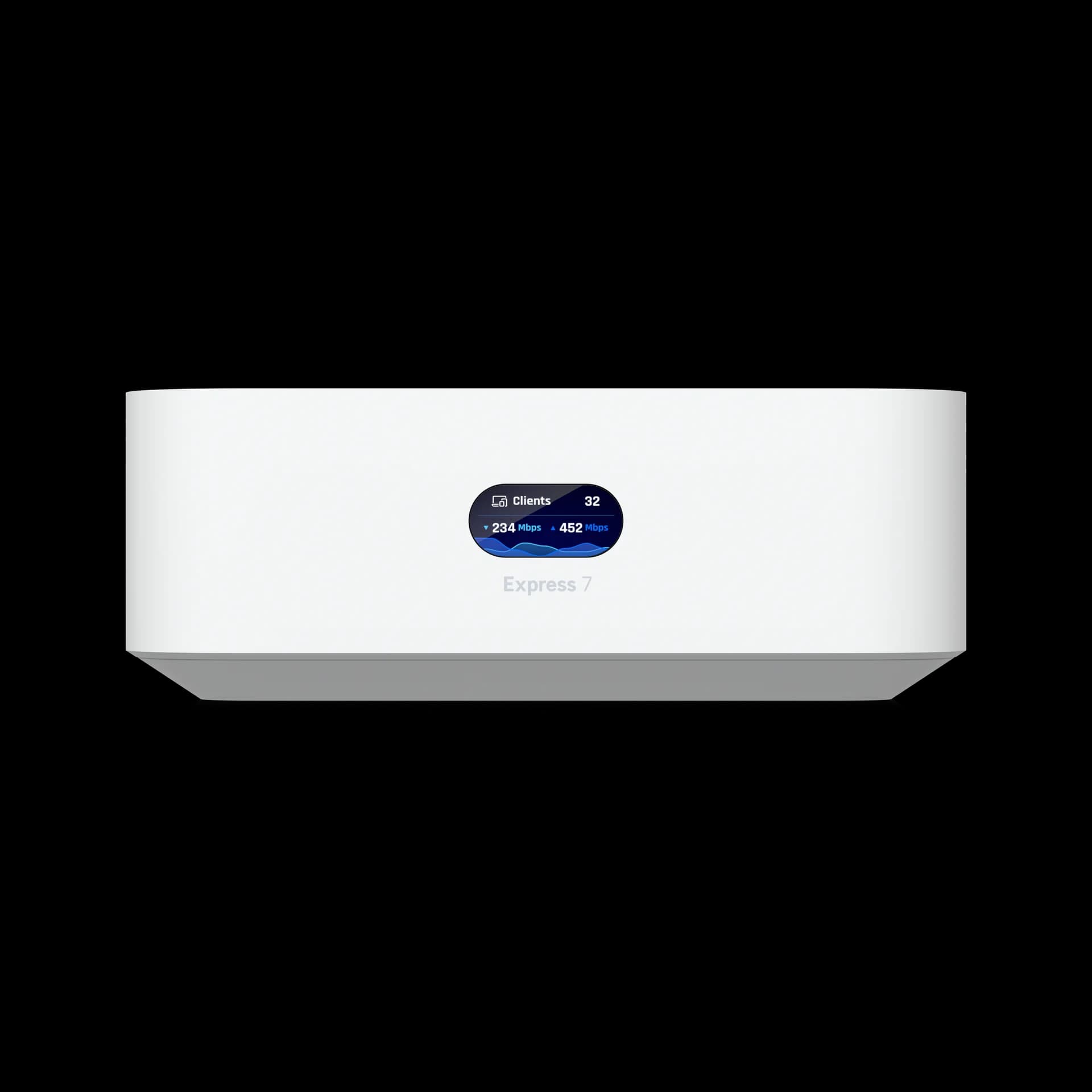

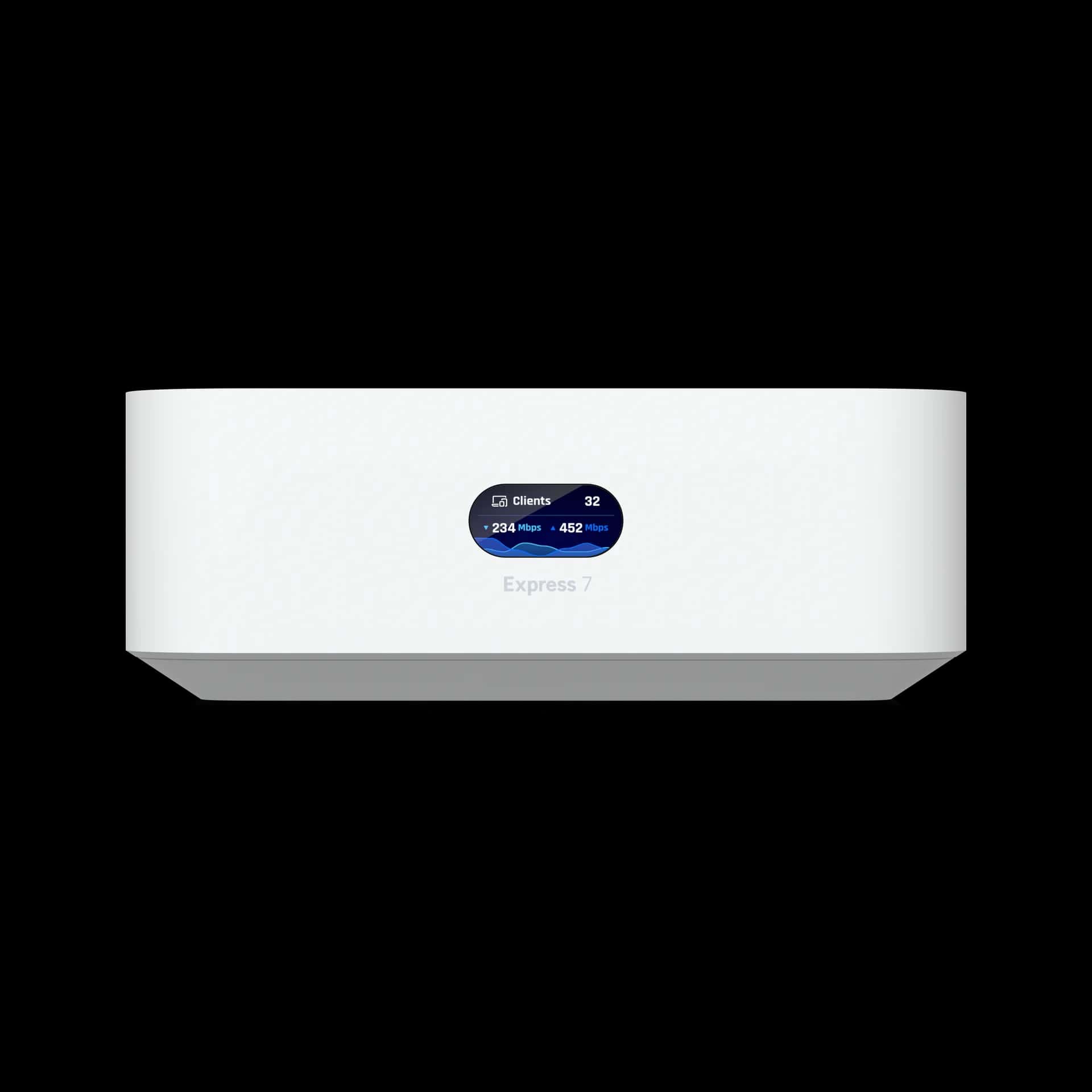

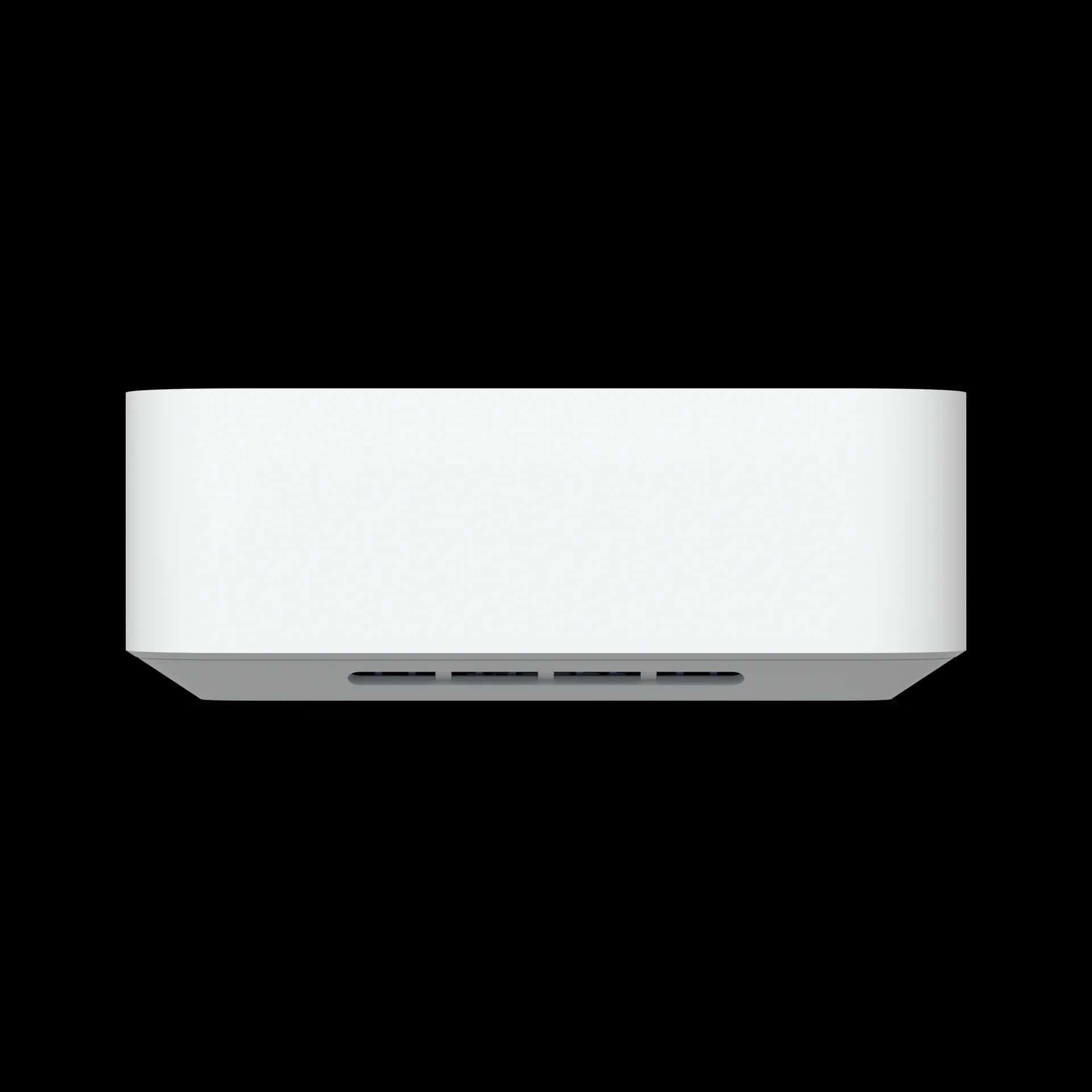

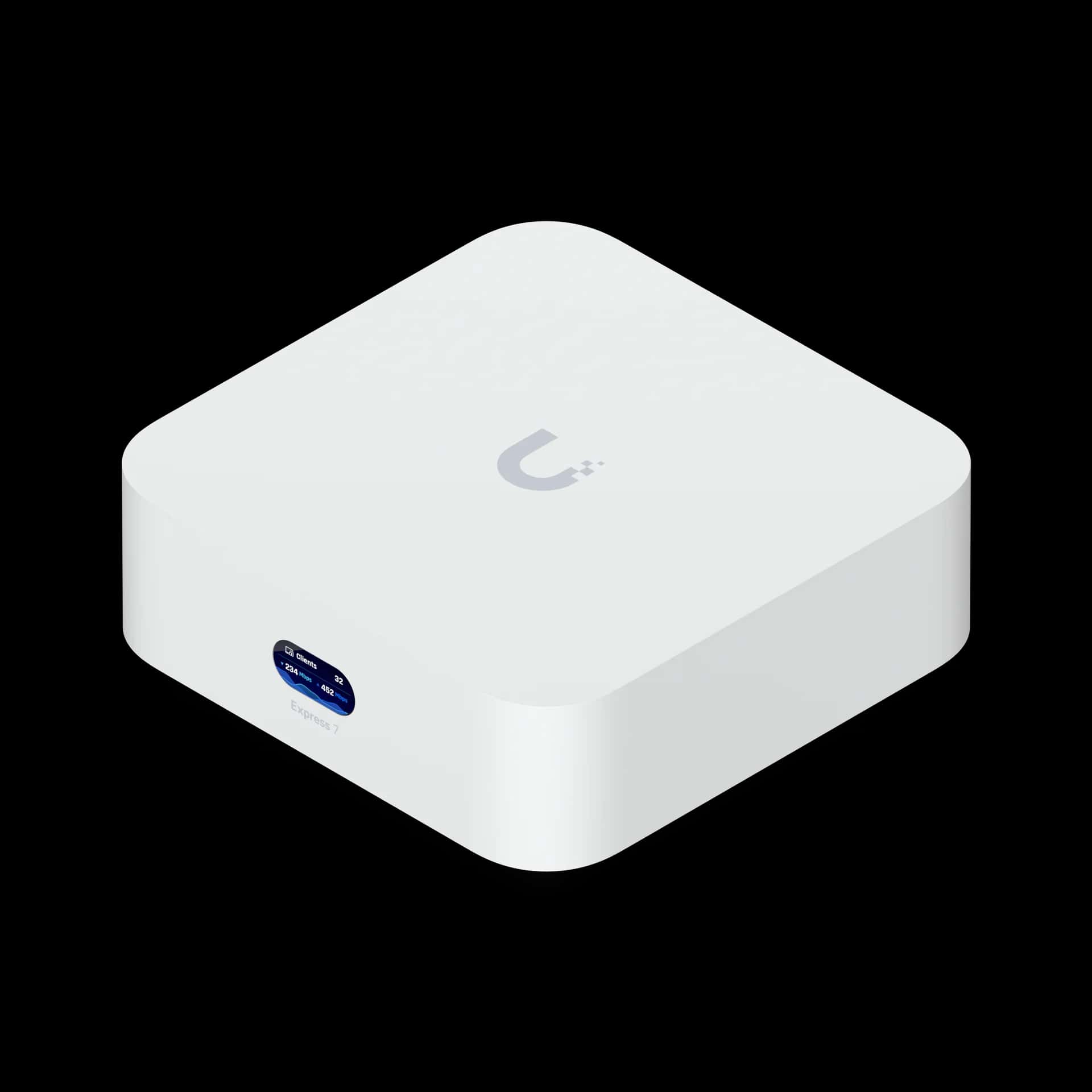

UniFi Express 7

Read customer reviews
ModelUX7Sold as1 unit

Mesh-scalable, super-compact 10G Cloud Gateway with integrated 6 GHz WiFi 7. Plug-and-play Whole-Home WiFi with true 10G Multi-Link Operation, intelligent placement guidance, and effortless mesh expansion with additional nodes.

Top highlights

Product detailsOverview, features and technical specifications

Mesh-scalable, super-compact 10G Cloud Gateway with integrated 6 GHz WiFi 7. Plug-and-play Whole-Home WiFi with true 10G Multi-Link Operation, intelligent placement guidance, and effortless mesh expansion with additional nodes.

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
UniFi Express 7
UniFi Express 7

Specifications

BrandUbiquiti
Manufacturer modelUX7
InstallationQuoted separately
IDS/IPS2.3 Gbps
Max. Client Count300
IDS/IPS Throughput2.3 Gbps
Dimensions117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')
Managed UniFi Devices30+
All specifications (56)
Simultaneous Users Connected300+
Max. WAN Port Count1

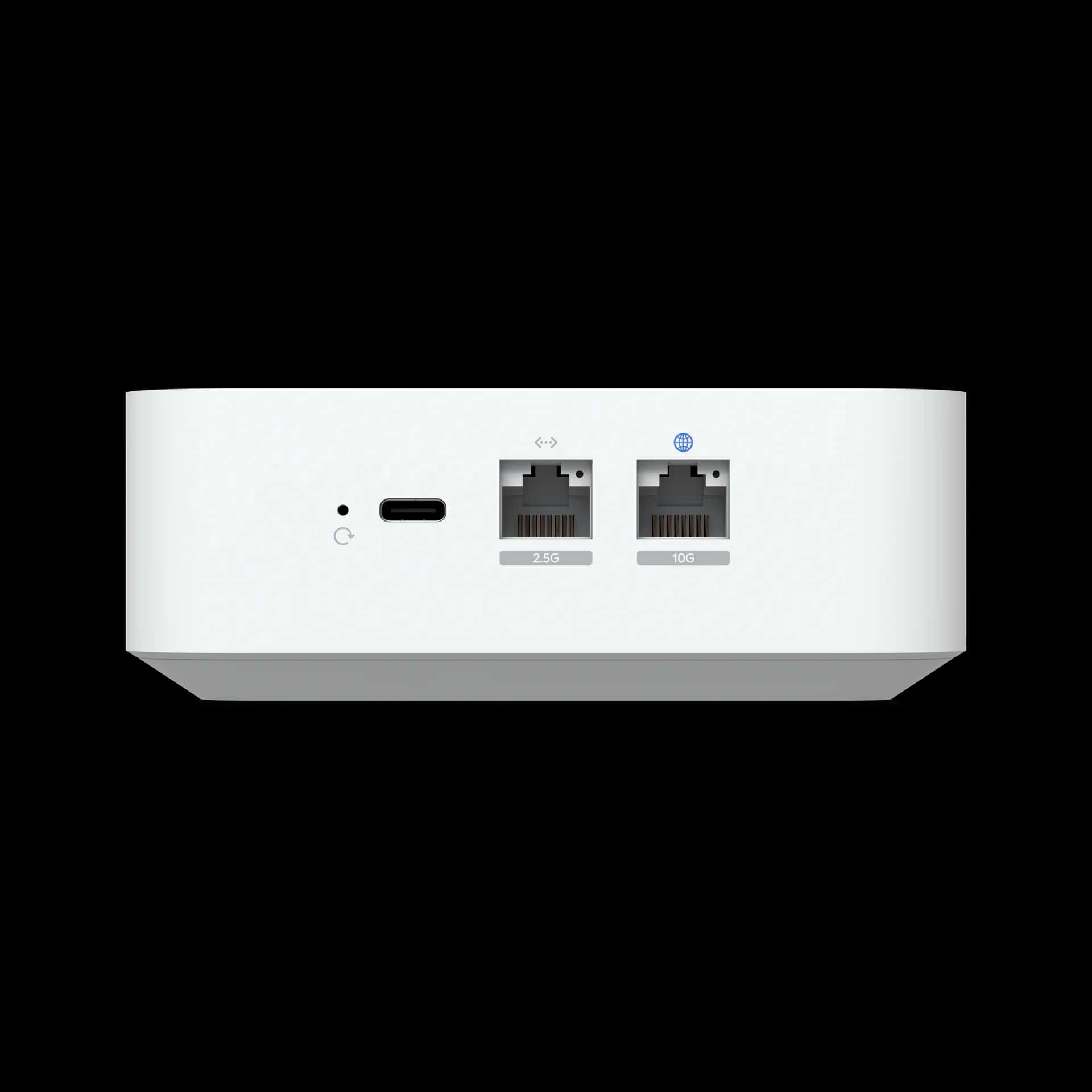

Default WAN Ports(1) 10 GbE RJ45
2.5 GbE RJ451 (2.5G/1G/100M/10M)
10 GbE RJ451 (10G/5G/2.5G/1G/100M)
Form FactorCompact desktop
Coverage Area160 m² (1,750 ft²)
IDS/IPS Signatures20,000+ with CyberSecure
WiFi Standard802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
6 GHz5.7 Gbps
5 GHz4.3 Gbps
2.4 GHz688 Mbps
6 GHz2 x 2 (DL/UL MU-MIMO)
5 GHz2 x 2 (DL/UL MU-MIMO)
2.4 GHz2 x 2 (DL/UL MU-MIMO)
6 GHz6 dBi
5 GHz7 dBi
2.4 GHz4 dBi
6 GHz24 dBm
5 GHz26 dBm
2.4 GHz23 dBm
Wireless SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs4 per Radio (Gateway Mode) 4 per Radio (AP Mode)
802.11be (WiFi 7)7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Max. Power Consumption22W
Power MethodUSB type C (5V DC/5A)
Power SupplyUSB type C (5V DC/5A) (Adapter included)
Supported Voltage Range100–240V AC
Heat Dissipation75 BTU/hr
ProcessorQuad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory3 GB
Weight443 g (1 lb)
Enclosure MaterialPolycarbonate
LCM Display0.96" status display
ManagementEthernet Bluetooth
Button(1) Factory reset
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Ambient Operating Temperature-10 to 40° C (14 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, Anatel: 06656-25-08356
VLAN802.1Q
UniFi NetworkVersion 9.0.108 and later
DownloadsSpecifications, manuals and product documents
