Equipment shop
Ubiquiti · Ubiquiti gateway and switching

Switch Pro HD 24 PoE

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti gateway and switching

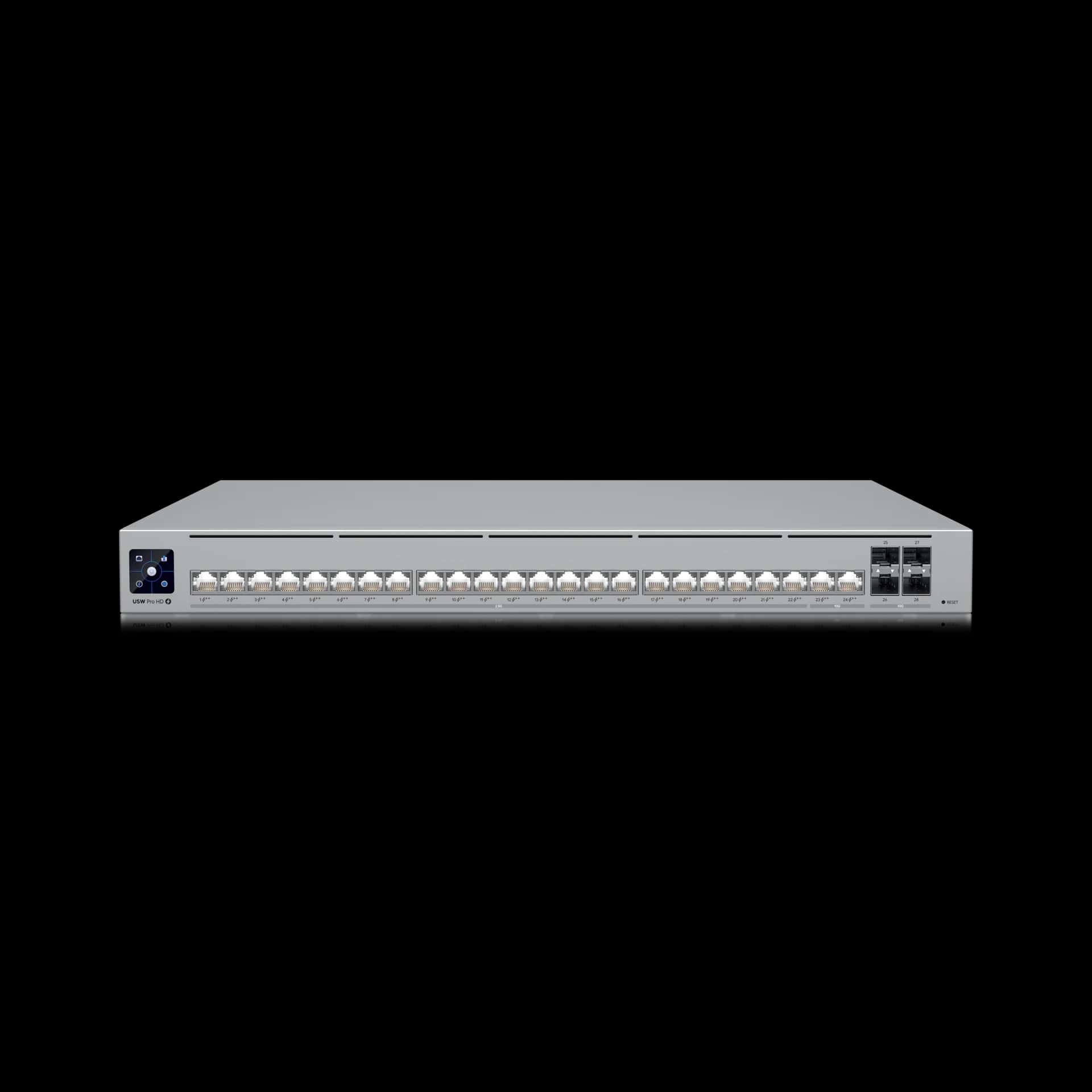

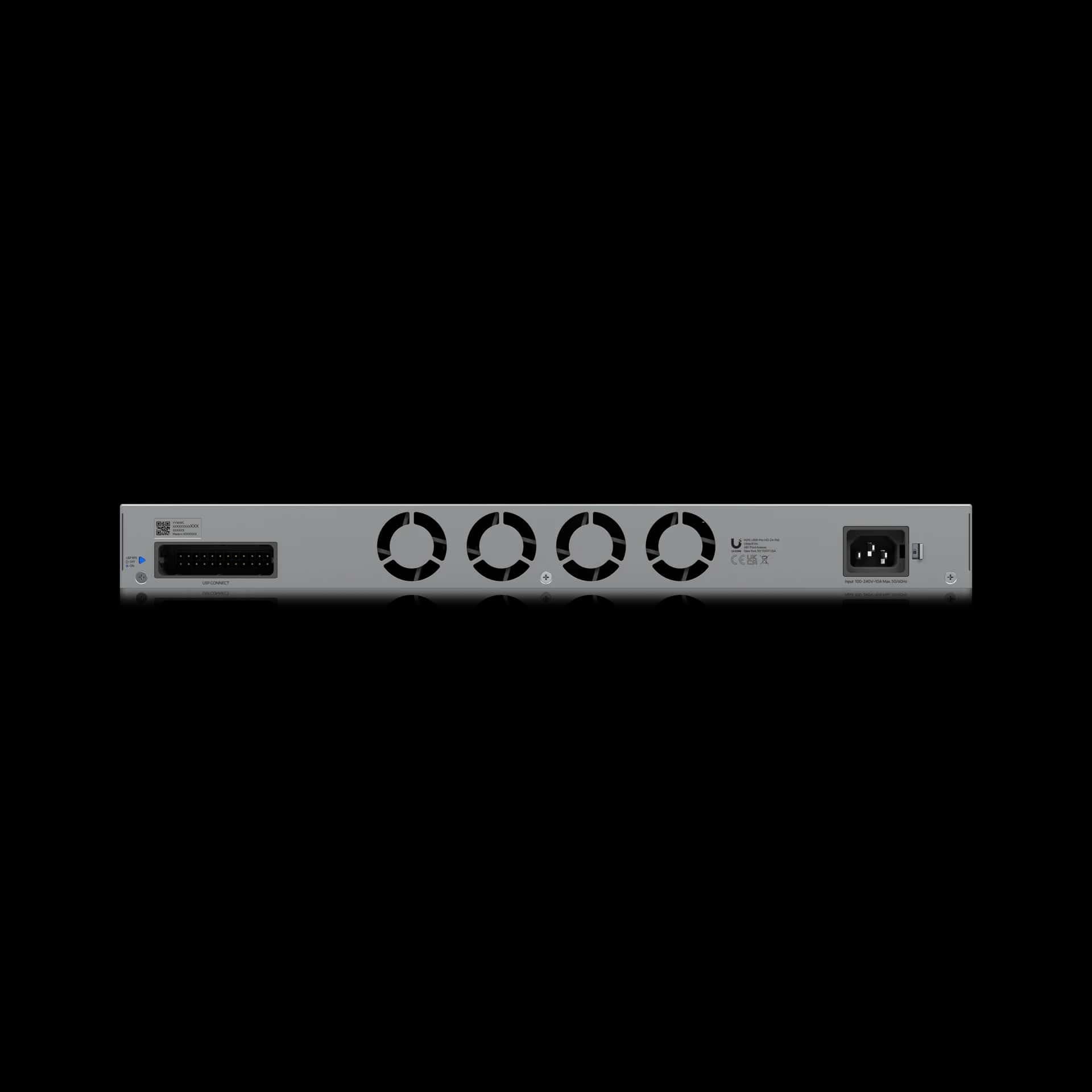

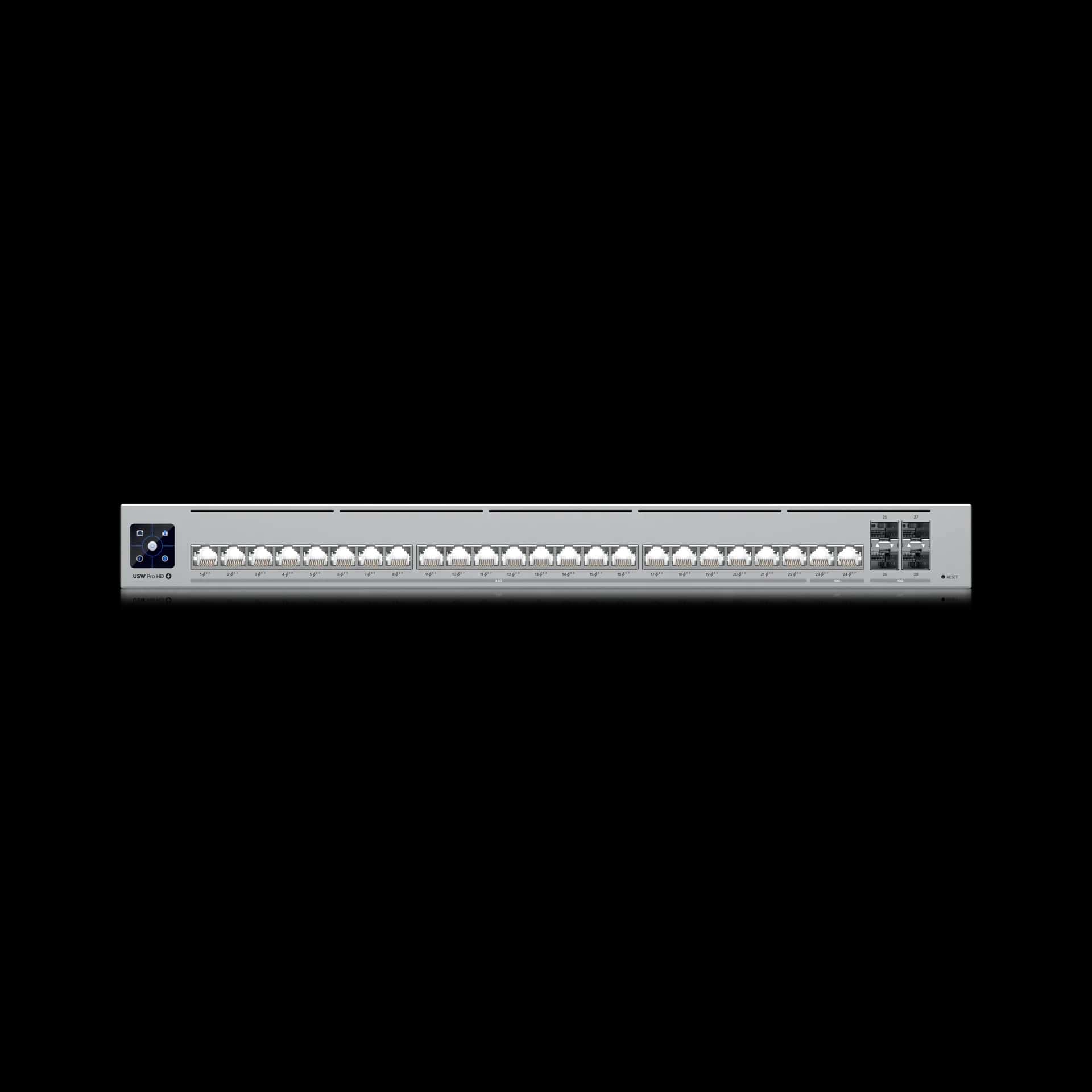

Switch Pro HD 24 PoE

Read customer reviews
ModelUSW-Pro-HD-24-PoE (600W)Sold as1 unit

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.

Top highlights

See more highlights
  • DC power backup ready**
  • 600W total PoE availability
  • *Pair with UniFi Etherlighting Patch Cables for optimal brightness. **Requires UniFi RPS .
Product detailsOverview, features and technical specifications

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.

At a glance

Highlight 1Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
Highlight 2(22) 2.5 GbE, (2) 10 GbE PoE++ ports
Highlight 3(4) 10G SFP+ ports
Highlight 4DC power backup ready**
More highlights
Highlight 5600W total PoE availability
Highlight 6*Pair with UniFi Etherlighting Patch Cables for optimal brightness. **Requires UniFi RPS .
Switch Pro HD 24 PoE
Switch Pro HD 24 PoE

Specifications

BrandUbiquiti
Manufacturer modelUSW-Pro-HD-24-PoE (600W)
InstallationQuoted separately
Dimensions442 x 400 x 44 mm (17.4 x 15.7 x 1.7")
2.5 GbE RJ4522 (All PoE++) (2.5G/1G/100M/10M)
10 GbE RJ452 (All PoE++) (10G/5G/2.5G/1G/100M)
10G SFP+4 (10G/1G)
Max. PoE OutputUp to PoE++
All specifications (39)
Total PoE Availability600W
RedundancyDC Power Backup
Form FactorRack mount (1U)
Switching Capacity230 Gbps
Total Non-Blocking Throughput115 Gbps
Forwarding Rate171 Mpps
Supported VLANs1,000
MAC Address Table Size32,000
IPv4 Static Routes256
Packet Buffer Size2 MB
IPv4128
MAC128
PoE++24
PoE15.4W
PoE+30W
PoE++64W
Max. Power Consumption60W (Excluding PoE Output) 660W (Including PoE Output)
Power Method(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input MethodAC input
Power SupplyAC/DC, internal, 660W
Supported Voltage Range100–240V AC
ManagementEthernet AR
WeightWithout mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb)
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth600 - 1,200 mm (23.6- 47.2" )
LCM Display1.3" touchscreen
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10 to 90% noncondensing
CertificationsCE, FCC, IC, Anatel: 03853-25-08356
UniFi NetworkVersion 9.0.114 and later
DownloadsSpecifications, manuals and product documents
Compatible additions

These recommendations prioritize useful companion categories for this equipment—not a generic catalog list.

View all equipment
Cloud Gateway FiberEquipment
Ubiquiti gateway and switching · Ubiquiti

Cloud Gateway Fiber

Includes full UniFi application suite for device managementManages 50+ UniFi devices and 500+ clients
Selected equipment price$399.10
Access Point Lite Arm MountEquipment
Network mounts and accessories · Ubiquiti

Access Point Lite Arm Mount

Equipment only; installation is quoted separatelySelect the required configuration before ordering
Selected equipment price$26.00
AI Speaker Flush MountEquipment
Network equipment accessories · Ubiquiti

AI Speaker Flush Mount

Equipment only; installation is quoted separatelySelect the required configuration before ordering
Selected equipment price$76.70
airFiber 24 GHz BridgeEquipment
Wireless network bridge · Ubiquiti

airFiber 24 GHz Bridge

24 GHz, 13+ km link range1.5+ Gbps throughput
Selected equipment price$1,943.50

Before you add to cart

What you’re ordering

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.

Review the selected option and quantity. Installation is quoted separately unless explicitly included in this item.

Shipping, returns & order policies

Build around your network

Check Ethernet port speed, cable category and length, and the number of connected devices. For PoE equipment, match the required PoE standard and power budget. Wireless equipment can require an existing router, controller, or wired uplink; review the listed requirements.
