Equipment shop
Ubiquiti · Door access control

Access Ultra

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Door access control

Access Ultra

Read customer reviews
ModelUA-UltraSold as1 unit

An access reader with a built-in hub for complete, single-door entry control from one device. Note. Not compatible with standalone Access Hubs.

Top highlights

See more highlights
  • Connect and power using PoE+
  • IP55-rated weather resistance (-30 to 40° C)
  • Note. Not compatible with standalone Access Hubs.
Product detailsOverview, features and technical specifications

An access reader with a built-in hub for complete, single-door entry control from one device. Note. Not compatible with standalone Access Hubs.

At a glance

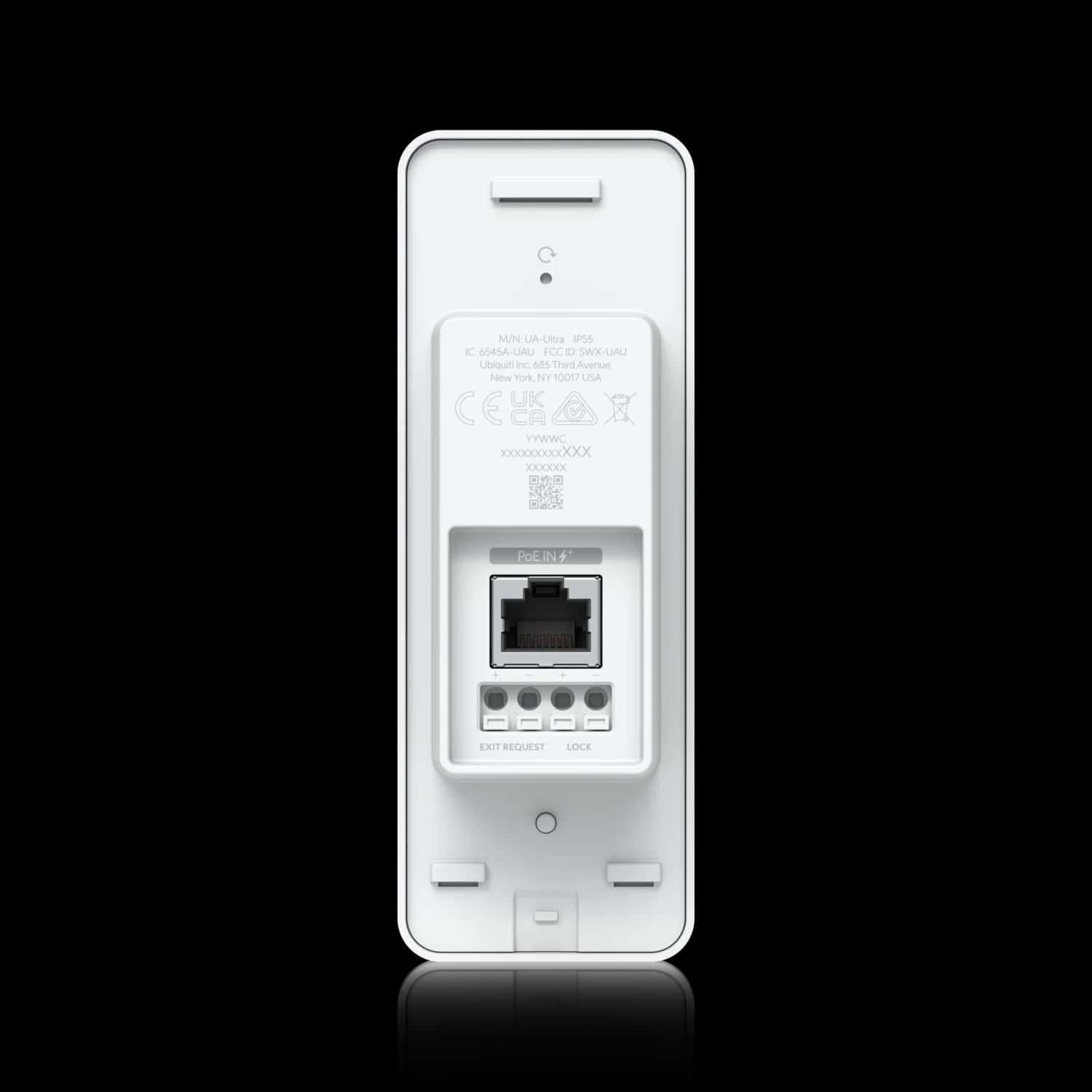

Highlight 1(1) Lock terminal (12V DC, 1A)
Highlight 2(1) Exit request input
Highlight 3Unlock using an NFC card or UniFi Endpoint mobile app
Highlight 4Connect and power using PoE+
More highlights
Highlight 5IP55-rated weather resistance (-30 to 40° C)
Highlight 6Note. Not compatible with standalone Access Hubs.
Access Ultra
Access Ultra

Specifications

BrandUbiquiti
Manufacturer modelUA-Ultra
InstallationQuoted separately
NFCNFC
WeatherproofOutdoor Exposed
Lock Terminals1 Lock Terminal
Dimensions126 x 45 x 37.45 mm (4.9 x 1.8 x 1.5")
WeatherproofingIP55
All specifications (36)
Maximum User Count3,000
UL 294 LevelDestructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weight140 g (4.9 oz)
Enclosure MaterialPolycarbonate, aluminum alloy
Mount MaterialStainless steel
MountingWall mount, gang box mount (Included) Junction box (Optional)
Indoor and Outdoor UseYes
Networking Interface(1) 10/100 MbE RJ45 port
ConnectivityBLE 4.2 Ethernet
Power MethodPoE+ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption18W
Supported Voltage Range44–57V DC
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Powered Output RelayLock: 12V DC, 1A
LEDsR/G/B/W Learn More
Button(1) Factory reset
NFC Frequency13.56 Mhz
NFC Read Range< 50 mm (1.95'')
NFC TechnologyISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus Mifare Ultralight MIFARE DESFire
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, Anatel: 06371-24-08356, SRRC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-Ultra, V01
Ambient Operating Temperature-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity5 to 90% noncondensing
Management ApplicationAccess
Software InformationThe software version can be checked at https://unifi.ui.com
