Access G3 Starter Kit

Image 1 of 6Product view

Professional-grade equipment · Installation available
Ubiquiti · Door access control

Access G3 Starter Kit

Read customer reviews
ModelUA-G3-SKSold as1 unit

A simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. Supports seamless setup and Touch Pass for modern, secure access control. Note . 10 free 1-year Touch Passes included. Learn more .

Top highlights

Product detailsOverview, features and technical specifications

A simple, all-in-one kit for UniFi Access, designed to manage a single door with one reader. Supports seamless setup and Touch Pass for modern, secure access control. Note . 10 free 1-year Touch Passes included. Learn more .

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
Access G3 Starter Kit
Access G3 Starter Kit

Specifications

BrandUbiquiti
Manufacturer modelUA-G3-SK
InstallationQuoted separately

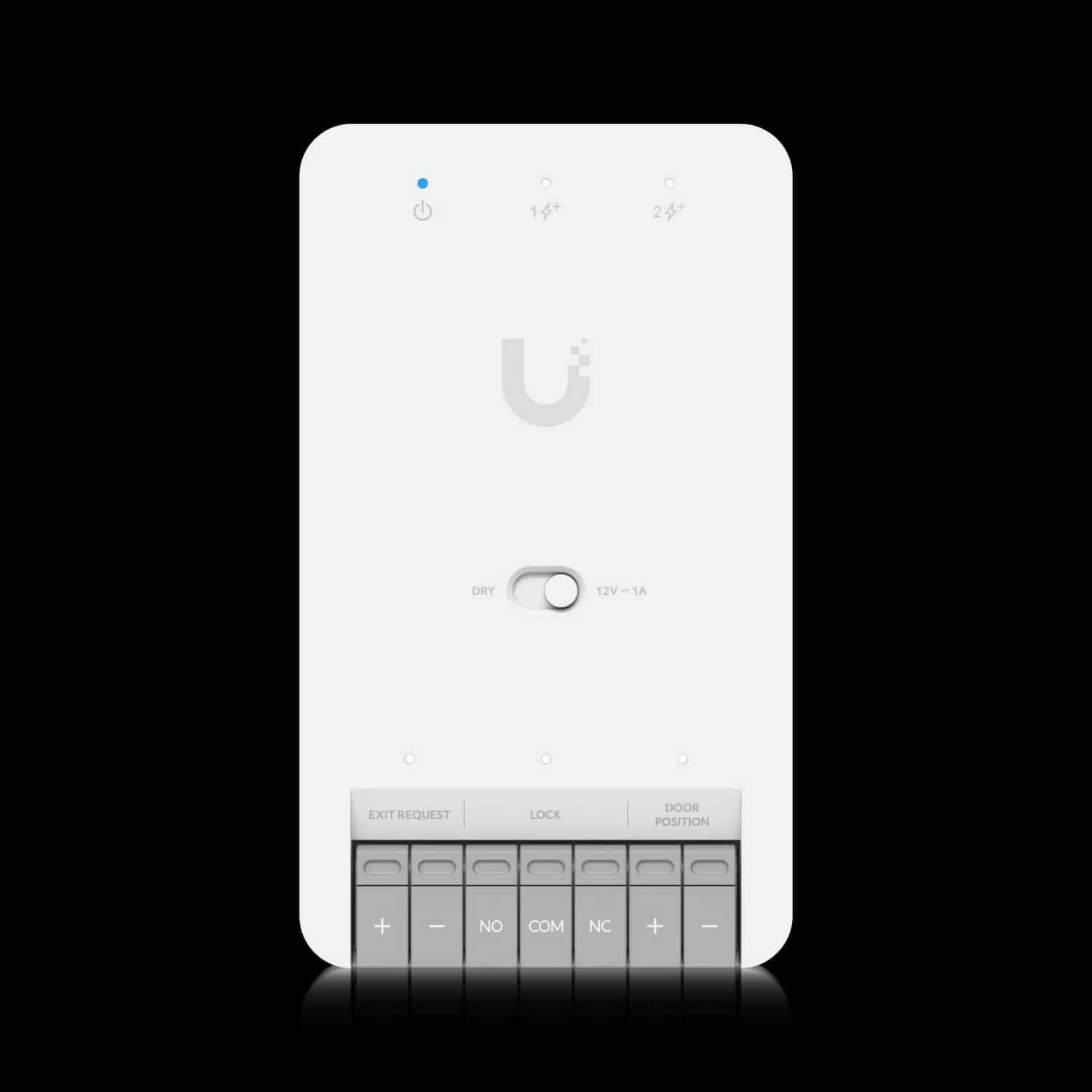

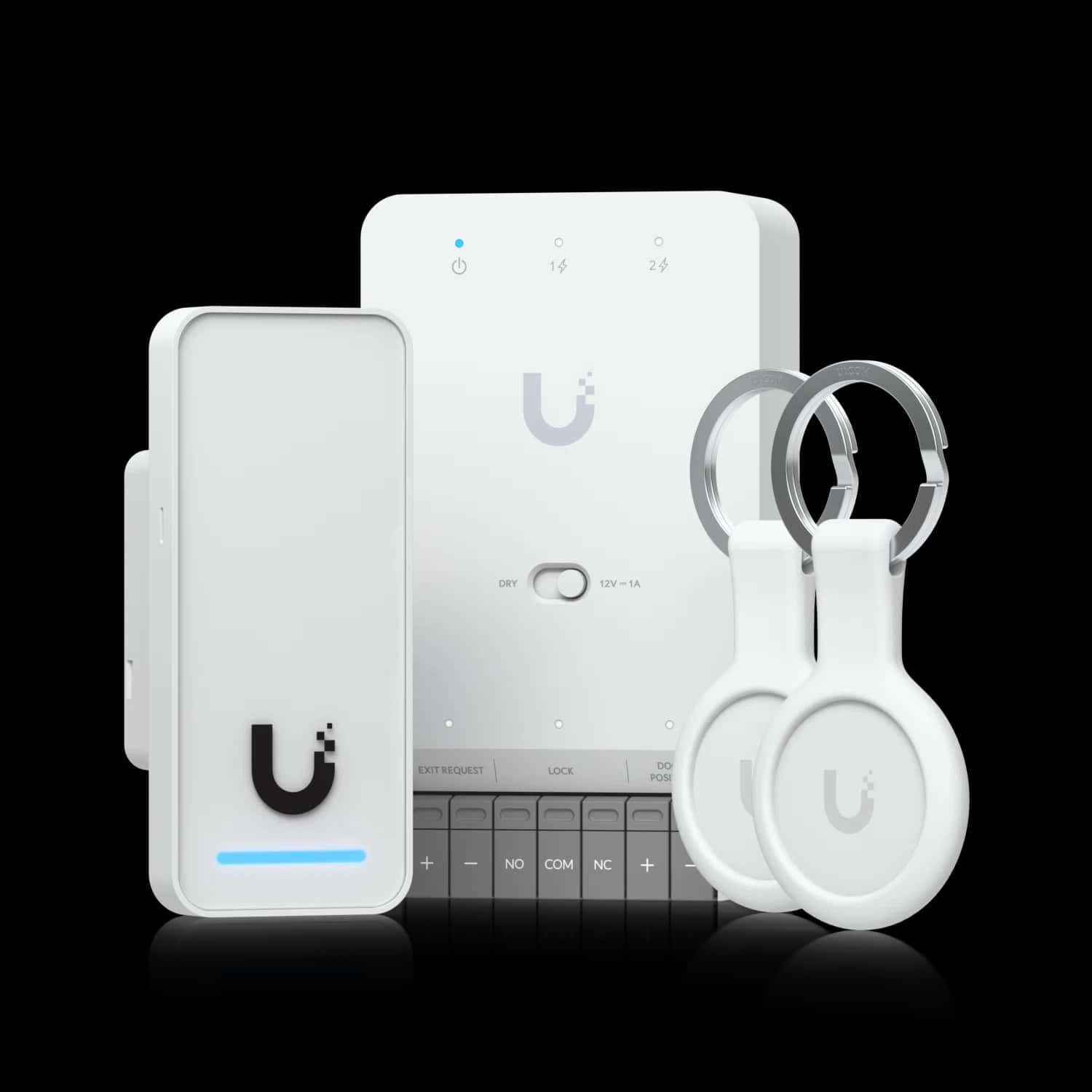

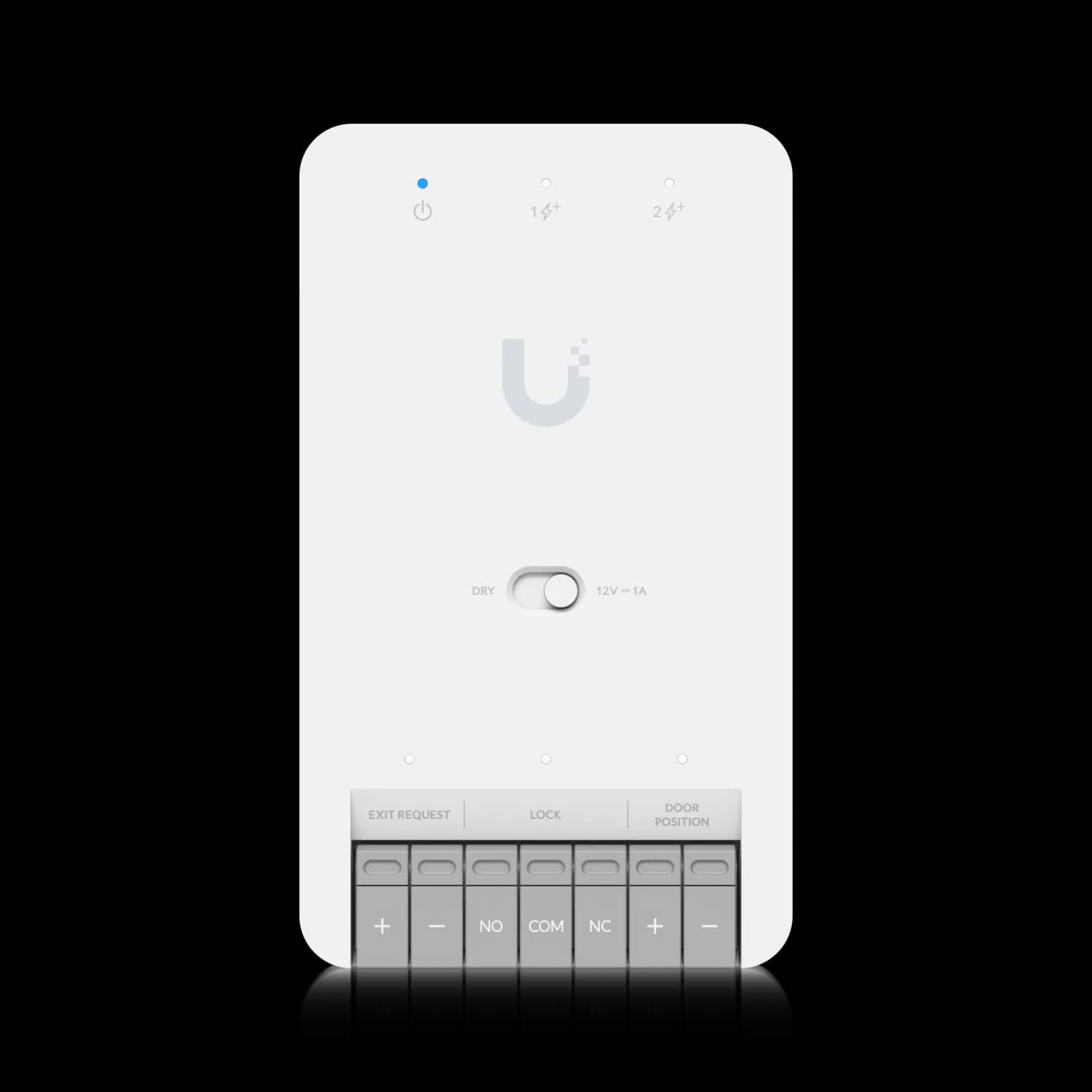

In the Box(1) Door Hub Mini (1) G3 Reader (2) Pocket Keyfobs
Touch Pass10 free 1-year Touch Passes included Learn More
Dimensions113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")
Supported Doors1
Maximum User Count3,000
All specifications (66)
Input Terminals(1) Door Exit Request (1) Door Position
Power MethodPoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Weight190 g (6.7 oz)
Enclosure MaterialPolycarbonate, metal
MountingDIN-rail (Included)
Networking Interface(3) GbE RJ45 ports
PoE Interface(1) PoE++ input, 50V DC, 1A (2) PoE outputs, 50V DC, 30W per port (Max 45W aggregated)
Max. Power Consumption19W (Without PoE output) 50W (With PoE output)
Digital InputRequest to exit, door position sensor
Dry Output Relay30V DC, 1A
Wet Output Relay12V DC, 1A
LEDsB/W Learn More
Button(1) Factory reset (1) Dry/Wet switch
UA-Lock-Electric (400mA)24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
UA-Lock-Magnetic-270kg (800mA)24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 LevelDestructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity5 to 90% noncondensing
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Management ApplicationUniFi Access
Software InformationThe software version can be checked at https://unifi.ui.com
Document number, and issue date and/or revision levelUA-Hub-Door-Mini, V01
Resolution12 MP (3072 × 4096)
Field of ViewH: 98.6°, V: 125.7°, D: 157.8°
Dimensions93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")
WeatherproofingIP55
Weight82 g (2.9 oz)
Enclosure MaterialPolycarbonate, glass
Mount MaterialAluminum alloy
MountingIn-wall, gang box (Included) Junction box (Optional)
Networking Interface(1) 10/100 MbE RJ45 port
ConnectivityBLE 4.1 NFC
Power MethodPoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption5W
Supported Voltage Range48V DC
ESD/EMP ProtectionAir: ± 15kV, contact: ± 8kV
SensorsProximity sensor
Speaker(1) Yes, 0.7W
LEDsR/G/B/W Learn More
Button(1) Factory reset
NFC Frequency13.56 MHz
NFC Read Range< 30 mm (1.18'')
NFC TechnologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
Ambient Operating Temperature-30 to 45° C (-22 to 113° F)
Document number, and issue date and/or revision levelUA-G3, V01
Dimensions84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29")
Weight16 g (0.56 oz)
Enclosure MaterialPolycarbonate, stainless steel, silicone rubber
WeatherproofingIP54
Ambient Operating Humidity10 to 90% noncondensing
Ambient Operating Temperature-10 to 45° C (14 to 113° F)
NFC TechnologyISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol
CertificationCE
DownloadsSpecifications, manuals and product documents
