Dream Router 7
Image 1 of 5Product view
Professional-grade equipment · Installation available
Ubiquiti · Ubiquiti gateway and switchingRead customer reviews

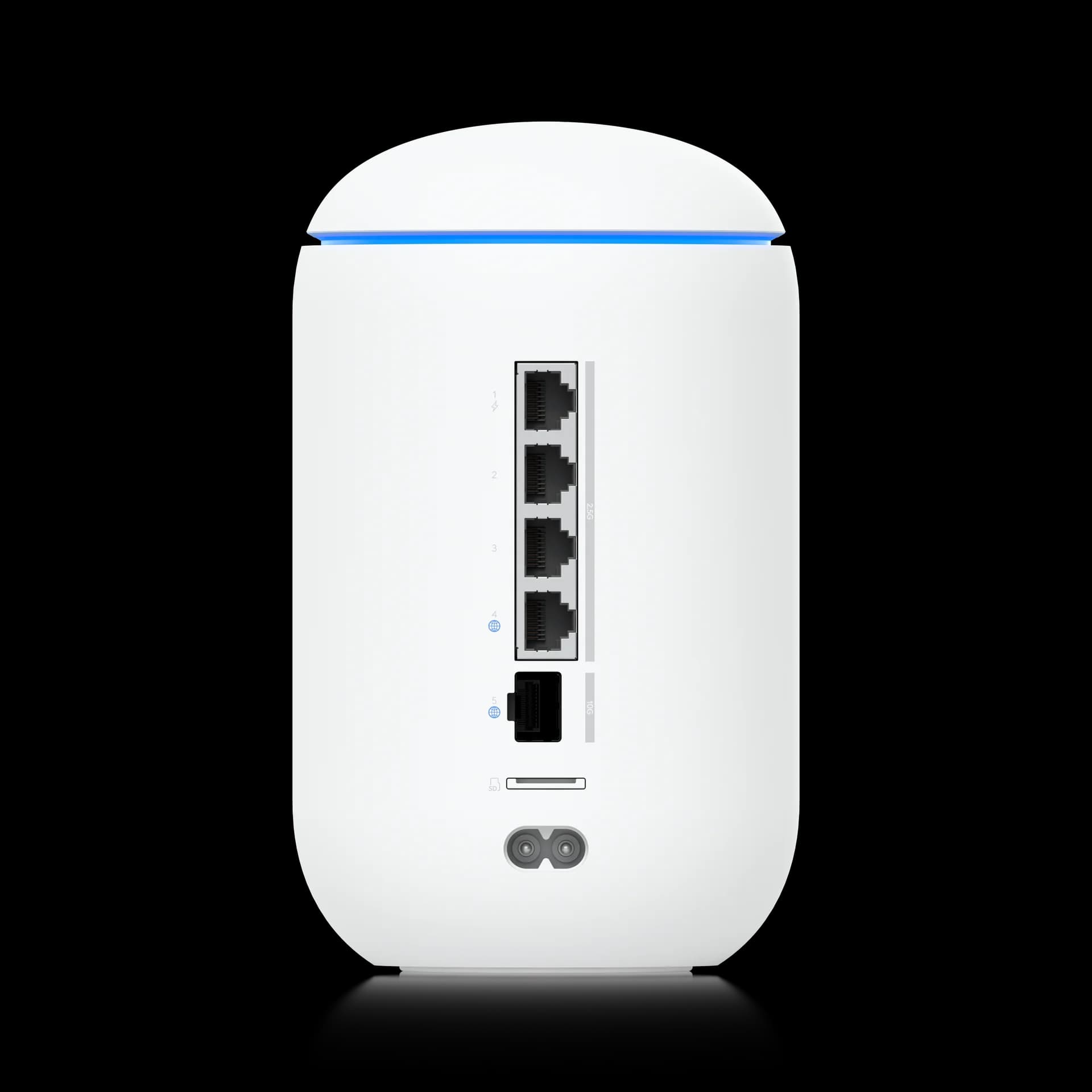

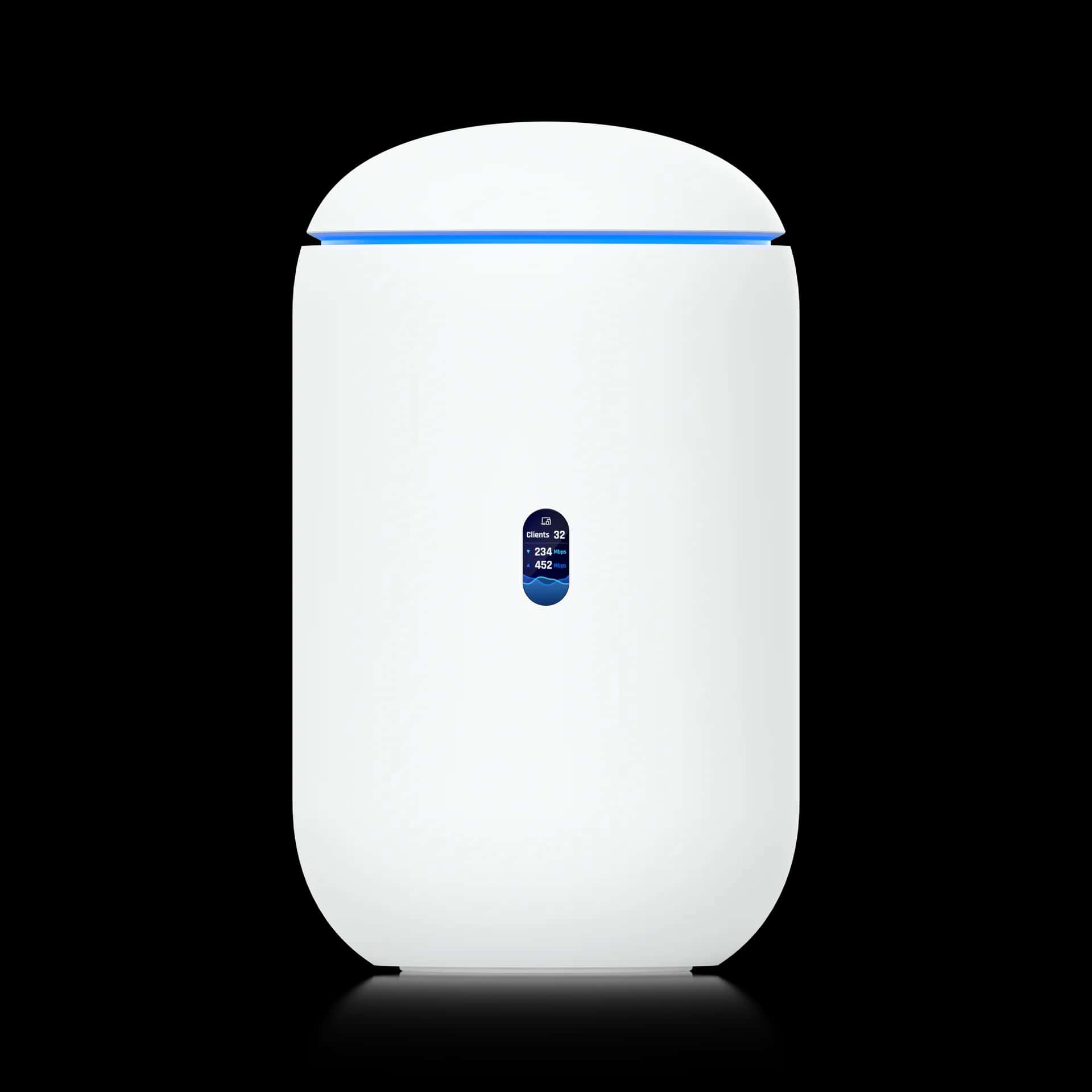

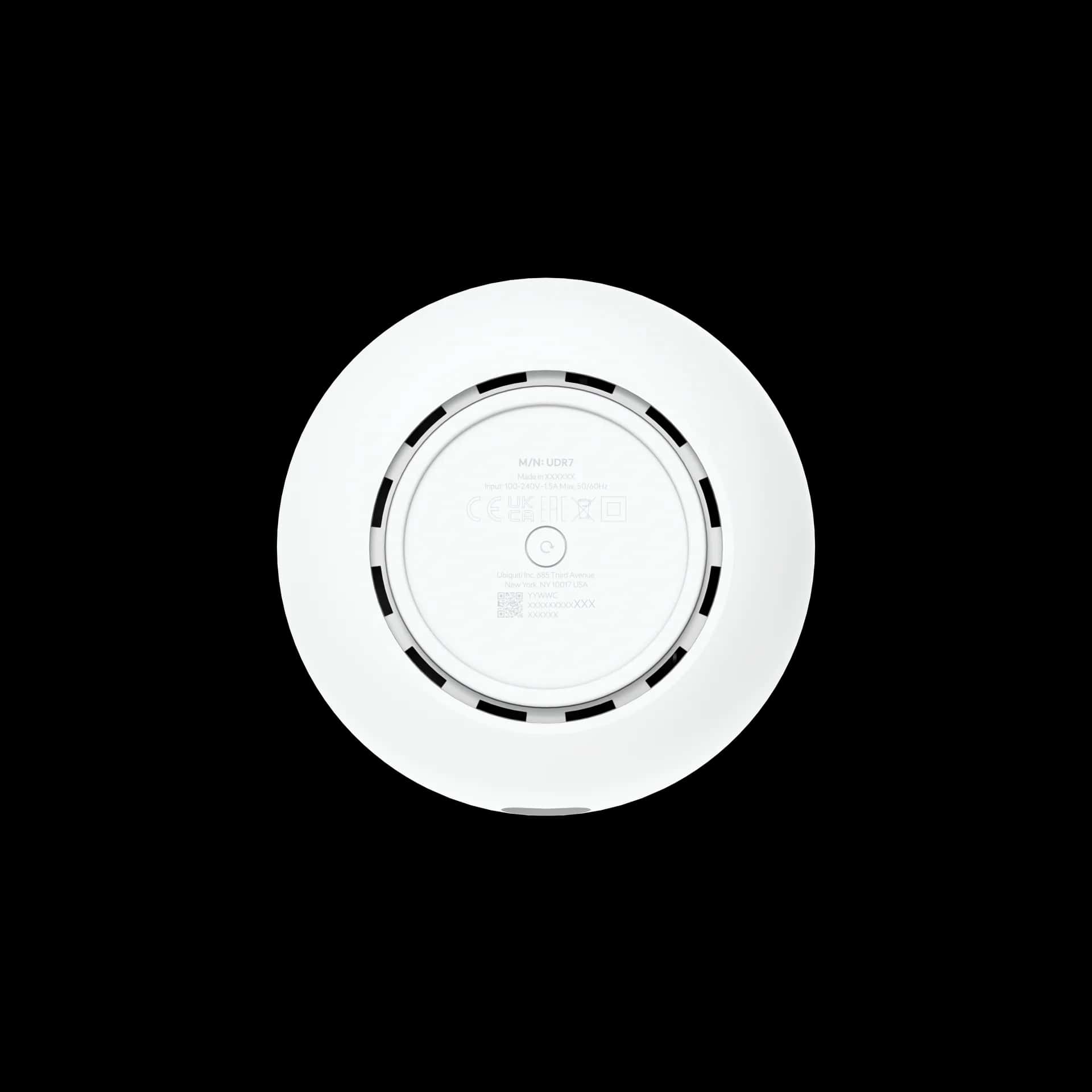

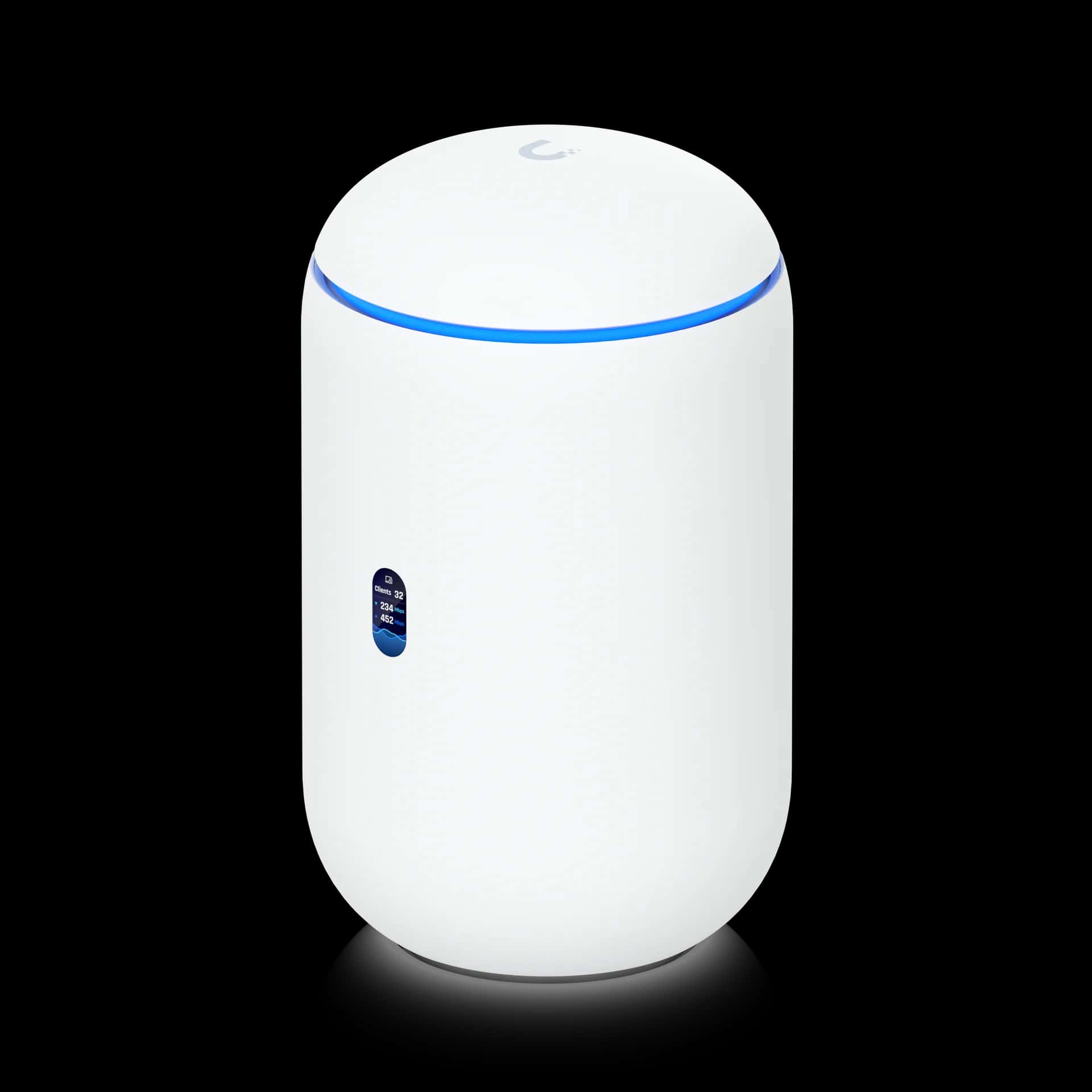

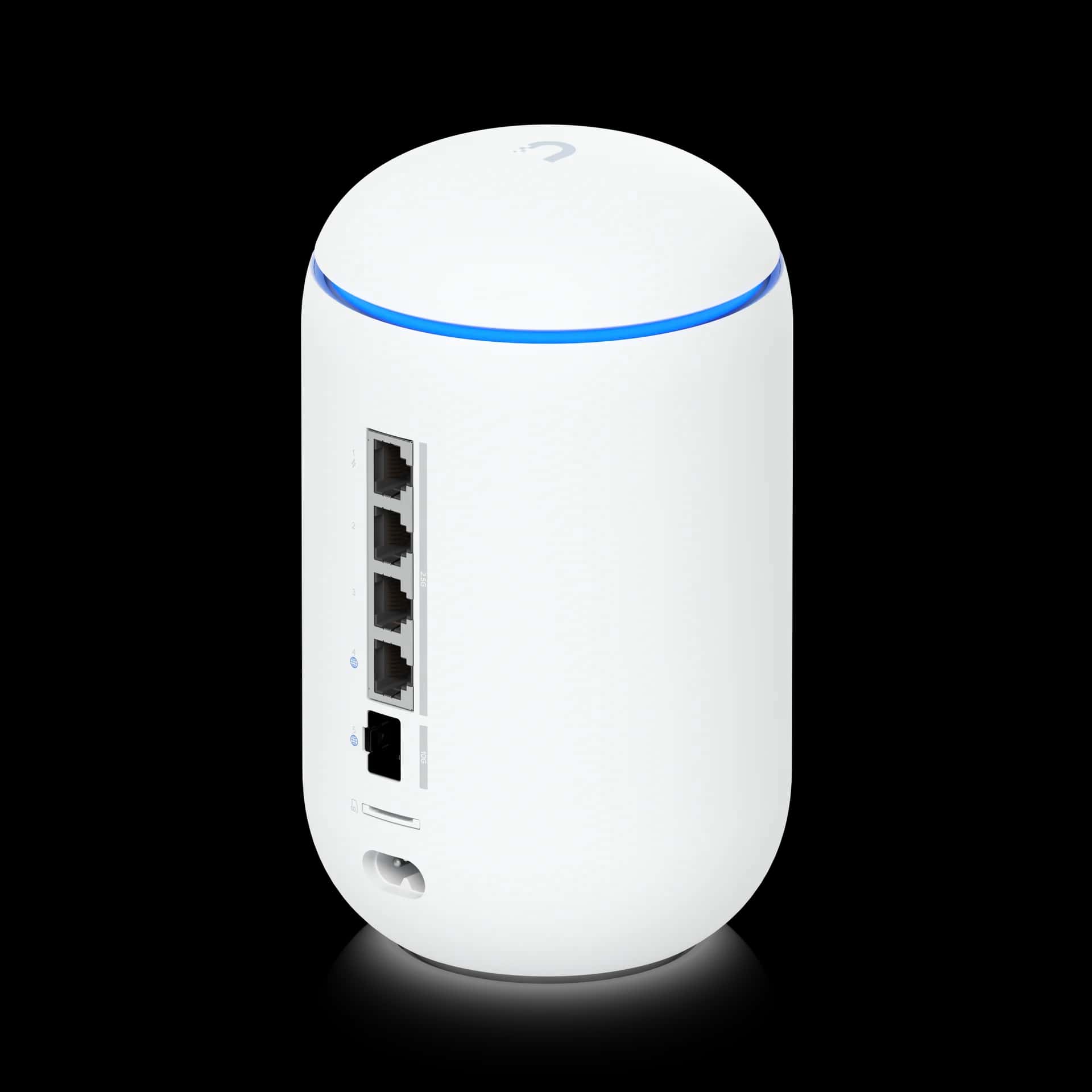

Dream Router 7
ModelUDR7 (15W)Sold as1 unit
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
Top highlights
- Integrated 6-stream WiFi 7 AP with 6 GHz support
- Includes full UniFi application suite for device management
- Manages 30+ UniFi devices and 300+ clients
See more highlights
- Integrated 4-port switch with (1) PoE port
- (1) 10G SFP+ and (1) 2.5 GbE RJ45 WAN port
- 64 GB microSD storage pre-installed (upgradable)
Product detailsOverview, features and technical specifications
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
At a glance
| Highlight 1 | Integrated 6-stream WiFi 7 AP with 6 GHz support |
|---|---|
| Highlight 2 | Includes full UniFi application suite for device management |
| Highlight 3 | Manages 30+ UniFi devices and 300+ clients |
| Highlight 4 | Integrated 4-port switch with (1) PoE port |
More highlights
| Highlight 5 | (1) 10G SFP+ and (1) 2.5 GbE RJ45 WAN port |
|---|---|
| Highlight 6 | 64 GB microSD storage pre-installed (upgradable) |
Specifications
| Brand | Ubiquiti |
|---|---|
| Manufacturer model | UDR7 (15W) |
| Installation | Quoted separately |
| IDS/IPS | 2.3 Gbps |
| Max. Client Count | 300 |
| IDS/IPS Throughput | 2.3 Gbps |
| Dimensions | ⌀110 x 184.1 mm (⌀4.3 x 7.3") |
| Managed UniFi Devices | 30+ |
All specifications (63)
| Managed Cameras | (5) HD (2) 2K (1) 4K |
|---|---|
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 10G SFP+ (1) 2.5 GbE RJ45 |
| 2.5 GbE RJ45 | 4 (1 PoE) (2.5G/1G/100M/10M) |
| 10G SFP+ | 1 (10G/1G) |
| Form Factor | Compact desktop |
| Coverage Area | 160 m² (1,750 ft²) |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
| MAC Address Table Size | 2,000 |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| 6 GHz | 5.7 Gbps |
| 5 GHz | 4.3 Gbps |
| 2.4 GHz | 688 Mbps |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 6 dBi |
| 5 GHz | 7 dBi |
| 2.4 GHz | 5 dBi |
| 6 GHz | 24 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| NVR Storage | Pre-installed 64GB microSD for NVR |
| Expansion Slot | MicroSD Card |
| PoE Budget | 15.4W |
| PoE | 15.4W |
| Voltage Range PoE Mode | 44-57V |
| Max. Power Consumption | 26W (Excluding PoE output) |
| Power Method | Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 50W |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 89 BTU/hr (Excluding PoE Output) |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 1.1 kg (2.4 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 05650-25-08356 |
| VLAN | 802.1Q |
| UniFi Network | Version 9.0.108 and later |
