Ubiquiti · Door access control

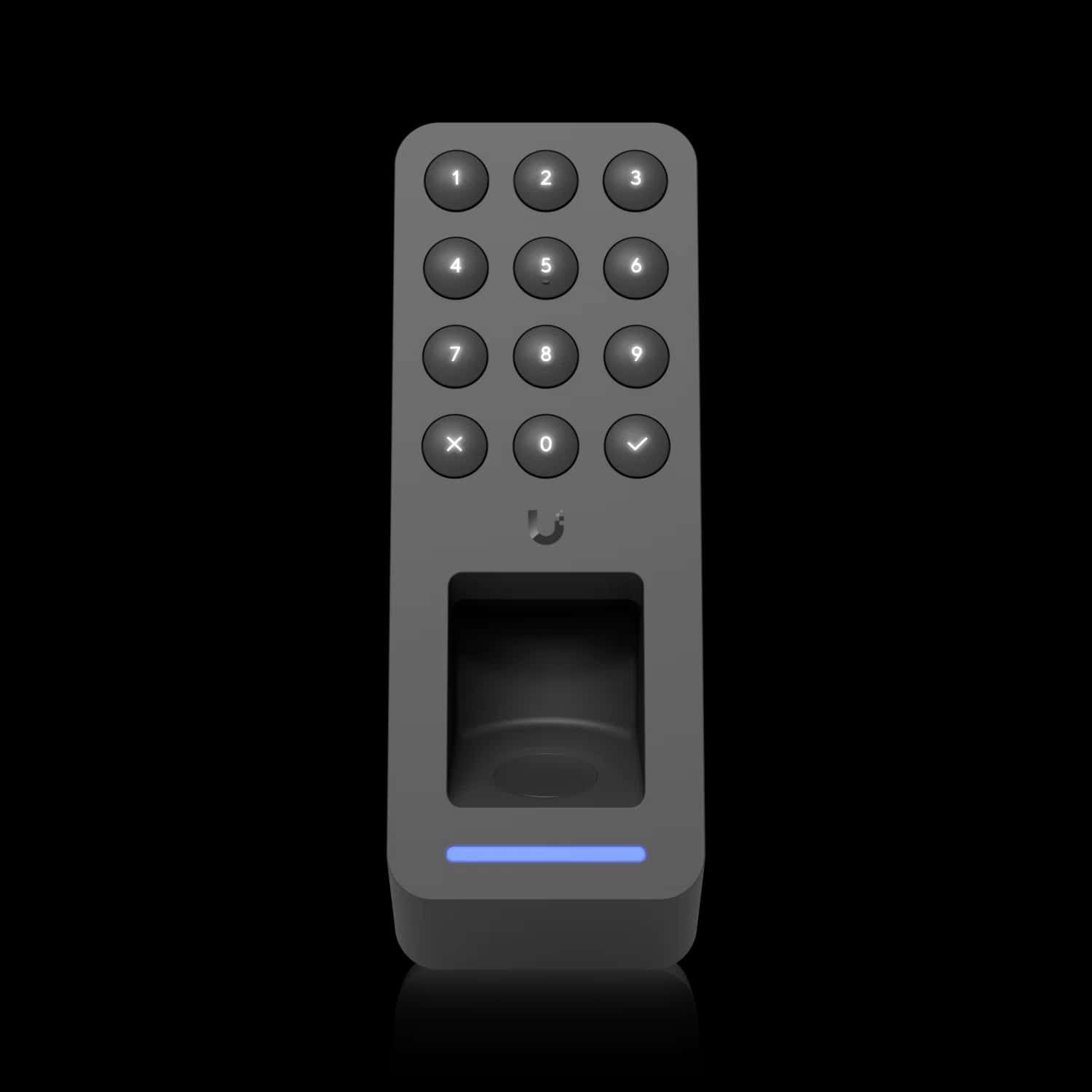

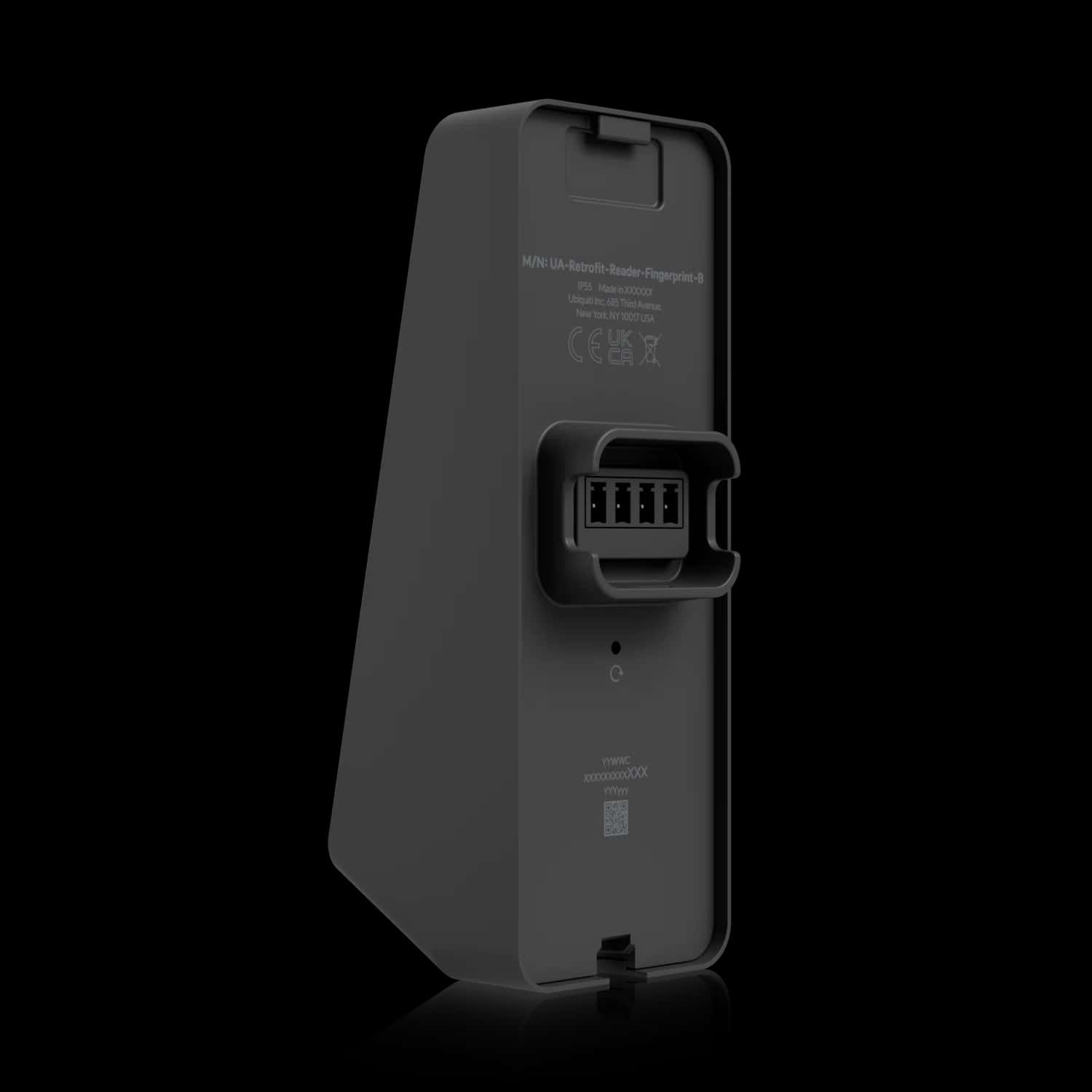

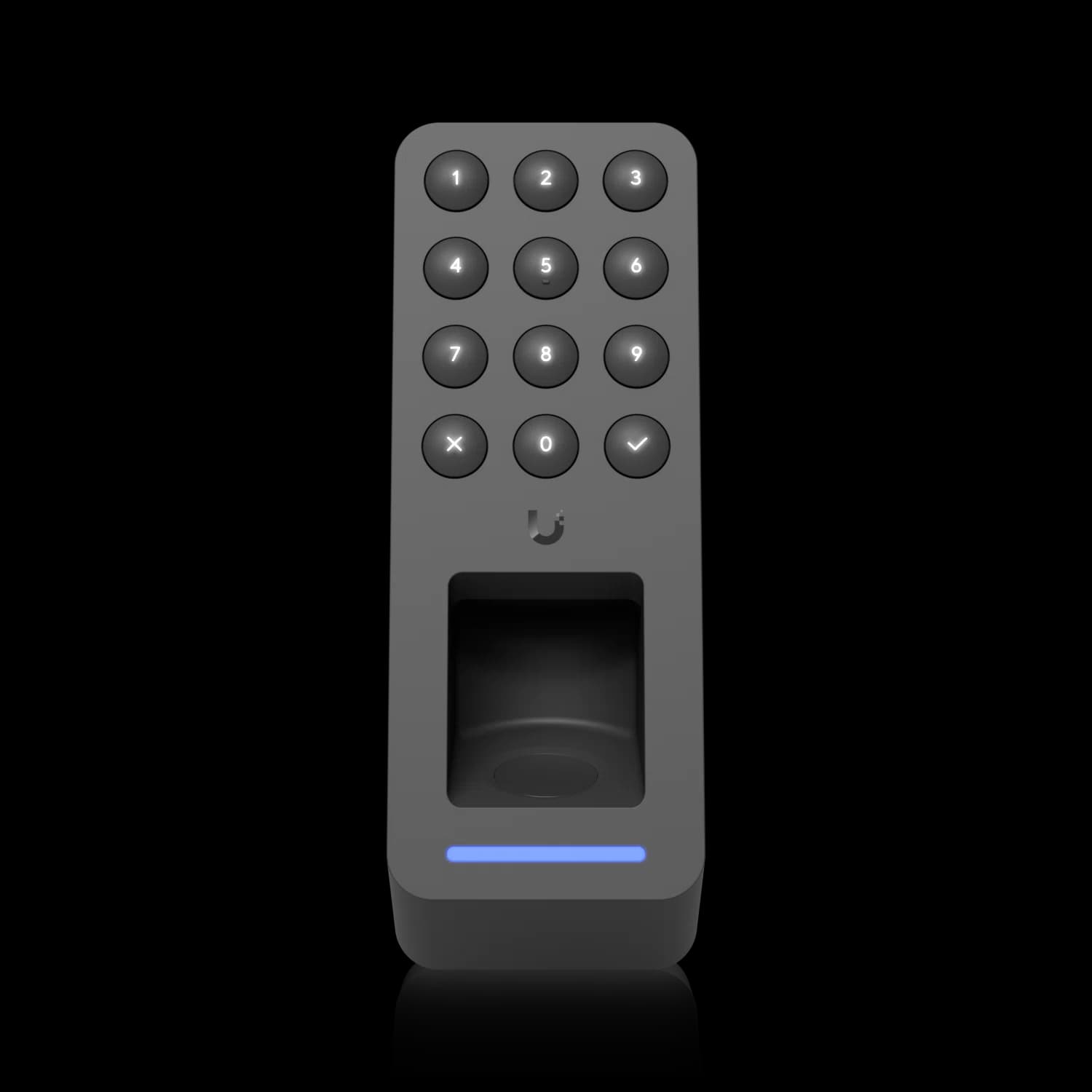

Access Retrofit Reader Fingerprint

Image 1 of 5Product view

Professional-grade equipment · Installation available
Ubiquiti · Door access control

Access Retrofit Reader Fingerprint

Read customer reviews
ModelUA-Retrofit-Reader-FingerprintSold as1 unit

Indoor/outdoor OSDP reader with fingerprint, keypad and Touch Pass support, compatible with the UniFi Retrofit Hub using existing cabling. Requires UniFi OS 6.0 RC Note . 10 free 1-year Touch Passes included. Learn more .

Top highlights

Product detailsOverview, features and technical specifications

Indoor/outdoor OSDP reader with fingerprint, keypad and Touch Pass support, compatible with the UniFi Retrofit Hub using existing cabling. Requires UniFi OS 6.0 RC Note . 10 free 1-year Touch Passes included. Learn more .

At a glance

Highlight 1Equipment only; installation is quoted separately
Highlight 2Select the required configuration before ordering
Access Retrofit Reader Fingerprint
Access Retrofit Reader Fingerprint

Specifications

BrandUbiquiti
Manufacturer modelUA-Retrofit-Reader-Fingerprint
InstallationQuoted separately
AppleTouch Pass
NFCNFC
Physical UnlockKeypad Unlock
WeatherproofOutdoor Exposed
Dimensions126.2 x 45 x 49 mm (5 x 1.8 x 1.9")
All specifications (33)
UniFi Application SuiteAccess
Fingerprint Capacity300
WeatherproofingIP55
Weight142 g (5 oz)
Enclosure MaterialPolycarbonate, aluminum alloy
Mount MaterialSteel
MountingWall, gang-box mount (Included) Junction box (Optional)
Indoor and Outdoor UseYes
ConnectivityRS-485 BLE 4.2 NFC
SecurityOSDP v2
Power Method12V DC
Max. Power Consumption3.5W
Supported Voltage Range12V DC
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
SensorsCapacitive Fingerprint
LEDsR/G/B/W Learn More
Button(1) Factory reset
NFC Frequency13.56 MHz
NFC Read Range< 30 mm (1.18'')
NFC TechnologyISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus Mifare Ultralight MIFARE DESFire
CertificationsCE, FCC, IC
Ambient Operating Temperature-30 to 50° C (-22 to 122° F)
Ambient Operating Humidity5 to 90% noncondensing
Management ApplicationAccess
Software InformationThe software version can be checked at https://unifi.ui.com
