G3 Gate Access Starter Kit

Name: Ubiquiti G3 Gate Access Starter Kit
Brand: Ubiquiti
SKU: UBNT-CATALOG-UA-G3-SK-GATE
Price: 1144.00 USD
Availability: InStock

Image 1 of 5Product view

Professional-grade equipment · Installation available

Ubiquiti · Door access control

G3 Gate Access Starter Kit

Read customer reviews

ModelUA-G3-SK-GateSold as1 unit

Starter kit with a Gate Hub, G3 Intercom, PoE++ adapter, and PoE++ over twisted pair extender for access control at a single gate with Touch Pass support. Note . 10 free 1-year Touch Passes included. Learn more . Access integration for G6 Series coming soon.

Top highlights

(1) Gate Hub
(1) G3 Intercom
(1) PoE++ adapter

See more highlights

(2) 2-wire PoE extenders
* Note . 10 free 1-year Touch Passes included. Click to learn more .

Product detailsOverview, features and technical specifications

At a glance

Highlight 1	(1) Gate Hub
Highlight 2	(1) G3 Intercom
Highlight 3	(1) PoE++ adapter
Highlight 4	(2) 2-wire PoE extenders

More highlights

Highlight 5	* Note . 10 free 1-year Touch Passes included. Click to learn more .

Specifications

Brand	Ubiquiti
Manufacturer model	UA-G3-SK-Gate
Installation	Quoted separately
In the Box	(1) Gate Hub (1) G3 Intercom (1) PoE++ adapter (2) 2-wire Retrofit Extenders
Touch Pass	10 free 1-year Touch Passes included Learn More
Dimensions	175 x 126 x 26 mm (6.9 x 5 x 1")
Supported Doors	1 gate, 1 side door
Maximum User Count	6,000

All specifications (105)

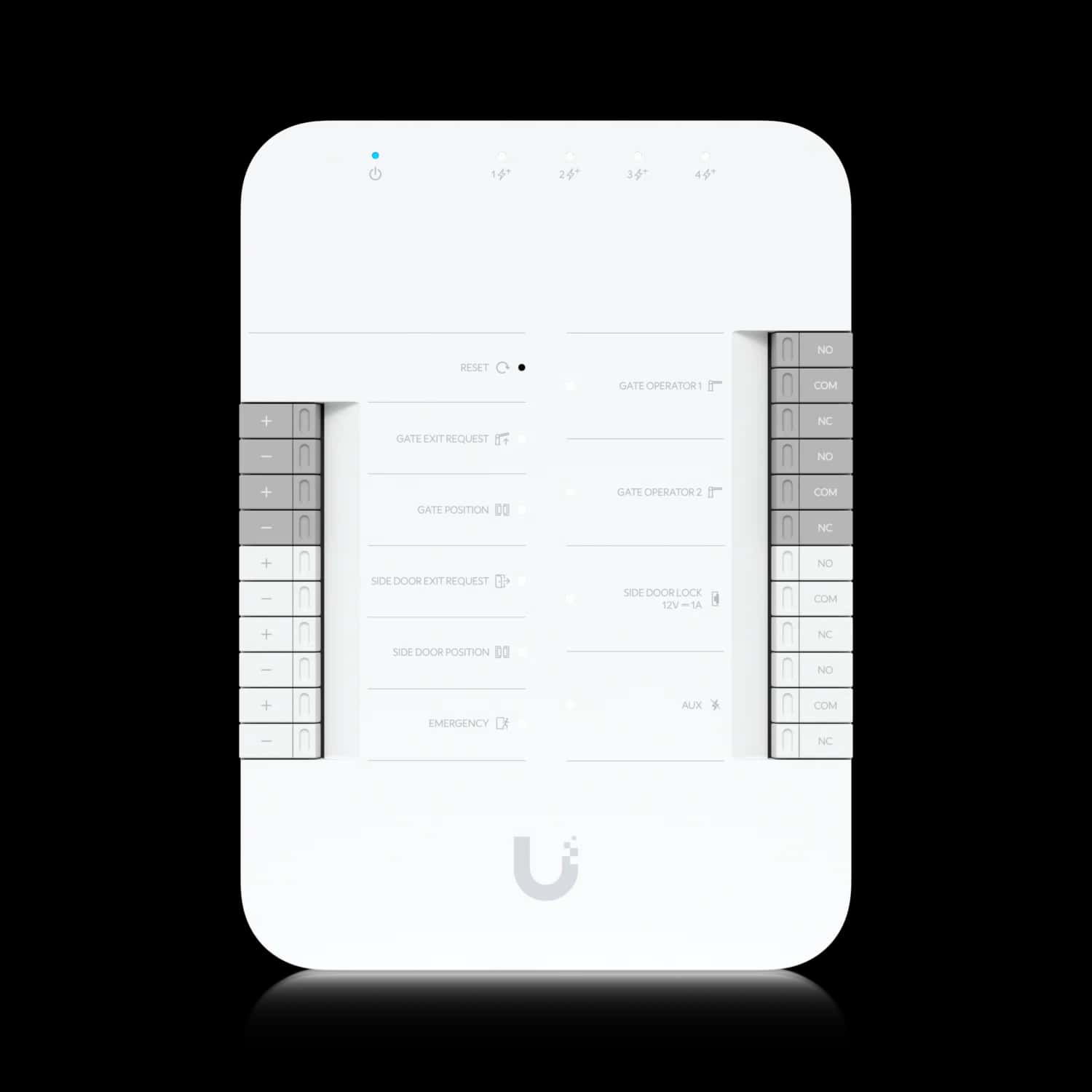

Input Terminals	(1) Gate exit request (1) Gate position (1) Side door exit (1) Side door position (1) Emergency
Power Method	PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Enclosure Material	Polycarbonate

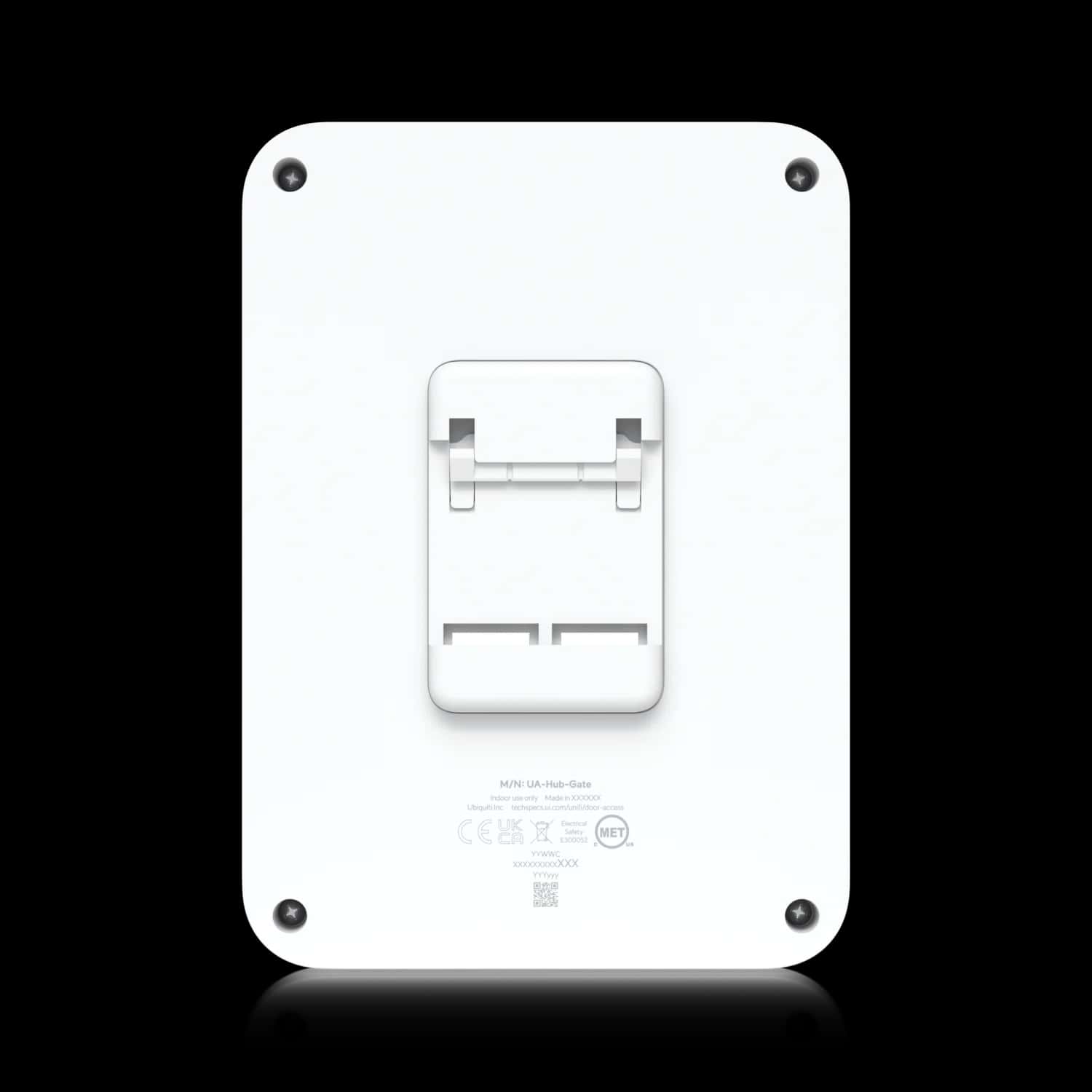

Mounting	DIN-rail (Included)
Weight	460 g (1 lb)
Indoor and Outdoor Use	Indoor only: device itself Outdoor: with waterproof junction box

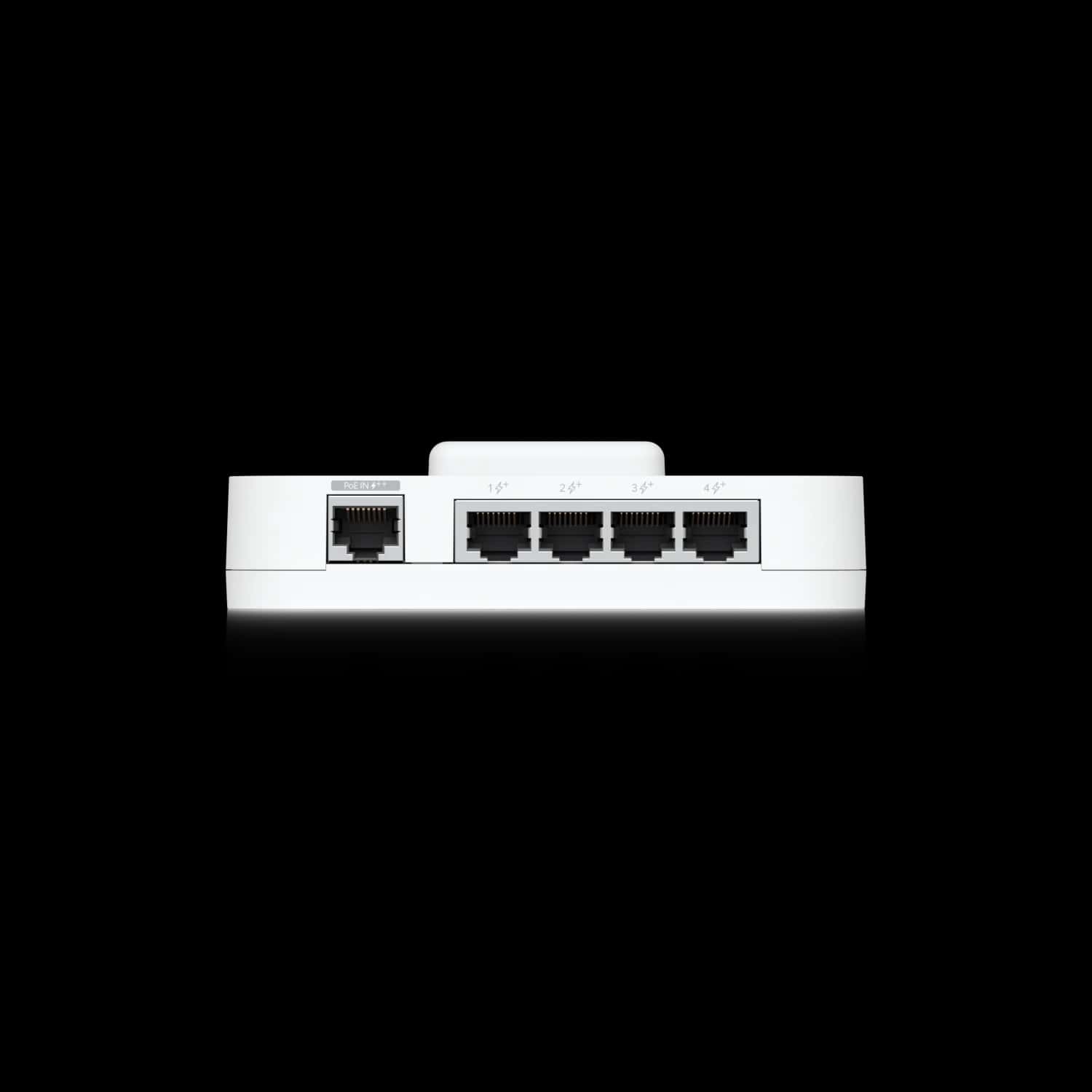

Networking Interface	(5) 10/100/1000 Base-T
PoE Interface	(1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 55W aggregated)
Max. Power Consumption	22W (Without PoE output) 60W (With PoE output)
Digital Input	Gate exit request, gate position, side door exit request, side door position, emergency
Dry Output Relay	(2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A
Powered Output Relay	Side door lock: 12V DC, up to 1A
LEDs	W/B Learn More
Button	(1) Factory reset
UA-Lock-Electric (400mA)	24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
UA-Lock-Magnetic-540kg (500mA)	24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)	24 AWG length: 12 m (39 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
Other locks (1A)	24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
UL 294 Statement	Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade	Grade assignment: I
Ambient Operating Humidity	5 to 90% noncondensing
Ambient Operating Temperature	-30 to 60° C (-22 to 140° F)
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	UA-Hub-Gate, V01
Management Application	UniFi Access
Software Information	The software version can be checked at https://unifi.ui.com
Dimensions	324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
Weatherproofing	IP65
Weight	Device: 965 g (2.1 lb) Bracket: 445 g (1 lb)
Enclosure Material	Aluminum alloy, UV-stabilized polycarbonate, glass
Mount Material	Powder-coated stainless steel
Mounting	Wall mount, adapter to the gooseneck pedestal (Included) Surface angle, flush mount, sunshield kit (Optional)
Networking Interface	(1) GbE RJ45 port
Connectivity	BLE 4.2 NFC
Power Method	PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption	13W
Supported Voltage Range	48V DC
Max. Frame Rate	30 FPS
Resolution	2MP 1200 x 1600 (3:4)
Resolution	8 MP (2448 × 3264)
Field of View	H: 79.4°, V: 97.5°, D: 118.2°
Sensors	Proximity sensor ALS sensor
Luminance	Max. 1000 nits (Typical)
Resolution	1024 x 600 px
Screen Technology	Capacitive multi-touch
Size	177 mm (7") diagonal
Speaker	(1) Yes, 2W
NFC Frequency	13.56 MHz
NFC Read Range	< 30 mm (1.18'')
NFC Technology	ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
LEDs	Amber Learn More
Buttons	(1) Factory reset
Ambient Operating Temperature	Device: -30 to 60° C (-22 to 140° F) Display: -25 to 60° C (-13 to 140° F)
Document number, and issue date and/or revision level	UA-G3-Intercom, V01
Dimensions	PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1") Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2")
Weight	PoE in: 77 g (2.7 oz) PoE out: 79 g (2.8 oz) Adapter: 140 g (4.9 oz)
Mount Material	Polycarbonate
Coaxial Connector	BNC female
Networking Interface	(1) 10/100 MbE (1) Homeplug AV
Power Method	PoE++
PoE Interface	PoE in: (1) PoE++, 50V DC, 1.2A PoE out: (1) PoE+, 48V DC, 0.6A
Max. Power Consumption	3W (Without PoE output)
ESD/EMP Protection	Air: ± 8kV, contact: ± 4kV
LEDs	White
Ambient Operating Temperature	-10 to 40° C (14 to 104° F)
Certifications	CE, FCC, IC
Model	U-PoE++
Dimensions	106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight	210 g (7.4 oz)
Output Voltage	48V DC @ 1.25A
Rated Voltage	100–240V AC at 50/60Hz
Input Current	1.3A @ 120V AC 0.75A @ 230V AC
Inrush Current	<100A peak @ 120V AC <200A peak @ 230V AC
Efficiency	85+%
Output Ripple	1% max.
Switching Frequency	65 kHz
Line Regulation	≤ 1%
Load Regulation	≤ 3%
4-pair Powering	Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC Connector	IEC-320 C6
Data In / PoE	RJ45 shielded socket
Surge Protection	Difference and common mode
Clamping Protection	11V data, 60V power
Max. Surge Discharge	1500A (8/20 μs) power
Peak Pulse Current	36A (10/1000 μs) data
Shunt Capacitance	<5 pF data
Response Time	<1 ns
Power Method	Universal AC input, 100–240V AC, 50/60 Hz
Power Supply	AC/DC
Supported Voltage Range	100–240V AC
Max. PoE+ Wattage per Port by PSE	60W
Ambient Storage Temperature	-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	10 to 95% noncondensing
Certifications	CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
